The SPHN RDF Schema

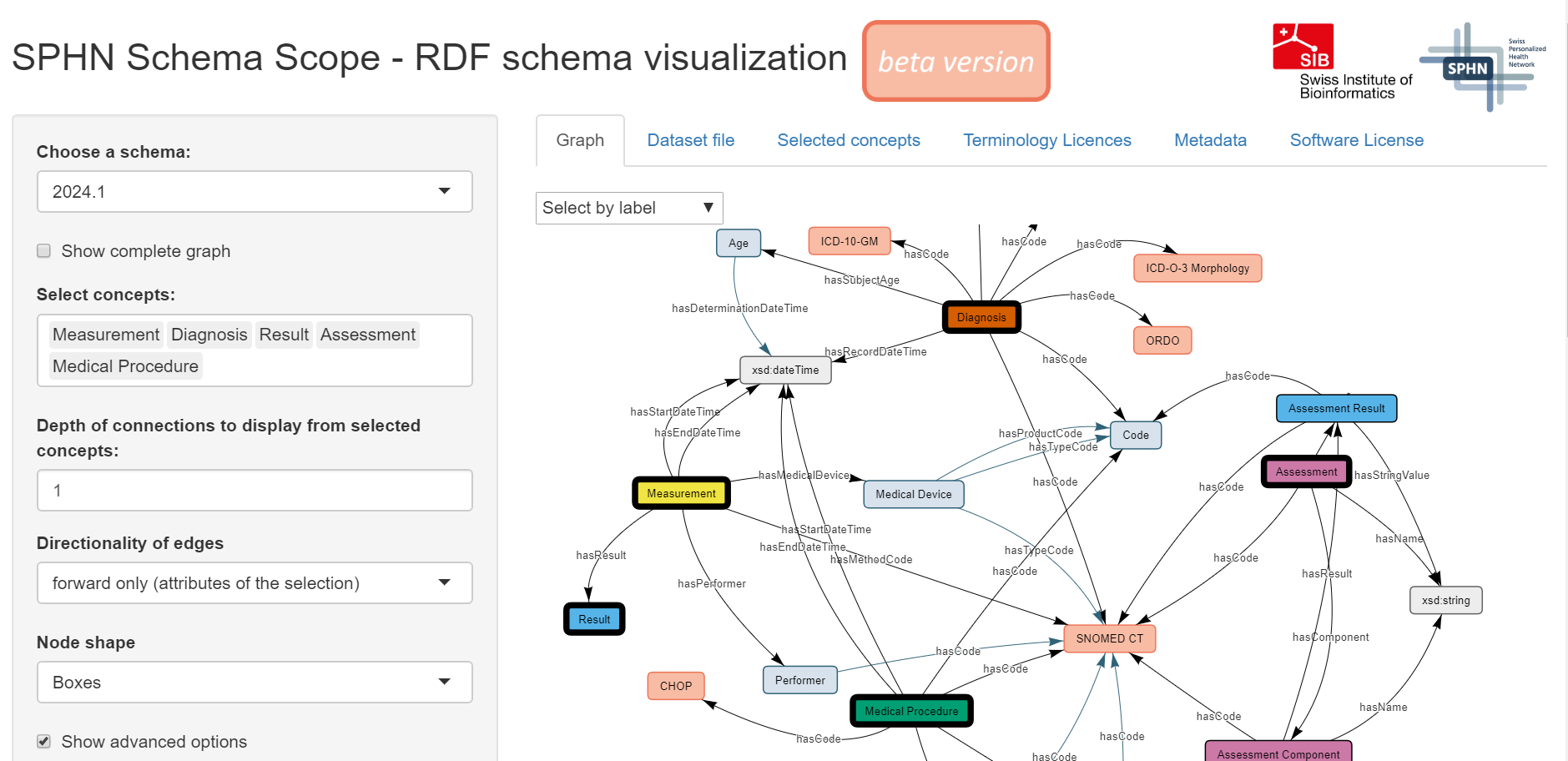

URI	`https://schemascope.dcc.sib.swiss/`
Description	Interactive tool to inspect the RDF Schema and its properties. Please note that not all details are included, consult pyLODE for full details of individual concepts.
Preview

Classes ↑

Access Device
Access Device Presence
Administrative Case
Administrative Sex
Adverse Event
Age
Allergen
Allergy
Allergy Episode
Antimicrobial Susceptibility Lab Test
Antimicrobial Susceptibility Lab Test Event
Antimicrobial Susceptibility Result
Assay

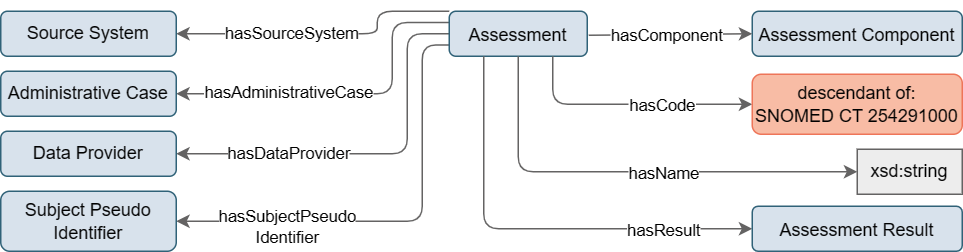

Assessment

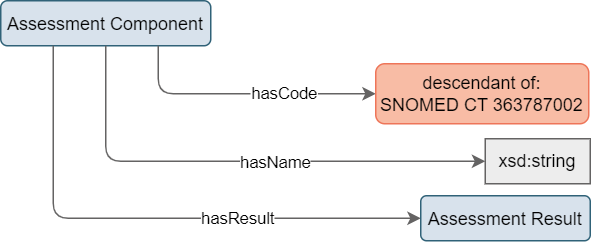

Assessment Component
Assessment Event
Assessment Result

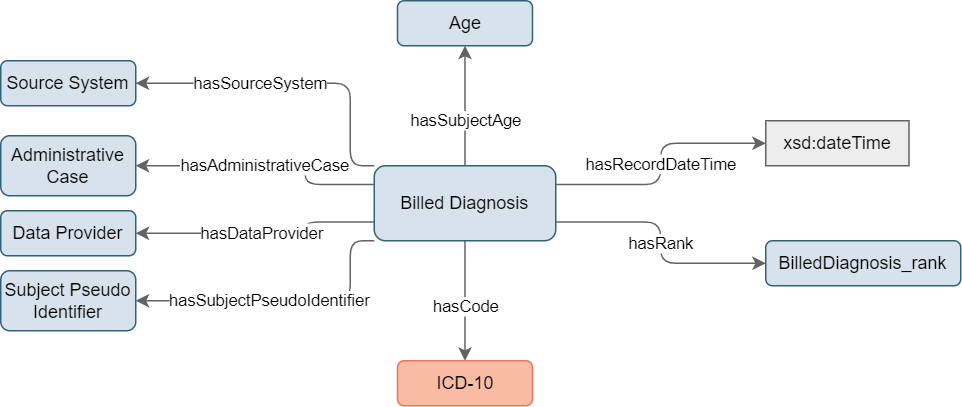

Billed Diagnosis
Billed Procedure
Biobanksample

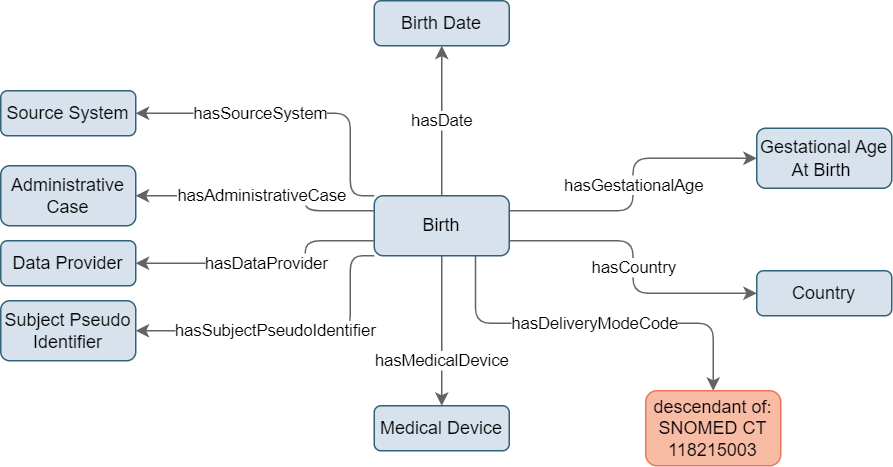

Birth
Birth Date

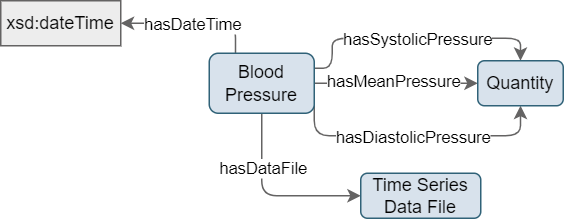

Blood Pressure
Blood Pressure Measurement
Body Height
Body Height Measurement
Body Mass Index
Body Position
Body Site

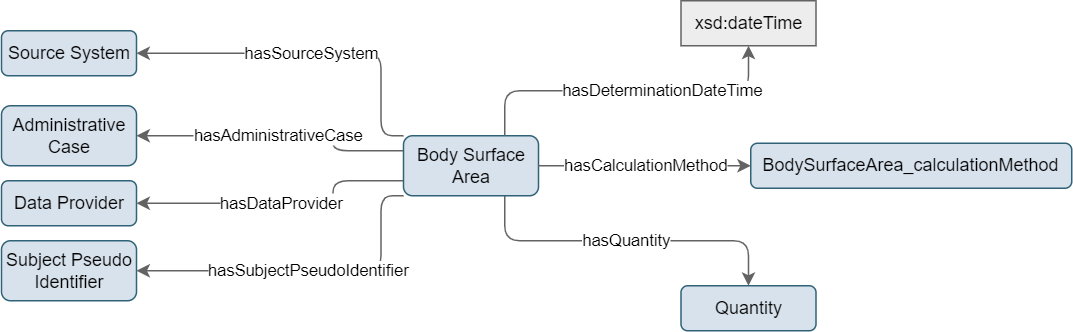

Body Surface Area

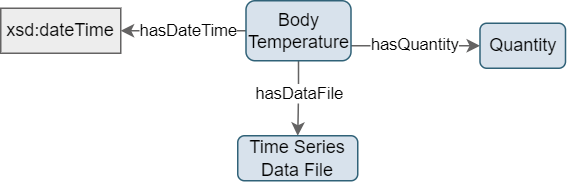

Body Temperature
Body Temperature Measurement

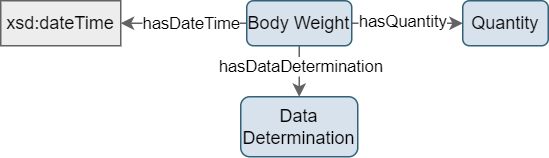

Body Weight
Body Weight Measurement

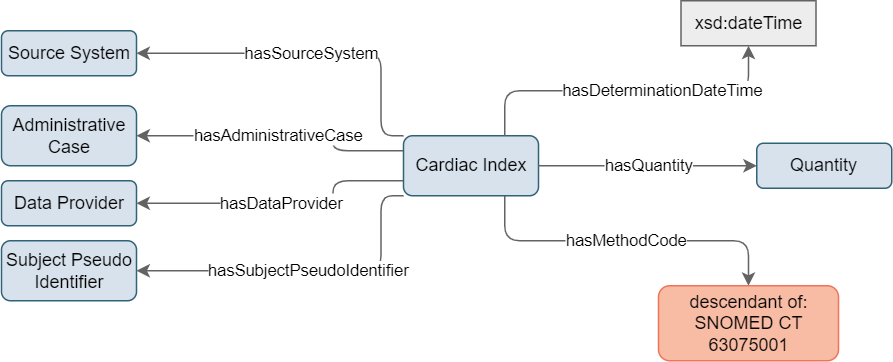

Cardiac Index
Cardiac Output

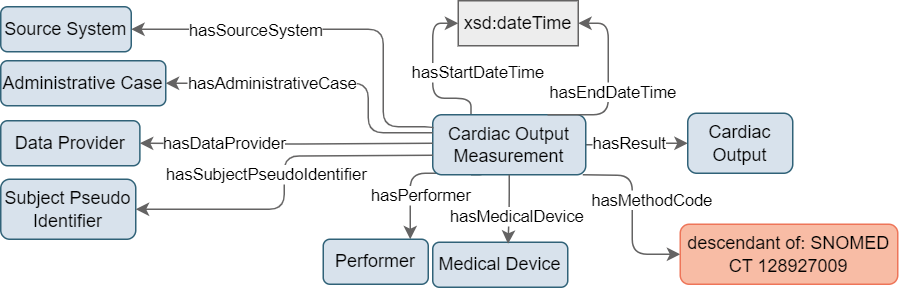

Cardiac Output Measurement

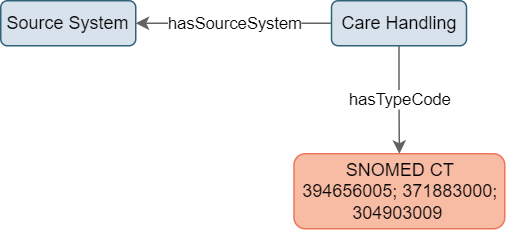

Care Handling

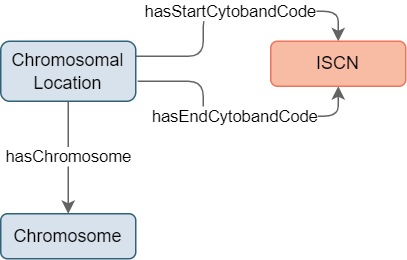

Chromosomal Location
Chromosome
Circumference
Circumference Measurement

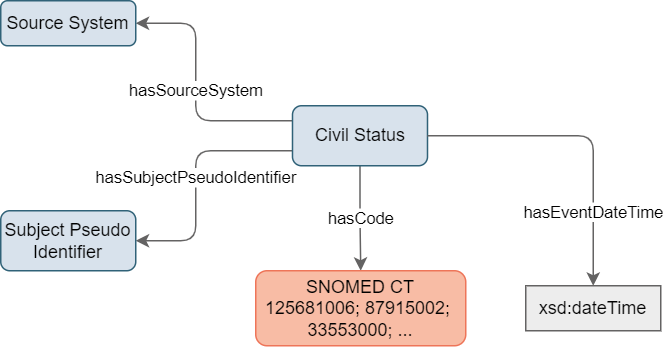

Civil Status
Code
Consent
Copy Number Variation
Country
Data Determination

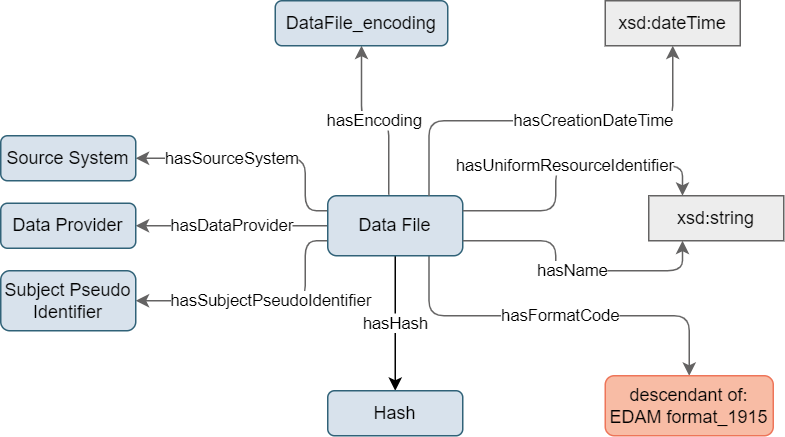

Data File
Data Processing

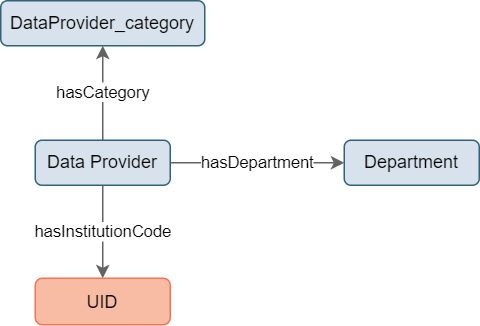

Data Provider
Data Release

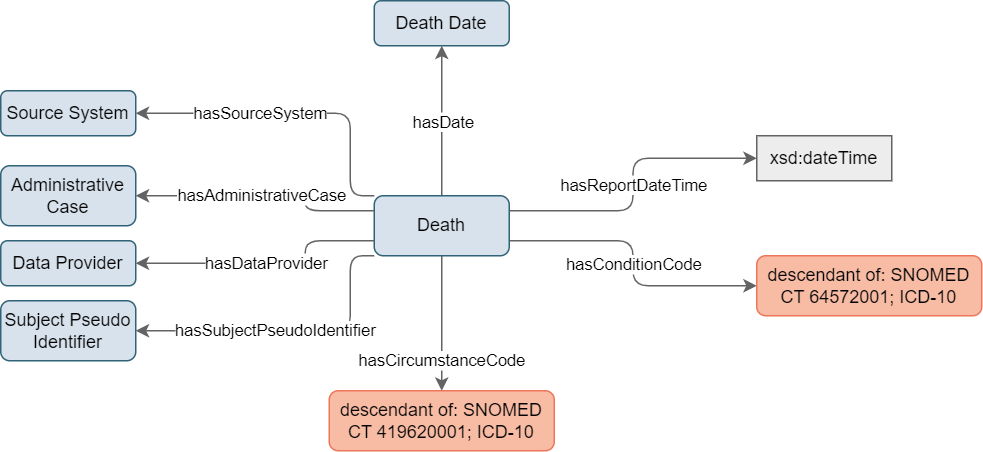

Death
Death Date
Department

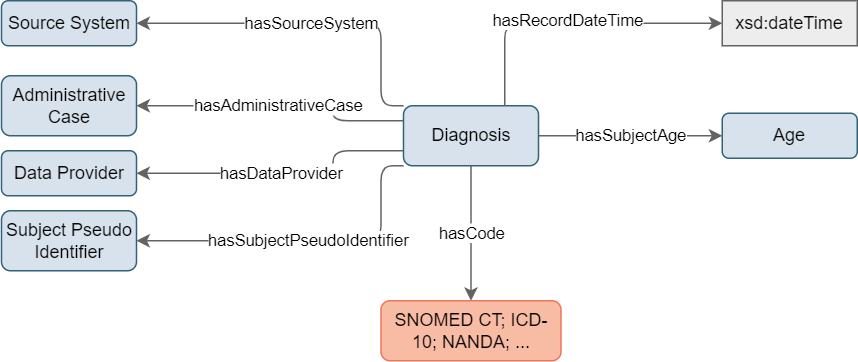

Diagnosis
Drug

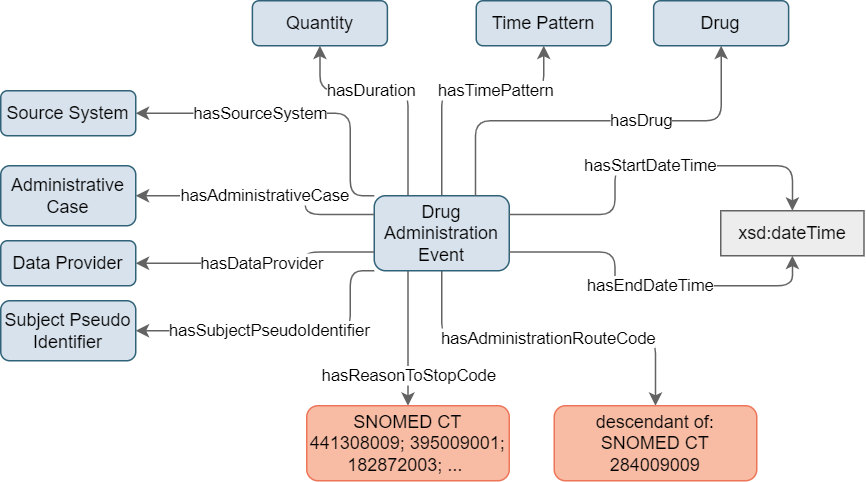

Drug Administration Event

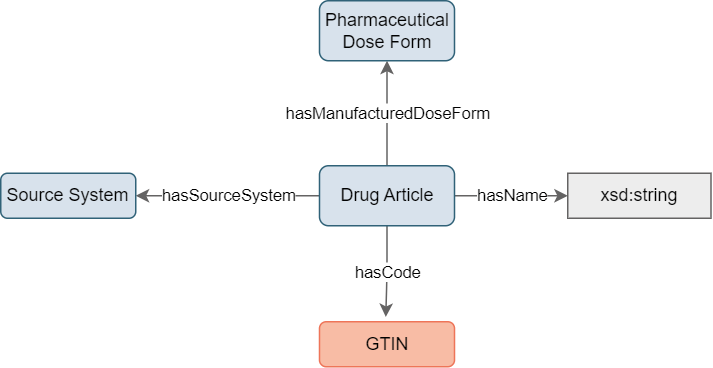

Drug Article

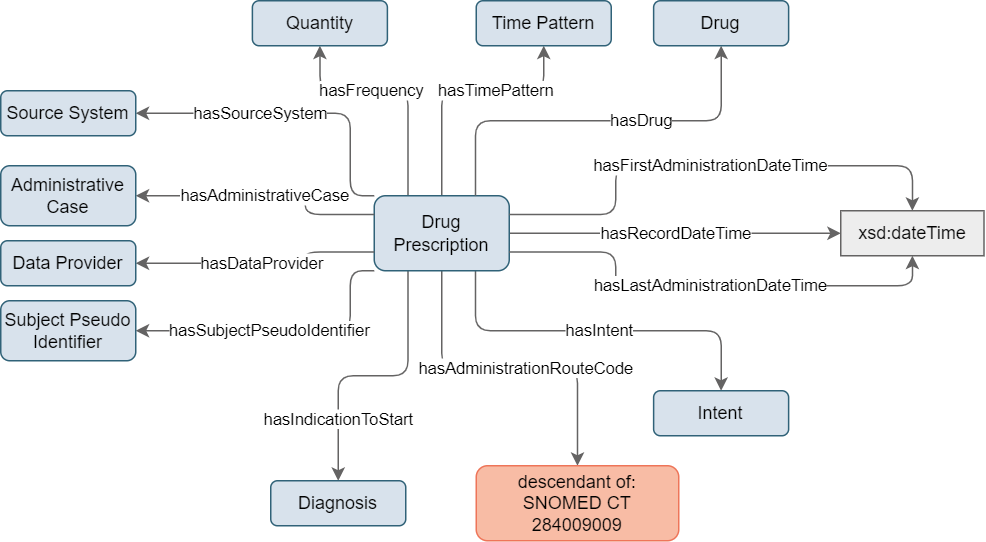

Drug Prescription
Electrocardiogram
Electrocardiographic Procedure
Excluded Disorder

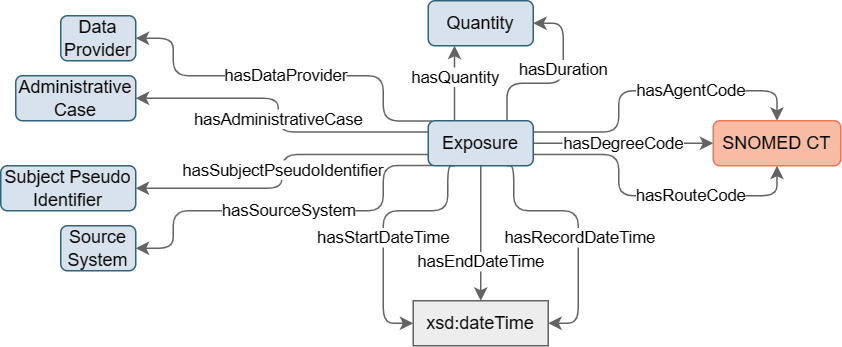

Exposure
Fluid Balance
Fluid Input Output
Follow Up

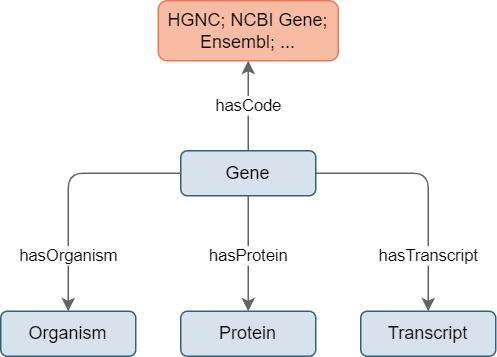

Gene
Gene Panel
Genetic Variation
Genomic Deletion
Genomic Insertion
Genomic Position

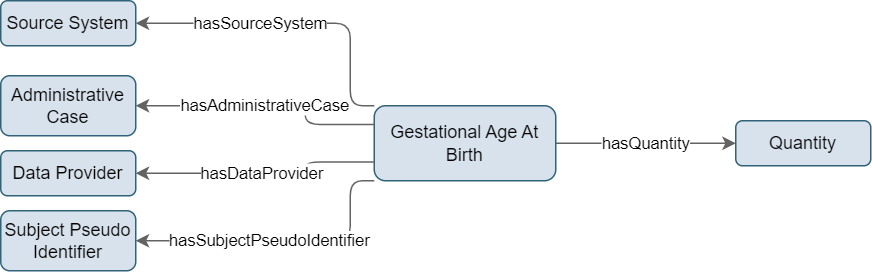

Gestational Age At Birth
Hash
Healthcare Encounter

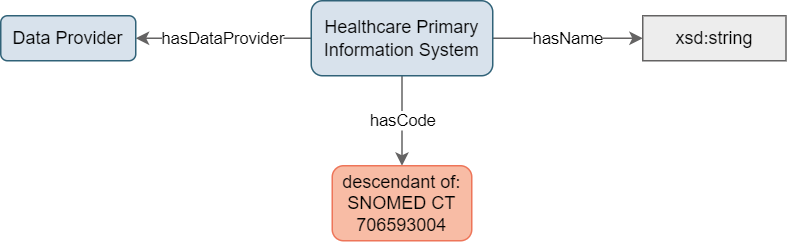

Healthcare Primary Information System
Heart Rate

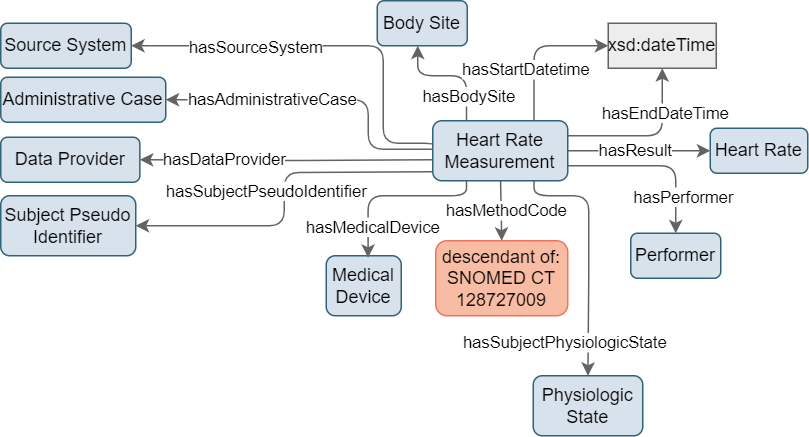

Heart Rate Measurement

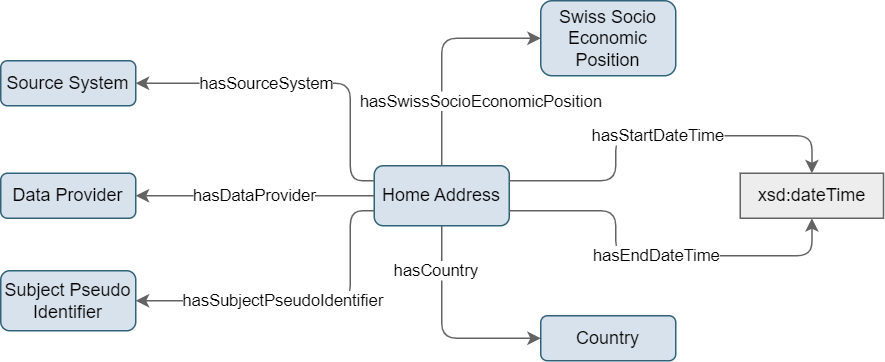

Home Address
Imaging Procedure

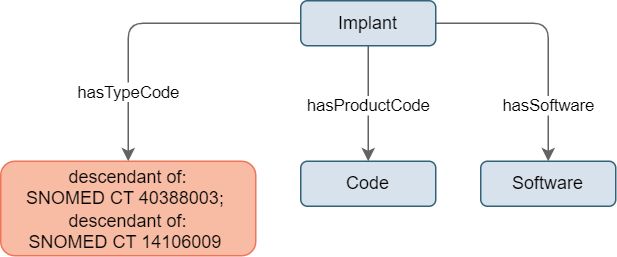

Implant

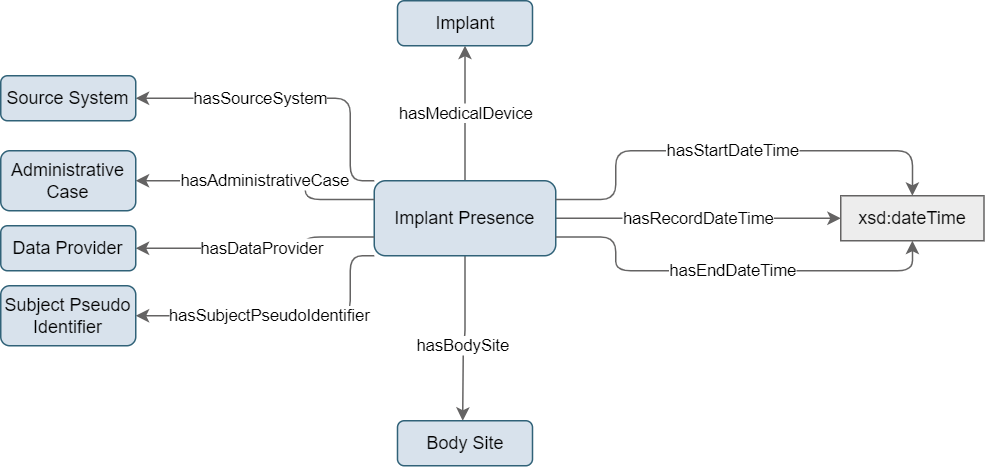

Implant Presence

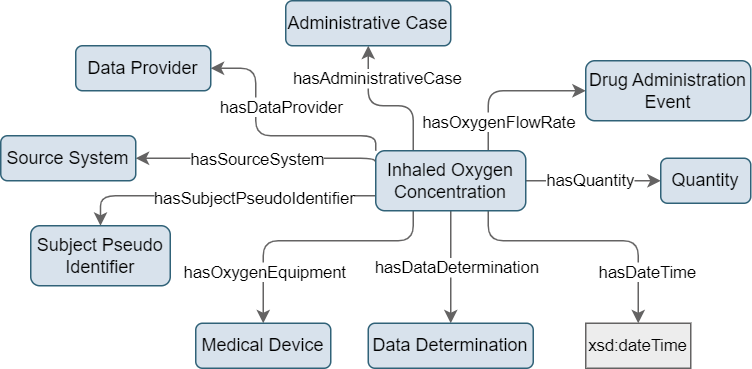

Inhaled Oxygen Concentration
Insurance Status
Intent

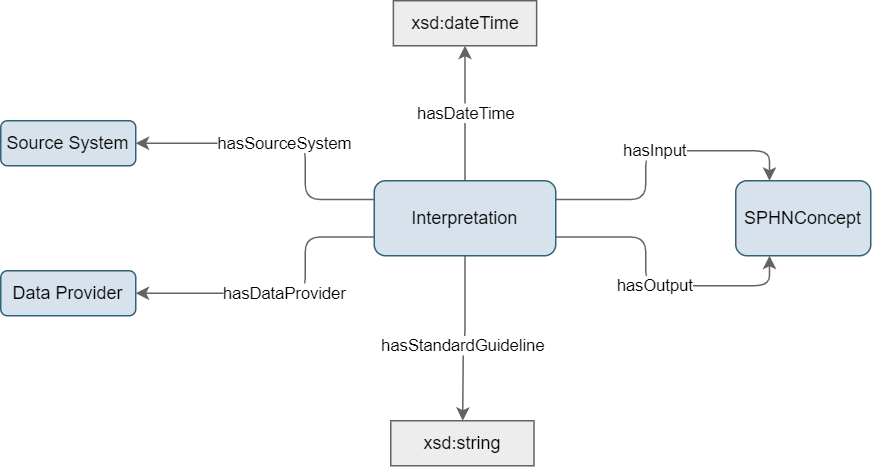

Interpretation
Isolate
Lab Analyzer
Lab Result
Lab Test
Lab Test Event
Laterality

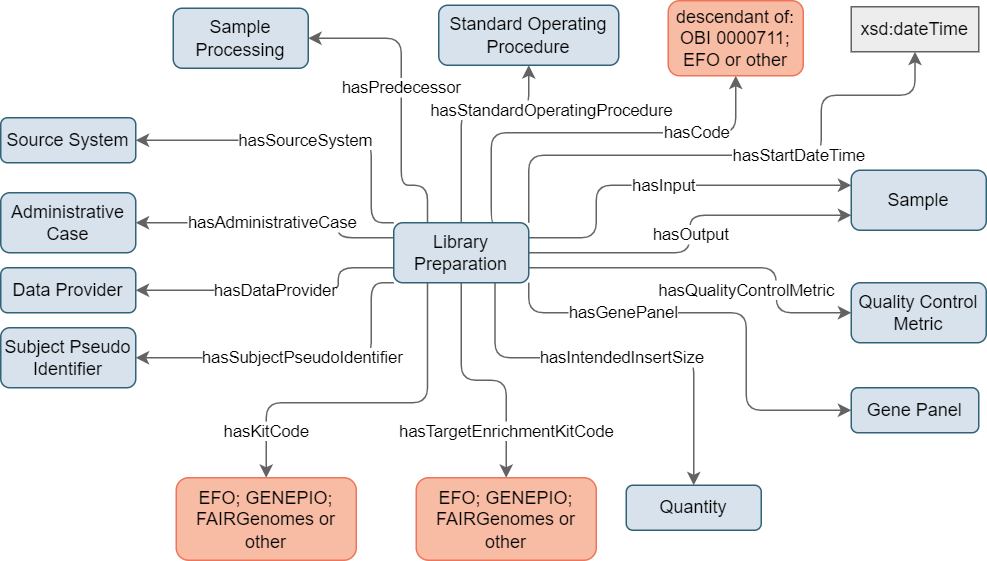

Library Preparation
Location

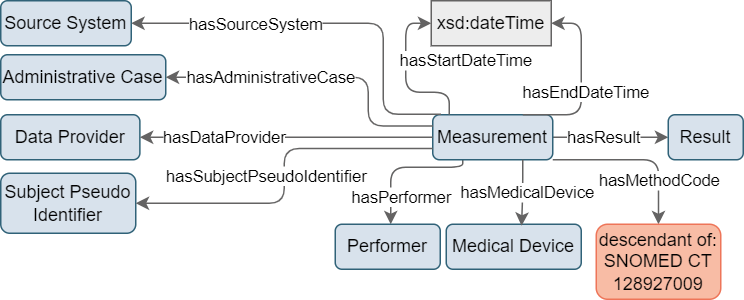

Measurement
Medical Device
Medical Procedure
Microbiology Biomolecule Presence Lab Test
Microbiology Biomolecule Presence Lab Test Event
Microbiology Biomolecule Presence Result

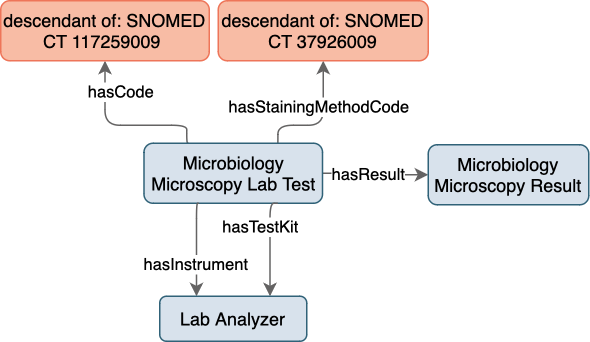

Microbiology Microscopy Lab Test
Microbiology Microscopy Lab Test Event

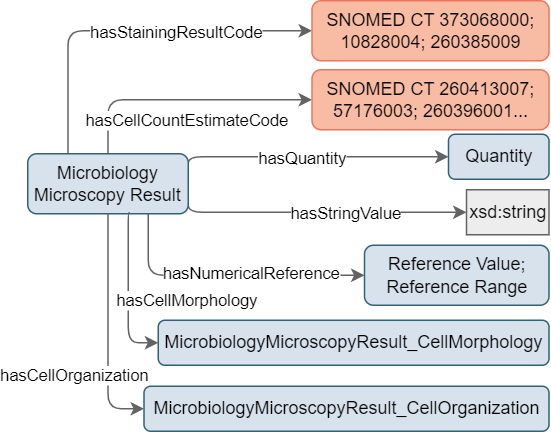

Microbiology Microscopy Result

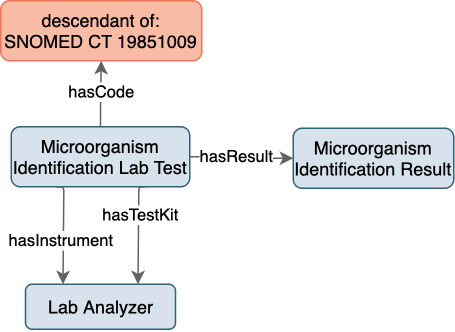

Microorganism Identification Lab Test

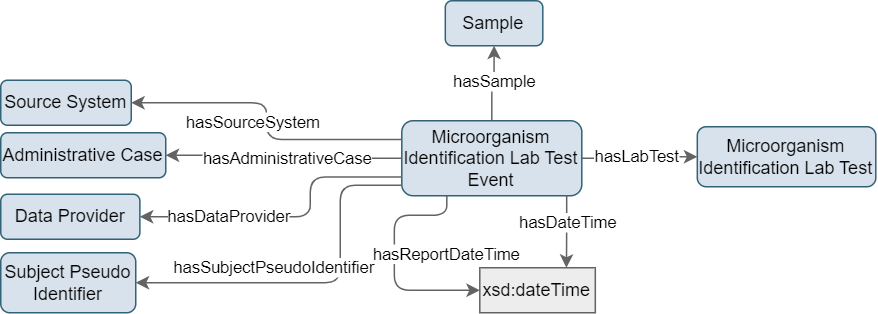

Microorganism Identification Lab Test Event
Microorganism Identification Result

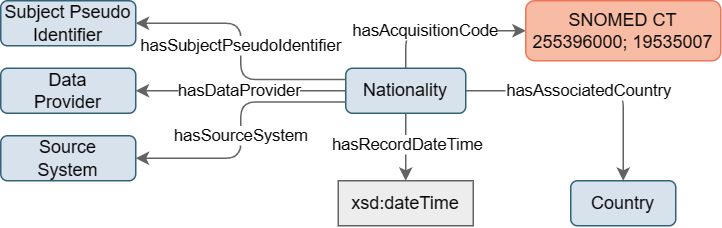

Nationality

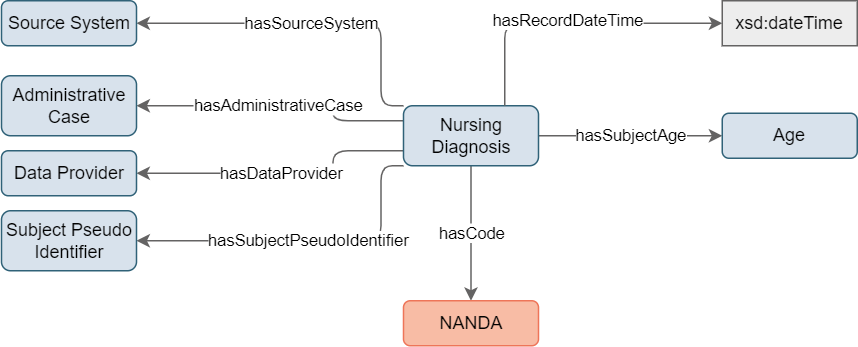

Nursing Diagnosis

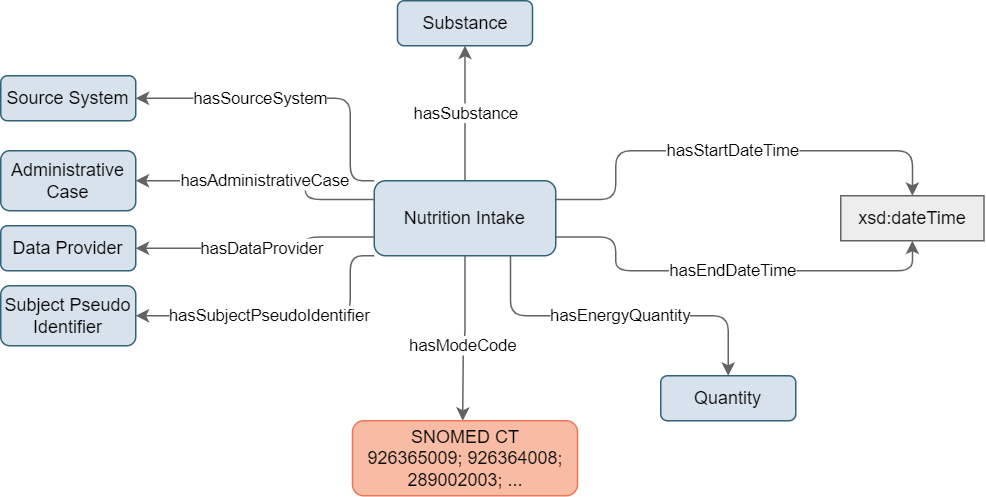

Nutrition Intake

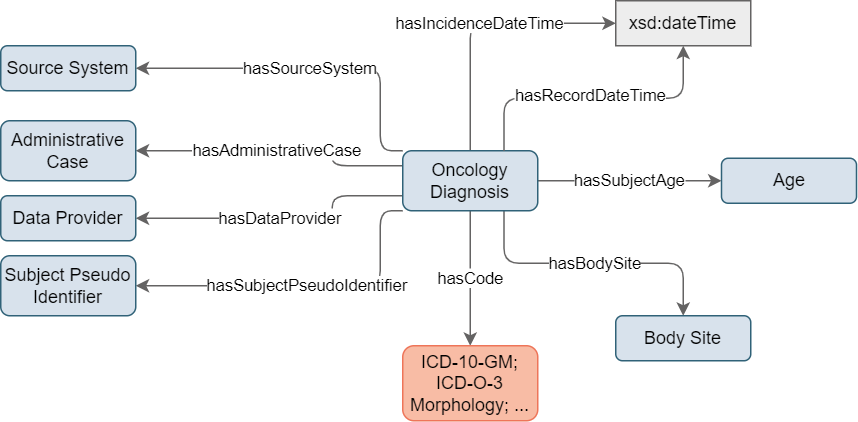

Oncology Diagnosis
Oncology Surgery

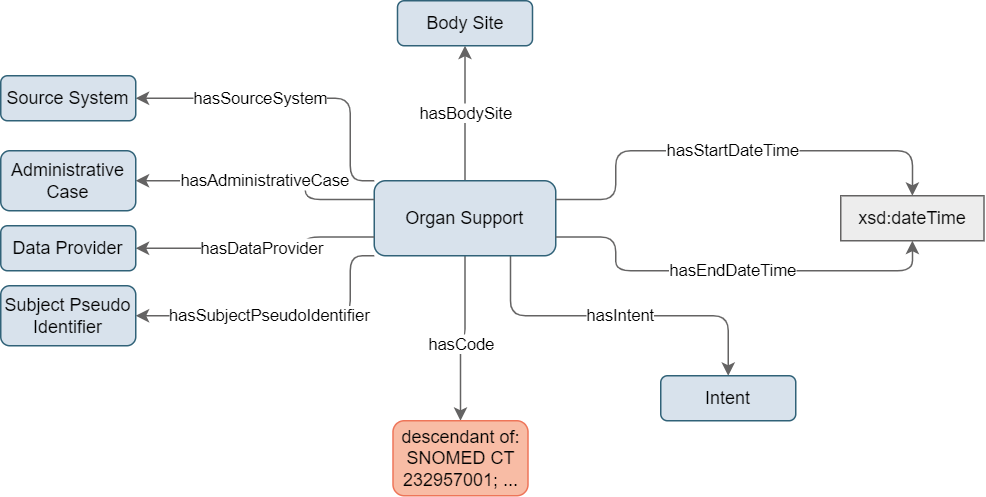

Organ Support
Organism
Oxygen Saturation
Oxygen Saturation Measurement

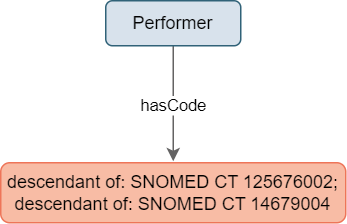

Performer
Pharmaceutical Dose Form
Physiologic State
Problem Condition
Protein
Quality Control Metric

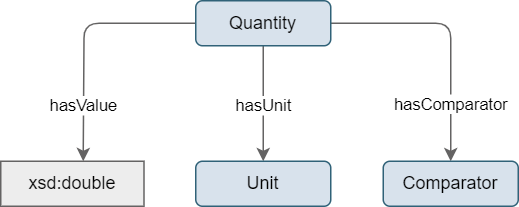

Quantity
Radiotherapy Procedure

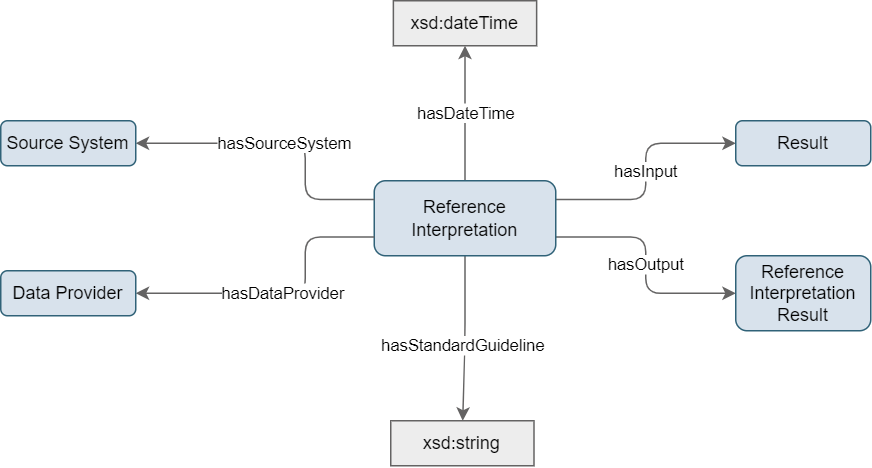

Reference Interpretation
Reference Interpretation Result

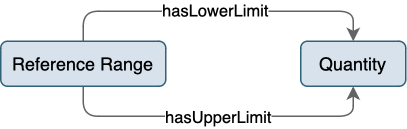

Reference Range
Reference Sequence
Reference Value
Respiratory Rate

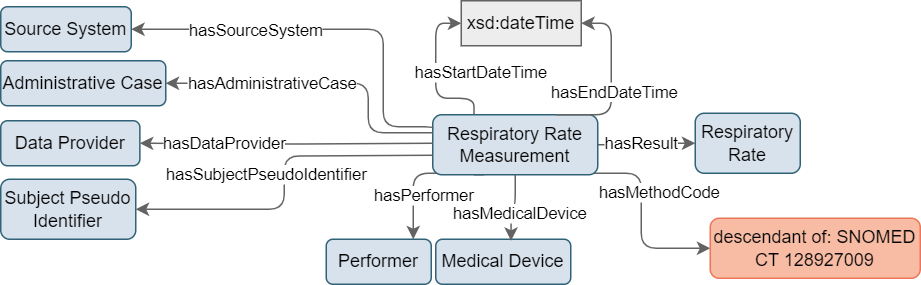

Respiratory Rate Measurement
Result
Resuscitation Directive
SPHN Concept
Sample

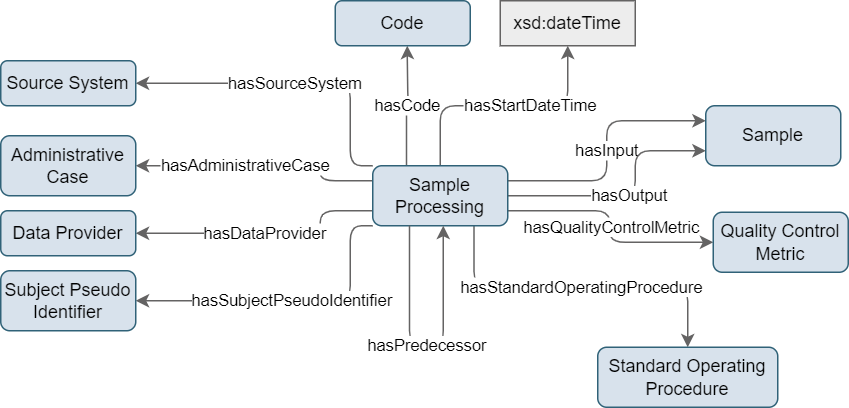

Sample Processing
Semantic Mapping
Sequencing Analysis

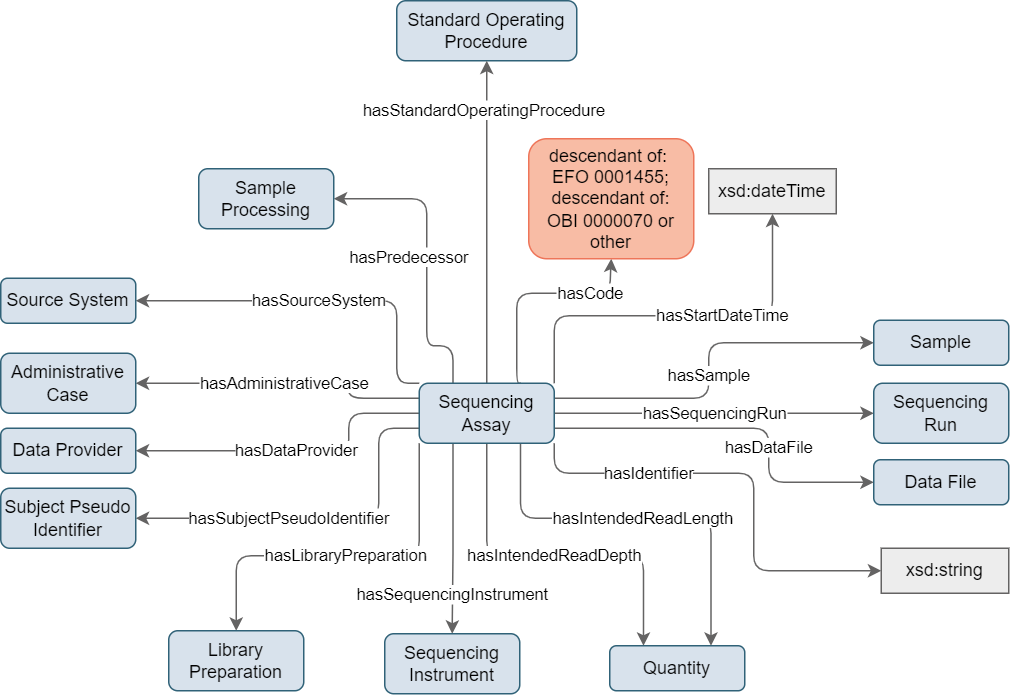

Sequencing Assay
Sequencing Instrument

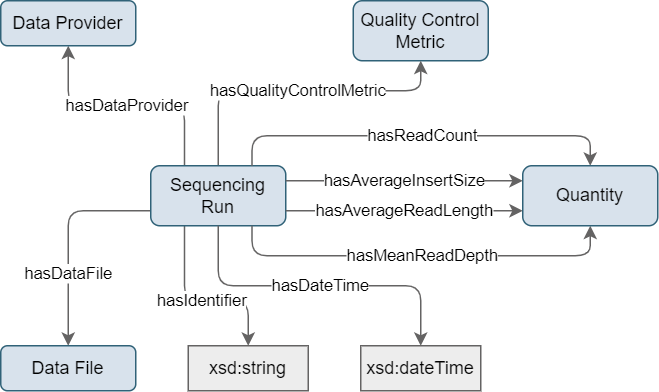

Sequencing Run
Single Nucleotide Variation

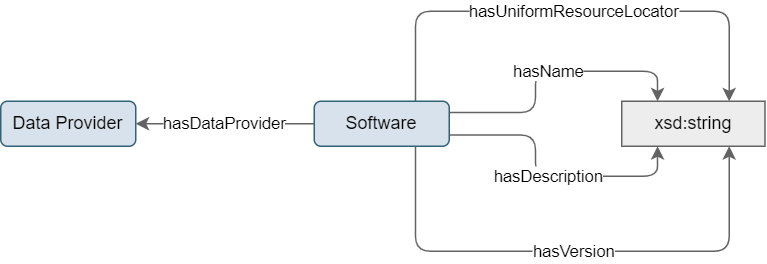

Software
Source Data

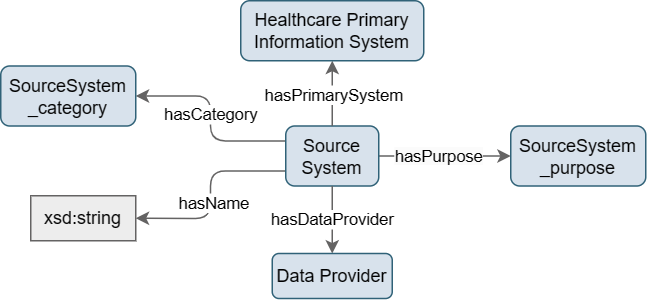

Source System
Standard Operating Procedure

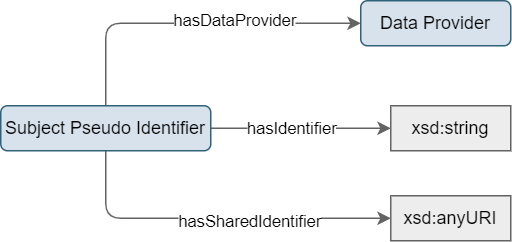

Subject Pseudo Identifier
Substance
Swiss Socio Economic Position
Terminology

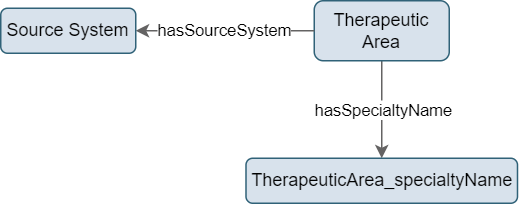

Therapeutic Area
Time Pattern
Time Series Data File
Tobacco Exposure
Transcript

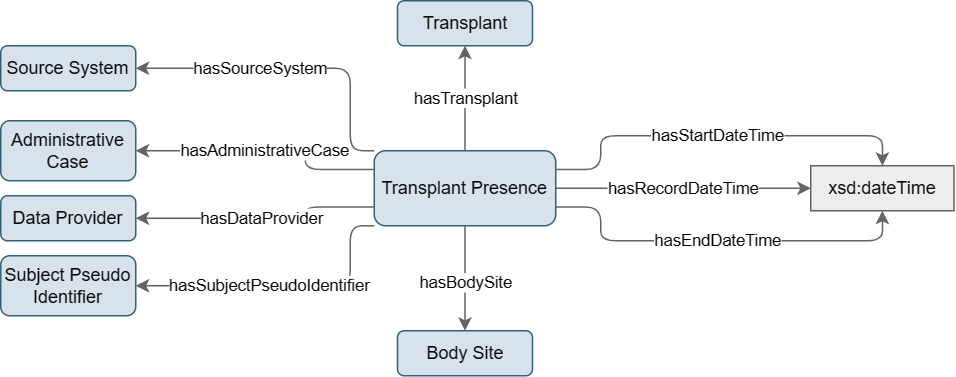

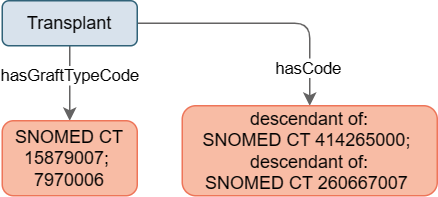

Transplant
Transplant Presence

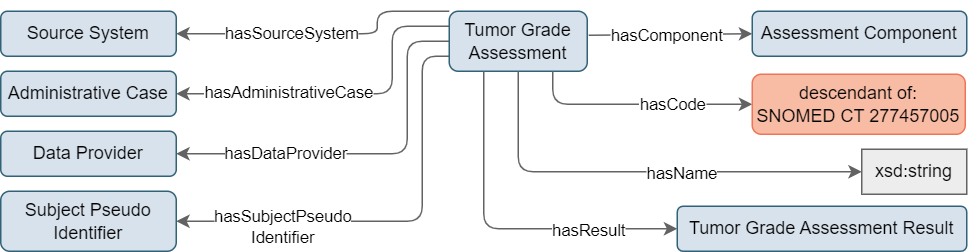

Tumor Grade Assessment
Tumor Grade Assessment Event

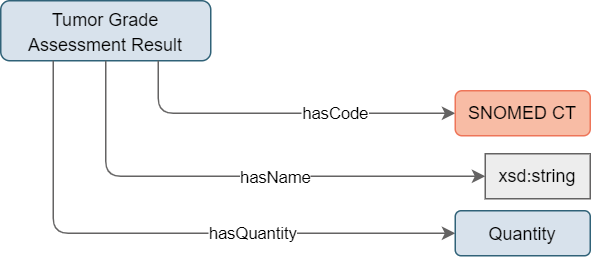

Tumor Grade Assessment Result
Tumor Specimen

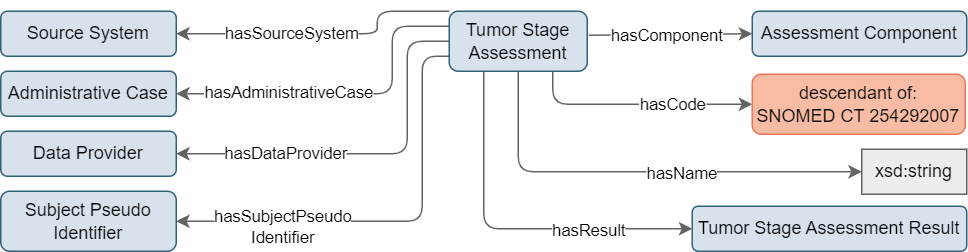

Tumor Stage Assessment
Tumor Stage Assessment Event
Tumor Stage Assessment Result
Unit

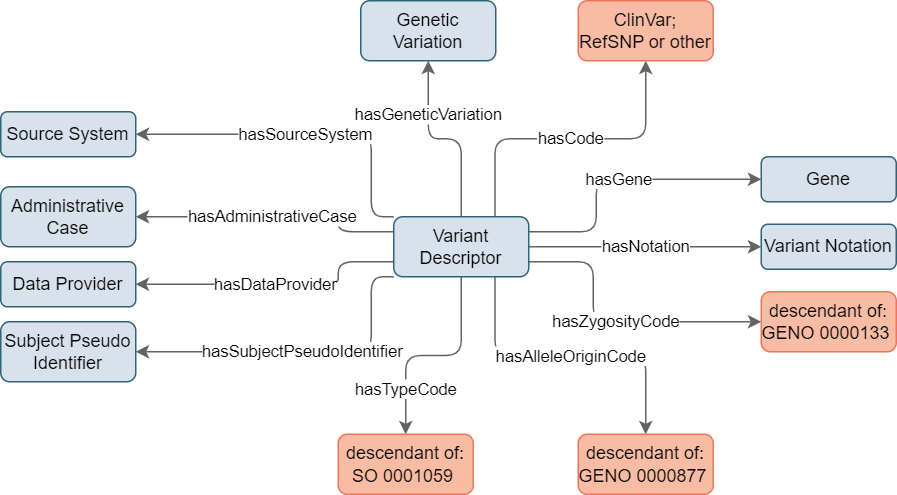

Variant Descriptor

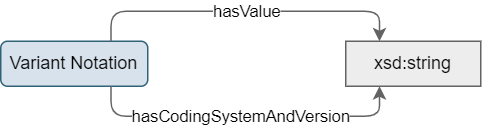

Variant Notation

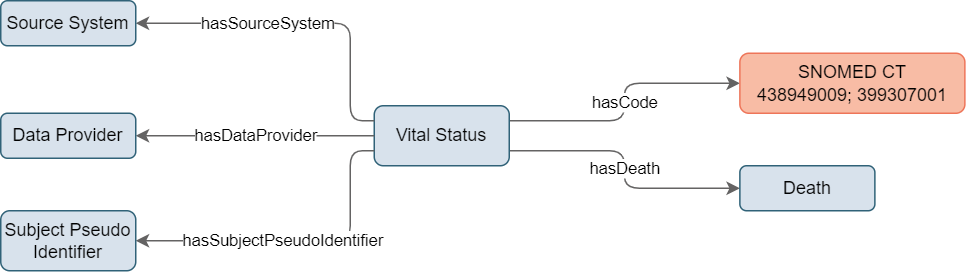

Vital Status

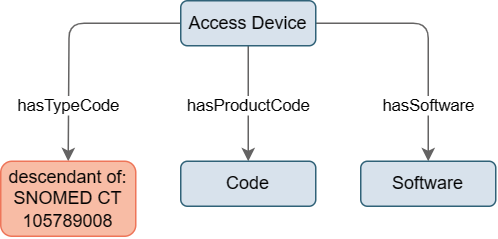

Access Device ^c # Classes

Property (In the domain of)		Cardinality	Class or Datatype	Restriction

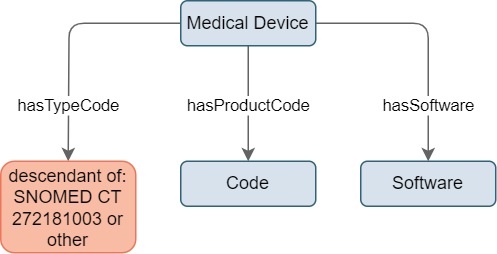

URI	`https://biomedit.ch/rdf/sphn-schema/sphn#AccessDevice`
Description	product intended for medical use to gain access to the body, such as cannula, tube, catheter or drainage
Schema representation
Meaning binding (Equivalent-classes)	SNOMED 105789008 \| Cannula/tube/catheter, device (physical object) \|^c
Parents	Medical Device^c
	has software^op	0 .. *	Software^c
	has product code^op	0 .. 1	Terminology^c or Code^c
	has type code^op	0 .. 1		Yes

Restrictions	has type code^op : descendants of the given classes are allowed SNOMED 105789008 \| Cannula/tube/catheter, device (physical object) \|^c
Used in (In the range of)	has medical device^op

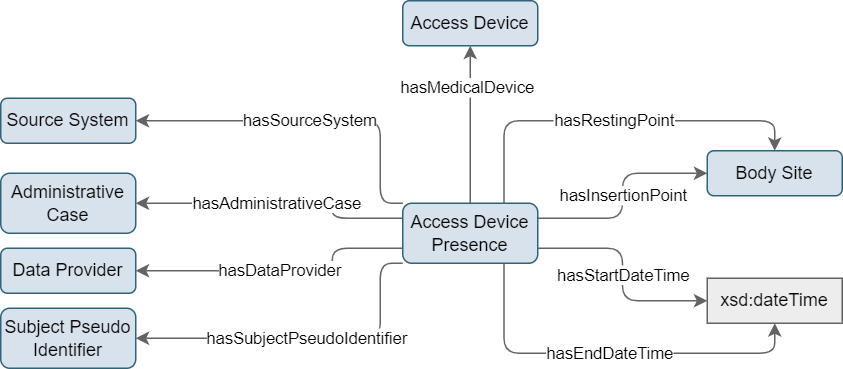

Access Device Presence ^c # Classes

Property (In the domain of)		Cardinality	Class or Datatype
URI	`https://biomedit.ch/rdf/sphn-schema/sphn#AccessDevicePresence`
Description	application of medical access device, such as cannula, tube, catheter or drainage
Schema representation
Parents	SPHN Concept^c
	has administrative case^op	0 .. 1	Administrative Case^c
	has resting point^op	0 .. 1	Body Site^c
	has start datetime^dp	0 .. 1	xsd:dateTime^c
	has data provider^op	1 .. 1	Data Provider^c
	has insertion point^op	0 .. 1	Body Site^c
	has medical device^op	1 .. 1	Access Device^c
	has source system^op	1 .. *	Source System^c
	has subject pseudo identifier^op	1 .. 1	Subject Pseudo Identifier^c
	has end datetime^dp	0 .. 1	xsd:dateTime^c

Restrictions	None

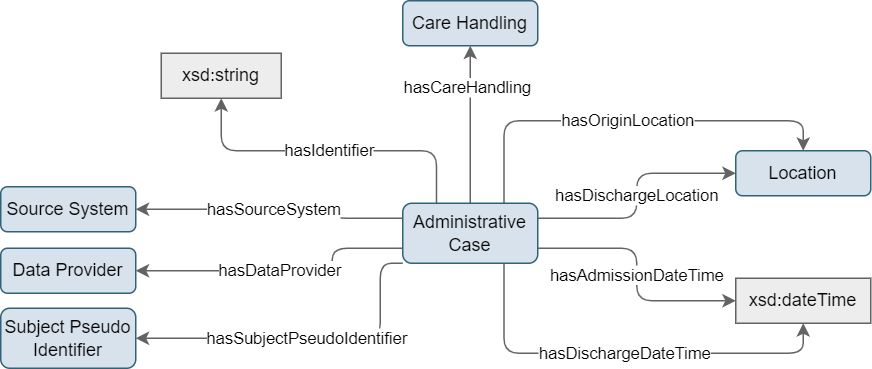

Administrative Case ^c # Classes

Property (In the domain of)		Cardinality	Class or Datatype
URI	`https://biomedit.ch/rdf/sphn-schema/sphn#AdministrativeCase`
Description	administrative artifact for billing according to national healthcare billing guidelines, e.g. Swiss Diagnosis Related Groups, and local settings
Schema representation
Parents	SPHN Concept^c
	has discharge location^op	0 .. 1	Location^c
	has discharge datetime^dp	0 .. 1	xsd:dateTime^c
	has care handling^op	0 .. 1	Care Handling^c
	has admission datetime^dp	1 .. 1	xsd:dateTime^c
	has data provider^op	1 .. 1	Data Provider^c
	has identifier^dp	0 .. 1	xsd:string^c
	has source system^op	1 .. *	Source System^c
	has subject pseudo identifier^op	1 .. 1	Subject Pseudo Identifier^c
	has origin location^op	0 .. 1	Location^c

Restrictions	None
Used in (In the range of)	has administrative case^op

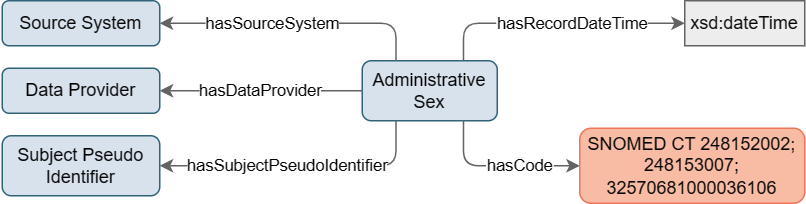

Administrative Sex ^c # Classes

Property (In the domain of)		Cardinality	Class or Datatype	Restriction
URI	`https://biomedit.ch/rdf/sphn-schema/sphn#AdministrativeSex`
Description	the sex of the individual used for administrative purposes
Schema representation
Parents	SPHN Concept^c
	has subject pseudo identifier^op	1 .. 1	Subject Pseudo Identifier^c
	has record datetime^dp	0 .. 1	xsd:dateTime^c
	has code^op	1 .. 1		Yes
	has data provider^op	1 .. 1	Data Provider^c
	has source system^op	1 .. *	Source System^c

Restrictions	has code^op : descendants of the given classes are not allowed SNOMED 248152002 \| Female (finding) \|^c SNOMED 248153007 \| Male (finding) \|^c SNOMED 32570681000036106 \| Indeterminate sex (finding) \|^c

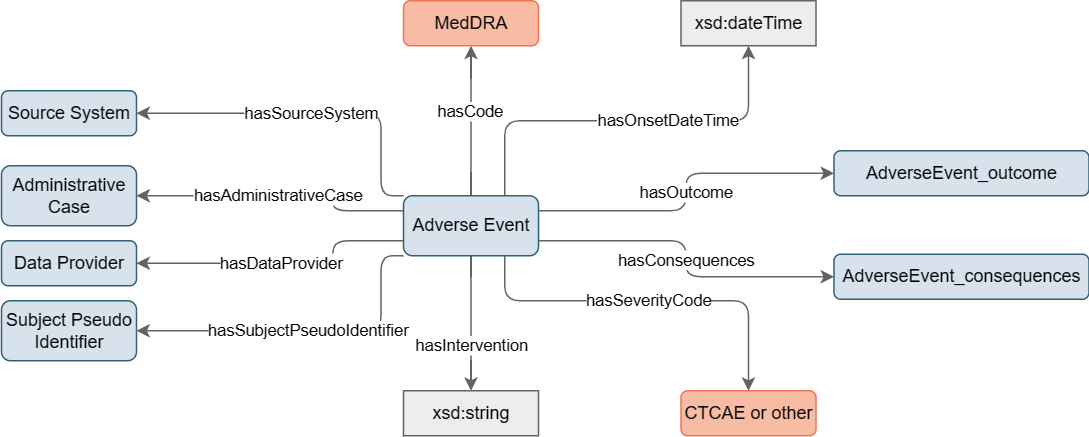

Adverse Event ^c # Classes

Property (In the domain of)		Cardinality	Class or Datatype
URI	`https://biomedit.ch/rdf/sphn-schema/sphn#AdverseEvent`
Description	results from an intervention that caused unintentional harm
Schema representation
Meaning binding (Equivalent-classes)	SNOMED 281647001 \| Adverse reaction (disorder) \|^c
Parents	SPHN Concept^c
	has severity code^op	0 .. 1	Code^c or Terminology^c
	has data provider^op	1 .. 1	Data Provider^c
	has source system^op	1 .. *	Source System^c
	has subject pseudo identifier^op	1 .. 1	Subject Pseudo Identifier^c
	has intervention^dp	0 .. 1	xsd:string^c
	has onset datetime^dp	0 .. 1	xsd:dateTime^c
	has administrative case^op	0 .. 1	Administrative Case^c
	has outcome^op	0 .. 1	Adverse Event outcome^c
	has consequences^op	0 .. 1	Adverse Event consequences^c
	has code^op	1 .. 1	Code^c

Restrictions	None
Notes	sphn:hasCode allowed coding system: MedDRA sphn:hasSeverityCode allowed coding system: CTCAE or other

Restrictions

None

Notes

sphn:hasCode allowed coding system: MedDRA

sphn:hasSeverityCode allowed coding system: CTCAE or other

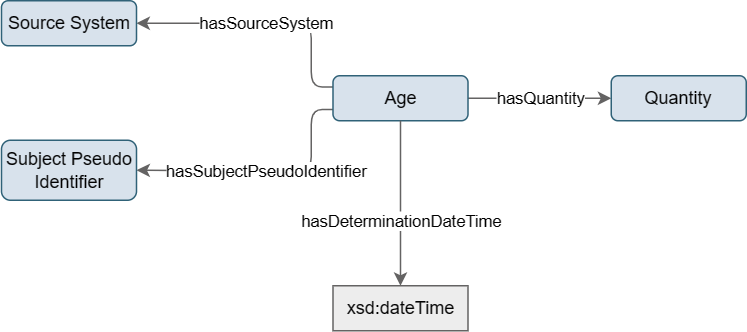

Age ^c # Classes

Property (In the domain of)		Cardinality	Class or Datatype	Restriction
URI	`https://biomedit.ch/rdf/sphn-schema/sphn#Age`
Description	time elapsed since birth of the individual
Schema representation
Meaning binding (Equivalent-classes)	LOINC 30525-0 \| Age \|^c SNOMED 397669002 \| Age (qualifier value) \|^c
Parents	SPHN Concept^c
	has determination datetime^dp	1 .. 1	xsd:dateTime^c
	has quantity^op	1 .. 1		Yes
	has source system^op	1 .. *	Source System^c
	has subject pseudo identifier^op	1 .. 1	Subject Pseudo Identifier^c

Restrictions	has quantity^op / has unit^op / has code^op : descendants of the given classes are not allowed ucum:min^c ucum:h^c ucum:d^c ucum:wk^c ucum:mo^c ucum:a^c
Used in (In the range of)	has subject age^op

Allergen ^c # Classes

Property (In the domain of)		Cardinality	Restriction
URI	`https://biomedit.ch/rdf/sphn-schema/sphn#Allergen`
Description	any substance, product or physical force producing immediate hypersensitivity
Schema representation
Parents	SPHN Concept^c
	has code^op	1 .. *	Yes

Restrictions	has code^op : descendants of the given classes are allowed Code^c SNOMED 138875005 \| SNOMED CT Concept (SNOMED RT+CTV3) \|^c sphn-atc:ATC^c
Notes	sphn:hasCode allowed coding system: SNOMED CT, ATC, GTIN
Used in (In the range of)	has allergen^op

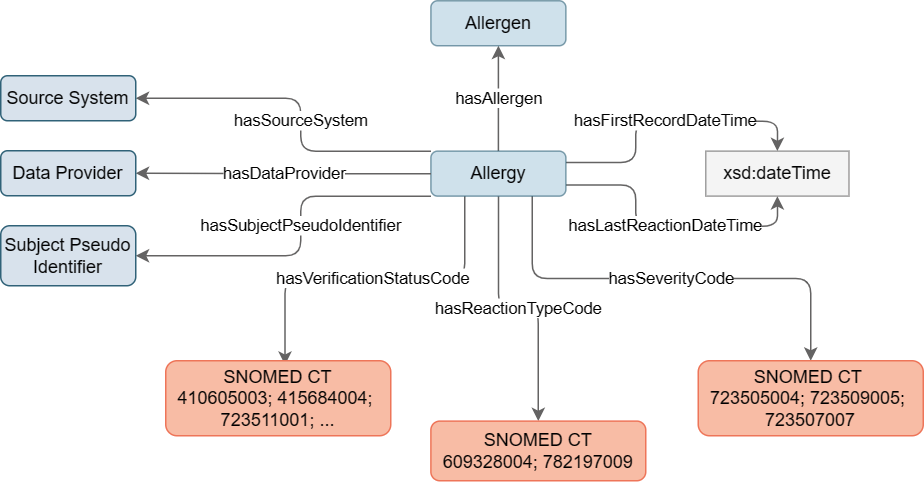

Allergy ^c # Classes

Property (In the domain of)		Cardinality	Class or Datatype	Restriction
URI	`https://biomedit.ch/rdf/sphn-schema/sphn#Allergy`
Description	risk of harmful or undesirable, physiological response which is unique to an individual and associated with exposure to an allergen
Schema representation
Parents	SPHN Concept^c
	has severity code^op	0 .. 1		Yes
	has data provider^op	1 .. 1	Data Provider^c
	has source system^op	1 .. *	Source System^c
	has subject pseudo identifier^op	1 .. 1	Subject Pseudo Identifier^c
	has verification status code^op	0 .. 1		Yes
	has last reaction datetime^dp	0 .. 1	xsd:dateTime^c
	has reaction type code^op	0 .. 1		Yes
	has first record datetime^dp	0 .. 1	xsd:dateTime^c
	has allergen^op	0 .. 1	Allergen^c

Restrictions	has severity code^op : descendants of the given classes are not allowed SNOMED 723505004 \| Low risk (qualifier value) \|^c SNOMED 723509005 \| High risk (qualifier value) \|^c SNOMED 723507007 \| Unable to determine risk (qualifier value) \|^c has verification status code^op : descendants of the given classes are not allowed SNOMED 410605003 \| Confirmed present (qualifier value) \|^c SNOMED 415684004 \| Suspected (qualifier value) \|^c SNOMED 723511001 \| Refuted (qualifier value) \|^c SNOMED 723510000 \| Entered in error (qualifier value) \|^c has reaction type code^op : descendants of the given classes are not allowed SNOMED 609328004 \| Allergic disposition (finding) \|^c SNOMED 782197009 \| Intolerance to substance (finding) \|^c

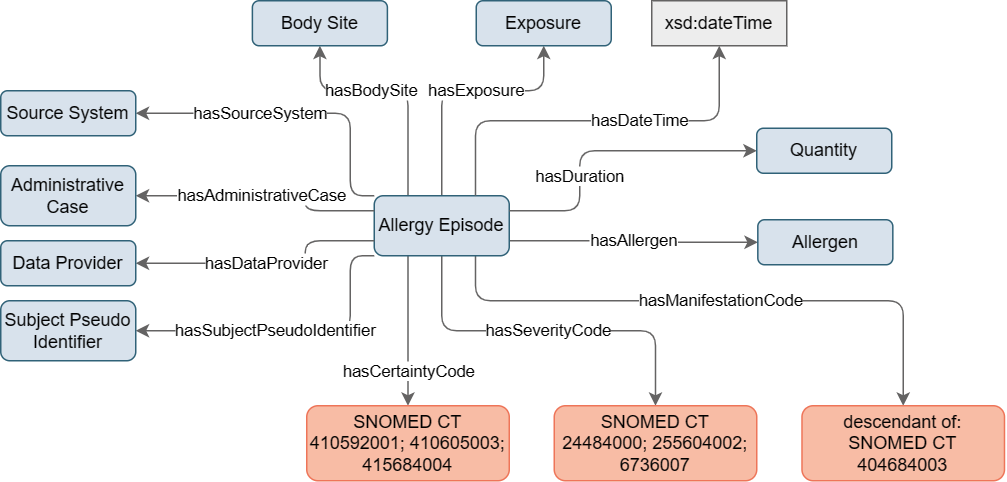

Allergy Episode ^c # Classes

Property (In the domain of)		Cardinality	Class or Datatype	Restriction
URI	`https://biomedit.ch/rdf/sphn-schema/sphn#AllergyEpisode`
Description	manifestation of an allergic reaction following an exposure to an allergen
Schema representation
Parents	SPHN Concept^c
	has severity code^op	0 .. 1		Yes
	has manifestation code^op	0 .. 1		Yes
	has body site^op	0 .. 1	Body Site^c
	has data provider^op	1 .. 1	Data Provider^c
	has duration^op	0 .. 1	Quantity^c
	has source system^op	1 .. *	Source System^c
	has datetime^dp	0 .. 1	xsd:dateTime^c
	has subject pseudo identifier^op	1 .. 1	Subject Pseudo Identifier^c
	has certainty code^op	0 .. 1		Yes
	has administrative case^op	0 .. 1	Administrative Case^c
	has allergen^op	1 .. 1	Allergen^c
	has exposure^op	0 .. 1	Exposure^c

Restrictions	has severity code^op : descendants of the given classes are not allowed SNOMED 255604002 \| Mild (qualifier value) \|^c SNOMED 6736007 \| Moderate (severity modifier) (qualifier value) \|^c SNOMED 24484000 \| Severe (severity modifier) (qualifier value) \|^c has manifestation code^op : descendants of the given classes are allowed SNOMED 404684003 \| Clinical finding (finding) \|^c has certainty code^op : descendants of the given classes are not allowed SNOMED 415684004 \| Suspected (qualifier value) \|^c SNOMED 410592001 \| Probably present (qualifier value) \|^c SNOMED 410605003 \| Confirmed present (qualifier value) \|^c
Notes	For sphn:hasExposure, instances of sphn:TobaccoExposure are not allowed

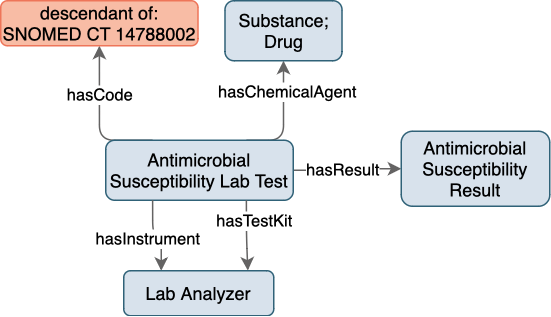

Antimicrobial Susceptibility Lab Test ^c # Classes

Property (In the domain of)		Cardinality	Class or Datatype	Restriction
URI	`https://biomedit.ch/rdf/sphn-schema/sphn#AntimicrobialSusceptibilityLabTest`
Description	specific lab test performed on an isolate against a chemical agent for determining antimicrobial susceptibility
Schema representation
Parents	Lab Test^c
	has code^op	1 .. 1		Yes
	has instrument^op	0 .. 1	Lab Analyzer^c
	has result^op	1 .. *	Antimicrobial Susceptibility Result^c
	has test kit^op	0 .. 1	Lab Analyzer^c
	has chemical agent^op	1 .. 1	Substance^c or Drug^c

Restrictions	has code^op : descendants of the given classes are allowed SNOMED 14788002 \| Antimicrobial susceptibility test (procedure) \|^c
Used in (In the range of)	has lab test^op

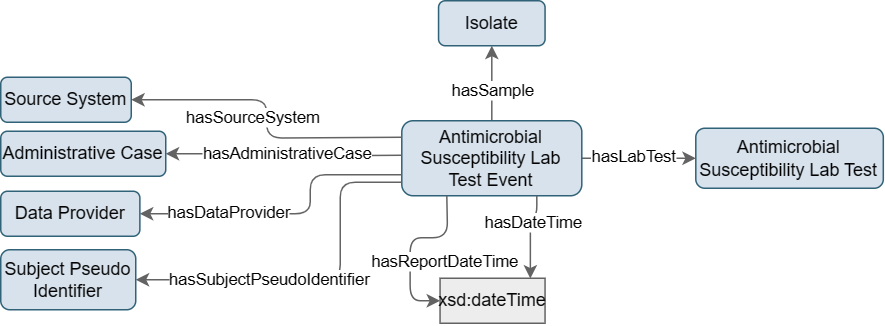

Antimicrobial Susceptibility Lab Test Event ^c # Classes

Property (In the domain of)		Cardinality	Class or Datatype
URI	`https://biomedit.ch/rdf/sphn-schema/sphn#AntimicrobialSusceptibilityLabTestEvent`
Description	occurrence in which one or multiple laboratory tests are performed on an isolate at a given time for determining antimicrobial susceptibility
Schema representation
Parents	Lab Test Event^c
	has report datetime^dp	0 .. 1	xsd:dateTime^c
	has data provider^op	1 .. 1	Data Provider^c
	has lab test^op	1 .. *	Antimicrobial Susceptibility Lab Test^c
	has source system^op	1 .. *	Source System^c
	has sample^op	1 .. 1	Isolate^c
	has datetime^dp	0 .. 1	xsd:dateTime^c
	has subject pseudo identifier^op	1 .. 1	Subject Pseudo Identifier^c
	has administrative case^op	0 .. 1	Administrative Case^c

Restrictions	None

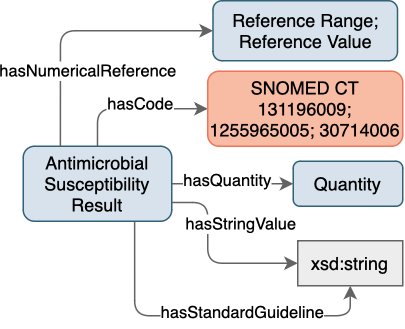

Antimicrobial Susceptibility Result ^c # Classes

Property (In the domain of)		Cardinality	Class or Datatype	Restriction
URI	`https://biomedit.ch/rdf/sphn-schema/sphn#AntimicrobialSusceptibilityResult`
Description	result of a antimicrobial susceptibility lab analysis
Schema representation

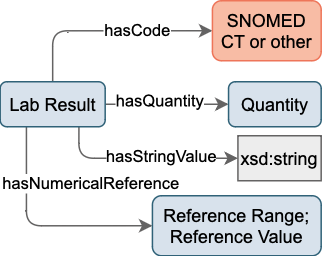

Parents	Lab Result^c
	has quantity^op	0 .. 1	Quantity^c
	has numerical reference^op	0 .. 1	Reference Range^c or Reference Value^c
	has standard guideline^dp	0 .. 1	xsd:string^c
	has string value^dp	0 .. 1	xsd:string^c
	has code^op	0 .. 1		Yes

Restrictions	has code^op : descendants of the given classes are not allowed SNOMED 131196009 \| Susceptible (qualifier value) \|^c SNOMED 1255965005 \| Susceptible with increased exposure (qualifier value) \|^c SNOMED 30714006 \| Resistant (qualifier value) \|^c
Used in (In the range of)	has result^op

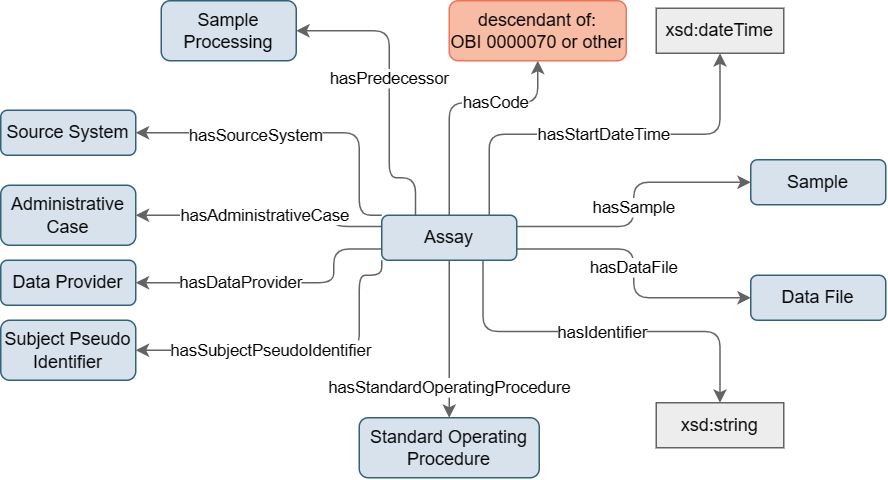

Assay ^c # Classes

URI	`https://biomedit.ch/rdf/sphn-schema/sphn#Assay`
Description	a process with the objective to produce information about a sample by examining it
Schema representation
Meaning binding (Equivalent-classes)	obi:OBI_0000070^c
Parents	SPHN Concept^c
Children (Sub-classes)	Sequencing Assay^c

	Cardinality	Class or Datatype	Restriction
has source system^op	1 .. *	Source System^c
has standard operating procedure^op	0 .. 1	Standard Operating Procedure^c
has sample^op	0 .. *	Sample^c
has subject pseudo identifier^op	0 .. *	Subject Pseudo Identifier^c
has administrative case^op	0 .. *	Administrative Case^c
has predecessor^op	0 .. *	Sample Processing^c
has data file^op	0 .. *	Data File^c
has start datetime^dp	0 .. 1	xsd:dateTime^c
has code^op	1 .. 1		Yes
has data provider^op	1 .. 1	Data Provider^c
has identifier^dp	0 .. 1	xsd:string^c

Restrictions	has code^op : descendants of the given classes are allowed obi:OBI_0000070^c Code^c Terminology^c
Notes	sphn:hasCode allowed coding system: EFO, OBI or other
Used in (In the range of)	has predecessor^op

Assessment ^c # Classes

URI	`https://biomedit.ch/rdf/sphn-schema/sphn#Assessment`
Description	assessment scale, classification, staging or scoring system
Schema representation
Meaning binding (Equivalent-classes)	SNOMED 254291000 \| Staging and scales (staging scale) \|^c
Parents	SPHN Concept^c
Children (Sub-classes)	Tumor Stage Assessment^c Tumor Grade Assessment^c

	Cardinality	Class or Datatype	Restriction
has administrative case^op	1 .. 1	Administrative Case^c
has code^op	0 .. 1		Yes
has result^op	0 .. 1	Assessment Result^c
has name^dp	0 .. 1	xsd:string^c
has data provider^op	1 .. 1	Data Provider^c
has component^op	0 .. *	Assessment Component^c
has source system^op	1 .. *	Source System^c
has subject pseudo identifier^op	1 .. 1	Subject Pseudo Identifier^c

Restrictions	has code^op : descendants of the given classes are allowed SNOMED 254291000 \| Staging and scales (staging scale) \|^c
Used in (In the range of)	has assessment^op

Assessment Component ^c # Classes

Property (In the domain of)		Cardinality	Class or Datatype	Restriction
URI	`https://biomedit.ch/rdf/sphn-schema/sphn#AssessmentComponent`
Description	component of an assessment
Schema representation
Parents	SPHN Concept^c
	has result^op	0 .. 1	Assessment Result^c
	has code^op	0 .. 1		Yes
	has name^dp	0 .. 1	xsd:string^c

Restrictions	has code^op : descendants of the given classes are allowed SNOMED 363787002 \| Observable entity (observable entity) \|^c
Used in (In the range of)	has component^op

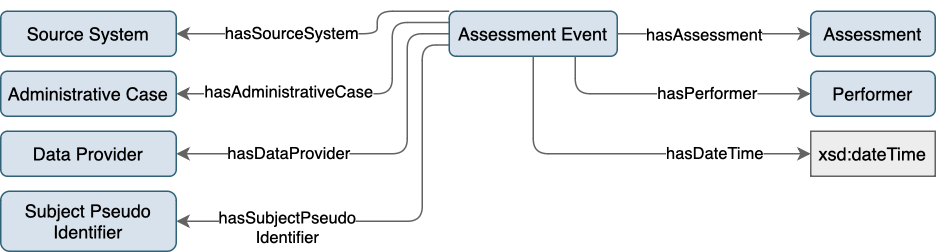

Assessment Event ^c # Classes

URI	`https://biomedit.ch/rdf/sphn-schema/sphn#AssessmentEvent`
Description	evaluation at a given time, which takes into account a predefined scale, classification, staging or scoring system
Schema representation
Meaning binding (Equivalent-classes)	SNOMED 386053000 \| Evaluation procedure (procedure) \|^c
Parents	SPHN Concept^c
Children (Sub-classes)	Tumor Grade Assessment Event^c Tumor Stage Assessment Event^c

	Cardinality	Class or Datatype
has assessment^op	1 .. 1	Assessment^c
has datetime^dp	1 .. 1	xsd:dateTime^c
has subject pseudo identifier^op	1 .. 1	Subject Pseudo Identifier^c
has administrative case^op	1 .. 1	Administrative Case^c
has performer^op	0 .. 1	Performer^c
has data provider^op	1 .. 1	Data Provider^c
has source system^op	1 .. *	Source System^c

Restrictions	None

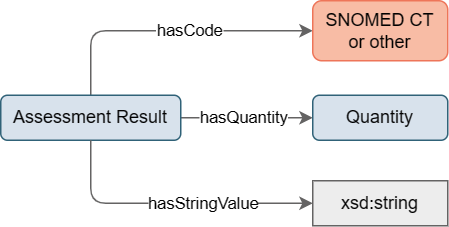

Assessment Result ^c # Classes

Property (In the domain of)		Cardinality	Class or Datatype
URI	`https://biomedit.ch/rdf/sphn-schema/sphn#AssessmentResult`
Description	outcome of an assessment
Schema representation
Parents	Result^c
	has string value^dp	0 .. 1	xsd:string^c
	has code^op	0 .. 1	Code^c or Terminology^c
	has quantity^op	0 .. 1	Quantity^c

Restrictions	None
Used in (In the range of)	has result^op

Billed Diagnosis ^c # Classes

Property (In the domain of)		Cardinality	Class or Datatype
URI	`https://biomedit.ch/rdf/sphn-schema/sphn#BilledDiagnosis`
Description	discharge diagnosis used for the billing system (e.g. for building the Diagnosis Related Groups) according to guidelines of the national authority (e.g. Swiss Federal Office of Public Health), e.g. K35.3 acute appendicitis with localized peritonitis
Schema representation
Meaning binding (Equivalent-classes)	SNOMED 89100005 \| Final diagnosis (discharge) (contextual qualifier) (qualifier value) \|^c LOINC 38999-9 \| Hospital discharge DRG [Interpretation] \|^c
Parents	Diagnosis^c
	has rank^op	0 .. 1	Billed Diagnosis rank^c
	has subject age^op	0 .. 1	Age^c
	has administrative case^op	0 .. 1	Administrative Case^c
	has code^op	1 .. 1	Code^c
	has data provider^op	1 .. 1	Data Provider^c
	has record datetime^dp	0 .. 1	xsd:dateTime^c
	has source system^op	1 .. *	Source System^c
	has subject pseudo identifier^op	1 .. 1	Subject Pseudo Identifier^c

Restrictions	None
Notes	sphn:hasCode allowed coding system: ICD-10-GM

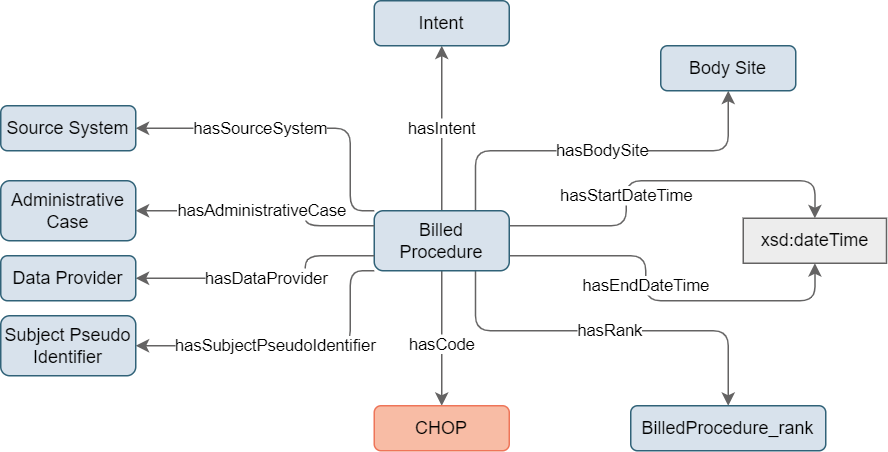

Billed Procedure ^c # Classes

Property (In the domain of)		Cardinality	Class or Datatype	Restriction
URI	`https://biomedit.ch/rdf/sphn-schema/sphn#BilledProcedure`
Description	procedure, coded for billing (e.g. for building the Diagnosis Related Groups) according to guidelines of the national authority (e.g. Swiss Federal Office of Public Health), e.g. Z57.34 open biopsy of the urinary bladder
Schema representation
Parents	Medical Procedure^c
	has intent^op	0 .. 1	Intent^c
	has rank^op	0 .. 1	Billed Procedure rank^c
	has end datetime^dp	0 .. 1	xsd:dateTime^c
	has administrative case^op	0 .. 1	Administrative Case^c
	has start datetime^dp	1 .. 1	xsd:dateTime^c
	has code^op	1 .. 1		Yes
	has body site^op	0 .. 1	Body Site^c
	has data provider^op	1 .. 1	Data Provider^c
	has source system^op	1 .. *	Source System^c
	has subject pseudo identifier^op	1 .. 1	Subject Pseudo Identifier^c

Restrictions	has code^op : descendants of the given classes are allowed CHOP CHOP \| CHOP \|^c

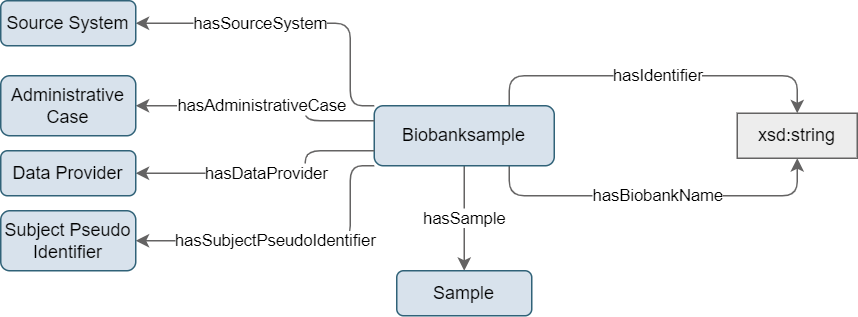

Biobanksample ^c # Classes

Property (In the domain of)		Cardinality	Class or Datatype
URI	`https://biomedit.ch/rdf/sphn-schema/sphn#Biobanksample`
Description	biosample stored in a biobank
Schema representation
Parents	SPHN Concept^c
	has data provider^op	1 .. 1	Data Provider^c
	has identifier^dp	1 .. 1	xsd:string^c
	has sample^op	1 .. 1	Sample^c
	has source system^op	1 .. *	Source System^c
	has subject pseudo identifier^op	1 .. 1	Subject Pseudo Identifier^c
	has biobank name^dp	1 .. 1	xsd:string^c
	has administrative case^op	0 .. 1	Administrative Case^c

Restrictions	None

Birth ^c # Classes

Property (In the domain of)		Cardinality	Class or Datatype	Restriction
URI	`https://biomedit.ch/rdf/sphn-schema/sphn#Birth`
Description	the event of being born
Schema representation
Parents	SPHN Concept^c
	has gestational age^op	0 .. 1	Gestational Age At Birth^c
	has country^op	0 .. 1	Country^c
	has administrative case^op	0 .. 1	Administrative Case^c
	has delivery mode code^op	0 .. 1		Yes
	has data provider^op	1 .. 1	Data Provider^c
	has medical device^op	0 .. *	Medical Device^c
	has source system^op	1 .. *	Source System^c
	has date^op	0 .. 1	Birth Date^c
	has subject pseudo identifier^op	1 .. 1	Subject Pseudo Identifier^c

Restrictions	has delivery mode code^op : descendants of the given classes are allowed SNOMED 118215003 \| Delivery finding (finding) \|^c
Notes	For sphn:hasMedicalDevice, instances of sphn:AccessDevice, sphn:LabAnalyzer, sphn:Implant are not allowed

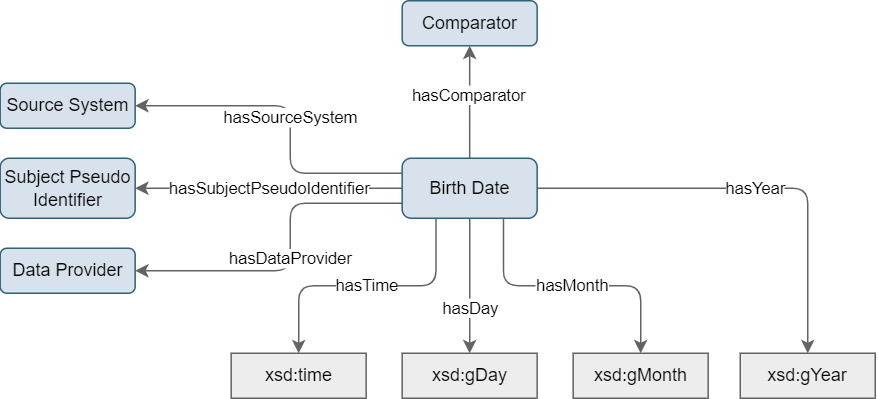

Birth Date ^c # Classes

Property (In the domain of)		Cardinality	Class or Datatype
URI	`https://biomedit.ch/rdf/sphn-schema/sphn#BirthDate`
Description	the date and time of birth of the individual
Schema representation
Meaning binding (Equivalent-classes)	SNOMED 184099003 \| Date of birth (observable entity) \|^c LOINC 21112-8 \| Birth date \|^c
Parents	SPHN Concept^c
	has year^dp	1 .. 1	xsd:gYear^c
	has data provider^op	1 .. 1	Data Provider^c
	has day^dp	0 .. 1	xsd:gDay^c
	has time^dp	0 .. 1	xsd:time^c
	has source system^op	1 .. *	Source System^c
	has subject pseudo identifier^op	1 .. 1	Subject Pseudo Identifier^c
	has month^dp	0 .. 1	xsd:gMonth^c
	has comparator^op	0 .. 1	Comparator^c

Restrictions	None
Used in (In the range of)	has date^op

Blood Pressure ^c # Classes

Property (In the domain of)		Cardinality	Class or Datatype	Restriction
URI	`https://biomedit.ch/rdf/sphn-schema/sphn#BloodPressure`
Description	blood pressure of the individual
Schema representation
Meaning binding (Equivalent-classes)	SNOMED 75367002 \| Blood pressure (observable entity) \|^c
Parents	Result^c
	has diastolic pressure^op	0 .. 1		Yes
	has data file^op	0 .. 1	Time Series Data File^c
	has mean pressure^op	0 .. 1		Yes
	has datetime^dp	0 .. 1	xsd:dateTime^c
	has systolic pressure^op	0 .. 1		Yes

Restrictions	has diastolic pressure^op / has unit^op / has code^op : descendants of the given classes are not allowed ucum:mmsblHgsbr^c has mean pressure^op / has unit^op / has code^op : descendants of the given classes are not allowed ucum:mmsblHgsbr^c has systolic pressure^op / has unit^op / has code^op : descendants of the given classes are not allowed ucum:mmsblHgsbr^c
Used in (In the range of)	has result^op

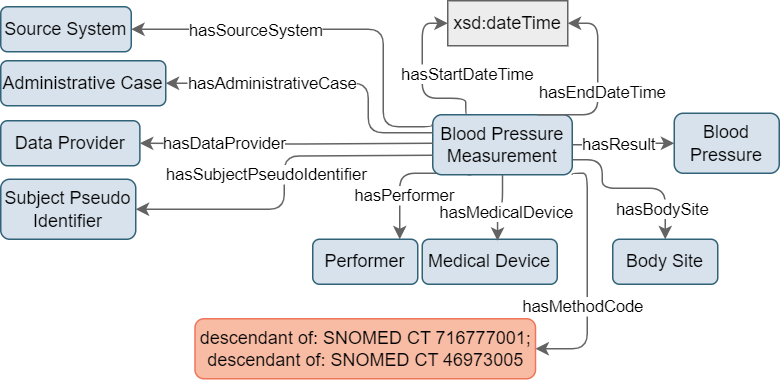

Blood Pressure Measurement ^c # Classes

Property (In the domain of)		Cardinality	Class or Datatype	Restriction
URI	`https://biomedit.ch/rdf/sphn-schema/sphn#BloodPressureMeasurement`
Description	measurement process of a blood pressure on an individual
Schema representation
Meaning binding (Equivalent-classes)	SNOMED 46973005 \| Blood pressure taking (procedure) \|^c
Parents	Measurement^c
	has method code^op	0 .. 1		Yes
	has source system^op	1 .. *	Source System^c
	has subject pseudo identifier^op	1 .. 1	Subject Pseudo Identifier^c
	has end datetime^dp	0 .. 1	xsd:dateTime^c
	has administrative case^op	0 .. 1	Administrative Case^c
	has performer^op	0 .. 1	Performer^c
	has start datetime^dp	1 .. 1	xsd:dateTime^c
	has result^op	1 .. *	Blood Pressure^c
	has body site^op	0 .. 1		Yes
	has data provider^op	1 .. 1	Data Provider^c
	has medical device^op	0 .. 1	Medical Device^c

Restrictions	has method code^op : descendants of the given classes are allowed SNOMED 716777001 \| Hemodynamic monitoring (regime/therapy) \|^c SNOMED 46973005 \| Blood pressure taking (procedure) \|^c has body site^op / has code^op : descendants of the given classes are allowed SNOMED 113257007 \| Structure of cardiovascular system (body structure) \|^c SNOMED 40983000 \| Structure of upper extremity between shoulder and elbow (body structure) \|^c SNOMED 68367000 \| Thigh structure (body structure) \|^c SNOMED 8205005 \| Wrist region structure (body structure) \|^c SNOMED 7569003 \| Finger structure (body structure) \|^c SNOMED 344001 \| Ankle region structure (body structure) \|^c
Notes	For sphn:hasMedicalDevice, instances of sphn:AccessDevice, sphn:LabAnalyzer are not allowed

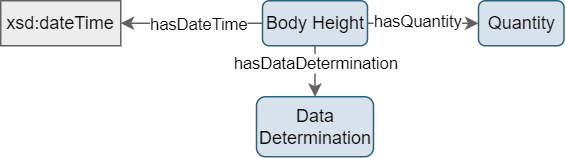

Body Height ^c # Classes

Property (In the domain of)		Cardinality	Class or Datatype
URI	`https://biomedit.ch/rdf/sphn-schema/sphn#BodyHeight`
Description	height of the individual
Schema representation
Meaning binding (Equivalent-classes)	SNOMED 50373000 \| Body height measure (observable entity) \|^c LOINC 8302-2 \| Body height \|^c
Parents	Result^c
	has data determination^op	0 .. 1	Data Determination^c
	has quantity^op	1 .. 1	Quantity^c
	has datetime^dp	0 .. 1	xsd:dateTime^c

Restrictions	None
Used in (In the range of)	has result^op

Body Height Measurement ^c # Classes

Property (In the domain of)		Cardinality	Class or Datatype	Restriction
URI	`https://biomedit.ch/rdf/sphn-schema/sphn#BodyHeightMeasurement`
Description	measurement of the height of the individual
Schema representation
Meaning binding (Equivalent-classes)	SNOMED 14456009 \| Measuring height of patient (procedure) \|^c
Parents	Measurement^c
	has administrative case^op	0 .. 1	Administrative Case^c
	has performer^op	0 .. 1	Performer^c
	has result^op	1 .. 1	Body Height^c
	has start datetime^dp	1 .. 1	xsd:dateTime^c
	has data provider^op	1 .. 1	Data Provider^c
	has source system^op	1 .. *	Source System^c
	has medical device^op	0 .. 1	Medical Device^c
	has method code^op	0 .. 1		Yes
	has subject pseudo identifier^op	1 .. 1	Subject Pseudo Identifier^c
	has end datetime^dp	0 .. 1	xsd:dateTime^c

Restrictions	has method code^op : descendants of the given classes are allowed SNOMED 128927009 \| Procedure by method (procedure) \|^c
Notes	For sphn:hasMedicalDevice, instances of sphn:AccessDevice, sphn:LabAnalyzer, sphn:Implant are not allowed

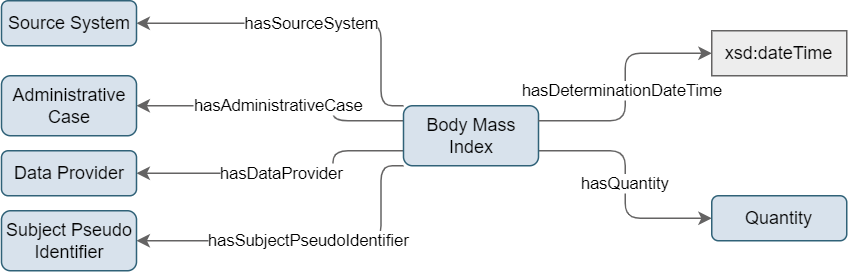

Body Mass Index ^c # Classes

Property (In the domain of)		Cardinality	Class or Datatype	Restriction
URI	`https://biomedit.ch/rdf/sphn-schema/sphn#BodyMassIndex`
Description	body weight in kilograms divided by the square of the body height in meters
Schema representation
Meaning binding (Equivalent-classes)	LOINC 39156-5 \| Body mass index (BMI) [Ratio] \|^c SNOMED 60621009 \| Body mass index (observable entity) \|^c
Parents	SPHN Concept^c
	has data provider^op	1 .. 1	Data Provider^c
	has quantity^op	1 .. 1		Yes
	has source system^op	1 .. *	Source System^c
	has subject pseudo identifier^op	1 .. 1	Subject Pseudo Identifier^c
	has administrative case^op	0 .. 1	Administrative Case^c
	has determination datetime^dp	0 .. 1	xsd:dateTime^c

Restrictions	has quantity^op / has unit^op / has code^op : descendants of the given classes are not allowed ucum:kgperm2^c

Body Position ^c # Classes

Property (In the domain of)		Cardinality	Class or Datatype	Restriction
URI	`https://biomedit.ch/rdf/sphn-schema/sphn#BodyPosition`
Description	position of the body during a certain time interval, examination or therapy

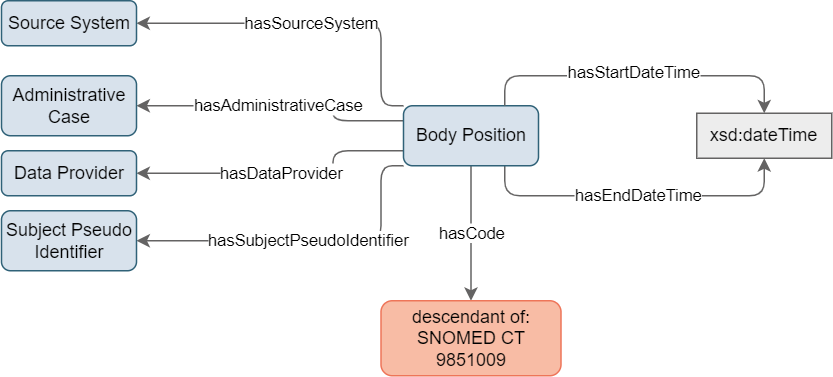

Schema representation
Meaning binding (Equivalent-classes)	SNOMED 397155001 \| Body position (observable entity) \|^c
Parents	SPHN Concept^c
	has administrative case^op	0 .. 1	Administrative Case^c
	has start datetime^dp	0 .. 1	xsd:dateTime^c
	has code^op	1 .. 1		Yes
	has data provider^op	1 .. 1	Data Provider^c
	has source system^op	1 .. *	Source System^c
	has subject pseudo identifier^op	1 .. 1	Subject Pseudo Identifier^c
	has end datetime^dp	0 .. 1	xsd:dateTime^c

Restrictions	has code^op : descendants of the given classes are allowed SNOMED 9851009 \| Body position finding (finding) \|^c

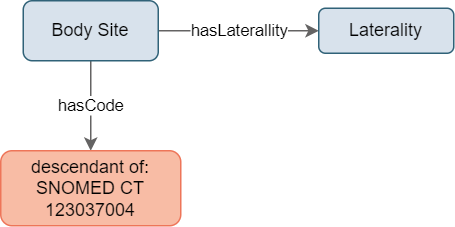

Body Site ^c # Classes

Property (In the domain of)		Cardinality	Class or Datatype	Restriction
URI	`https://biomedit.ch/rdf/sphn-schema/sphn#BodySite`
Description	any anatomical structure, any nonspecific and anatomical site, as well as morphologic abnormalities
Schema representation
Meaning binding (Equivalent-classes)	LOINC 39111-0 \| Body site \|^c SNOMED 123037004 \| Body structure (body structure) \|^c
Parents	SPHN Concept^c
	has code^op	1 .. 1		Yes
	has laterality^op	0 .. 1	Laterality^c

Restrictions	has code^op : descendants of the given classes are allowed SNOMED 123037004 \| Body structure (body structure) \|^c
Used in (In the range of)	has resting point^op has body site^op has insertion point^op

Body Surface Area ^c # Classes

Property (In the domain of)		Cardinality	Class or Datatype	Restriction
URI	`https://biomedit.ch/rdf/sphn-schema/sphn#BodySurfaceArea`
Description	two dimensional measure of the outer layer of the body
Schema representation
Meaning binding (Equivalent-classes)	LOINC 8277-6 \| Body surface area \|^c SNOMED 301898006 \| Body surface area (observable entity) \|^c
Parents	SPHN Concept^c
	has subject pseudo identifier^op	1 .. 1	Subject Pseudo Identifier^c
	has administrative case^op	0 .. 1	Administrative Case^c
	has determination datetime^dp	0 .. 1	xsd:dateTime^c
	has data provider^op	1 .. 1	Data Provider^c
	has quantity^op	1 .. 1		Yes
	has calculation method^op	0 .. 1	Body Surface Area calculation method^c
	has source system^op	1 .. *	Source System^c

Restrictions	has quantity^op / has unit^op / has code^op : descendants of the given classes are not allowed ucum:m2^c

Body Temperature ^c # Classes

Property (In the domain of)		Cardinality	Class or Datatype
URI	`https://biomedit.ch/rdf/sphn-schema/sphn#BodyTemperature`
Description	body temperature of the individual
Schema representation
Meaning binding (Equivalent-classes)	SNOMED 386725007 \| Body temperature (observable entity) \|^c LOINC 8310-5 \| Body temperature \|^c
Parents	Result^c
	has quantity^op	0 .. 1	Quantity^c
	has datetime^dp	0 .. 1	xsd:dateTime^c
	has data file^op	0 .. 1	Time Series Data File^c

Restrictions	None
Used in (In the range of)	has result^op

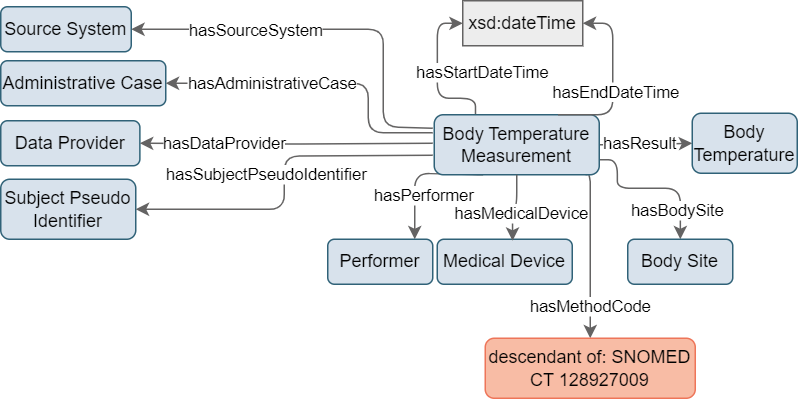

Body Temperature Measurement ^c # Classes

Property (In the domain of)		Cardinality	Class or Datatype	Restriction
URI	`https://biomedit.ch/rdf/sphn-schema/sphn#BodyTemperatureMeasurement`
Description	measurement of the body temperature of the individual
Schema representation
Meaning binding (Equivalent-classes)	SNOMED 56342008 \| Temperature taking (procedure) \|^c
Parents	Measurement^c
	has body site^op	0 .. 1	Body Site^c
	has data provider^op	1 .. 1	Data Provider^c
	has medical device^op	0 .. 1	Medical Device^c
	has method code^op	0 .. 1		Yes
	has source system^op	1 .. *	Source System^c
	has subject pseudo identifier^op	1 .. 1	Subject Pseudo Identifier^c
	has end datetime^dp	0 .. 1	xsd:dateTime^c
	has performer^op	0 .. 1	Performer^c
	has administrative case^op	0 .. 1	Administrative Case^c
	has start datetime^dp	1 .. 1	xsd:dateTime^c
	has result^op	1 .. *	Body Temperature^c

Restrictions	has method code^op : descendants of the given classes are allowed SNOMED 128927009 \| Procedure by method (procedure) \|^c
Notes	For sphn:hasMedicalDevice, instances of sphn:AccessDevice, sphn:LabAnalyzer are not allowed

Body Weight ^c # Classes

Property (In the domain of)		Cardinality	Class or Datatype
URI	`https://biomedit.ch/rdf/sphn-schema/sphn#BodyWeight`
Description	weight of the individual
Schema representation
Meaning binding (Equivalent-classes)	SNOMED 27113001 \| Body weight (observable entity) \|^c LOINC 29463-7 \| Body weight \|^c
Parents	Result^c
	has quantity^op	1 .. 1	Quantity^c
	has datetime^dp	0 .. 1	xsd:dateTime^c
	has data determination^op	0 .. 1	Data Determination^c

Restrictions	None
Used in (In the range of)	has result^op

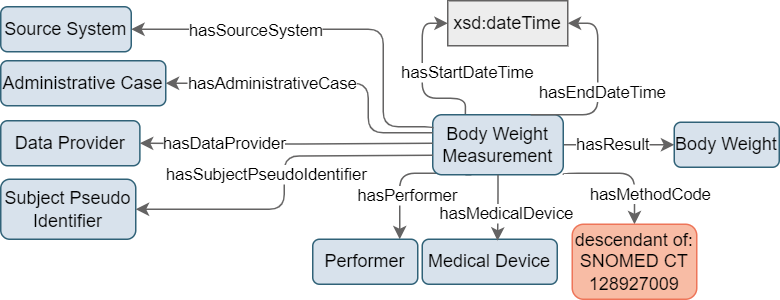

Body Weight Measurement ^c # Classes

Property (In the domain of)		Cardinality	Class or Datatype	Restriction
URI	`https://biomedit.ch/rdf/sphn-schema/sphn#BodyWeightMeasurement`
Description	measurement of the weight of the individual
Schema representation
Meaning binding (Equivalent-classes)	SNOMED 39857003 \| Weighing patient (procedure) \|^c
Parents	Measurement^c
	has method code^op	0 .. 1		Yes
	has subject pseudo identifier^op	1 .. 1	Subject Pseudo Identifier^c
	has end datetime^dp	0 .. 1	xsd:dateTime^c
	has administrative case^op	0 .. 1	Administrative Case^c
	has performer^op	0 .. 1	Performer^c
	has start datetime^dp	1 .. 1	xsd:dateTime^c
	has data provider^op	1 .. 1	Data Provider^c
	has result^op	1 .. 1	Body Weight^c
	has source system^op	1 .. *	Source System^c
	has medical device^op	0 .. 1	Medical Device^c

Restrictions	has method code^op : descendants of the given classes are allowed SNOMED 128927009 \| Procedure by method (procedure) \|^c
Notes	For sphn:hasMedicalDevice, instances of sphn:AccessDevice, sphn:LabAnalyzer, sphn:Implant are not allowed

Cardiac Index ^c # Classes

Property (In the domain of)		Cardinality	Class or Datatype	Restriction
URI	`https://biomedit.ch/rdf/sphn-schema/sphn#CardiacIndex`
Description	cardiac output in relation to the body surface area (BSA)
Schema representation
Meaning binding (Equivalent-classes)	SNOMED 54993008 \| Cardiac index (observable entity) \|^c
Parents	SPHN Concept^c
	has data provider^op	1 .. 1	Data Provider^c
	has quantity^op	1 .. 1		Yes
	has method code^op	0 .. 1		Yes
	has source system^op	1 .. *	Source System^c
	has subject pseudo identifier^op	1 .. 1	Subject Pseudo Identifier^c
	has administrative case^op	0 .. 1	Administrative Case^c
	has determination datetime^dp	0 .. 1	xsd:dateTime^c

Restrictions	has quantity^op / has unit^op / has code^op : descendants of the given classes are not allowed ucum:Lperminperm2^c has method code^op : descendants of the given classes are allowed SNOMED 63075001 \| Monitoring of cardiac output/cardiac index (regime/therapy) \|^c

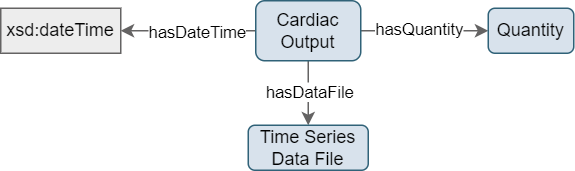

Cardiac Output ^c # Classes

Property (In the domain of)		Cardinality	Class or Datatype
URI	`https://biomedit.ch/rdf/sphn-schema/sphn#CardiacOutput`
Description	volume of blood passing through the heart per unit of time
Schema representation
Meaning binding (Equivalent-classes)	SNOMED 82799009 \| Cardiac output (observable entity) \|^c
Parents	Result^c
	has data file^op	0 .. 1	Time Series Data File^c
	has quantity^op	0 .. 1	Quantity^c
	has datetime^dp	0 .. 1	xsd:dateTime^c

Restrictions	None
Used in (In the range of)	has result^op

Cardiac Output Measurement ^c # Classes

Property (In the domain of)		Cardinality	Class or Datatype	Restriction
URI	`https://biomedit.ch/rdf/sphn-schema/sphn#CardiacOutputMeasurement`
Description	measurement of the cardiac output of the individual
Schema representation
Meaning binding (Equivalent-classes)	SNOMED 117610000 \| Measurement of cardiac output (procedure) \|^c
Parents	Measurement^c
	has result^op	1 .. *	Cardiac Output^c
	has data provider^op	1 .. 1	Data Provider^c
	has medical device^op	0 .. 1	Medical Device^c
	has method code^op	0 .. 1		Yes
	has source system^op	1 .. *	Source System^c
	has subject pseudo identifier^op	1 .. 1	Subject Pseudo Identifier^c
	has end datetime^dp	0 .. 1	xsd:dateTime^c
	has administrative case^op	0 .. 1	Administrative Case^c
	has performer^op	0 .. 1	Performer^c
	has start datetime^dp	1 .. 1	xsd:dateTime^c

Restrictions	has method code^op : descendants of the given classes are allowed SNOMED 128927009 \| Procedure by method (procedure) \|^c
Notes	For sphn:hasMedicalDevice, instances of sphn:AccessDevice, sphn:LabAnalyzer are not allowed

Care Handling ^c # Classes

Property (In the domain of)		Cardinality	Class or Datatype	Restriction
URI	`https://biomedit.ch/rdf/sphn-schema/sphn#CareHandling`
Description	describes the relationship between the individual and care provider institute
Schema representation
Meaning binding (Equivalent-classes)	SNOMED 225365006 \| Care regime (regime/therapy) \|^c
Parents	SPHN Concept^c
	has source system^op	1 .. *	Source System^c
	has type code^op	1 .. 1		Yes

Restrictions	has type code^op : descendants of the given classes are not allowed SNOMED 394656005 \| Inpatient care (regime/therapy) \|^c SNOMED 371883000 \| Outpatient procedure (procedure) \|^c SNOMED 304903009 \| Provision of day care (regime/therapy) \|^c
Used in (In the range of)	has care handling^op

Chromosomal Location ^c # Classes

Property (In the domain of)		Cardinality	Class or Datatype
URI	`https://biomedit.ch/rdf/sphn-schema/sphn#ChromosomalLocation`
Description	chromosome locus defined as cytoband intervals
Schema representation
Meaning binding (Equivalent-classes)	GENO 0000614 \| chromosomal region \|^c SO 0000830 \| chromosome_part \|^c
Parents	SPHN Concept^c
	has chromosome^op	1 .. 1	Chromosome^c
	has start cytoband code^op	1 .. 1	Code^c
	has end cytoband code^op	1 .. 1	Code^c

Restrictions

None

Notes

sphn:hasEndCytobandCode allowed coding system: ISCN

sphn:hasStartCytobandCode allowed coding system: ISCN

Used in
(In the range of)

has chromosomal location^op

Chromosome ^c # Classes

Property (In the domain of)		Cardinality	Restriction
URI	`https://biomedit.ch/rdf/sphn-schema/sphn#Chromosome`
Description	thread-like structure composed of tightly coiled DNA and histones or circular DNA (mitochondrial DNA). These structures act as carriers of genetic information
Schema representation
Meaning binding (Equivalent-classes)	LOINC 48000-4 \| Chromosome [Identifier] in Blood or Tissue by Molecular genetics method \|^c SNOMED 91272006 \| Chromosome (cell structure) \|^c
Parents	SPHN Concept^c
	has code^op	1 .. 1	Yes

Restrictions	has code^op : descendants of the given classes are allowed SNOMED 91272006 \| Chromosome (cell structure) \|^c
Used in (In the range of)	has chromosome^op

Circumference ^c # Classes

Property (In the domain of)		Cardinality	Class or Datatype
URI	`https://biomedit.ch/rdf/sphn-schema/sphn#Circumference`
Description	circumference of a body site
Schema representation
Meaning binding (Equivalent-classes)	SNOMED 248365001 \| Circumference measure (observable entity) \|^c
Parents	Result^c
	has quantity^op	1 .. 1	Quantity^c
	has datetime^dp	0 .. 1	xsd:dateTime^c

Restrictions	None
Used in (In the range of)	has result^op

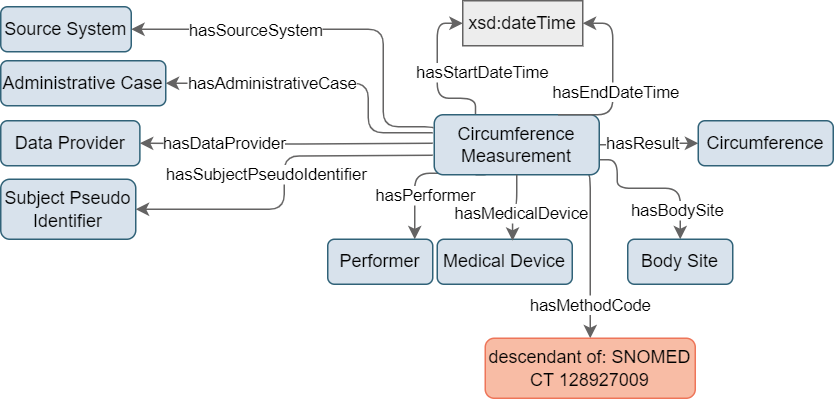

Circumference Measurement ^c # Classes

Property (In the domain of)		Cardinality	Class or Datatype	Restriction
URI	`https://biomedit.ch/rdf/sphn-schema/sphn#CircumferenceMeasurement`
Description	measurement of the circumference measure of a body site
Schema representation
Parents	Measurement^c
	has result^op	1 .. 1	Circumference^c
	has body site^op	0 .. 1		Yes
	has data provider^op	1 .. 1	Data Provider^c
	has medical device^op	0 .. 1	Medical Device^c
	has method code^op	0 .. 1		Yes
	has source system^op	1 .. *	Source System^c
	has subject pseudo identifier^op	1 .. 1	Subject Pseudo Identifier^c
	has end datetime^dp	0 .. 1	xsd:dateTime^c
	has performer^op	0 .. 1	Performer^c
	has administrative case^op	0 .. 1	Administrative Case^c
	has start datetime^dp	1 .. 1	xsd:dateTime^c

Restrictions	has body site^op / has code^op : descendants of the given classes are not allowed descendants of the given classes are allowed SNOMED 69536005 \| Head structure (body structure) \|^c SNOMED 33673004 \| Structure of waist (surface region) (body structure) \|^c SNOMED 29836001 \| Hip region structure (body structure) \|^c SNOMED 45048000 \| Neck structure (body structure) \|^c has method code^op : descendants of the given classes are allowed SNOMED 128927009 \| Procedure by method (procedure) \|^c
Notes	For sphn:hasMedicalDevice, instances of sphn:AccessDevice, sphn:LabAnalyzer, sphn:Implant are not allowed

Civil Status ^c # Classes

Property (In the domain of)		Cardinality	Class or Datatype	Restriction
URI	`https://biomedit.ch/rdf/sphn-schema/sphn#CivilStatus`
Description	the civil status indicates the familial and social situation of the individual
Schema representation
Meaning binding (Equivalent-classes)	SNOMED 365581002 \| Finding of marital or partnership status (finding) \|^c
Parents	SPHN Concept^c
	has source system^op	1 .. *	Source System^c
	has subject pseudo identifier^op	1 .. 1	Subject Pseudo Identifier^c
	has event datetime^dp	0 .. 1	xsd:dateTime^c
	has code^op	1 .. 1		Yes

Restrictions	has code^op : descendants of the given classes are not allowed SNOMED 125681006 \| Single person (finding) \|^c SNOMED 87915002 \| Married (finding) \|^c SNOMED 33553000 \| Widowed (finding) \|^c SNOMED 20295000 \| Divorced (finding) \|^c SNOMED 14012001 \| Common law partnership (finding) \|^c SNOMED 266945001 \| Broken with partner (finding) \|^c

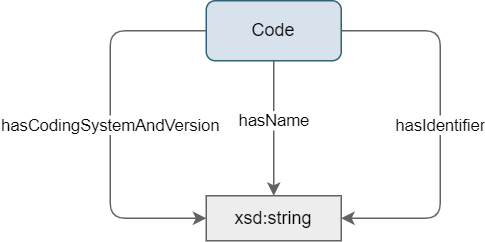

Code ^c # Classes

Property (In the domain of)		Cardinality	Class or Datatype
URI	`https://biomedit.ch/rdf/sphn-schema/sphn#Code`
Description	symbols and/or expressions defined in a coding system
Schema representation
Parents	SPHN Concept^c
	has name^dp	0 .. 1	xsd:string^c
	has identifier^dp	1 .. 1	xsd:string^c
	has coding system and version^dp	1 .. 1	xsd:string^c

Restrictions	None
Used in (In the range of)	has delivery mode code^op has format code^op has mode code^op has relative temporality code^op has administration route code^op has start cytoband code^op has graft type code^op has manifestation code^op has code^op has staining method code^op has kit code^op has circumstance code^op has target enrichment kit code^op has acquistion code^op has reason to stop code^op has zygosity code^op has severity code^op has agent code^op has route code^op has verification status code^op has staining result code^op has type code^op has degree code^op has output code^op has cell count estimate code^op has status code^op has allele origin code^op has regularity code^op has method code^op has certainty code^op has institution code^op has reaction type code^op has material type code^op has end cytoband code^op has product code^op has condition code^op

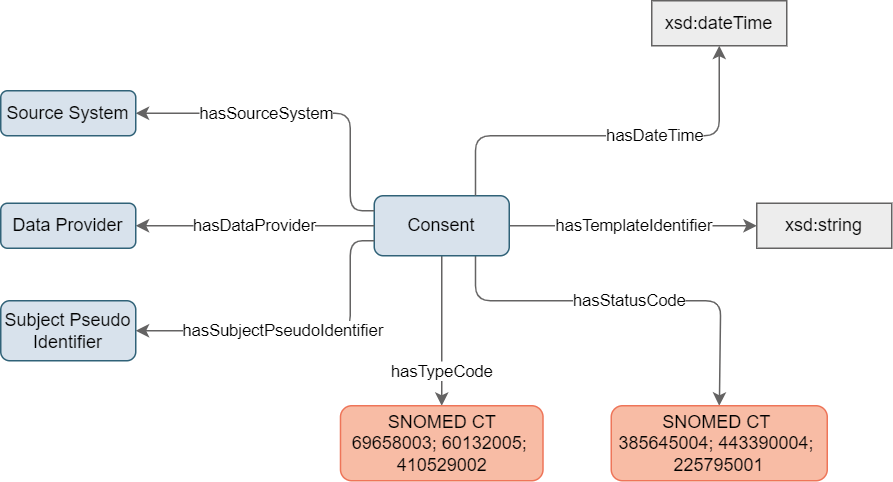

Consent ^c # Classes

Property (In the domain of)		Cardinality	Class or Datatype	Restriction
URI	`https://biomedit.ch/rdf/sphn-schema/sphn#Consent`
Description	information on the individual’s permission to make health related data and collected samples available for research purposes
Schema representation
Meaning binding (Equivalent-classes)	LOINC 59284-0 \| Consent Document \|^c SNOMED 371537001 \| Consent report (record artifact) \|^c
Parents	SPHN Concept^c
	has data provider^op	1 .. 1	Data Provider^c
	has source system^op	1 .. *	Source System^c
	has subject pseudo identifier^op	1 .. 1	Subject Pseudo Identifier^c
	has status code^op	0 .. 1		Yes
	has datetime^dp	1 .. 1	xsd:dateTime^c
	has type code^op	1 .. 1		Yes
	has template identifier^dp	0 .. 1	xsd:string^c

Restrictions	has status code^op : descendants of the given classes are not allowed SNOMED 385645004 \| Accepted (qualifier value) \|^c SNOMED 443390004 \| Refused (qualifier value) \|^c SNOMED 225795001 \| Is informed (finding) \|^c has type code^op : descendants of the given classes are not allowed SNOMED 69658003 \| Specific (qualifier value) \|^c SNOMED 60132005 \| Generalized (qualifier value) \|^c SNOMED 410529002 \| Not needed (qualifier value) \|^c

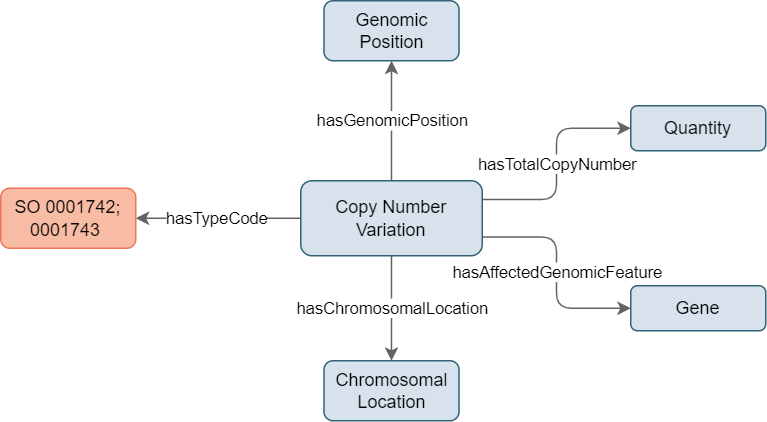

Copy Number Variation ^c # Classes

Property (In the domain of)		Cardinality	Class or Datatype	Restriction
URI	`https://biomedit.ch/rdf/sphn-schema/sphn#CopyNumberVariation`
Description	structural genomic variant characterized by relative changes in the number of copies of a specific genomic segment compared to a reference sequence
Schema representation
Meaning binding (Equivalent-classes)	SO 0001019 \| copy_number_variation \|^c
Parents	Genetic Variation^c
	has total copy number^op	0 .. 1		Yes
	has genomic position^op	0 .. 1	Genomic Position^c
	has chromosomal location^op	0 .. 1	Chromosomal Location^c
	has type code^op	1 .. 1		Yes
	has affected genomic feature^op	0 .. *	Gene^c

Restrictions	has total copy number^op / has unit^op / has code^op : descendants of the given classes are not allowed ucum:cblcopycbr^c has type code^op : descendants of the given classes are not allowed SO 0001742 \| copy_number_gain \|^c SO 0001743 \| copy_number_loss \|^c

Country ^c # Classes

Property (In the domain of)		Cardinality	Restriction
URI	`https://biomedit.ch/rdf/sphn-schema/sphn#Country`
Description	distinct part of the world, such as a state, nation, or other political entity, often but not necessarily a sovereign state
Schema representation
Meaning binding (Equivalent-classes)	SNOMED 223369002 \| Country (geographic location) \|^c
Parents	SPHN Concept^c
	has code^op	1 .. 1	Yes

Restrictions	has code^op : descendants of the given classes are allowed SNOMED 223369002 \| Country (geographic location) \|^c
Used in (In the range of)	has associated country^op has country^op

Data Determination ^c # Classes

Property (In the domain of)		Cardinality	Restriction
URI	`https://biomedit.ch/rdf/sphn-schema/sphn#DataDetermination`
Description	describes how the data was determined, e.g. measured, calculated
Schema representation
Parents	SPHN Concept^c
	has method code^op	1 .. 1	Yes

Restrictions	has method code^op : descendants of the given classes are not allowed SNOMED 258104002 \| Measured (qualifier value) \|^c SNOMED 258090004 \| Calculated (qualifier value) \|^c SNOMED 87982008 \| Manual (qualifier value) \|^c SNOMED 414135002 \| Estimated (qualifier value) \|^c SNOMED 263760002 \| Forced (qualifier value) \|^c
Used in (In the range of)	has data determination^op

Data File ^c # Classes

URI	`https://biomedit.ch/rdf/sphn-schema/sphn#DataFile`
Description	electronic resource of information, which can be stored, accessed and transferred as a single unit
Schema representation
Parents	SPHN Concept^c
Children (Sub-classes)	Time Series Data File^c

	Cardinality	Class or Datatype	Restriction
has format code^op	0 .. 1		Yes
has creation datetime^dp	0 .. 1	xsd:dateTime^c
has data provider^op	1 .. 1	Data Provider^c
has hash^op	0 .. 1	Hash^c
has encoding^op	0 .. 1	Data File encoding^c
has source system^op	1 .. *	Source System^c
has name^dp	0 .. 1	xsd:string^c
has uniform resource identifier^dp	0 .. 1	xsd:string^c
has subject pseudo identifier^op	0 .. *	Subject Pseudo Identifier^c

Restrictions	has format code^op : descendants of the given classes are allowed edam:format_1915^c
Used in (In the range of)	has output^op has input^op has data file^op

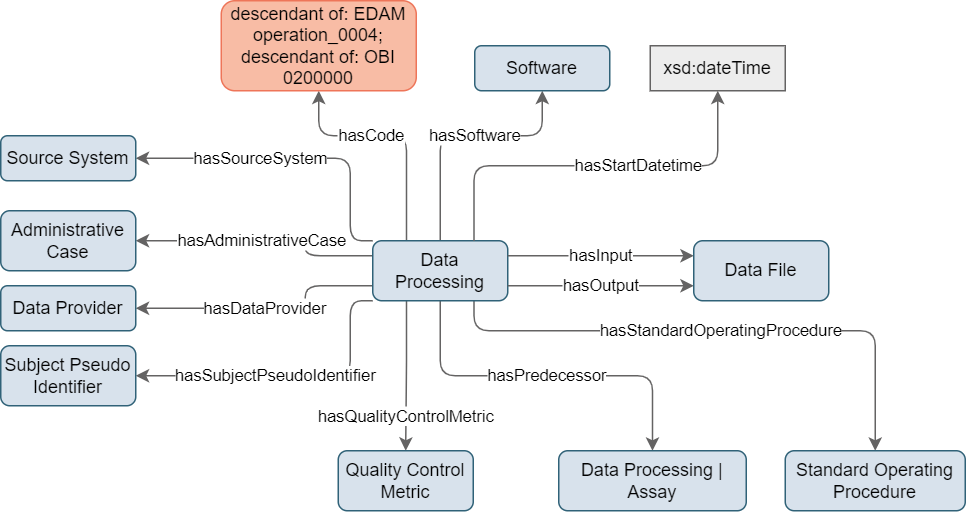

Data Processing ^c # Classes

URI	`https://biomedit.ch/rdf/sphn-schema/sphn#DataProcessing`
Description	a process that produces output data from input data
Schema representation
Parents	SPHN Concept^c
Children (Sub-classes)	Sequencing Analysis^c

	Cardinality	Class or Datatype	Restriction
has administrative case^op	0 .. *	Administrative Case^c
has input^op	0 .. *	Data File^c
has predecessor^op	0 .. *	Data Processing^c or Assay^c
has start datetime^dp	0 .. 1	xsd:dateTime^c
has code^op	1 .. 1		Yes
has data provider^op	1 .. 1	Data Provider^c
has source system^op	1 .. *	Source System^c
has standard operating procedure^op	0 .. 1	Standard Operating Procedure^c
has subject pseudo identifier^op	0 .. *	Subject Pseudo Identifier^c
has software^op	0 .. 1	Software^c
has quality control metric^op	0 .. *	Quality Control Metric^c
has output^op	0 .. *	Data File^c

Restrictions	has code^op : descendants of the given classes are allowed edam:operation_0004^c obi:OBI_0200000^c Code^c Terminology^c
Notes	sphn:hasCode allowed coding system: EDAM, OBI or other
Used in (In the range of)	has predecessor^op

Data Provider ^c # Classes

Property (In the domain of)		Cardinality	Class or Datatype
URI	`https://biomedit.ch/rdf/sphn-schema/sphn#DataProvider`
Description	provider of data of interest
Schema representation
Parents	SPHN Concept^c
	has institution code^op	1 .. 1	Code^c
	has department^op	0 .. 1	Department^c
	has category^op	0 .. 1	Data Provider category^c

Restrictions	None
Notes	sphn:hasInstitutionCode allowed coding system: UID
Used in (In the range of)	has data provider^op

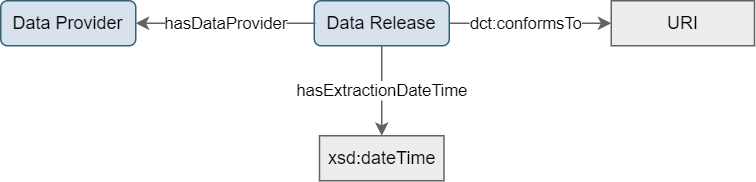

Data Release ^c # Classes

Property (In the domain of)		Cardinality	Class or Datatype
URI	`https://biomedit.ch/rdf/sphn-schema/sphn#DataRelease`
Description	Metadata about the release of the data
Schema representation
Parents	SPHN Concept^c
	has extraction datetime^dp	1 .. 1	xsd:dateTime^c
	has data provider^op	1 .. 1	Data Provider^c
	dcterms:conformsTo	1 .. 1

Restrictions	None

Death ^c # Classes

Property (In the domain of)		Cardinality	Class or Datatype	Restriction
URI	`https://biomedit.ch/rdf/sphn-schema/sphn#Death`
Description	cessation of all vital bodily functions
Schema representation
Meaning binding (Equivalent-classes)	SNOMED 419620001 \| Death (event) \|^c
Parents	SPHN Concept^c
	has data provider^op	1 .. 1	Data Provider^c
	has source system^op	1 .. *	Source System^c
	has subject pseudo identifier^op	1 .. 1	Subject Pseudo Identifier^c
	has date^op	0 .. 1	Death Date^c
	has administrative case^op	0 .. 1	Administrative Case^c
	has condition code^op	0 .. 1		Yes
	has circumstance code^op	0 .. 1		Yes
	has report datetime^dp	0 .. 1	xsd:dateTime^c

Restrictions

has condition code^op : descendants of the given classes are allowed

SNOMED 64572001 | Disease (disorder) |^c Code^c

has circumstance code^op : descendants of the given classes are allowed

SNOMED 419620001 | Death (event) |^c Code^c

Notes

sphn:hasConditionCode allowed coding system: SNOMED CT, ICD-10-GM

sphn:hasCircumstanceCode allowed coding system: SNOMED CT, ICD-10-GM

Used in
(In the range of)

has death^op

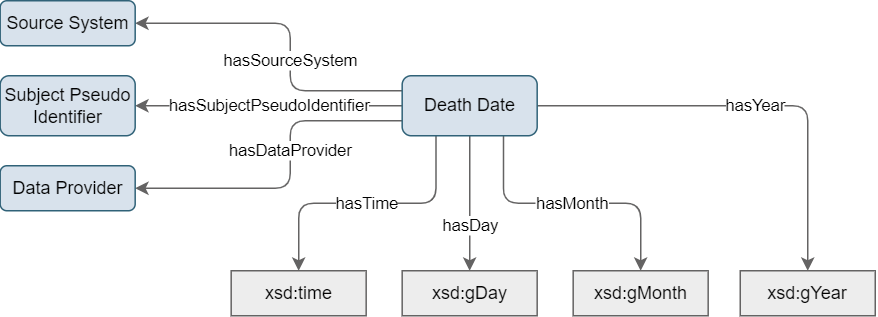

Death Date ^c # Classes

Property (In the domain of)		Cardinality	Class or Datatype
URI	`https://biomedit.ch/rdf/sphn-schema/sphn#DeathDate`
Description	the date and time of death of the individual
Schema representation
Meaning binding (Equivalent-classes)	SNOMED 399753006 \| Date of death (observable entity) \|^c LOINC 81954-0 \| Date of death [Date] \|^c
Parents	SPHN Concept^c
	has data provider^op	1 .. 1	Data Provider^c
	has source system^op	1 .. *	Source System^c
	has subject pseudo identifier^op	1 .. 1	Subject Pseudo Identifier^c
	has year^dp	1 .. 1	xsd:gYear^c
	has month^dp	0 .. 1	xsd:gMonth^c
	has day^dp	0 .. 1	xsd:gDay^c
	has time^dp	0 .. 1	xsd:time^c

Restrictions	None
Used in (In the range of)	has date^op

Department ^c # Classes

Property (In the domain of)		Cardinality	Class or Datatype
URI	`https://biomedit.ch/rdf/sphn-schema/sphn#Department`
Description	dedicated division of an organization
Schema representation
Parents	SPHN Concept^c
	has name^dp	1 .. 1	xsd:string^c

Restrictions	None
Used in (In the range of)	has department^op

Diagnosis ^c # Classes

URI	`https://biomedit.ch/rdf/sphn-schema/sphn#Diagnosis`
Description	determination of the presence of a disease, condition, or injury from expressed signs and symptoms and assessments such as physical examination, laboratory test, or the like
Schema representation
Meaning binding (Equivalent-classes)	SNOMED 439401001 \| Diagnosis (observable entity) \|^c
Parents	SPHN Concept^c
Children (Sub-classes)	Billed Diagnosis^c Nursing Diagnosis^c Oncology Diagnosis^c

	Cardinality	Class or Datatype
has code^op	1 .. *	Code^c or Terminology^c
has data provider^op	1 .. 1	Data Provider^c
has record datetime^dp	0 .. 1	xsd:dateTime^c
has source system^op	1 .. *	Source System^c
has subject pseudo identifier^op	1 .. 1	Subject Pseudo Identifier^c
has subject age^op	0 .. 1	Age^c
has administrative case^op	0 .. 1	Administrative Case^c

Restrictions	None
Notes	sphn:hasCode allowed coding system: SNOMED CT, ICD-10-GM, ICD-O-3 Topography, ICD-O-3 Morphology, NANDA, ORDO or other
Used in (In the range of)	has indication to start^op

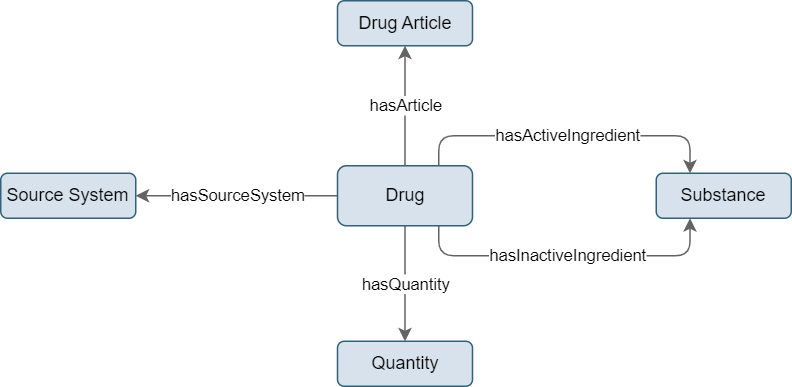

Drug ^c # Classes

Property (In the domain of)		Cardinality	Class or Datatype
URI	`https://biomedit.ch/rdf/sphn-schema/sphn#Drug`
Description	any substance with the intent to prevent, diagnose, treat, or relieve symptoms of a disease or abnormal condition
Schema representation
Meaning binding (Equivalent-classes)	SNOMED 410942007 \| Drug or medicament (substance) \|^c
Parents	SPHN Concept^c
	has inactive ingredient^op	0 .. *	Substance^c
	has active ingredient^op	0 .. *	Substance^c
	has quantity^op	0 .. 1	Quantity^c
	has article^op	0 .. 1	Drug Article^c
	has source system^op	1 .. *	Source System^c

Restrictions	None
Used in (In the range of)	has chemical agent^op has drug^op

Drug Administration Event ^c # Classes

Property (In the domain of)		Cardinality	Class or Datatype	Restriction
URI	`https://biomedit.ch/rdf/sphn-schema/sphn#DrugAdministrationEvent`
Description	single event at which a drug was administered to the patient; this could be a single time point in case of a pill/cream or a duration in case of a single infusion pack or a single patch; one or many drug administration events are initiated by a drug prescription depending on the frequency stated in the prescription
Schema representation
Meaning binding (Equivalent-classes)	SNOMED 182832007 \| Procedure related to management of drug administration (procedure) \|^c
Parents	SPHN Concept^c
	has start datetime^dp	1 .. 1	xsd:dateTime^c
	has administration route code^op	0 .. 1		Yes
	has reason to stop code^op	0 .. 1		Yes
	has data provider^op	1 .. 1	Data Provider^c
	has duration^op	0 .. 1	Quantity^c
	has drug^op	1 .. 1	Drug^c
	has source system^op	1 .. *	Source System^c
	has subject pseudo identifier^op	1 .. 1	Subject Pseudo Identifier^c
	has time pattern^op	0 .. 1	Time Pattern^c
	has end datetime^dp	0 .. 1	xsd:dateTime^c
	has administrative case^op	0 .. 1	Administrative Case^c

Restrictions	has administration route code^op : descendants of the given classes are allowed SNOMED 284009009 \| Route of administration value (qualifier value) \|^c has reason to stop code^op : descendants of the given classes are not allowed SNOMED 441308009 \| New diagnosis (observable entity) \|^c SNOMED 395009001 \| Medication stopped - side effect (situation) \|^c SNOMED 182872003 \| Drug discontinued - too expensive (situation) \|^c SNOMED 182846007 \| Doctor stopped drugs - medical aim achieved (situation) \|^c SNOMED 395007004 \| Medication stopped - ineffective (situation) \|^c SNOMED 31438003 \| Drug resistance (disorder) \|^c SNOMED 182845006 \| Doctor stopped drugs - avoid interaction (situation) \|^c SNOMED 182844005 \| Doctor stopped drugs - patient dislikes (situation) \|^c SNOMED 419620001 \| Death (event) \|^c SNOMED 399307001 \| Lost to follow-up (finding) \|^c SNOMED 74964007 \| Other (qualifier value) \|^c
Used in (In the range of)	has oxygen flow rate^op

Drug Article ^c # Classes

Property (In the domain of)		Cardinality	Class or Datatype
URI	`https://biomedit.ch/rdf/sphn-schema/sphn#DrugArticle`
Description	general details identifying a medication on the level of its commercial article
Schema representation
Parents	SPHN Concept^c
	has manufactured dose form^op	0 .. 1	Pharmaceutical Dose Form^c
	has code^op	0 .. 1	Code^c
	has source system^op	1 .. *	Source System^c
	has name^dp	0 .. 1	xsd:string^c

Restrictions	None
Notes	sphn:hasCode allowed coding system: GTIN
Used in (In the range of)	has article^op

Drug Prescription ^c # Classes

Property (In the domain of)		Cardinality	Class or Datatype	Restriction
URI	`https://biomedit.ch/rdf/sphn-schema/sphn#DrugPrescription`
Description	plan that defines at which frequency a drug should be administered to a patient with a given quantity; at every frequency time point a drug administration event should occur
Schema representation
Meaning binding (Equivalent-classes)	SNOMED 33633005 \| Prescription of drug (procedure) \|^c
Parents	SPHN Concept^c
	has administrative case^op	0 .. 1	Administrative Case^c
	has last administration datetime^dp	0 .. 1	xsd:dateTime^c
	has administration route code^op	0 .. 1		Yes
	has first administration datetime^dp	1 .. 1	xsd:dateTime^c
	has frequency^op	0 .. 1	Quantity^c
	has record datetime^dp	0 .. 1	xsd:dateTime^c
	has indication to start^op	0 .. *	Diagnosis^c
	has data provider^op	1 .. 1	Data Provider^c
	has drug^op	1 .. 1	Drug^c
	has source system^op	1 .. *	Source System^c
	has subject pseudo identifier^op	1 .. 1	Subject Pseudo Identifier^c
	has intent^op	0 .. *	Intent^c
	has time pattern^op	0 .. 1	Time Pattern^c

Restrictions	has administration route code^op : descendants of the given classes are allowed SNOMED 284009009 \| Route of administration value (qualifier value) \|^c

Electrocardiogram ^c # Classes

Property (In the domain of)		Cardinality	Class or Datatype
URI	`https://biomedit.ch/rdf/sphn-schema/sphn#Electrocardiogram`
Description	output of an electrocardiographic procedure
Schema representation
Parents	SPHN Concept^c
	has data file^op	1 .. *	Data File^c

Restrictions	None
Notes	For sphn:hasDataFile, instances of sphn:TimeSeriesDataFile are not allowed
Used in (In the range of)	has output^op

Electrocardiographic Procedure ^c # Classes

Property (In the domain of)		Cardinality	Class or Datatype	Restriction
URI	`https://biomedit.ch/rdf/sphn-schema/sphn#ElectrocardiographicProcedure`
Description	electrographic procedure on the heart which results in a graph of voltage versus time visualizing the electrical activity of the heart muscle using electrodes placed on the skin
Schema representation
Meaning binding (Equivalent-classes)	SNOMED 29303009 \| Electrocardiographic procedure (procedure) \|^c
Parents	Medical Procedure^c
	has body site^op	0 .. *	Body Site^c
	has code^op	1 .. *		Yes
	has data provider^op	1 .. 1	Data Provider^c
	has source system^op	1 .. *	Source System^c
	has number of leads^op	0 .. 1	Quantity^c
	has subject pseudo identifier^op	1 .. 1	Subject Pseudo Identifier^c
	has end datetime^dp	0 .. 1	xsd:dateTime^c
	has intent^op	0 .. 1		Yes
	has output^op	0 .. 1	Electrocardiogram^c
	has administrative case^op	0 .. 1	Administrative Case^c
	has subject physiologic state^op	0 .. 1		Yes
	has start datetime^dp	1 .. 1	xsd:dateTime^c

Restrictions	has code^op : descendants of the given classes are allowed SNOMED 29303009 \| Electrocardiographic procedure (procedure) \|^c has intent^op / has code^op : descendants of the given classes are not allowed descendants of the given classes are allowed SNOMED 360156006 \| Screening - procedure intent (qualifier value) \|^c SNOMED 261004008 \| Diagnostic intent (qualifier value) \|^c has subject physiologic state^op / has code^op : descendants of the given classes are not allowed descendants of the given classes are allowed SNOMED 128975004 \| Resting state (finding) \|^c SNOMED 128976003 \| Exercise state (finding) \|^c

Excluded Disorder ^c # Classes

Property (In the domain of)		Cardinality	Class or Datatype
URI	`https://biomedit.ch/rdf/sphn-schema/sphn#ExcludedDisorder`
Description	determination of the absence of a disease
Schema representation
Meaning binding (Equivalent-classes)	SNOMED 315215002 \| Disorder excluded (situation) \|^c
Parents	SPHN Concept^c
	has code^op	1 .. *	Code^c or Terminology^c
	has data provider^op	1 .. 1	Data Provider^c
	has record datetime^dp	1 .. 1	xsd:dateTime^c
	has source system^op	1 .. *	Source System^c
	has subject pseudo identifier^op	1 .. 1	Subject Pseudo Identifier^c
	has administrative case^op	0 .. 1	Administrative Case^c

Restrictions	None
Notes	sphn:hasCode allowed coding system: SNOMED CT, ICD-10-GM, ICD-O-3 Topography, ICD-O-3 Morphology, NANDA, ORDO or other

Exposure ^c # Classes

URI	`https://biomedit.ch/rdf/sphn-schema/sphn#Exposure`
Description	contact between a physical, biological, or chemical agent and an individual
Schema representation
Meaning binding (Equivalent-classes)	SNOMED 418715001 \| Exposure to potentially harmful entity (event) \|^c
Parents	SPHN Concept^c
Children (Sub-classes)	Tobacco Exposure^c

	Cardinality	Class or Datatype	Restriction
has start datetime^dp	0 .. 1	xsd:dateTime^c
has route code^op	0 .. *		Yes
has record datetime^dp	0 .. 1	xsd:dateTime^c
has data provider^op	1 .. 1	Data Provider^c
has agent code^op	0 .. 1		Yes
has quantity^op	0 .. 1	Quantity^c
has duration^op	0 .. 1	Quantity^c
has source system^op	1 .. *	Source System^c
has subject pseudo identifier^op	1 .. 1	Subject Pseudo Identifier^c
has degree code^op	0 .. 1		Yes
has end datetime^dp	0 .. 1	xsd:dateTime^c
has administrative case^op	0 .. 1	Administrative Case^c

Restrictions	has route code^op : descendants of the given classes are allowed SNOMED 138875005 \| SNOMED CT Concept (SNOMED RT+CTV3) \|^c has agent code^op : descendants of the given classes are allowed SNOMED 138875005 \| SNOMED CT Concept (SNOMED RT+CTV3) \|^c has degree code^op : descendants of the given classes are allowed SNOMED 138875005 \| SNOMED CT Concept (SNOMED RT+CTV3) \|^c
Used in (In the range of)	has exposure^op

Fluid Balance ^c # Classes

Property (In the domain of)		Cardinality	Class or Datatype
URI	`https://biomedit.ch/rdf/sphn-schema/sphn#FluidBalance`
Description	difference between fluid input and output during a specified time interval
Schema representation
Meaning binding (Equivalent-classes)	SNOMED 364396009 \| Fluid balance observable (observable entity) \|^c
Parents	SPHN Concept^c
	has subject pseudo identifier^op	1 .. 1	Subject Pseudo Identifier^c
	has fluid input output^op	0 .. *	Fluid Input Output^c
	has end datetime^dp	1 .. 1	xsd:dateTime^c
	has administrative case^op	0 .. 1	Administrative Case^c
	has start datetime^dp	1 .. 1	xsd:dateTime^c
	has data provider^op	1 .. 1	Data Provider^c
	has source system^op	1 .. *	Source System^c
	has quantity^op	1 .. 1	Quantity^c

Restrictions	None

Fluid Input Output ^c # Classes

Property (In the domain of)		Cardinality	Class or Datatype	Restriction
URI	`https://biomedit.ch/rdf/sphn-schema/sphn#FluidInputOutput`
Description	gain or loss of fluid that impacts the fluid balance
Schema representation
Parents	SPHN Concept^c
	has data provider^op	1 .. 1	Data Provider^c
	has source system^op	1 .. *	Source System^c
	has subject pseudo identifier^op	1 .. 1	Subject Pseudo Identifier^c
	has substance^op	1 .. 1		Yes
	has end datetime^dp	1 .. 1	xsd:dateTime^c
	has administrative case^op	0 .. 1	Administrative Case^c
	has start datetime^dp	1 .. 1	xsd:dateTime^c

Restrictions	has substance^op / has code^op : descendants of the given classes are allowed SNOMED 33463005 \| Liquid substance (substance) \|^c
Used in (In the range of)	has fluid input output^op

Follow Up ^c # Classes

Property (In the domain of)		Cardinality	Class or Datatype	Restriction
URI	`https://biomedit.ch/rdf/sphn-schema/sphn#FollowUp`
Description	procedure for following up on the patient status
Schema representation
Parents	SPHN Concept^c
	has code^op	0 .. 1		Yes
	has result^op	1 .. 1	Vital Status^c
	has data provider^op	1 .. 1	Data Provider^c
	has datetime^dp	0 .. 1	xsd:dateTime^c
	has source system^op	1 .. *	Source System^c
	has subject pseudo identifier^op	1 .. 1	Subject Pseudo Identifier^c

Restrictions	has code^op : descendants of the given classes are not allowed SNOMED 386473003 \| Telephone follow-up (procedure) \|^c SNOMED 281036007 \| Follow-up consultation (procedure) \|^c

Gene ^c # Classes

Property (In the domain of)		Cardinality	Class or Datatype
URI	`https://biomedit.ch/rdf/sphn-schema/sphn#Gene`
Description	fundamental unit of heredity that contains necessary elements to encode for a transcript
Schema representation
Meaning binding (Equivalent-classes)	SO 0000704 \| gene \|^c SNOMED 67271001 \| Gene (substance) \|^c
Parents	SPHN Concept^c
	has transcript^op	0 .. *	Transcript^c
	has organism^op	0 .. 1	Organism^c
	has code^op	1 .. 1	Code^c or Terminology^c
	has protein^op	0 .. *	Protein^c

Restrictions	None
Notes	sphn:hasCode allowed coding system: HGNC, NCBI Gene, Ensembl or other
Used in (In the range of)	has gene^op has affected genomic feature^op has target molecule^op has focus gene^op

Gene Panel ^c # Classes

Property (In the domain of)		Cardinality	Class or Datatype
URI	`https://biomedit.ch/rdf/sphn-schema/sphn#GenePanel`
Description	collection of genes that have been grouped for testing
Schema representation
Parents	SPHN Concept^c
	has focus gene^op	1 .. *	Gene^c
	has data file^op	0 .. *	Data File^c
	has data provider^op	1 .. 1	Data Provider^c

Restrictions	None
Notes	For sphn:hasDataFile, instances of sphn:TimeSeriesDataFile are not allowed
Used in (In the range of)	has gene panel^op

Genetic Variation ^c # Classes

URI	`https://biomedit.ch/rdf/sphn-schema/sphn#GeneticVariation`
Description	a genetic variation occurring at a defined position
Schema representation
Meaning binding (Equivalent-classes)	GENO 0000476 \| variant \|^c SO 0001060 \| sequence_variant \|^c
Parents	SPHN Concept^c
Children (Sub-classes)	Single Nucleotide Variation^c Genomic Deletion^c Copy Number Variation^c Genomic Insertion^c

Property (In the domain of)			Cardinality	Class or Datatype		Restriction
	has genomic position^op		0 .. 1	Genomic Position^c
	has chromosomal location^op		0 .. 1	Chromosomal Location^c

Restrictions	None
Used in (In the range of)	has genetic variation^op

Genomic Deletion ^c # Classes

Property (In the domain of)		Cardinality	Class or Datatype	Restriction
URI	`https://biomedit.ch/rdf/sphn-schema/sphn#GenomicDeletion`
Description	genetic variant involving the deletion of a specific location in a DNA sequence
Schema representation
Meaning binding (Equivalent-classes)	SO 0000159 \| deletion \|^c
Parents	Genetic Variation^c
	has genomic position^op	0 .. 1	Genomic Position^c
	has sequence length^op	0 .. 1		Yes
	has genomic sequence^dp	0 .. 1	xsd:string^c
	has chromosomal location^op	0 .. 1	Chromosomal Location^c

Restrictions	has sequence length^op / has unit^op / has code^op : descendants of the given classes are not allowed ucum:cblbase_paircbr^c

Genomic Insertion ^c # Classes

Property (In the domain of)		Cardinality	Class or Datatype	Restriction
URI	`https://biomedit.ch/rdf/sphn-schema/sphn#GenomicInsertion`
Description	genetic variant involving the addition of a DNA sequence in a specific location
Schema representation
Meaning binding (Equivalent-classes)	SO 0000667 \| insertion \|^c
Parents	Genetic Variation^c
	has chromosomal location^op	0 .. 1	Chromosomal Location^c
	has genomic position^op	0 .. 1	Genomic Position^c
	has genomic sequence^dp	0 .. 1	xsd:string^c
	has sequence length^op	0 .. 1		Yes

Restrictions	has sequence length^op / has unit^op / has code^op : descendants of the given classes are not allowed ucum:cblbase_paircbr^c

Genomic Position ^c # Classes

Property (In the domain of)		Cardinality	Class or Datatype
URI	`https://biomedit.ch/rdf/sphn-schema/sphn#GenomicPosition`
Description	genomic position with respect to a reference
Schema representation
Meaning binding (Equivalent-classes)	GENO 0000902 \| genomic feature location \|^c
Parents	SPHN Concept^c
	has reference^op	1 .. 1	Reference Sequence^c
	has end^dp	1 .. 1	xsd:double^c
	has coordinate convention^op	1 .. 1	Genomic Position coordinate convention^c
	has start^dp	1 .. 1	xsd:double^c

Restrictions	None
Used in (In the range of)	has genomic position^op

Gestational Age At Birth ^c # Classes

Property (In the domain of)		Cardinality	Class or Datatype	Restriction
URI	`https://biomedit.ch/rdf/sphn-schema/sphn#GestationalAgeAtBirth`
Description	gestational age of a child at birth
Schema representation
Meaning binding (Equivalent-classes)	SNOMED 412726003 \| Length of gestation at birth (observable entity) \|^c LOINC 76516-4 \| Gestational age--at birth \|^c
Parents	SPHN Concept^c
	has data provider^op	1 .. 1	Data Provider^c
	has source system^op	1 .. *	Source System^c
	has quantity^op	1 .. 1		Yes
	has subject pseudo identifier^op	1 .. 1	Subject Pseudo Identifier^c
	has administrative case^op	0 .. 1	Administrative Case^c

Restrictions	has quantity^op / has unit^op / has code^op : descendants of the given classes are not allowed ucum:d^c
Used in (In the range of)	has gestational age^op

Hash ^c # Classes

Property (In the domain of)		Cardinality	Class or Datatype
URI	`https://biomedit.ch/rdf/sphn-schema/sphn#Hash`
Description	irreversible unique number computed on an information entity used to check its validity and integrity
Schema representation
Parents	SPHN Concept^c
	has algorithm^op	1 .. 1	Hash algorithm^c
	has string value^dp	1 .. 1	xsd:string^c

Restrictions	None
Used in (In the range of)	has hash^op

Healthcare Encounter ^c # Classes

Property (In the domain of)		Cardinality	Class or Datatype
URI	`https://biomedit.ch/rdf/sphn-schema/sphn#HealthcareEncounter`
Description	an interaction between an individual and a specific unit or service of a healthcare provider institute, e.g. emergency, intensive care unit, for the purpose of providing healthcare service(s) or assessing the health status of an individual
Schema representation
Meaning binding (Equivalent-classes)	SNOMED 308335008 \| Patient encounter procedure (procedure) \|^c
Parents	SPHN Concept^c
	has subject pseudo identifier^op	1 .. 1	Subject Pseudo Identifier^c
	has origin location^op	0 .. 1	Location^c
	has end datetime^dp	0 .. 1	xsd:dateTime^c
	has administrative case^op	0 .. 1	Administrative Case^c
	has current location^op	1 .. 1	Location^c
	has start datetime^dp	1 .. 1	xsd:dateTime^c
	has therapeutic area^op	0 .. 1	Therapeutic Area^c
	has target location^op	0 .. 1	Location^c
	has data provider^op	1 .. 1	Data Provider^c
	has identifier^dp	1 .. 1	xsd:string^c
	has source system^op	1 .. *	Source System^c

Restrictions	None

Healthcare Primary Information System ^c # Classes

Property (In the domain of)		Cardinality	Class or Datatype	Restriction
URI	`https://biomedit.ch/rdf/sphn-schema/sphn#HealthcarePrimaryInformationSystem`
Description	primary source system of the healthcare data
Schema representation
Meaning binding (Equivalent-classes)	SNOMED 706593004 \| Information system (physical object) \|^c
Parents	SPHN Concept^c
	has code^op	0 .. 1		Yes
	has name^dp	0 .. 1	xsd:string^c
	has data provider^op	0 .. 1	Data Provider^c

Restrictions	has code^op : descendants of the given classes are allowed SNOMED 706593004 \| Information system (physical object) \|^c
Used in (In the range of)	has primary system^op

Heart Rate ^c # Classes

Property (In the domain of)		Cardinality	Class or Datatype	Restriction
URI	`https://biomedit.ch/rdf/sphn-schema/sphn#HeartRate`
Description	frequency of the heart beats, i.e. the number of time a heart beats per unit of time
Schema representation
Meaning binding (Equivalent-classes)	SNOMED 364075005 \| Heart rate (observable entity) \|^c LOINC 8867-4 \| Heart rate \|^c
Parents	Result^c
	has quantity^op	0 .. 1	Quantity^c
	has datetime^dp	0 .. 1	xsd:dateTime^c
	has regularity code^op	0 .. 1		Yes
	has data file^op	0 .. 1	Time Series Data File^c

Restrictions	has regularity code^op : descendants of the given classes are not allowed SNOMED 271636001 \| Pulse regular (finding) \|^c SNOMED 61086009 \| Pulse irregular (finding) \|^c
Used in (In the range of)	has result^op

Heart Rate Measurement ^c # Classes

Property (In the domain of)		Cardinality	Class or Datatype	Restriction
URI	`https://biomedit.ch/rdf/sphn-schema/sphn#HeartRateMeasurement`
Description	measurement of the heart rate of the individual
Schema representation
Meaning binding (Equivalent-classes)	SNOMED 65653002 \| Pulse taking (procedure) \|^c
Parents	Measurement^c
	has performer^op	0 .. 1	Performer^c
	has administrative case^op	0 .. 1	Administrative Case^c
	has start datetime^dp	1 .. 1	xsd:dateTime^c
	has subject physiologic state^op	0 .. 1	Physiologic State^c
	has result^op	1 .. *	Heart Rate^c
	has body site^op	0 .. 1	Body Site^c
	has data provider^op	1 .. 1	Data Provider^c
	has medical device^op	0 .. 1	Medical Device^c
	has source system^op	1 .. *	Source System^c
	has method code^op	0 .. 1		Yes
	has subject pseudo identifier^op	1 .. 1	Subject Pseudo Identifier^c
	has end datetime^dp	0 .. 1	xsd:dateTime^c

Restrictions	has method code^op : descendants of the given classes are allowed SNOMED 128927009 \| Procedure by method (procedure) \|^c
Notes	For sphn:hasMedicalDevice, instances of sphn:AccessDevice, sphn:LabAnalyzer are not allowed

Home Address ^c # Classes

Property (In the domain of)		Cardinality	Class or Datatype
URI	`https://biomedit.ch/rdf/sphn-schema/sphn#HomeAddress`
Description	permanent place of residence of an individual
Schema representation
Meaning binding (Equivalent-classes)	SNOMED 397635003 \| Address (observable entity) \|^c
Parents	SPHN Concept^c
	has source system^op	1 .. *	Source System^c
	has swiss socio economic position^op	0 .. *	Swiss Socio Economic Position^c
	has subject pseudo identifier^op	1 .. 1	Subject Pseudo Identifier^c
	has country^op	0 .. 1	Country^c
	has end datetime^dp	0 .. 1	xsd:dateTime^c
	has start datetime^dp	0 .. 1	xsd:dateTime^c
	has data provider^op	1 .. 1	Data Provider^c

Restrictions	None

Imaging Procedure ^c # Classes

Property (In the domain of)		Cardinality	Class or Datatype	Restriction
URI	`https://biomedit.ch/rdf/sphn-schema/sphn#ImagingProcedure`
Description	imaging procedure used for examination of a body site or function
Schema representation
Meaning binding (Equivalent-classes)	SNOMED 363679005 \| Imaging (procedure) \|^c
Parents	Medical Procedure^c
	has subject pseudo identifier^op	1 .. 1	Subject Pseudo Identifier^c
	has end datetime^dp	0 .. 1	xsd:dateTime^c
	has intent^op	0 .. 1	Intent^c
	has administrative case^op	0 .. 1	Administrative Case^c
	has start datetime^dp	1 .. 1	xsd:dateTime^c
	has body site^op	0 .. *	Body Site^c
	has code^op	1 .. *		Yes
	has data provider^op	1 .. 1	Data Provider^c
	has source system^op	1 .. *	Source System^c

Restrictions	has code^op : descendants of the given classes are allowed SNOMED 363679005 \| Imaging (procedure) \|^c

Implant ^c # Classes

Property (In the domain of)		Cardinality	Class or Datatype	Restriction
URI	`https://biomedit.ch/rdf/sphn-schema/sphn#Implant`
Description	implanted medical device, includes, e.g., heart valve prostheses or joint prostheses
Schema representation
Parents	Medical Device^c
	has type code^op	1 .. 1		Yes
	has software^op	0 .. *	Software^c
	has product code^op	0 .. 1	Terminology^c or Code^c

Restrictions	has type code^op : descendants of the given classes are allowed SNOMED 40388003 \| Implant, device (physical object) \|^c SNOMED 14106009 \| Cardiac pacemaker, device (physical object) \|^c
Used in (In the range of)	has medical device^op

Implant Presence ^c # Classes

Property (In the domain of)		Cardinality	Class or Datatype
URI	`https://biomedit.ch/rdf/sphn-schema/sphn#ImplantPresence`
Description	presence of an implanted medical device
Schema representation
Parents	SPHN Concept^c
	has source system^op	1 .. *	Source System^c
	has subject pseudo identifier^op	1 .. 1	Subject Pseudo Identifier^c
	has end datetime^dp	0 .. 1	xsd:dateTime^c
	has administrative case^op	0 .. 1	Administrative Case^c
	has start datetime^dp	0 .. 1	xsd:dateTime^c
	has record datetime^dp	0 .. 1	xsd:dateTime^c
	has body site^op	0 .. 1	Body Site^c
	has data provider^op	1 .. 1	Data Provider^c
	has medical device^op	1 .. 1	Implant^c

Restrictions	None

Inhaled Oxygen Concentration ^c # Classes

Property (In the domain of)		Cardinality	Class or Datatype	Restriction
URI	`https://biomedit.ch/rdf/sphn-schema/sphn#InhaledOxygenConcentration`
Description	fraction of inspired oxygen (FiO2) either calculated knowing the device used and the amount of oxygen administered or coming from the respiratory system settings
Schema representation
Meaning binding (Equivalent-classes)	LOINC 3150-0 \| Inhaled oxygen concentration \|^c SNOMED 250774007 \| Inspired oxygen concentration (observable entity) \|^c
Parents	SPHN Concept^c
	has administrative case^op	0 .. 1	Administrative Case^c
	has oxygen flow rate^op	0 .. 1	Drug Administration Event^c
	has data provider^op	1 .. 1	Data Provider^c
	has quantity^op	1 .. 1		Yes
	has source system^op	1 .. *	Source System^c
	has oxygen equipment^op	0 .. 1	Medical Device^c
	has datetime^dp	1 .. 1	xsd:dateTime^c
	has subject pseudo identifier^op	1 .. 1	Subject Pseudo Identifier^c
	has data determination^op	0 .. 1	Data Determination^c

Restrictions	has quantity^op / has unit^op / has code^op : descendants of the given classes are not allowed ucum:percent^c
Notes	For sphn:hasOxygenEquipment, instances of sphn:LabAnalyzer, sphn:Implant are not allowed

Insurance Status ^c # Classes

Property (In the domain of)		Cardinality	Class or Datatype
URI	`https://biomedit.ch/rdf/sphn-schema/sphn#InsuranceStatus`
Description	status of the patient's medical insurance
Schema representation
Meaning binding (Equivalent-classes)	LOINC 87520-3 \| Coverage type \|^c
Parents	SPHN Concept^c
	has start datetime^dp	0 .. 1	xsd:dateTime^c
	has data provider^op	1 .. 1	Data Provider^c
	has coverage type^op	1 .. 1	Insurance Status coverage type^c
	has source system^op	1 .. *	Source System^c
	has subject pseudo identifier^op	1 .. 1	Subject Pseudo Identifier^c
	has end datetime^dp	0 .. 1	xsd:dateTime^c
	has administrative case^op	0 .. 1	Administrative Case^c

Restrictions	None

Intent ^c # Classes

Property (In the domain of)		Cardinality	Restriction
URI	`https://biomedit.ch/rdf/sphn-schema/sphn#Intent`
Description	treatment or procedure purpose
Schema representation
Meaning binding (Equivalent-classes)	SNOMED 363675004 \| Intents (nature of procedure values) (qualifier value) \|^c
Parents	SPHN Concept^c
	has code^op	1 .. 1	Yes

Restrictions	has code^op : descendants of the given classes are allowed SNOMED 363675004 \| Intents (nature of procedure values) (qualifier value) \|^c
Used in (In the range of)	has intent^op

Interpretation ^c # Classes

URI	`https://biomedit.ch/rdf/sphn-schema/sphn#Interpretation`
Description	process of making sense of an outcome to derive meaningful conclusions
Schema representation
Parents	SPHN Concept^c
Children (Sub-classes)	Reference Interpretation^c

	Cardinality	Class or Datatype
has data provider^op	1 .. 1	Data Provider^c
has datetime^dp	0 .. 1	xsd:dateTime^c
has source system^op	1 .. *	Source System^c
has output^op	1 .. *	SPHN Concept^c
has standard guideline^dp	0 .. *	xsd:string^c
has input^op	0 .. *	SPHN Concept^c

Restrictions	None

Isolate ^c # Classes

Property (In the domain of)		Cardinality	Class or Datatype	Restriction
URI	`https://biomedit.ch/rdf/sphn-schema/sphn#Isolate`
Description	a specific individual microbe and its clone separated on a single occasion from a sample taken from a host or culture system
Schema representation
Meaning binding (Equivalent-classes)	SNOMED 119303007 \| Microbial isolate specimen (specimen) \|^c
Parents	Sample^c
	has fixation type^op	0 .. 1	Sample fixation type^c
	has body site^op	0 .. 1	Body Site^c
	has data provider^op	1 .. 1	Data Provider^c
	has identifier^dp	0 .. *	xsd:string^c
	has source system^op	1 .. *	Source System^c
	has subject pseudo identifier^op	1 .. 1	Subject Pseudo Identifier^c
	has shared identifier^dp	0 .. *	xsd:anyURI^c
	has primary container^op	0 .. 1	Sample primary container^c
	has organism^op	0 .. 1	Organism^c
	has material type code^op	0 .. *		Yes
	has administrative case^op	0 .. 1	Administrative Case^c
	has collection datetime^dp	1 .. 1	xsd:dateTime^c

Restrictions	has material type code^op : descendants of the given classes are allowed SNOMED 123038009 \| Specimen (specimen) \|^c
Used in (In the range of)	has sample^op

Lab Analyzer ^c # Classes

Property (In the domain of)		Cardinality	Class or Datatype	Restriction
URI	`https://biomedit.ch/rdf/sphn-schema/sphn#LabAnalyzer`
Description	laboratory analyzer used to assess medical laboratory samples
Schema representation
Parents	Medical Device^c
	has type code^op	0 .. 1		Yes
	has software^op	0 .. *	Software^c
	has product code^op	0 .. 1	Terminology^c or Code^c

Restrictions

has type code^op : descendants of the given classes are allowed

Code^c emdn:EMDN^c

Notes

sphn:hasProductCode allowed coding system: UDI-DI from GUDID or other

sphn:hasTypeCode allowed coding system: GMDN, EMDN

Used in
(In the range of)

has instrument^op
has test kit^op

Lab Result ^c # Classes

URI	`https://biomedit.ch/rdf/sphn-schema/sphn#LabResult`
Description	outcome, value, or information which gives insight about a laboratory test
Schema representation
Parents	Result^c
Children (Sub-classes)	Microbiology Biomolecule Presence Result^c Microbiology Microscopy Result^c Antimicrobial Susceptibility Result^c Microorganism Identification Result^c

	Cardinality	Class or Datatype
has quantity^op	0 .. 1	Quantity^c
has string value^dp	0 .. 1	xsd:string^c
has numerical reference^op	0 .. 1	Reference Range^c or Reference Value^c
has code^op	0 .. 1	Code^c or Terminology^c

Restrictions	None
Used in (In the range of)	has result^op

Lab Test ^c # Classes

URI	`https://biomedit.ch/rdf/sphn-schema/sphn#LabTest`
Description	specific laboratory test performed to analyze a sample with a given equipment and leading to specific results
Schema representation
Meaning binding (Equivalent-classes)	SNOMED 15220000 \| Laboratory test (procedure) \|^c
Parents	SPHN Concept^c
Children (Sub-classes)	Antimicrobial Susceptibility Lab Test^c Microbiology Microscopy Lab Test^c Microbiology Biomolecule Presence Lab Test^c Microorganism Identification Lab Test^c

	Cardinality	Class or Datatype	Restriction
has result^op	1 .. *	Lab Result^c
has instrument^op	0 .. 1	Lab Analyzer^c
has test kit^op	0 .. 1	Lab Analyzer^c
has code^op	1 .. 1		Yes

Restrictions

has code^op : descendants of the given classes are allowed

sphn-loinc:LOINC^c SNOMED 138875005 | SNOMED CT Concept (SNOMED RT+CTV3) |^c

Notes

sphn:hasCode allowed coding system: LOINC, SNOMED CT

For sphn:hasResult, instances of sphn:AntimicrobialSusceptibilityResult, sphn:MicrobiologyBiomoleculePresenceResult, sphn:MicrobiologyMicroscopyResult, sphn:MicroorganismIdentificationResult are not allowed

Used in
(In the range of)

has lab test^op

Lab Test Event ^c # Classes

URI	`https://biomedit.ch/rdf/sphn-schema/sphn#LabTestEvent`
Description	occurrence in which one or multiple laboratory tests are performed on a biological specimen at a given time
Schema representation
Parents	SPHN Concept^c
Children (Sub-classes)	Microbiology Microscopy Lab Test Event^c Microorganism Identification Lab Test Event^c Microbiology Biomolecule Presence Lab Test Event^c Antimicrobial Susceptibility Lab Test Event^c

	Cardinality	Class or Datatype
has data provider^op	1 .. 1	Data Provider^c
has sample^op	0 .. 1	Sample^c
has datetime^dp	0 .. 1	xsd:dateTime^c
has source system^op	1 .. *	Source System^c
has subject pseudo identifier^op	1 .. 1	Subject Pseudo Identifier^c
has administrative case^op	0 .. 1	Administrative Case^c
has report datetime^dp	0 .. 1	xsd:dateTime^c
has lab test^op	1 .. *	Lab Test^c

Restrictions	None
Notes	For sphn:hasLabTest, instances of sphn:AntimicrobialSusceptibilityLabTest, sphn:MicrobiologyBiomoleculePresenceLabTest, sphn:MicrobiologyMicroscopyLabTest, sphn:MicroorganismIdentificationLabTest are not allowed

Laterality ^c # Classes

Property (In the domain of)		Cardinality	Restriction
URI	`https://biomedit.ch/rdf/sphn-schema/sphn#Laterality`
Description	localization with respect to the side of the body
Schema representation
Meaning binding (Equivalent-classes)	LOINC 20228-3 \| Anatomic part Laterality \|^c
Parents	SPHN Concept^c
	has code^op	1 .. 1	Yes

Restrictions	has code^op : descendants of the given classes are not allowed SNOMED 7771000 \| Left (qualifier value) \|^c SNOMED 24028007 \| Right (qualifier value) \|^c SNOMED 51440002 \| Right and left (qualifier value) \|^c SNOMED 66459002 \| Unilateral (qualifier value) \|^c
Used in (In the range of)	has laterality^op

Library Preparation ^c # Classes

Property (In the domain of)		Cardinality	Class or Datatype	Restriction
URI	`https://biomedit.ch/rdf/sphn-schema/sphn#LibraryPreparation`
Description	process which results in the creation of a library from fragments of DNA
Schema representation
Meaning binding (Equivalent-classes)	obi:OBI_0000711^c
Parents	Sample Processing^c
	has intended insert size^op	0 .. 1	Quantity^c
	has output^op	0 .. 1	Sample^c
	has input^op	0 .. *	Sample^c
	has quality control metric^op	0 .. *	Quality Control Metric^c
	has administrative case^op	0 .. *	Administrative Case^c
	has start datetime^dp	0 .. 1	xsd:dateTime^c
	has predecessor^op	0 .. *	Sample Processing^c
	has code^op	0 .. 1		Yes
	has data provider^op	1 .. 1	Data Provider^c
	has kit code^op	0 .. 1	Terminology^c or Code^c
	has target enrichment kit code^op	0 .. 1	Code^c or Terminology^c
	has gene panel^op	0 .. 1	Gene Panel^c
	has source system^op	1 .. *	Source System^c
	has subject pseudo identifier^op	0 .. *	Subject Pseudo Identifier^c
	has standard operating procedure^op	0 .. 1	Standard Operating Procedure^c

Restrictions

has code^op : descendants of the given classes are allowed

obi:OBI_0000711^c Code^c Terminology^c

Notes

For sphn:hasOutput, instances of sphn:TumorSpecimen are not allowed

sphn:hasTargetEnrichmentKitCode allowed coding system: EFO, GENEPIO, FAIRGenomes or other

sphn:hasCode allowed coding system: OBI, EFO or other

sphn:hasKitCode allowed coding system: EFO, GENEPIO, FAIRGenomes or other

Used in
(In the range of)

has library preparation^op

Location ^c # Classes

Property (In the domain of)		Cardinality	Class or Datatype	Restriction
URI	`https://biomedit.ch/rdf/sphn-schema/sphn#Location`
Description	physical location or medical division taking care of the individual
Schema representation
Parents	SPHN Concept^c
	has data provider^op	1 .. 1	Data Provider^c
	has type code^op	1 .. 1		Yes
	has exact^dp	0 .. 1	xsd:string^c

Restrictions	has type code^op : descendants of the given classes are allowed SNOMED 276339004 \| Environment (environment) \|^c
Used in (In the range of)	has target location^op has location^op has origin location^op has discharge location^op has current location^op

Measurement ^c # Classes

URI	`https://biomedit.ch/rdf/sphn-schema/sphn#Measurement`
Description	process of quantitatively defining the value or magnitude of an attribute or characteristic in comparison to a defined standard
Schema representation
Meaning binding (Equivalent-classes)	SNOMED 122869004 \| Measurement procedure (procedure) \|^c
Parents	SPHN Concept^c
Children (Sub-classes)	Blood Pressure Measurement^c Circumference Measurement^c Respiratory Rate Measurement^c Body Height Measurement^c Body Weight Measurement^c Oxygen Saturation Measurement^c Cardiac Output Measurement^c Body Temperature Measurement^c Heart Rate Measurement^c

	Cardinality	Class or Datatype	Restriction
has data provider^op	1 .. 1	Data Provider^c
has medical device^op	0 .. 1	Medical Device^c
has method code^op	0 .. 1		Yes
has source system^op	1 .. *	Source System^c
has subject pseudo identifier^op	1 .. 1	Subject Pseudo Identifier^c
has end datetime^dp	0 .. 1	xsd:dateTime^c
has administrative case^op	0 .. 1	Administrative Case^c
has performer^op	0 .. 1	Performer^c
has start datetime^dp	1 .. 1	xsd:dateTime^c
has result^op	1 .. *	Result^c

Restrictions

has method code^op : descendants of the given classes are allowed

SNOMED 128927009 | Procedure by method (procedure) |^c

Notes

For sphn:hasMedicalDevice, instances of sphn:AccessDevice, sphn:LabAnalyzer are not allowed

For sphn:hasResult, instances of sphn:LabResult, sphn:VitalStatus, sphn:AntimicrobialSusceptibilityResult, sphn:MicrobiologyBiomoleculePresenceResult, sphn:MicrobiologyMicroscopyResult, sphn:MicroorganismIdentificationResult are not allowed

Medical Device ^c # Classes

URI	`https://biomedit.ch/rdf/sphn-schema/sphn#MedicalDevice`
Description	product intended for medical use when the main effect is not achieved by a medicinal product; medical devices include, but are not limited to, implants, instruments, devices, in vitro diagnostics
Schema representation
Meaning binding (Equivalent-classes)	SNOMED 63653004 \| Biomedical device (physical object) \|^c
Parents	SPHN Concept^c
Children (Sub-classes)	Access Device^c Implant^c Lab Analyzer^c

	Cardinality	Class or Datatype	Restriction
has software^op	0 .. *	Software^c
has product code^op	0 .. 1	Terminology^c or Code^c
has type code^op	0 .. 1		Yes

Restrictions	has type code^op : descendants of the given classes are allowed SNOMED 272181003 \| Clinical equipment and/or device (physical object) \|^c Code^c Terminology^c
Notes	sphn:hasTypeCode allowed coding system: SNOMED CT or other
Used in (In the range of)	has medical device^op has oxygen equipment^op

Medical Procedure ^c # Classes

URI	`https://biomedit.ch/rdf/sphn-schema/sphn#MedicalProcedure`
Description	invasive or non-invasive intervention performed for, with or on behalf of an individual whose purpose is to assess, improve, maintain, promote or modify health, functioning or health conditions
Schema representation
Meaning binding (Equivalent-classes)	SNOMED 71388002 \| Procedure (procedure) \|^c
Parents	SPHN Concept^c
Children (Sub-classes)	Billed Procedure^c Oncology Surgery^c Radiotherapy Procedure^c Organ Support^c Imaging Procedure^c Electrocardiographic Procedure^c

	Cardinality	Class or Datatype
has intent^op	0 .. 1	Intent^c
has end datetime^dp	0 .. 1	xsd:dateTime^c
has administrative case^op	0 .. 1	Administrative Case^c
has start datetime^dp	1 .. 1	xsd:dateTime^c
has code^op	1 .. *	Code^c or Terminology^c
has body site^op	0 .. *	Body Site^c
has data provider^op	1 .. 1	Data Provider^c
has source system^op	1 .. *	Source System^c
has subject pseudo identifier^op	1 .. 1	Subject Pseudo Identifier^c

Restrictions	None
Notes	sphn:hasCode allowed coding system: SNOMED CT, CHOP or other

Microbiology Biomolecule Presence Lab Test ^c # Classes

Property (In the domain of)		Cardinality	Class or Datatype	Restriction
URI	`https://biomedit.ch/rdf/sphn-schema/sphn#MicrobiologyBiomoleculePresenceLabTest`
Description	specific lab test performed on an isolate for detecting the presence of a target biomolecule
Schema representation
Parents	Lab Test^c
	has result^op	1 .. *	Microbiology Biomolecule Presence Result^c
	has instrument^op	0 .. 1	Lab Analyzer^c
	has test kit^op	0 .. 1	Lab Analyzer^c
	has target molecule^op	1 .. 1	Gene^c or Protein^c
	has code^op	1 .. 1		Yes

Restrictions	has code^op : descendants of the given classes are allowed sphn-loinc:LOINC^c SNOMED 138875005 \| SNOMED CT Concept (SNOMED RT+CTV3) \|^c
Used in (In the range of)	has lab test^op

Microbiology Biomolecule Presence Lab Test Event ^c # Classes

Property (In the domain of)		Cardinality	Class or Datatype
URI	`https://biomedit.ch/rdf/sphn-schema/sphn#MicrobiologyBiomoleculePresenceLabTestEvent`
Description	occurrence in which one or multiple laboratory tests are performed on an isolate at a given time to detect the presence of a biomolecule
Schema representation
Parents	Lab Test Event^c
	has source system^op	1 .. *	Source System^c
	has subject pseudo identifier^op	1 .. 1	Subject Pseudo Identifier^c
	has administrative case^op	0 .. 1	Administrative Case^c
	has report datetime^dp	0 .. 1	xsd:dateTime^c
	has lab test^op	1 .. *	Microbiology Biomolecule Presence Lab Test^c
	has data provider^op	1 .. 1	Data Provider^c
	has sample^op	1 .. 1	Isolate^c
	has datetime^dp	0 .. 1	xsd:dateTime^c

Restrictions	None

Microbiology Biomolecule Presence Result ^c # Classes

Property (In the domain of)		Cardinality	Class or Datatype	Restriction
URI	`https://biomedit.ch/rdf/sphn-schema/sphn#MicrobiologyBiomoleculePresenceResult`
Description	result of microbiology biomolecule presence test for a specific isolate analyzed
Schema representation
Parents	Lab Result^c
	has string value^dp	0 .. 1	xsd:string^c
	has code^op	0 .. 1		Yes
	has quantity^op	0 .. 1	Quantity^c
	has numerical reference^op	0 .. 1	Reference Range^c or Reference Value^c

Restrictions	has code^op : descendants of the given classes are not allowed SNOMED 10828004 \| Positive (qualifier value) \|^c SNOMED 260385009 \| Negative (qualifier value) \|^c SNOMED 373068000 \| Undetermined (qualifier value) \|^c
Used in (In the range of)	has result^op

Microbiology Microscopy Lab Test ^c # Classes

Property (In the domain of)		Cardinality	Class or Datatype	Restriction
URI	`https://biomedit.ch/rdf/sphn-schema/sphn#MicrobiologyMicroscopyLabTest`
Description	specific microbiology microscopy lab test performed on a sample
Schema representation
Parents	Lab Test^c
	has code^op	1 .. 1		Yes
	has staining method code^op	0 .. 1		Yes
	has result^op	1 .. *	Microbiology Microscopy Result^c
	has instrument^op	0 .. 1	Lab Analyzer^c
	has test kit^op	0 .. 1	Lab Analyzer^c

Restrictions	has code^op : descendants of the given classes are allowed SNOMED 117259009 \| Microscopy (procedure) \|^c has staining method code^op : descendants of the given classes are allowed SNOMED 37926009 \| Microbial stain method (procedure) \|^c
Used in (In the range of)	has lab test^op

Microbiology Microscopy Lab Test Event ^c # Classes

Property (In the domain of)		Cardinality	Class or Datatype
URI	`https://biomedit.ch/rdf/sphn-schema/sphn#MicrobiologyMicroscopyLabTestEvent`
Description	occurrence in which one or multiple microbiology microscopy laboratory tests are performed on a sample at a given time
Schema representation
Parents	Lab Test Event^c
	has source system^op	1 .. *	Source System^c
	has sample^op	1 .. 1	Sample^c
	has datetime^dp	0 .. 1	xsd:dateTime^c
	has subject pseudo identifier^op	1 .. 1	Subject Pseudo Identifier^c
	has administrative case^op	0 .. 1	Administrative Case^c
	has report datetime^dp	0 .. 1	xsd:dateTime^c
	has data provider^op	1 .. 1	Data Provider^c
	has lab test^op	1 .. *	Microbiology Microscopy Lab Test^c

Restrictions	None
Notes	For sphn:hasSample, instances of sphn:TumorSpecimen are not allowed

Microbiology Microscopy Result ^c # Classes

Property (In the domain of)		Cardinality	Class or Datatype	Restriction
URI	`https://biomedit.ch/rdf/sphn-schema/sphn#MicrobiologyMicroscopyResult`
Description	microscopy analysis results for a specific studied biosample in microbiology
Schema representation
Parents	Lab Result^c
	has quantity^op	0 .. 1	Quantity^c
	has staining result code^op	0 .. 1		Yes
	has cell count estimate code^op	0 .. 1		Yes
	has cell organization^op	0 .. 1	Microbiology Microscopy Result cell organization^c
	has cell morphology^op	0 .. 1	Microbiology Microscopy Result cell morphology^c
	has string value^dp	0 .. 1	xsd:string^c
	has numerical reference^op	0 .. 1	Reference Range^c or Reference Value^c

Restrictions	has staining result code^op : descendants of the given classes are not allowed SNOMED 373068000 \| Undetermined (qualifier value) \|^c SNOMED 10828004 \| Positive (qualifier value) \|^c SNOMED 260385009 \| Negative (qualifier value) \|^c has cell count estimate code^op : descendants of the given classes are not allowed SNOMED 260413007 \| None (qualifier value) \|^c SNOMED 57176003 \| Few (qualifier value) \|^c SNOMED 260396001 \| Numerous (qualifier value) \|^c SNOMED 46998006 \| Massive (qualifier value) \|^c
Used in (In the range of)	has result^op

Microorganism Identification Lab Test ^c # Classes

Property (In the domain of)		Cardinality	Class or Datatype	Restriction
URI	`https://biomedit.ch/rdf/sphn-schema/sphn#MicroorganismIdentificationLabTest`
Description	specific lab test performed on a sample for identifying microorganism(s)
Schema representation
Parents	Lab Test^c
	has code^op	1 .. 1		Yes
	has result^op	1 .. *	Microorganism Identification Result^c
	has instrument^op	0 .. 1	Lab Analyzer^c
	has test kit^op	0 .. 1	Lab Analyzer^c

Restrictions	has code^op : descendants of the given classes are allowed SNOMED 19851009 \| Microbiology procedure (procedure) \|^c
Used in (In the range of)	has lab test^op

Microorganism Identification Lab Test Event ^c # Classes

Property (In the domain of)		Cardinality	Class or Datatype
URI	`https://biomedit.ch/rdf/sphn-schema/sphn#MicroorganismIdentificationLabTestEvent`
Description	occurrence in which one or multiple laboratory tests are performed on a sample at a given time for identifying microorganism(s)
Schema representation
Parents	Lab Test Event^c
	has datetime^dp	0 .. 1	xsd:dateTime^c
	has administrative case^op	0 .. 1	Administrative Case^c
	has report datetime^dp	0 .. 1	xsd:dateTime^c
	has data provider^op	1 .. 1	Data Provider^c
	has sample^op	1 .. 1	Sample^c
	has lab test^op	1 .. *	Microorganism Identification Lab Test^c
	has source system^op	1 .. *	Source System^c
	has subject pseudo identifier^op	1 .. 1	Subject Pseudo Identifier^c

Restrictions	None
Notes	For sphn:hasSample, instances of sphn:TumorSpecimen are not allowed

Microorganism Identification Result ^c # Classes

Property (In the domain of)		Cardinality	Class or Datatype	Restriction
URI	`https://biomedit.ch/rdf/sphn-schema/sphn#MicroorganismIdentificationResult`
Description	result of the microorganism identification lab test
Schema representation
Parents	Lab Result^c
	has organism^op	0 .. 1	Organism^c
	has numerical reference^op	0 .. 1	Reference Range^c or Reference Value^c
	has code^op	0 .. 1		Yes
	has string value^dp	0 .. 1	xsd:string^c
	has time to positivity^op	0 .. 1	Quantity^c

Restrictions	has code^op : descendants of the given classes are not allowed SNOMED 2667000 \| Absent (qualifier value) \|^c SNOMED 52101004 \| Present (qualifier value) \|^c SNOMED 373068000 \| Undetermined (qualifier value) \|^c
Used in (In the range of)	has result^op

Nationality ^c # Classes

Property (In the domain of)		Cardinality	Class or Datatype	Restriction
URI	`https://biomedit.ch/rdf/sphn-schema/sphn#Nationality`
Description	nationality of the individual
Schema representation
Parents	SPHN Concept^c
	has acquistion code^op	0 .. 1		Yes
	has record datetime^dp	0 .. 1	xsd:dateTime^c
	has data provider^op	1 .. 1	Data Provider^c
	has associated country^op	1 .. 1	Country^c
	has source system^op	1 .. *	Source System^c
	has subject pseudo identifier^op	1 .. 1	Subject Pseudo Identifier^c

Restrictions	has acquistion code^op : descendants of the given classes are not allowed SNOMED 255396000 \| Acquired (qualifier value) \|^c SNOMED 19535007 \| Original (qualifier value) \|^c

Nursing Diagnosis ^c # Classes

Property (In the domain of)		Cardinality	Class or Datatype
URI	`https://biomedit.ch/rdf/sphn-schema/sphn#NursingDiagnosis`
Description	clinical judgment concerning a human response to health conditions/life processes, or a vulnerability for that response, by an individual, family, group or community; a nursing diagnosis provides the basis for selection of nursing interventions to achieve outcomes for which the nurse has accountability
Schema representation
Parents	Diagnosis^c
	has source system^op	1 .. *	Source System^c
	has subject pseudo identifier^op	1 .. 1	Subject Pseudo Identifier^c
	has subject age^op	0 .. 1	Age^c
	has administrative case^op	0 .. 1	Administrative Case^c
	has code^op	1 .. 1	Code^c
	has record datetime^dp	0 .. 1	xsd:dateTime^c
	has data provider^op	1 .. 1	Data Provider^c

Restrictions	None
Notes	sphn:hasCode allowed coding system: NANDA

Nutrition Intake ^c # Classes

Property (In the domain of)		Cardinality	Class or Datatype	Restriction
URI	`https://biomedit.ch/rdf/sphn-schema/sphn#NutritionIntake`
Description	intake of nutritious substance and/or the respective amount of energy consumed
Schema representation
Parents	SPHN Concept^c
	has data provider^op	1 .. 1	Data Provider^c
	has energy quantity^op	0 .. 1	Quantity^c
	has source system^op	1 .. *	Source System^c
	has subject pseudo identifier^op	1 .. 1	Subject Pseudo Identifier^c
	has substance^op	0 .. *	Substance^c
	has end datetime^dp	0 .. 1	xsd:dateTime^c
	has administrative case^op	0 .. 1	Administrative Case^c
	has mode code^op	0 .. 1		Yes
	has start datetime^dp	1 .. 1	xsd:dateTime^c

Restrictions	has mode code^op : descendants of the given classes are not allowed SNOMED 926365009 \| Parenteral nutrition infusion finding (finding) \|^c SNOMED 926364008 \| Enteral nutrition infusion finding (finding) \|^c SNOMED 289002003 \| Does feed self (finding) \|^c SNOMED 169741004 \| Breast fed (finding) \|^c SNOMED 268472006 \| Infant bottle fed (finding) \|^c

Oncology Diagnosis ^c # Classes

Property (In the domain of)		Cardinality	Class or Datatype
URI	`https://biomedit.ch/rdf/sphn-schema/sphn#OncologyDiagnosis`
Description	determination of the presence of an oncological disease, from expressed signs and symptoms and assessments such as biopsy, tumor marker test, imaging, or the like
Schema representation
Meaning binding (Equivalent-classes)	SNOMED 363346000 \| Malignant neoplastic disease (disorder) \|^c
Parents	Diagnosis^c
	has body site^op	1 .. 1	Body Site^c
	has data provider^op	1 .. 1	Data Provider^c
	has source system^op	1 .. *	Source System^c
	has subject pseudo identifier^op	1 .. 1	Subject Pseudo Identifier^c
	has subject age^op	0 .. 1	Age^c
	has administrative case^op	0 .. 1	Administrative Case^c
	has incidence datetime^dp	0 .. 1	xsd:dateTime^c
	has code^op	1 .. *	Code^c
	has record datetime^dp	0 .. 1	xsd:dateTime^c

Restrictions	None
Notes	sphn:hasCode allowed coding system: ICD-10-GM, ICD-O-3 Morphology, ICD-O-3 Topography, OncoTree

Oncology Surgery ^c # Classes

Property (In the domain of)		Cardinality	Class or Datatype
URI	`https://biomedit.ch/rdf/sphn-schema/sphn#OncologySurgery`
Description	invasive intervention performed for, with or on behalf of an individual whose purpose is to improve, maintain or promote health, or functioning conditions in the context of an oncological disease, by the means of partial or complete exeresis of a solid tumor lesion that is the organic substrate of this disease
Schema representation
Parents	Medical Procedure^c
	has body site^op	0 .. *	Body Site^c
	has code^op	1 .. *	Code^c or Terminology^c
	has data provider^op	1 .. 1	Data Provider^c
	has source system^op	1 .. *	Source System^c
	has subject pseudo identifier^op	1 .. 1	Subject Pseudo Identifier^c
	has end datetime^dp	0 .. 1	xsd:dateTime^c
	has intent^op	0 .. 1	Intent^c
	has administrative case^op	0 .. 1	Administrative Case^c
	has start datetime^dp	1 .. 1	xsd:dateTime^c

Restrictions	None

Organ Support ^c # Classes

Property (In the domain of)		Cardinality	Class or Datatype	Restriction
URI	`https://biomedit.ch/rdf/sphn-schema/sphn#OrganSupport`
Description	type and time period when patient was supported by organ support procedures
Schema representation
Parents	Medical Procedure^c
	has end datetime^dp	0 .. 1	xsd:dateTime^c
	has administrative case^op	0 .. 1	Administrative Case^c
	has start datetime^dp	1 .. 1	xsd:dateTime^c
	has code^op	1 .. 1		Yes
	has body site^op	0 .. *		Yes
	has data provider^op	1 .. 1	Data Provider^c
	has source system^op	1 .. *	Source System^c
	has subject pseudo identifier^op	1 .. 1	Subject Pseudo Identifier^c
	has intent^op	0 .. 1		Yes

Restrictions	has code^op : descendants of the given classes are allowed SNOMED 232957001 \| Cardiac support procedure (procedure) \|^c SNOMED 108241001 \| Dialysis procedure (procedure) \|^c SNOMED 233573008 \| Extracorporeal membrane oxygenation (procedure) \|^c SNOMED 1222606000 \| Continuous mandatory ventilation (regime/therapy) \|^c SNOMED 1149092001 \| Positive pressure airway ventilation (regime/therapy) \|^c has body site^op / has code^op : descendants of the given classes are allowed SNOMED 39607008 \| Lung structure (body structure) \|^c SNOMED 80891009 \| Heart structure (body structure) \|^c SNOMED 10200004 \| Liver structure (body structure) \|^c SNOMED 64033007 \| Kidney structure (body structure) \|^c has intent^op / has code^op : descendants of the given classes are not allowed descendants of the given classes are allowed SNOMED 399707004 \| Supportive - procedure intent (qualifier value) \|^c

Organism ^c # Classes

Property (In the domain of)		Cardinality	Restriction
URI	`https://biomedit.ch/rdf/sphn-schema/sphn#Organism`
Description	living system capable of replicating or reproducing, growth and maintenance. An organism may be unicellular or multicellular
Schema representation
Meaning binding (Equivalent-classes)	SNOMED 410607006 \| Organism (organism) \|^c
Parents	SPHN Concept^c
	has code^op	1 .. 1	Yes

Restrictions	has code^op : descendants of the given classes are allowed SNOMED 410607006 \| Organism (organism) \|^c Code^c
Notes	sphn:hasCode allowed coding system: SNOMED CT, NCBI Taxon
Used in (In the range of)	has organism^op

Oxygen Saturation ^c # Classes

Property (In the domain of)		Cardinality	Class or Datatype	Restriction
URI	`https://biomedit.ch/rdf/sphn-schema/sphn#OxygenSaturation`
Description	fraction of oxygen present in the blood
Schema representation
Meaning binding (Equivalent-classes)	SNOMED 103228002 \| Hemoglobin saturation with oxygen (observable entity) \|^c
Parents	Result^c
	has quantity^op	0 .. 1		Yes
	has datetime^dp	0 .. 1	xsd:dateTime^c
	has data file^op	0 .. 1	Time Series Data File^c

Restrictions	has quantity^op / has unit^op / has code^op : descendants of the given classes are not allowed ucum:percent^c
Used in (In the range of)	has result^op

Oxygen Saturation Measurement ^c # Classes

Property (In the domain of)		Cardinality	Class or Datatype	Restriction
URI	`https://biomedit.ch/rdf/sphn-schema/sphn#OxygenSaturationMeasurement`
Description	measurement of the oxygen saturation of the individual
Schema representation
Meaning binding (Equivalent-classes)	SNOMED 104847001 \| Oxygen saturation measurement (procedure) \|^c
Parents	Measurement^c
	has source system^op	1 .. *	Source System^c
	has method code^op	0 .. 1		Yes
	has subject pseudo identifier^op	1 .. 1	Subject Pseudo Identifier^c
	has end datetime^dp	0 .. 1	xsd:dateTime^c
	has performer^op	0 .. 1	Performer^c
	has administrative case^op	0 .. 1	Administrative Case^c
	has start datetime^dp	1 .. 1	xsd:dateTime^c
	has result^op	1 .. *	Oxygen Saturation^c
	has body site^op	0 .. 1	Body Site^c
	has data provider^op	1 .. 1	Data Provider^c
	has medical device^op	0 .. 1	Medical Device^c

Restrictions

has method code^op : descendants of the given classes are allowed

SNOMED 128927009 | Procedure by method (procedure) |^c

Notes

sphn:hasBodySite/sphn:hasCode recommended values: 29707007 | Toe structure (body structure) |^c, 7569003 | Finger structure (body structure) |^c, 48800003 | Ear lobule structure (body structure) |^c

For sphn:hasMedicalDevice, instances of sphn:AccessDevice, sphn:LabAnalyzer are not allowed

Performer ^c # Classes

Property (In the domain of)		Cardinality	Restriction
URI	`https://biomedit.ch/rdf/sphn-schema/sphn#Performer`
Description	person who carried out the action
Schema representation
Parents	SPHN Concept^c
	has code^op	1 .. 1	Yes

Restrictions	has code^op : descendants of the given classes are allowed SNOMED 125676002 \| Person (person) \|^c SNOMED 14679004 \| Occupation (occupation) \|^c
Used in (In the range of)	has performer^op

Pharmaceutical Dose Form ^c # Classes

Property (In the domain of)		Cardinality	Restriction
URI	`https://biomedit.ch/rdf/sphn-schema/sphn#PharmaceuticalDoseForm`
Description	physical manifestation of a product that contains the active ingredient(s) and/or inactive ingredient(s) that are intended to be delivered to the patient
Schema representation
Meaning binding (Equivalent-classes)	LOINC 74055-5 \| Dose form of Medication \|^c SNOMED 736542009 \| Pharmaceutical dose form (dose form) \|^c
Parents	SPHN Concept^c
	has code^op	1 .. 1	Yes

Restrictions	has code^op : descendants of the given classes are allowed SNOMED 736542009 \| Pharmaceutical dose form (dose form) \|^c Code^c
Notes	sphn:hasCode allowed coding system: SNOMED CT, EDQM:EDQMPDF
Used in (In the range of)	has manufactured dose form^op

Physiologic State ^c # Classes

Property (In the domain of)		Cardinality	Restriction
URI	`https://biomedit.ch/rdf/sphn-schema/sphn#PhysiologicState`
Description	physiologic state of the individual, e.g. resting, exercise
Schema representation
Meaning binding (Equivalent-classes)	SNOMED 128973006 \| Finding related physiologic patient state (finding) \|^c
Parents	SPHN Concept^c
	has code^op	1 .. 1	Yes

Restrictions	has code^op : descendants of the given classes are allowed SNOMED 128973006 \| Finding related physiologic patient state (finding) \|^c
Used in (In the range of)	has subject physiologic state^op

Problem Condition ^c # Classes

Property (In the domain of)		Cardinality	Class or Datatype	Restriction
URI	`https://biomedit.ch/rdf/sphn-schema/sphn#ProblemCondition`
Description	clinical condition, problem, diagnosis, or other event, situation, issue, or clinical concept that has risen to a level of concern
Schema representation
Meaning binding (Equivalent-classes)	SNOMED 55607006 \| Problem (finding) \|^c LOINC 44100-6 \| Medical problem \|^c
Parents	SPHN Concept^c
	has code^op	0 .. 1	Code^c or Terminology^c
	has data provider^op	1 .. 1	Data Provider^c
	has record datetime^dp	0 .. 1	xsd:dateTime^c
	has source system^op	1 .. *	Source System^c
	has subject pseudo identifier^op	1 .. 1	Subject Pseudo Identifier^c
	has onset datetime^dp	0 .. 1	xsd:dateTime^c
	has administrative case^op	0 .. 1	Administrative Case^c
	has string value^dp	0 .. 1	xsd:string^c
	has relative temporality code^op	0 .. 1		Yes

Restrictions	has relative temporality code^op : descendants of the given classes are allowed SNOMED 307152002 \| Temporal periods relating to procedure (qualifier value) \|^c
Notes	sphn:hasCode allowed coding system: ICPC or other

Protein ^c # Classes

Property (In the domain of)		Cardinality	Class or Datatype
URI	`https://biomedit.ch/rdf/sphn-schema/sphn#Protein`
Description	molecule composed by one or more chains of amino acids
Schema representation
Meaning binding (Equivalent-classes)	SNOMED 88878007 \| Protein (substance) \|^c SO 0000104 \| polypeptide \|^c
Parents	SPHN Concept^c
	has code^op	1 .. 1	Code^c or Terminology^c
	has organism^op	0 .. 1	Organism^c

Restrictions	None
Notes	sphn:hasCode allowed coding system: UniProtKB or other
Used in (In the range of)	has target molecule^op has protein^op

Quality Control Metric ^c # Classes

Property (In the domain of)		Cardinality	Class or Datatype
URI	`https://biomedit.ch/rdf/sphn-schema/sphn#QualityControlMetric`
Description	report of the quality control review that was made of factors involved in a procedure
Schema representation
Meaning binding (Equivalent-classes)	edam:data_3914^c
Parents	SPHN Concept^c
	has data provider^op	1 .. 1	Data Provider^c
	has quantity^op	0 .. 1	Quantity^c
	has code^op	0 .. 1	Code^c or Terminology^c

Restrictions	None
Notes	sphn:hasCode allowed coding system: SNOMED CT, GENEPIO or other
Used in (In the range of)	has quality control metric^op

Quantity ^c # Classes

Property (In the domain of)		Cardinality	Class or Datatype	Restriction
URI	`https://biomedit.ch/rdf/sphn-schema/sphn#Quantity`
Description	an amount or a number of something
Schema representation
Parents	SPHN Concept^c
	has value^dp	1 .. 1		Yes
	has unit^op	1 .. 1	Unit^c
	has comparator^op	0 .. 1	Comparator^c

Restrictions	has value^dp : descendants of the given classes are not allowed xsd:double^c
Used in (In the range of)	has quantity^op has mean pressure^op has energy quantity^op has radiation quantity^op has duration^op has tumor purity^op has mean read depth^op has average read length^op has sequence length^op has intended read depth^op has fractions number^op has lower limit^op has distance^op has intended insert size^op has number of leads^op has systolic pressure^op has intended read length^op has diastolic pressure^op has entry count^op has read count^op has upper limit^op has time to positivity^op has average insert size^op has frequency^op has total copy number^op

Radiotherapy Procedure ^c # Classes

Property (In the domain of)		Cardinality	Class or Datatype	Restriction
URI	`https://biomedit.ch/rdf/sphn-schema/sphn#RadiotherapyProcedure`
Description	given radiotherapy procedure during oncological treatment
Schema representation
Meaning binding (Equivalent-classes)	SNOMED 108290001 \| Radiation oncology AND/OR radiotherapy (procedure) \|^c
Parents	Medical Procedure^c
	has administrative case^op	0 .. 1	Administrative Case^c
	has start datetime^dp	1 .. 1	xsd:dateTime^c
	has code^op	1 .. *		Yes
	has body site^op	0 .. *	Body Site^c
	has data provider^op	1 .. 1	Data Provider^c
	has source system^op	1 .. *	Source System^c
	has subject pseudo identifier^op	1 .. 1	Subject Pseudo Identifier^c
	has fractions number^op	0 .. 1	Quantity^c
	has radiation quantity^op	0 .. 1		Yes
	has intent^op	0 .. 1	Intent^c
	has end datetime^dp	0 .. 1	xsd:dateTime^c

Restrictions	has code^op : descendants of the given classes are not allowed SNOMED 33195004 \| External beam radiation therapy procedure (procedure) \|^c SNOMED 115959002 \| Stereotactic radiosurgery (procedure) \|^c SNOMED 395096001 \| Stereotactic radiotherapy (procedure) \|^c SNOMED 152198000 \| Brachytherapy (procedure) \|^c SNOMED 399315003 \| Radionuclide therapy (procedure) \|^c SNOMED 168524008 \| Radiotherapy - intraoperative control (procedure) \|^c SNOMED 78080008 \| Hyperthermia treatment of cancer (procedure) \|^c SNOMED 74964007 \| Other (qualifier value) \|^c has radiation quantity^op / has unit^op / has code^op : descendants of the given classes are not allowed ucum:Gy^c ucum:cGy^c ucum:mCi^c ucum:MBq^c

Reference Interpretation ^c # Classes

Property (In the domain of)		Cardinality	Class or Datatype
URI	`https://biomedit.ch/rdf/sphn-schema/sphn#ReferenceInterpretation`
Description	process of making sense of a quantitative result to derive meaningful conclusions in comparison to a reference
Schema representation
Parents	Interpretation^c
	has output^op	1 .. 1	Reference Interpretation Result^c
	has standard guideline^dp	0 .. *	xsd:string^c
	has input^op	0 .. 1	Result^c
	has data provider^op	1 .. 1	Data Provider^c
	has datetime^dp	0 .. 1	xsd:dateTime^c
	has source system^op	1 .. *	Source System^c

Restrictions	None
Notes	For sphn:hasInput, instances of sphn:TumorGradeAssessmentResult, sphn:⁠TumorStageAssessmentResult, sphn:VitalStatus are not allowed

Reference Interpretation Result ^c # Classes

Property (In the domain of)		Cardinality	Restriction
URI	`https://biomedit.ch/rdf/sphn-schema/sphn#ReferenceInterpretationResult`
Description	outcome of the interpretation of a reference range or value
Schema representation
Parents	Result^c
	has code^op	1 .. 1	Yes

Restrictions	has code^op : descendants of the given classes are allowed SNOMED 260245000 \| Finding value (qualifier value) \|^c
Used in (In the range of)	has output^op

Reference Range ^c # Classes

Property (In the domain of)		Cardinality	Class or Datatype
URI	`https://biomedit.ch/rdf/sphn-schema/sphn#ReferenceRange`
Description	interval of values that is deemed normal for a physiologic measurement in healthy individuals
Schema representation
Parents	SPHN Concept^c
	has lower limit^op	0 .. 1	Quantity^c
	has upper limit^op	0 .. 1	Quantity^c

Restrictions	None
Used in (In the range of)	has numerical reference^op

Reference Sequence ^c # Classes

Property (In the domain of)		Cardinality	Class or Datatype
URI	`https://biomedit.ch/rdf/sphn-schema/sphn#ReferenceSequence`
Description	reference construct used for comparison purposes
Schema representation
Meaning binding (Equivalent-classes)	GENO 0000017 \| reference sequence \|^c
Parents	SPHN Concept^c
	has code^op	1 .. 1	Code^c or Terminology^c

Restrictions	None
Notes	sphn:hasCode allowed coding system: NCBI GenBank or other
Used in (In the range of)	has reference sequence^op has reference^op

Reference Value ^c # Classes

Property (In the domain of)		Cardinality	Class or Datatype
URI	`https://biomedit.ch/rdf/sphn-schema/sphn#ReferenceValue`
Description	numeric data point serving as reference for comparison and interpretation
Schema representation
Parents	SPHN Concept^c
	has quantity^op	1 .. 1	Quantity^c

Restrictions	None
Used in (In the range of)	has numerical reference^op

Respiratory Rate ^c # Classes

Property (In the domain of)		Cardinality	Class or Datatype	Restriction
URI	`https://biomedit.ch/rdf/sphn-schema/sphn#RespiratoryRate`
Description	frequency at which the breathing occurs
Schema representation
Meaning binding (Equivalent-classes)	SNOMED 86290005 \| Respiratory rate (observable entity) \|^c
Parents	Result^c
	has data file^op	0 .. 1	Time Series Data File^c
	has quantity^op	0 .. 1	Quantity^c
	has datetime^dp	0 .. 1	xsd:dateTime^c
	has data determination^op	0 .. 1		Yes

Restrictions	has data determination^op / has method code^op : descendants of the given classes are not allowed descendants of the given classes are allowed SNOMED 258104002 \| Measured (qualifier value) \|^c SNOMED 258090004 \| Calculated (qualifier value) \|^c SNOMED 87982008 \| Manual (qualifier value) \|^c SNOMED 263760002 \| Forced (qualifier value) \|^c
Used in (In the range of)	has result^op

Respiratory Rate Measurement ^c # Classes

Property (In the domain of)		Cardinality	Class or Datatype	Restriction
URI	`https://biomedit.ch/rdf/sphn-schema/sphn#RespiratoryRateMeasurement`
Description	measurement of the frequency at which the breathing occurs
Schema representation
Meaning binding (Equivalent-classes)	SNOMED 408867002 \| Taking respiratory rate (procedure) \|^c
Parents	Measurement^c
	has administrative case^op	0 .. 1	Administrative Case^c
	has performer^op	0 .. 1	Performer^c
	has start datetime^dp	1 .. 1	xsd:dateTime^c
	has data provider^op	1 .. 1	Data Provider^c
	has result^op	1 .. *	Respiratory Rate^c
	has source system^op	1 .. *	Source System^c
	has medical device^op	0 .. 1	Medical Device^c
	has method code^op	0 .. 1		Yes
	has subject pseudo identifier^op	1 .. 1	Subject Pseudo Identifier^c
	has end datetime^dp	0 .. 1	xsd:dateTime^c

Restrictions	has method code^op : descendants of the given classes are allowed SNOMED 128927009 \| Procedure by method (procedure) \|^c
Notes	For sphn:hasMedicalDevice, instances of sphn:AccessDevice, sphn:LabAnalyzer, sphn:Implant are not allowed

Result ^c # Classes

URI	`https://biomedit.ch/rdf/sphn-schema/sphn#Result`
Description	outcome, value, or information which gives insight about something
Schema representation
Parents	SPHN Concept^c
Children (Sub-classes)	Body Temperature^c Heart Rate^c Reference Interpretation Result^c Circumference^c Cardiac Output^c Assessment Result^c Tumor Stage Assessment Result^c Body Weight^c Lab Result^c Body Height^c Blood Pressure^c Tumor Grade Assessment Result^c Vital Status^c Respiratory Rate^c Oxygen Saturation^c

Used in (In the range of)	has result^op has input^op

Resuscitation Directive ^c # Classes

Property (In the domain of)		Cardinality	Class or Datatype	Restriction
URI	`https://biomedit.ch/rdf/sphn-schema/sphn#ResuscitationDirective`
Description	decision about the extent of resuscitation interventions appropriate for a specific individual
Schema representation
Meaning binding (Equivalent-classes)	SNOMED 304251008 \| Resuscitation status (observable entity) \|^c
Parents	SPHN Concept^c
	has source system^op	1 .. *	Source System^c
	has subject pseudo identifier^op	1 .. 1	Subject Pseudo Identifier^c
	has administrative case^op	0 .. 1	Administrative Case^c
	has code^op	1 .. 1		Yes
	has record datetime^dp	0 .. *	xsd:dateTime^c
	has data provider^op	0 .. 1	Data Provider^c

Restrictions	has code^op : descendants of the given classes are allowed SNOMED 365870005 \| Finding of resuscitation status (finding) \|^c

SPHN Concept ^c# Classes

URI	`https://biomedit.ch/rdf/sphn-schema/sphn#SPHNConcept`
Description	SPHN Concepts defined by the SPHN dataset
Children (Sub-classes)	Unit^c Lab Test^c Allergy Episode^c Software^c Drug Article^c Pharmaceutical Dose Form^c Biobanksample^c Transplant Presence^c Allergen^c Sample^c Quantity^c Healthcare Primary Information System^c Therapeutic Area^c Time Pattern^c Lab Test Event^c Administrative Case^c Adverse Event^c Country^c Drug Administration Event^c Semantic Mapping^c Substance^c Gene Panel^c Death Date^c Intent^c Source System^c Protein^c Interpretation^c Genomic Position^c Reference Range^c Gene^c Consent^c Assessment^c Assessment Event^c Reference Sequence^c Healthcare Encounter^c Value Set^c Code^c Data File^c Terminology^c Medical Procedure^c Laterality^c Body Site^c Measurement^c Chromosomal Location^c Care Handling^c Location^c Physiologic State^c Age^c Result^c Follow Up^c Subject Pseudo Identifier^c Home Address^c Variant Notation^c Inhaled Oxygen Concentration^c Civil Status^c Sample Processing^c Gestational Age At Birth^c Drug Prescription^c Source Data^c Resuscitation Directive^c Swiss Socio Economic Position^c Allergy^c Administrative Sex^c Drug^c Sequencing Instrument^c Assay^c Fluid Input Output^c Performer^c Genetic Variation^c Data Determination^c Problem Condition^c Data Release^c Quality Control Metric^c Cardiac Index^c Fluid Balance^c Data Provider^c Transplant^c Data Processing^c Body Mass Index^c Excluded Disorder^c Department^c Chromosome^c Body Position^c Transcript^c Standard Operating Procedure^c Birth Date^c Diagnosis^c Organism^c Insurance Status^c Access Device Presence^c Birth^c Exposure^c Body Surface Area^c Hash^c Nationality^c Nutrition Intake^c Assessment Component^c Medical Device^c Variant Descriptor^c Electrocardiogram^c Reference Value^c Death^c Sequencing Run^c Implant Presence^c

Used in (In the range of)	has cell morphology^op has purpose^op has consequences^op has encoding^op has calculation method^op has fixation type^op has specialty name^op has coverage type^op has category^op has rank^op has primary container^op has cell organization^op has comparator^op has algorithm^op has output^op has outcome^op has input^op has coordinate convention^op

Sample ^c # Classes

URI	`https://biomedit.ch/rdf/sphn-schema/sphn#Sample`
Description	any material sample for testing, diagnostic, propagation, treatment or research purposes
Schema representation
Meaning binding (Equivalent-classes)	SNOMED 123038009 \| Specimen (specimen) \|^c
Parents	SPHN Concept^c
Children (Sub-classes)	Tumor Specimen^c Isolate^c

	Cardinality	Class or Datatype	Restriction
has primary container^op	0 .. 1	Sample primary container^c
has shared identifier^dp	0 .. *	xsd:anyURI^c
has material type code^op	0 .. *		Yes
has administrative case^op	0 .. 1	Administrative Case^c
has collection datetime^dp	1 .. 1	xsd:dateTime^c
has fixation type^op	0 .. 1	Sample fixation type^c
has body site^op	0 .. 1	Body Site^c
has data provider^op	1 .. 1	Data Provider^c
has identifier^dp	0 .. *	xsd:string^c
has source system^op	1 .. *	Source System^c
has subject pseudo identifier^op	1 .. 1	Subject Pseudo Identifier^c

Restrictions	has material type code^op : descendants of the given classes are allowed SNOMED 123038009 \| Specimen (specimen) \|^c
Used in (In the range of)	has output^op has input^op has sample^op

Sample Processing ^c # Classes

URI	`https://biomedit.ch/rdf/sphn-schema/sphn#SampleProcessing`
Description	a process that prepares a sample for a subsequent process
Schema representation
Parents	SPHN Concept^c
Children (Sub-classes)	Library Preparation^c

	Cardinality	Class or Datatype
has start datetime^dp	0 .. 1	xsd:dateTime^c
has predecessor^op	0 .. *	Sample Processing^c
has code^op	0 .. 1	Code^c or Terminology^c
has data provider^op	1 .. 1	Data Provider^c
has source system^op	1 .. *	Source System^c
has subject pseudo identifier^op	0 .. *	Subject Pseudo Identifier^c
has standard operating procedure^op	0 .. 1	Standard Operating Procedure^c
has quality control metric^op	0 .. *	Quality Control Metric^c
has output^op	0 .. 1	Sample^c
has administrative case^op	0 .. *	Administrative Case^c
has input^op	0 .. *	Sample^c

Restrictions	None
Notes	For sphn:hasOutput, instances of sphn:TumorSpecimen are not allowed
Used in (In the range of)	has predecessor^op

Semantic Mapping ^c # Classes

Property (In the domain of)		Cardinality	Class or Datatype	Restriction
URI	`https://biomedit.ch/rdf/sphn-schema/sphn#SemanticMapping`
Description	process of transforming data elements to a code
Schema representation
Parents	SPHN Concept^c
	has purpose^op	0 .. 1	Semantic Mapping purpose^c
	has data provider^op	1 .. 1	Data Provider^c
	has method code^op	0 .. 1		Yes
	has source system^op	1 .. *	Source System^c
	has output code^op	1 .. 1	Terminology^c or Code^c
	has datetime^dp	0 .. 1	xsd:dateTime^c
	has source data^op	0 .. *	Source Data^c

Restrictions	has method code^op : descendants of the given classes are allowed obi:ECO_0000217^c

Sequencing Analysis ^c # Classes

Property (In the domain of)		Cardinality	Class or Datatype	Restriction
URI	`https://biomedit.ch/rdf/sphn-schema/sphn#SequencingAnalysis`
Description	analysis of the output of a nucleic acid sequencing assay
Schema representation
Parents	Data Processing^c
	has data provider^op	1 .. 1	Data Provider^c
	has source system^op	1 .. *	Source System^c
	has subject pseudo identifier^op	0 .. *	Subject Pseudo Identifier^c
	has reference sequence^op	0 .. 1	Reference Sequence^c
	has standard operating procedure^op	0 .. 1	Standard Operating Procedure^c
	has output^op	1 .. *	Data File^c
	has software^op	0 .. 1	Software^c
	has quality control metric^op	0 .. *	Quality Control Metric^c
	has administrative case^op	0 .. *	Administrative Case^c
	has start datetime^dp	0 .. 1	xsd:dateTime^c
	has input^op	1 .. 1	Data File^c
	has predecessor^op	0 .. *	Data Processing^c or Assay^c
	has code^op	1 .. 1		Yes

Restrictions	has code^op : descendants of the given classes are allowed edam:operation_2945^c Code^c Terminology^c
Notes	sphn:hasCode allowed coding system: EDAM or other

Sequencing Assay ^c # Classes

Property (In the domain of)		Cardinality	Class or Datatype	Restriction
URI	`https://biomedit.ch/rdf/sphn-schema/sphn#SequencingAssay`
Description	an assay that exploits a sequencer as the instrument to generate results
Schema representation
Meaning binding (Equivalent-classes)	efo:EFO_0003740^c
Parents	Assay^c
	has intended read length^op	0 .. 1	Quantity^c
	has sequencing instrument^op	0 .. 1	Sequencing Instrument^c
	has data file^op	0 .. *	Data File^c
	has administrative case^op	0 .. *	Administrative Case^c
	has start datetime^dp	0 .. 1	xsd:dateTime^c
	has predecessor^op	0 .. *	Sample Processing^c
	has code^op	1 .. 1		Yes
	has sequencing run^op	0 .. *	Sequencing Run^c
	has library preparation^op	0 .. 1	Library Preparation^c
	has data provider^op	1 .. 1	Data Provider^c
	has identifier^dp	0 .. 1	xsd:string^c
	has sample^op	0 .. *	Sample^c
	has source system^op	1 .. *	Source System^c
	has subject pseudo identifier^op	0 .. *	Subject Pseudo Identifier^c
	has intended read depth^op	0 .. 1	Quantity^c
	has standard operating procedure^op	0 .. 1	Standard Operating Procedure^c

Restrictions

has code^op : descendants of the given classes are allowed

efo:EFO_0001455^c obi:OBI_0000070^c Code^c Terminology^c

Notes

For sphn:hasSample, instances of sphn:TumorSpecimen, sphn:Isolate are not allowed

For sphn:hasDataFile, instances of sphn:TimeSeriesDataFile are not allowed

sphn:hasCode allowed coding system: EFO, OBI or other

Sequencing Instrument ^c # Classes

Property (In the domain of)		Cardinality	Class or Datatype	Restriction
URI	`https://biomedit.ch/rdf/sphn-schema/sphn#SequencingInstrument`
Description	A sequencing instrument that is used in a sequencing assay
Schema representation
Meaning binding (Equivalent-classes)	efo:EFO_0000548^c
Parents	SPHN Concept^c
	has code^op	1 .. 1		Yes
	has data provider^op	1 .. 1	Data Provider^c

Restrictions	has code^op : descendants of the given classes are allowed obi:OBI_0400103^c efo:EFO_0003739^c Code^c Terminology^c
Notes	sphn:hasCode allowed coding system: OBI, EFO or other
Used in (In the range of)	has sequencing instrument^op

Sequencing Run ^c # Classes

Property (In the domain of)		Cardinality	Class or Datatype
URI	`https://biomedit.ch/rdf/sphn-schema/sphn#SequencingRun`
Description	the valid and completed operation of a high-throughput sequencing instrument associated with a sequencing assay
Schema representation
Meaning binding (Equivalent-classes)	obi:NCIT_C148088^c
Parents	SPHN Concept^c
	has read count^op	0 .. 1	Quantity^c
	has identifier^dp	0 .. 1	xsd:string^c
	has average insert size^op	0 .. 1	Quantity^c
	has mean read depth^op	0 .. 1	Quantity^c
	has data provider^op	1 .. 1	Data Provider^c
	has datetime^dp	0 .. 1	xsd:dateTime^c
	has average read length^op	0 .. 1	Quantity^c
	has quality control metric^op	1 .. *	Quality Control Metric^c
	has data file^op	1 .. *	Data File^c

Restrictions	None
Notes	For sphn:hasDataFile, instances of sphn:TimeSeriesDataFile are not allowed
Used in (In the range of)	has sequencing run^op

Single Nucleotide Variation ^c # Classes

Property (In the domain of)		Cardinality	Class or Datatype
URI	`https://biomedit.ch/rdf/sphn-schema/sphn#SingleNucleotideVariation`
Description	single nucleotide change in a DNA sequence at a specific location
Schema representation
Meaning binding (Equivalent-classes)	SO 0001483 \| SNV \|^c
Parents	Genetic Variation^c
	has chromosomal location^op	0 .. 1	Chromosomal Location^c
	has alternate allele^dp	1 .. 1	xsd:string^c
	has reference allele^dp	1 .. 1	xsd:string^c
	has genomic position^op	0 .. 1	Genomic Position^c

Restrictions	None

Software ^c # Classes

Property (In the domain of)		Cardinality	Class or Datatype
URI	`https://biomedit.ch/rdf/sphn-schema/sphn#Software`
Description	Set of procedures and instructions in a data processing system
Schema representation
Meaning binding (Equivalent-classes)	SNOMED 706689003 \| Application program software (physical object) \|^c
Parents	SPHN Concept^c
	has uniform resource locator^dp	0 .. 1	xsd:string^c
	has name^dp	1 .. 1	xsd:string^c
	has data provider^op	1 .. 1	Data Provider^c
	has description^dp	0 .. 1	xsd:string^c
	has version^dp	1 .. 1	xsd:string^c

Restrictions	None
Used in (In the range of)	has software^op

Source Data ^c # Classes

Property (In the domain of)		Cardinality	Class or Datatype
URI	`https://biomedit.ch/rdf/sphn-schema/sphn#SourceData`
Description	raw data that has not been processed for meaningful use
Schema representation
Parents	SPHN Concept^c
	has string value^dp	0 .. 1	xsd:string^c
	has code^op	0 .. 1	Code^c or Terminology^c
	has source system^op	1 .. *	Source System^c

Restrictions	None
Used in (In the range of)	has source data^op

Source System ^c # Classes

Property (In the domain of)		Cardinality	Class or Datatype
URI	`https://biomedit.ch/rdf/sphn-schema/sphn#SourceSystem`
Description	electronic system the data has been retrieved from
Schema representation
Parents	SPHN Concept^c
	has primary system^op	0 .. 1	Healthcare Primary Information System^c
	has category^op	0 .. 1	Source System category^c
	has purpose^op	0 .. 1	Source System purpose^c
	has name^dp	0 .. 1	xsd:string^c
	has data provider^op	1 .. 1	Data Provider^c

Restrictions	None
Used in (In the range of)	has source system^op

Standard Operating Procedure ^c # Classes

Property (In the domain of)		Cardinality	Class or Datatype
URI	`https://biomedit.ch/rdf/sphn-schema/sphn#StandardOperatingProcedure`
Description	step-by-step instructions for carrying out routine operations imposed by the organization
Schema representation
Parents	SPHN Concept^c
	has data file^op	0 .. 1	Data File^c
	has description^dp	1 .. 1	xsd:string^c
	has name^dp	1 .. 1	xsd:string^c
	has data provider^op	1 .. 1	Data Provider^c
	has version^dp	1 .. 1	xsd:string^c

Restrictions	None
Notes	For sphn:hasDataFile, instances of sphn:TimeSeriesDataFile are not allowed
Used in (In the range of)	has standard operating procedure^op

Subject Pseudo Identifier ^c # Classes

Property (In the domain of)		Cardinality	Class or Datatype
URI	`https://biomedit.ch/rdf/sphn-schema/sphn#SubjectPseudoIdentifier`
Description	a coded unique identifier assigned by a data provider for a specific project to conceal the identity of an individual
Schema representation
Parents	SPHN Concept^c
	has shared identifier^dp	0 .. *	xsd:anyURI^c
	has data provider^op	1 .. 1	Data Provider^c
	has identifier^dp	1 .. 1	xsd:string^c

Restrictions	None
Used in (In the range of)	has subject pseudo identifier^op

Substance ^c # Classes

Property (In the domain of)		Cardinality	Class or Datatype	Restriction
URI	`https://biomedit.ch/rdf/sphn-schema/sphn#Substance`
Description	any matter of defined composition that has discrete existence, whose origin may be biological, mineral or chemical
Schema representation
Meaning binding (Equivalent-classes)	SNOMED 105590001 \| Substance (substance) \|^c
Parents	SPHN Concept^c
	has code^op	0 .. 1		Yes
	has source system^op	1 .. *	Source System^c
	has quantity^op	0 .. 1	Quantity^c
	has generic name^dp	0 .. 1	xsd:string^c

Restrictions	has code^op : descendants of the given classes are allowed SNOMED 105590001 \| Substance (substance) \|^c Code^c Terminology^c
Notes	sphn:hasCode allowed coding system: SNOMED CT, ATC, NCI Thesaurus or other
Used in (In the range of)	has substance^op has chemical agent^op has inactive ingredient^op has active ingredient^op

Swiss Socio Economic Position ^c # Classes

Property (In the domain of)		Cardinality	Class or Datatype	Restriction
URI	`https://biomedit.ch/rdf/sphn-schema/sphn#SwissSocioEconomicPosition`
Description	characterization or classification of the Swiss position in a neighbourhood of an individual that takes into account income, education, occupation, and housing conditions
Schema representation
Parents	SPHN Concept^c
	has value^dp	0 .. 1		Yes
	has version^dp	0 .. 1	xsd:string^c
	has distance^op	0 .. 1		Yes

Restrictions	has value^dp : descendants of the given classes are not allowed xsd:double^c has distance^op / has unit^op / has code^op : descendants of the given classes are not allowed ucum:m^c
Used in (In the range of)	has swiss socio economic position^op

Terminology ^c# Classes

URI	`https://biomedit.ch/rdf/sphn-schema/sphn#Terminology`
Description	Terminology class for grouping external resources used in the SPHN project
Parents	SPHN Concept^c
Children (Sub-classes)	sphn-genepio:GENEPIO^c ucum:UCUM^c sphn-atc:ATC^c sphn-edam:EDAM^c sphn-eco:ECO^c sphn-hgnc:HGNC^c sphn-obi:OBI^c sphn-efo:EFO^c sphn-loinc:LOINC^c SNOMED 138875005 \| SNOMED CT Concept (SNOMED RT+CTV3) \|^c sphn-so:SO^c sphn-geno:GENO^c CHOP CHOP \| CHOP \|^c sphn-ordo:ORDO^c icd-10-gm:ICD-10-GM^c

Used in
(In the range of)

has kit code^op
has route code^op
has zygosity code^op
has verification status code^op
has staining result code^op
has degree code^op
has cell count estimate code^op
has status code^op
has allele origin code^op
has regularity code^op
has method code^op
has certainty code^op
has institution code^op
has type code^op
has output code^op
has reaction type code^op
has product code^op
has condition code^op
has delivery mode code^op
has material type code^op
has end cytoband code^op
has format code^op
has mode code^op
has relative temporality code^op
has administration route code^op
has graft type code^op
has manifestation code^op
has code^op
has staining method code^op
has circumstance code^op
has target enrichment kit code^op
has acquistion code^op
has reason to stop code^op
has start cytoband code^op
has severity code^op
has agent code^op

Therapeutic Area ^c # Classes

Property (In the domain of)		Cardinality	Class or Datatype
URI	`https://biomedit.ch/rdf/sphn-schema/sphn#TherapeuticArea`
Description	professional health care specialization
Schema representation
Meaning binding (Equivalent-classes)	SNOMED 394658006 \| Clinical specialty (qualifier value) \|^c
Parents	SPHN Concept^c
	has specialty name^op	1 .. 1	Therapeutic Area specialty name^c
	has source system^op	1 .. *	Source System^c

Restrictions	None
Used in (In the range of)	has therapeutic area^op

Time Pattern ^c # Classes

Property (In the domain of)		Cardinality	Restriction
URI	`https://biomedit.ch/rdf/sphn-schema/sphn#TimePattern`
Description	type of time period during which a treatment was given or an assessment was performed; this can be single time points or a continuous event
Schema representation
Meaning binding (Equivalent-classes)	SNOMED 272103003 \| Time patterns (qualifier value) \|^c
Parents	SPHN Concept^c
	has type code^op	1 .. 1	Yes

Restrictions	has type code^op : descendants of the given classes are not allowed SNOMED 255238004 \| Continuous (qualifier value) \|^c SNOMED 7087005 \| Intermittent (qualifier value) \|^c SNOMED 385432009 \| Not applicable (qualifier value) \|^c
Used in (In the range of)	has time pattern^op

Time Series Data File ^c # Classes

Property (In the domain of)		Cardinality	Class or Datatype	Restriction
URI	`https://biomedit.ch/rdf/sphn-schema/sphn#TimeSeriesDataFile`
Description	electronic resource that contains all the results related to a measurement as time series
Schema representation
Parents	Data File^c
	has entry count^op	1 .. 1		Yes
	has creation datetime^dp	0 .. 1	xsd:dateTime^c
	has name^dp	0 .. 1	xsd:string^c
	has data provider^op	1 .. 1	Data Provider^c
	has uniform resource identifier^dp	0 .. 1	xsd:string^c
	has hash^op	0 .. 1	Hash^c
	has encoding^op	1 .. 1	Data File encoding^c
	has source system^op	1 .. *	Source System^c
	has subject pseudo identifier^op	1 .. 1	Subject Pseudo Identifier^c
	has format code^op	0 .. 1		Yes

Restrictions	has entry count^op / has unit^op / has code^op : descendants of the given classes are not allowed ucum:cblnbcbr^c has format code^op : descendants of the given classes are allowed edam:format_1915^c
Used in (In the range of)	has data file^op

Tobacco Exposure ^c # Classes

Property (In the domain of)		Cardinality	Class or Datatype	Restriction
URI	`https://biomedit.ch/rdf/sphn-schema/sphn#TobaccoExposure`
Description	episode of exposure of an individual to tobacco in various forms
Schema representation
Meaning binding (Equivalent-classes)	SNOMED 229819007 \| Tobacco use and exposure (observable entity) \|^c
Parents	Exposure^c
	has type code^op	0 .. 1		Yes
	has end datetime^dp	0 .. 1	xsd:dateTime^c
	has administrative case^op	0 .. 1	Administrative Case^c
	has start datetime^dp	0 .. 1	xsd:dateTime^c
	has record datetime^dp	0 .. 1	xsd:dateTime^c
	has data provider^op	1 .. 1	Data Provider^c
	has quantity^op	0 .. 1		Yes
	has route code^op	0 .. *		Yes
	has duration^op	0 .. 1		Yes
	has source system^op	1 .. *	Source System^c
	has subject pseudo identifier^op	1 .. 1	Subject Pseudo Identifier^c
	has degree code^op	0 .. 1		Yes
	has agent code^op	0 .. 1		Yes

Restrictions	has type code^op : descendants of the given classes are not allowed SNOMED 702979003 \| Never used tobacco (finding) \|^c SNOMED 43381005 \| Passive smoker (finding) \|^c SNOMED 77176002 \| Smoker (finding) \|^c SNOMED 8517006 \| Ex-smoker (finding) \|^c SNOMED 228494002 \| Snuff user (finding) \|^c SNOMED 228493008 \| Ex-snuff user (finding) \|^c SNOMED 81703003 \| Chews tobacco (finding) \|^c SNOMED 228513009 \| Ex-tobacco chewer (finding) \|^c SNOMED 722499006 \| Electronic cigarette user (finding) \|^c SNOMED 35361000087100 \| Ex-electronic cigarette user (finding) \|^c has quantity^op / has unit^op / has code^op : descendants of the given classes are not allowed ucum:a^c has route code^op : descendants of the given classes are allowed SNOMED 138875005 \| SNOMED CT Concept (SNOMED RT+CTV3) \|^c has duration^op / has unit^op / has code^op : descendants of the given classes are not allowed ucum:a^c has degree code^op : descendants of the given classes are not allowed SNOMED 62482003 \| Low (qualifier value) \|^c SNOMED 1255665007 \| Moderate (qualifier value) \|^c SNOMED 75540009 \| High (qualifier value) \|^c has agent code^op : descendants of the given classes are allowed SNOMED 39953003 \| Tobacco (substance) \|^c

Transcript ^c # Classes

Property (In the domain of)		Cardinality	Class or Datatype
URI	`https://biomedit.ch/rdf/sphn-schema/sphn#Transcript`
Description	RNA molecules that are made from a DNA template
Schema representation
Meaning binding (Equivalent-classes)	SO 0000673 \| transcript \|^c
Parents	SPHN Concept^c
	has protein^op	0 .. 1	Protein^c
	has organism^op	0 .. 1	Organism^c
	has code^op	1 .. 1	Code^c or Terminology^c

Restrictions	None
Notes	sphn:hasCode allowed coding system: Ensembl or other
Used in (In the range of)	has transcript^op

Transplant ^c # Classes

Property (In the domain of)		Cardinality	Restriction
URI	`https://biomedit.ch/rdf/sphn-schema/sphn#Transplant`
Description	transplanted organ or tissue from self or donor, including, e.g., kidney graft or bone marrow fluid
Schema representation
Meaning binding (Equivalent-classes)	SNOMED 24486003 \| Structure of transplant (body structure) \|^c
Parents	SPHN Concept^c
	has graft type code^op	0 .. 1	Yes
	has code^op	1 .. 1	Yes

Restrictions	has graft type code^op : descendants of the given classes are not allowed SNOMED 15879007 \| Autograft (substance) \|^c SNOMED 7970006 \| Allograft (substance) \|^c has code^op : descendants of the given classes are allowed SNOMED 414265000 \| Fluid containing hemopoietic stem cells (substance) \|^c SNOMED 260667007 \| Graft (substance) \|^c
Used in (In the range of)	has transplant^op

Transplant Presence ^c # Classes

Property (In the domain of)		Cardinality	Class or Datatype
URI	`https://biomedit.ch/rdf/sphn-schema/sphn#TransplantPresence`
Description	presence of a transplanted organ or tissue such as, e.g., a kidney graft
Schema representation
Meaning binding (Equivalent-classes)	SNOMED 737294004 \| Transplant present (finding) \|^c
Parents	SPHN Concept^c
	has end datetime^dp	0 .. 1	xsd:dateTime^c
	has administrative case^op	0 .. 1	Administrative Case^c
	has transplant^op	1 .. 1	Transplant^c
	has start datetime^dp	0 .. 1	xsd:dateTime^c
	has record datetime^dp	0 .. 1	xsd:dateTime^c
	has body site^op	0 .. 1	Body Site^c
	has data provider^op	1 .. 1	Data Provider^c
	has source system^op	1 .. *	Source System^c
	has subject pseudo identifier^op	1 .. 1	Subject Pseudo Identifier^c

Restrictions	None

Tumor Grade Assessment ^c # Classes

Property (In the domain of)		Cardinality	Class or Datatype	Restriction
URI	`https://biomedit.ch/rdf/sphn-schema/sphn#TumorGradeAssessment`
Description	grading system used to assess the differentiation of the tumor cells based on histology
Schema representation
Meaning binding (Equivalent-classes)	SNOMED 277457005 \| Histological grading systems (staging scale) \|^c LOINC 21858-6 \| Grade Cancer \|^c
Parents	Assessment^c
	has administrative case^op	0 .. 1	Administrative Case^c
	has result^op	0 .. 1		Yes
	has code^op	0 .. 1		Yes
	has data provider^op	1 .. 1	Data Provider^c
	has source system^op	1 .. *	Source System^c
	has name^dp	0 .. 1	xsd:string^c
	has component^op	0 .. *	Assessment Component^c
	has subject pseudo identifier^op	1 .. 1	Subject Pseudo Identifier^c

Restrictions	has result^op / has code^op : descendants of the given classes are allowed SNOMED 138875005 \| SNOMED CT Concept (SNOMED RT+CTV3) \|^c has code^op : descendants of the given classes are allowed SNOMED 277457005 \| Histological grading systems (staging scale) \|^c
Used in (In the range of)	has assessment^op

Tumor Grade Assessment Event ^c # Classes

Property (In the domain of)		Cardinality	Class or Datatype
URI	`https://biomedit.ch/rdf/sphn-schema/sphn#TumorGradeAssessmentEvent`
Description	evaluation of the tumor grade at a given time, which takes into account a predefined grading system
Schema representation
Parents	Assessment Event^c
	has data provider^op	1 .. 1	Data Provider^c
	has datetime^dp	1 .. 1	xsd:dateTime^c
	has source system^op	1 .. *	Source System^c
	has subject pseudo identifier^op	1 .. 1	Subject Pseudo Identifier^c
	has assessment^op	1 .. 1	Tumor Grade Assessment^c
	has administrative case^op	0 .. 1	Administrative Case^c
	has performer^op	0 .. 1	Performer^c

Restrictions	None

Tumor Grade Assessment Result ^c # Classes

Property (In the domain of)		Cardinality	Class or Datatype	Restriction
URI	`https://biomedit.ch/rdf/sphn-schema/sphn#TumorGradeAssessmentResult`
Description	outcome of a tumor grade assessment
Schema representation
Parents	Result^c
	has string value^dp	0 .. 1	xsd:string^c
	has code^op	0 .. 1		Yes
	has quantity^op	0 .. 1	Quantity^c

Restrictions	has code^op : descendants of the given classes are allowed SNOMED 138875005 \| SNOMED CT Concept (SNOMED RT+CTV3) \|^c
Used in (In the range of)	has result^op

Tumor Specimen ^c # Classes

Property (In the domain of)		Cardinality	Class or Datatype	Restriction
URI	`https://biomedit.ch/rdf/sphn-schema/sphn#TumorSpecimen`
Description	tumor specimen, volume and fixation method used
Schema representation
Meaning binding (Equivalent-classes)	SNOMED 258435002 \| Tumor tissue specimen (specimen) \|^c
Parents	Sample^c
	has primary container^op	0 .. 1	Sample primary container^c
	has material type code^op	0 .. *		Yes
	has administrative case^op	0 .. 1	Administrative Case^c
	has collection datetime^dp	1 .. 1	xsd:dateTime^c
	has fixation type^op	0 .. 1	Sample fixation type^c
	has body site^op	0 .. 1	Body Site^c
	has data provider^op	1 .. 1	Data Provider^c
	has identifier^dp	0 .. *	xsd:string^c
	has tumor purity^op	0 .. 1		Yes
	has source system^op	1 .. *	Source System^c
	has subject pseudo identifier^op	1 .. 1	Subject Pseudo Identifier^c
	has shared identifier^dp	0 .. *	xsd:anyURI^c

Restrictions	has material type code^op : descendants of the given classes are allowed SNOMED 123038009 \| Specimen (specimen) \|^c has tumor purity^op / has unit^op / has code^op : descendants of the given classes are not allowed ucum:percent^c

Tumor Stage Assessment ^c # Classes

Property (In the domain of)		Cardinality	Class or Datatype	Restriction
URI	`https://biomedit.ch/rdf/sphn-schema/sphn#TumorStageAssessment`
Description	staging system used to assess the spread of the oncology disease
Schema representation
Meaning binding (Equivalent-classes)	SNOMED 254292007 \| Tumor staging (tumor staging) \|^c
Parents	Assessment^c
	has source system^op	1 .. *	Source System^c
	has name^dp	0 .. 1	xsd:string^c
	has component^op	0 .. *	Assessment Component^c
	has subject pseudo identifier^op	1 .. 1	Subject Pseudo Identifier^c
	has administrative case^op	0 .. 1	Administrative Case^c
	has result^op	0 .. 1		Yes
	has code^op	0 .. 1		Yes
	has data provider^op	1 .. 1	Data Provider^c

Restrictions	has result^op / has code^op : descendants of the given classes are allowed SNOMED 138875005 \| SNOMED CT Concept (SNOMED RT+CTV3) \|^c has code^op : descendants of the given classes are allowed SNOMED 254292007 \| Tumor staging (tumor staging) \|^c
Used in (In the range of)	has assessment^op

Tumor Stage Assessment Event ^c # Classes

Property (In the domain of)		Cardinality	Class or Datatype
URI	`https://biomedit.ch/rdf/sphn-schema/sphn#TumorStageAssessmentEvent`
Description	evaluation of the tumor stage at a given time, which takes into account a predefined staging system
Schema representation
Parents	Assessment Event^c
	has performer^op	0 .. 1	Performer^c
	has administrative case^op	0 .. 1	Administrative Case^c
	has data provider^op	1 .. 1	Data Provider^c
	has source system^op	1 .. *	Source System^c
	has subject pseudo identifier^op	1 .. 1	Subject Pseudo Identifier^c
	has assessment^op	1 .. 1	Tumor Stage Assessment^c
	has datetime^dp	1 .. 1	xsd:dateTime^c

Restrictions	None

Tumor Stage Assessment Result ^c # Classes

Property (In the domain of)		Cardinality	Class or Datatype	Restriction
URI	`https://biomedit.ch/rdf/sphn-schema/sphn#TumorStageAssessmentResult`
Description	outcome of a tumor stage assessment
Schema representation
Parents	Result^c
	has quantity^op	0 .. 1	Quantity^c
	has string value^dp	0 .. 1	xsd:string^c
	has code^op	0 .. 1		Yes

Restrictions	has code^op : descendants of the given classes are allowed SNOMED 138875005 \| SNOMED CT Concept (SNOMED RT+CTV3) \|^c
Used in (In the range of)	has result^op

Unit ^c # Classes

Property (In the domain of)		Cardinality	Restriction
URI	`https://biomedit.ch/rdf/sphn-schema/sphn#Unit`
Description	unit of measurement
Schema representation
Meaning binding (Equivalent-classes)	SNOMED 767524001 \| Unit of measure (qualifier value) \|^c
Parents	SPHN Concept^c
	has code^op	1 .. 1	Yes

Restrictions	has code^op : descendants of the given classes are not allowed ucum:UCUM^c
Used in (In the range of)	has unit^op

Variant Descriptor ^c # Classes

Property (In the domain of)		Cardinality	Class or Datatype	Restriction
URI	`https://biomedit.ch/rdf/sphn-schema/sphn#VariantDescriptor`
Description	human-readable description of the variant
Schema representation
Parents	SPHN Concept^c
	has gene^op	0 .. 1	Gene^c
	has code^op	0 .. 1	Code^c or Terminology^c
	has data provider^op	1 .. *	Data Provider^c
	has source system^op	1 .. *	Source System^c
	has zygosity code^op	0 .. 1		Yes
	has subject pseudo identifier^op	1 .. *	Subject Pseudo Identifier^c
	has allele origin code^op	0 .. 1		Yes
	has genetic variation^op	0 .. 1	Genetic Variation^c
	has notation^op	0 .. 1	Variant Notation^c
	has type code^op	0 .. 1		Yes
	has administrative case^op	0 .. *	Administrative Case^c

Restrictions	has zygosity code^op : descendants of the given classes are allowed GENO 0000133 \| zygosity \|^c has allele origin code^op : descendants of the given classes are allowed GENO 0000877 \| allele origin \|^c has type code^op : descendants of the given classes are allowed SO 0001059 \| sequence_alteration \|^c
Notes	sphn:hasCode allowed coding system: ClinVar, RefSNP or other

Variant Notation ^c # Classes

Property (In the domain of)		Cardinality	Class or Datatype	Restriction
URI	`https://biomedit.ch/rdf/sphn-schema/sphn#VariantNotation`
Description	description of the variant using a specific nomenclature
Schema representation
Parents	SPHN Concept^c
	has value^dp	1 .. 1		Yes
	has coding system and version^dp	1 .. 1	xsd:string^c

Restrictions	has value^dp : descendants of the given classes are not allowed xsd:string^c
Used in (In the range of)	has notation^op

Vital Status ^c # Classes

Property (In the domain of)		Cardinality	Class or Datatype	Restriction
URI	`https://biomedit.ch/rdf/sphn-schema/sphn#VitalStatus`
Description	state or condition of being living or deceased
Schema representation
Parents	Result^c
	has source system^op	1 .. *	Source System^c
	has subject pseudo identifier^op	1 .. 1	Subject Pseudo Identifier^c
	has death^op	0 .. 1	Death^c
	has code^op	0 .. 1		Yes
	has data provider^op	1 .. 1	Data Provider^c

Restrictions	has code^op : descendants of the given classes are not allowed SNOMED 438949009 \| Alive (finding) \|^c SNOMED 399307001 \| Lost to follow-up (finding) \|^c
Used in (In the range of)	has result^op

Object Properties ↑

has data provider institute
SPHN attribute object
has acquistion code
has active ingredient
has administration route code
has administrative case
has affected genomic feature
has agent code
has algorithm
has allele origin code
has allergen
has article
has assessment
has associated country
has average insert size
has average read length
has body site
has calculation method
has care handling
has category
has cell count estimate code
has cell morphology
has cell organization
has certainty code
has chemical agent
has chromosomal location
has chromosome
has circumstance code
has code
has comparator
has component
has condition code
has consequences
has coordinate convention
has country
has coverage type
has current location
has data determination
has data file
has data provider
has date
has death
has degree code
has delivery mode code
has department
has diastolic pressure
has discharge location
has distance
has drug
has duration
has encoding
has end cytoband code
has energy quantity
has entry count
has exposure
has fixation type
has fluid input output
has focus gene
has format code
has fractions number
has frequency
has gene
has gene panel
has genetic variation
has genomic position
has gestational age
has graft type code
has hash
has inactive ingredient
has indication to start
has input
has insertion point
has institution code
has instrument
has intended insert size
has intended read depth
has intended read length
has intent
has kit code
has lab test
has laterality
has library preparation
has location
has lower limit
has manifestation code
has manufactured dose form
has material type code
has mean pressure
has mean read depth
has medical device
has method code
has mode code
has notation
has number of leads
has numerical reference
has organism
has origin location
has outcome
has output
has output code
has oxygen equipment
has oxygen flow rate
has performer
has predecessor
has primary container
has primary system
has product code
has protein
has purpose
has quality control metric
has quantity
has radiation quantity
has rank
has reaction type code
has read count
has reason to stop code
has reference
has reference sequence
has regularity code
has relative temporality code
has resting point
has result
has route code
has sample
has sequence length
has sequencing instrument
has sequencing run
has severity code
has software
has source data
has source system
has specialty name
has staining method code
has staining result code
has standard operating procedure
has start cytoband code
has status code
has subject age
has subject physiologic state
has subject pseudo identifier
has substance
has swiss socio economic position
has systolic pressure
has target enrichment kit code
has target location
has target molecule
has test kit
has therapeutic area
has time pattern
has time to positivity
has total copy number
has transcript
has transplant
has tumor purity
has type code
has unit
has upper limit
has verification status code
has zygosity code

has data provider institute^op # OPs

URI	`https://biomedit.ch/rdf/sphn-ontology/sphn#hasDataProviderInstitute`
Description	has data provider institute

SPHN attribute object^op # OPs

URI	`https://biomedit.ch/rdf/sphn-schema/sphn#SPHNAttributeObject`
Description	SPHN object attribute defined by the dataset

has acquistion code^op # OPs

URI	`https://biomedit.ch/rdf/sphn-schema/sphn#hasAcquistionCode`
Description	coded mode of acquisition of the concept
Super-properties	has code^op
Domain(s)	Nationality^c
Range	Code^c Terminology^c

has active ingredient^op # OPs

URI	`https://biomedit.ch/rdf/sphn-schema/sphn#hasActiveIngredient`
Description	active component of the concept
Super-properties	SPHN attribute object^op
Domain(s)	Drug^c
Range	Substance^c

has administration route code^op # OPs

URI	`https://biomedit.ch/rdf/sphn-schema/sphn#hasAdministrationRouteCode`
Description	coded information specifying the route of administration
Super-properties	has route code^op
Domain(s)	Drug Administration Event^c Drug Prescription^c
Range	Code^c Terminology^c

has administrative case^op # OPs

URI	`https://biomedit.ch/rdf/sphn-schema/sphn#hasAdministrativeCase`
Description	link to an interaction between an individual and healthcare provider(s) via an administrative case identifier for the purpose of providing healthcare service(s) or assessing the health status of an individual
Super-properties	SPHN attribute object^op
Domain(s)	Data Processing^c Body Position^c Inhaled Oxygen Concentration^c Radiotherapy Procedure^c Drug Prescription^c Respiratory Rate Measurement^c Body Height Measurement^c Birth^c Access Device Presence^c Organ Support^c Heart Rate Measurement^c Billed Procedure^c Tumor Grade Assessment^c Billed Diagnosis^c Tumor Stage Assessment Event^c Tumor Specimen^c Sample^c Transplant Presence^c Healthcare Encounter^c Microbiology Biomolecule Presence Lab Test Event^c Library Preparation^c Implant Presence^c Tobacco Exposure^c Imaging Procedure^c Resuscitation Directive^c Fluid Balance^c Sequencing Assay^c Microorganism Identification Lab Test Event^c Blood Pressure Measurement^c Nursing Diagnosis^c Body Weight Measurement^c Assessment Event^c Tumor Grade Assessment Event^c Assessment^c Measurement^c Body Surface Area^c Medical Procedure^c Lab Test Event^c Oxygen Saturation Measurement^c Death^c Fluid Input Output^c Assay^c Microbiology Microscopy Lab Test Event^c Cardiac Index^c Tumor Stage Assessment^c Nutrition Intake^c Cardiac Output Measurement^c Adverse Event^c Body Mass Index^c Diagnosis^c Problem Condition^c Excluded Disorder^c Gestational Age At Birth^c Body Temperature Measurement^c Allergy Episode^c Electrocardiographic Procedure^c Oncology Surgery^c Isolate^c Oncology Diagnosis^c Sequencing Analysis^c Sample Processing^c Insurance Status^c Biobanksample^c Circumference Measurement^c Drug Administration Event^c Variant Descriptor^c Antimicrobial Susceptibility Lab Test Event^c Exposure^c
Range	Administrative Case^c

has affected genomic feature^op # OPs

URI	`https://biomedit.ch/rdf/sphn-schema/sphn#hasAffectedGenomicFeature`
Description	genomic features affected by the concept
Super-properties	SPHN attribute object^op
Domain(s)	Copy Number Variation^c
Range	Gene^c

has agent code^op # OPs

URI	`https://biomedit.ch/rdf/sphn-schema/sphn#hasAgentCode`
Description	coded information specifying an active power or cause (as principle, substance, physical or biological factor, etc.) that produces a specific effect
Super-properties	has code^op
Domain(s)	Exposure^c Tobacco Exposure^c
Range	Code^c Terminology^c

has algorithm^op # OPs

URI	`https://biomedit.ch/rdf/sphn-schema/sphn#hasAlgorithm`
Description	algorithm applied to the concept
Super-properties	SPHN attribute object^op
Domain(s)	Hash^c
Range	SPHN Concept^c

has allele origin code^op # OPs

URI	`https://biomedit.ch/rdf/sphn-schema/sphn#hasAlleleOriginCode`
Description	coded information specifying the origin of the allele associated to the concept
Super-properties	has code^op
Domain(s)	Variant Descriptor^c
Range	Terminology^c Code^c

has allergen^op # OPs

URI	`https://biomedit.ch/rdf/sphn-schema/sphn#hasAllergen`
Description	any substance, product or physical force producing immediate hypersensitivity responsible for the concept
Super-properties	SPHN attribute object^op
Domain(s)	Allergy^c Allergy Episode^c
Range	Allergen^c

has article^op # OPs

URI	`https://biomedit.ch/rdf/sphn-schema/sphn#hasArticle`
Description	commercial identifier of the concept
Super-properties	SPHN attribute object^op
Domain(s)	Drug^c
Range	Drug Article^c

has assessment^op # OPs

URI	`https://biomedit.ch/rdf/sphn-schema/sphn#hasAssessment`
Description	evaluation tool associated to the concept
Super-properties	SPHN attribute object^op
Domain(s)	Assessment Event^c Tumor Grade Assessment Event^c Tumor Stage Assessment Event^c
Range	Assessment^c Tumor Stage Assessment^c Tumor Grade Assessment^c

has associated country^op # OPs

URI	`https://biomedit.ch/rdf/sphn-schema/sphn#hasAssociatedCountry`
Description	country associated to the concept
Super-properties	SPHN attribute object^op
Domain(s)	Nationality^c
Range	Country^c

has average insert size^op # OPs

URI	`https://biomedit.ch/rdf/sphn-schema/sphn#hasAverageInsertSize`
Description	average insert size associated to the concept
Super-properties	has quantity^op
Domain(s)	Sequencing Run^c
Range	Quantity^c

has average read length^op # OPs

URI	`https://biomedit.ch/rdf/sphn-schema/sphn#hasAverageReadLength`
Description	average read length associated to the concept
Super-properties	has quantity^op
Domain(s)	Sequencing Run^c
Range	Quantity^c

has body site^op # OPs

URI	`https://biomedit.ch/rdf/sphn-schema/sphn#hasBodySite`
Description	anatomical site or structure associated to the concept
Super-properties	SPHN attribute object^op
Domain(s)	Body Temperature Measurement^c Allergy Episode^c Electrocardiographic Procedure^c Oncology Surgery^c Isolate^c Oncology Diagnosis^c Circumference Measurement^c Radiotherapy Procedure^c Heart Rate Measurement^c Tumor Specimen^c Sample^c Organ Support^c Imaging Procedure^c Billed Procedure^c Transplant Presence^c Medical Procedure^c Oxygen Saturation Measurement^c Implant Presence^c Blood Pressure Measurement^c
Range	Body Site^c

has calculation method^op # OPs

URI	`https://biomedit.ch/rdf/sphn-schema/sphn#hasCalculationMethod`
Description	formula or method for calculating the concept
Super-properties	SPHN attribute object^op
Domain(s)	Body Surface Area^c
Range	SPHN Concept^c

has care handling^op # OPs

URI	`https://biomedit.ch/rdf/sphn-schema/sphn#hasCareHandling`
Description	describes the relationship between the patient and care provider institute
Super-properties	SPHN attribute object^op
Domain(s)	Administrative Case^c
Range	Care Handling^c

has category^op # OPs

URI	`https://biomedit.ch/rdf/sphn-schema/sphn#hasCategory`
Description	category associated to the concept
Super-properties	SPHN attribute object^op
Domain(s)	Source System^c Data Provider^c
Range	SPHN Concept^c

has cell count estimate code^op # OPs

URI	`https://biomedit.ch/rdf/sphn-schema/sphn#hasCellCountEstimateCode`
Description	code of the estimated cell count associated to the concept
Super-properties	has code^op
Domain(s)	Microbiology Microscopy Result^c
Range	Terminology^c Code^c

has cell morphology^op # OPs

URI	`https://biomedit.ch/rdf/sphn-schema/sphn#hasCellMorphology`
Description	cell morphology associated to the concept
Super-properties	SPHN attribute object^op
Domain(s)	Microbiology Microscopy Result^c
Range	SPHN Concept^c

has cell organization^op # OPs

URI	`https://biomedit.ch/rdf/sphn-schema/sphn#hasCellOrganization`
Description	cell organization associated to the concept
Super-properties	SPHN attribute object^op
Domain(s)	Microbiology Microscopy Result^c
Range	SPHN Concept^c

has certainty code^op # OPs

URI	`https://biomedit.ch/rdf/sphn-schema/sphn#hasCertaintyCode`
Description	coded information specifying the degree of certainty associated to the concept
Super-properties	has code^op
Domain(s)	Allergy Episode^c
Range	Terminology^c Code^c

has chemical agent^op # OPs

URI	`https://biomedit.ch/rdf/sphn-schema/sphn#hasChemicalAgent`
Description	chemical agent associated to the concept
Super-properties	SPHN attribute object^op
Domain(s)	Antimicrobial Susceptibility Lab Test^c
Range	Drug^c Substance^c

has chromosomal location^op # OPs

URI	`https://biomedit.ch/rdf/sphn-schema/sphn#hasChromosomalLocation`
Description	chromosomal location of the concept
Super-properties	SPHN attribute object^op
Domain(s)	Genomic Insertion^c Single Nucleotide Variation^c Copy Number Variation^c Genomic Deletion^c Genetic Variation^c
Range	Chromosomal Location^c

has chromosome^op # OPs

URI	`https://biomedit.ch/rdf/sphn-schema/sphn#hasChromosome`
Description	chromosome associated to the concept
Super-properties	SPHN attribute object^op
Domain(s)	Chromosomal Location^c
Range	Chromosome^c

has circumstance code^op # OPs

URI	`https://biomedit.ch/rdf/sphn-schema/sphn#hasCircumstanceCode`
Description	coded information specifying the circumstance associated to the concept
Super-properties	has code^op
Domain(s)	Death^c
Range	Code^c Terminology^c

has code^op # OPs

URI	`https://biomedit.ch/rdf/sphn-schema/sphn#hasCode`
Description	coded information specifying the concept
Super-properties	SPHN attribute object^op
Domain(s)	Physiologic State^c Diagnosis^c Problem Condition^c Excluded Disorder^c Body Site^c Organism^c Electrocardiographic Procedure^c Oncology Surgery^c Microbiology Microscopy Lab Test^c Drug Article^c Protein^c Sample Processing^c Sequencing Instrument^c Body Position^c Antimicrobial Susceptibility Lab Test^c Radiotherapy Procedure^c Source Data^c Transplant^c Follow Up^c Assessment Result^c Microbiology Biomolecule Presence Result^c Variant Descriptor^c Data Processing^c Organ Support^c Microorganism Identification Lab Test^c Library Preparation^c Chromosome^c Sequencing Assay^c Billed Procedure^c Microorganism Identification Result^c Tumor Grade Assessment^c Allergen^c Billed Diagnosis^c Substance^c Reference Sequence^c Reference Interpretation Result^c Unit^c Pharmaceutical Dose Form^c Performer^c Intent^c Healthcare Primary Information System^c Assessment^c Medical Procedure^c Tumor Grade Assessment Result^c Civil Status^c Vital Status^c Administrative Sex^c Laterality^c Gene^c Imaging Procedure^c Resuscitation Directive^c Assessment Component^c Nursing Diagnosis^c Lab Result^c Antimicrobial Susceptibility Result^c Assay^c Oncology Diagnosis^c Sequencing Analysis^c Lab Test^c Country^c Tumor Stage Assessment Result^c Transcript^c Quality Control Metric^c Microbiology Biomolecule Presence Lab Test^c Tumor Stage Assessment^c Adverse Event^c
Range	Code^c Terminology^c

has comparator^op # OPs

URI	`https://biomedit.ch/rdf/sphn-schema/sphn#hasComparator`
Description	qualifier describing imprecise values
Super-properties	SPHN attribute object^op
Domain(s)	Quantity^c Birth Date^c
Range	SPHN Concept^c

has component^op # OPs

URI	`https://biomedit.ch/rdf/sphn-schema/sphn#hasComponent`
Description	part of the concept
Super-properties	SPHN attribute object^op
Domain(s)	Tumor Stage Assessment^c Tumor Grade Assessment^c Assessment^c
Range	Assessment Component^c

has condition code^op # OPs

URI	`https://biomedit.ch/rdf/sphn-schema/sphn#hasConditionCode`
Description	coded information specifying the condition associated to the concept
Super-properties	has code^op
Domain(s)	Death^c
Range	Terminology^c Code^c

has consequences^op # OPs

URI	`https://biomedit.ch/rdf/sphn-schema/sphn#hasConsequences`
Description	consequences of the concept
Super-properties	SPHN attribute object^op
Domain(s)	Adverse Event^c
Range	SPHN Concept^c

has coordinate convention^op # OPs

URI	`https://biomedit.ch/rdf/sphn-schema/sphn#hasCoordinateConvention`
Description	convention used for the interpretation of coordinates used in the concept
Super-properties	SPHN attribute object^op
Domain(s)	Genomic Position^c
Range	SPHN Concept^c

has country^op # OPs

URI	`https://biomedit.ch/rdf/sphn-schema/sphn#hasCountry`
Description	country associated to the concept
Super-properties	SPHN attribute object^op
Domain(s)	Birth^c Home Address^c
Range	Country^c

has coverage type^op # OPs

URI	`https://biomedit.ch/rdf/sphn-schema/sphn#hasCoverageType`
Description	coverage type of the concept
Super-properties	SPHN attribute object^op
Domain(s)	Insurance Status^c
Range	SPHN Concept^c

has current location^op # OPs

URI	`https://biomedit.ch/rdf/sphn-schema/sphn#hasCurrentLocation`
Description	physical location where the individual received medical care
Super-properties	has location^op
Domain(s)	Healthcare Encounter^c
Range	Location^c

has data determination^op # OPs

URI	`https://biomedit.ch/rdf/sphn-schema/sphn#hasDataDetermination`
Description	indicates how the value was obtained
Super-properties	SPHN attribute object^op
Domain(s)	Body Height^c Body Weight^c Inhaled Oxygen Concentration^c Respiratory Rate^c
Range	Data Determination^c

has data file^op # OPs

URI	`https://biomedit.ch/rdf/sphn-schema/sphn#hasDataFile`
Description	data file associated to the concept
Super-properties	SPHN attribute object^op
Domain(s)	Cardiac Output^c Blood Pressure^c Respiratory Rate^c Standard Operating Procedure^c Electrocardiogram^c Sequencing Assay^c Gene Panel^c Oxygen Saturation^c Body Temperature^c Assay^c Heart Rate^c Sequencing Run^c
Range	Data File^c Time Series Data File^c

has data provider^op # OPs

URI	`https://biomedit.ch/rdf/sphn-schema/sphn#hasDataProvider`
Description	link to the unique business identification number (UID) of the healthcare institute providing the data
Super-properties	SPHN attribute object^op
Domain(s)	Tumor Grade Assessment Event^c Death Date^c Body Mass Index^c Diagnosis^c Problem Condition^c Excluded Disorder^c Gestational Age At Birth^c Body Temperature Measurement^c Measurement^c Allergy^c Allergy Episode^c Data Release^c Lab Test Event^c Electrocardiographic Procedure^c Oncology Surgery^c Location^c Death^c Fluid Input Output^c Isolate^c Oncology Diagnosis^c Sequencing Analysis^c Sequencing Instrument^c Quality Control Metric^c Cardiac Index^c Nutrition Intake^c Insurance Status^c Cardiac Output Measurement^c Adverse Event^c Biobanksample^c Circumference Measurement^c Antimicrobial Susceptibility Lab Test Event^c Semantic Mapping^c Sequencing Run^c Data Processing^c Sample Processing^c Body Position^c Inhaled Oxygen Concentration^c Radiotherapy Procedure^c Birth Date^c Interpretation^c Respiratory Rate Measurement^c Body Height Measurement^c Consent^c Access Device Presence^c Follow Up^c Data File^c Drug Administration Event^c Time Series Data File^c Subject Pseudo Identifier^c Variant Descriptor^c Heart Rate Measurement^c Exposure^c Tumor Grade Assessment^c Billed Diagnosis^c Tumor Stage Assessment Event^c Tumor Specimen^c Sample^c Drug Prescription^c Standard Operating Procedure^c Birth^c Gene Panel^c Reference Interpretation^c Organ Support^c Library Preparation^c Software^c Tobacco Exposure^c Administrative Sex^c Imaging Procedure^c Fluid Balance^c Sequencing Assay^c Billed Procedure^c Microorganism Identification Lab Test Event^c Nationality^c Body Weight Measurement^c Administrative Case^c Transplant Presence^c Assessment Event^c Healthcare Primary Information System^c Assessment^c Body Surface Area^c Medical Procedure^c Healthcare Encounter^c Oxygen Saturation Measurement^c Microbiology Biomolecule Presence Lab Test Event^c Assay^c Vital Status^c Implant Presence^c Microbiology Microscopy Lab Test Event^c Resuscitation Directive^c Source System^c Home Address^c Blood Pressure Measurement^c Nursing Diagnosis^c Tumor Stage Assessment^c
Range	Data Provider^c

has date^op ^De-id # OPs

URI	`https://biomedit.ch/rdf/sphn-schema/sphn#hasDate`
Description	date of the concept
Super-properties	SPHN attribute object^op
Domain(s)	Death^c Birth^c
Range	Death Date^c Birth Date^c

has death^op # OPs

URI	`https://biomedit.ch/rdf/sphn-schema/sphn#hasDeath`
Description	death information specifying the concept
Super-properties	SPHN attribute object^op
Domain(s)	Vital Status^c
Range	Death^c

has degree code^op # OPs

URI	`https://biomedit.ch/rdf/sphn-schema/sphn#hasDegreeCode`
Description	coded information specifying the degree of the concept
Super-properties	has code^op
Domain(s)	Exposure^c Tobacco Exposure^c
Range	Terminology^c Code^c

has delivery mode code^op # OPs

URI	`https://biomedit.ch/rdf/sphn-schema/sphn#hasDeliveryModeCode`
Description	mode of delivery during concept
Super-properties	has code^op
Domain(s)	Birth^c
Range	Code^c Terminology^c

has department^op # OPs

URI	`https://biomedit.ch/rdf/sphn-schema/sphn#hasDepartment`
Description	department of the concept
Super-properties	SPHN attribute object^op
Domain(s)	Data Provider^c
Range	Department^c

has diastolic pressure^op # OPs

URI	`https://biomedit.ch/rdf/sphn-schema/sphn#hasDiastolicPressure`
Description	diastolic pressure of the concept
Super-properties	has quantity^op
Domain(s)	Blood Pressure^c
Range	Quantity^c

has discharge location^op # OPs

URI	`https://biomedit.ch/rdf/sphn-schema/sphn#hasDischargeLocation`
Description	location where the individual went to when leaving the healthcare provider institute, e.g. nursing home
Super-properties	has location^op
Domain(s)	Administrative Case^c
Range	Location^c

has distance^op # OPs

URI	`https://biomedit.ch/rdf/sphn-schema/sphn#hasDistance`
Description	distance related to the concept
Super-properties	has quantity^op
Domain(s)	Swiss Socio Economic Position^c
Range	Quantity^c

has drug^op # OPs

URI	`https://biomedit.ch/rdf/sphn-schema/sphn#hasDrug`
Description	medication associated to the concept
Super-properties	SPHN attribute object^op
Domain(s)	Drug Administration Event^c Drug Prescription^c
Range	Drug^c

has duration^op # OPs

URI	`https://biomedit.ch/rdf/sphn-schema/sphn#hasDuration`
Description	elapsed time from start to end of the concept
Super-properties	has quantity^op
Domain(s)	Allergy Episode^c Drug Administration Event^c Exposure^c Tobacco Exposure^c
Range	Quantity^c

has encoding^op # OPs

URI	`https://biomedit.ch/rdf/sphn-schema/sphn#hasEncoding`
Description	encoding of the concept
Super-properties	SPHN attribute object^op
Domain(s)	Data File^c Time Series Data File^c
Range	SPHN Concept^c

has end cytoband code^op # OPs

URI	`https://biomedit.ch/rdf/sphn-schema/sphn#hasEndCytobandCode`
Description	coded information specifying the end cytoband of the concept
Super-properties	has code^op
Domain(s)	Chromosomal Location^c
Range	Terminology^c Code^c

has energy quantity^op # OPs

URI	`https://biomedit.ch/rdf/sphn-schema/sphn#hasEnergyQuantity`
Description	amount of energy of the concept
Super-properties	has quantity^op
Domain(s)	Nutrition Intake^c
Range	Quantity^c

has entry count^op # OPs

URI	`https://biomedit.ch/rdf/sphn-schema/sphn#hasEntryCount`
Description	count of entries in the concept
Super-properties	has quantity^op
Domain(s)	Time Series Data File^c
Range	Quantity^c

has exposure^op # OPs

URI	`https://biomedit.ch/rdf/sphn-schema/sphn#hasExposure`
Description	exposure associated to the concept
Super-properties	SPHN attribute object^op
Domain(s)	Allergy Episode^c
Range	Exposure^c

has fixation type^op # OPs

URI	`https://biomedit.ch/rdf/sphn-schema/sphn#hasFixationType`
Description	fixation or stabilization type
Super-properties	SPHN attribute object^op
Domain(s)	Isolate^c Tumor Specimen^c Sample^c
Range	SPHN Concept^c

has fluid input output^op # OPs

URI	`https://biomedit.ch/rdf/sphn-schema/sphn#hasFluidInputOutput`
Description	individual fluid input and output that form the concept
Super-properties	SPHN attribute object^op
Domain(s)	Fluid Balance^c
Range	Fluid Input Output^c

has focus gene^op # OPs

URI	`https://biomedit.ch/rdf/sphn-schema/sphn#hasFocusGene`
Description	gene of focus associated to the concept
Super-properties	SPHN attribute object^op
Domain(s)	Gene Panel^c
Range	Gene^c

has format code^op # OPs

URI	`https://biomedit.ch/rdf/sphn-schema/sphn#hasFormatCode`
Description	coded information specifying the format of the concept
Super-properties	has code^op
Domain(s)	Data File^c Time Series Data File^c
Range	Code^c Terminology^c

has fractions number^op # OPs

URI	`https://biomedit.ch/rdf/sphn-schema/sphn#hasFractionsNumber`
Description	number of fractions applied during an event
Super-properties	has quantity^op
Domain(s)	Radiotherapy Procedure^c
Range	Quantity^c

has frequency^op # OPs

URI	`https://biomedit.ch/rdf/sphn-schema/sphn#hasFrequency`
Description	number of events per unit of time
Super-properties	has quantity^op
Domain(s)	Drug Prescription^c
Range	Quantity^c

has gene^op # OPs

URI	`https://biomedit.ch/rdf/sphn-schema/sphn#hasGene`
Description	specific gene(s) context where the concept occurs
Super-properties	SPHN attribute object^op
Domain(s)	Variant Descriptor^c
Range	Gene^c

has gene panel^op # OPs

URI	`https://biomedit.ch/rdf/sphn-schema/sphn#hasGenePanel`
Description	gene panel associated to the concept
Super-properties	SPHN attribute object^op
Domain(s)	Library Preparation^c
Range	Gene Panel^c

has genetic variation^op # OPs

URI	`https://biomedit.ch/rdf/sphn-schema/sphn#hasGeneticVariation`
Description	concept described by its position and sequence change
Super-properties	SPHN attribute object^op
Domain(s)	Variant Descriptor^c
Range	Genetic Variation^c

has genomic position^op # OPs

URI	`https://biomedit.ch/rdf/sphn-schema/sphn#hasGenomicPosition`
Description	genomic position of the concept
Super-properties	SPHN attribute object^op
Domain(s)	Genomic Deletion^c Copy Number Variation^c Genetic Variation^c Genomic Insertion^c Single Nucleotide Variation^c
Range	Genomic Position^c

has gestational age^op # OPs

URI	`https://biomedit.ch/rdf/sphn-schema/sphn#hasGestationalAge`
Description	gestational age associated to the concept
Super-properties	SPHN attribute object^op
Domain(s)	Birth^c
Range	Gestational Age At Birth^c

has graft type code^op # OPs

URI	`https://biomedit.ch/rdf/sphn-schema/sphn#hasGraftTypeCode`
Description	coded information specifying the type of graft of the concept
Super-properties	has code^op
Domain(s)	Transplant^c
Range	Code^c Terminology^c

has hash^op # OPs

URI	`https://biomedit.ch/rdf/sphn-schema/sphn#hasHash`
Description	hash associated to the concept
Super-properties	SPHN attribute object^op
Domain(s)	Data File^c Time Series Data File^c
Range	Hash^c

has inactive ingredient^op # OPs

URI	`https://biomedit.ch/rdf/sphn-schema/sphn#hasInactiveIngredient`
Description	inert ingredients or excipients, and generally have no pharmacological effect of the concept
Super-properties	SPHN attribute object^op
Domain(s)	Drug^c
Range	Substance^c

has indication to start^op # OPs

URI	`https://biomedit.ch/rdf/sphn-schema/sphn#hasIndicationToStart`
Description	indication to start the concept
Super-properties	SPHN attribute object^op
Domain(s)	Drug Prescription^c
Range	Diagnosis^c

has input^op # OPs

URI	`https://biomedit.ch/rdf/sphn-schema/sphn#hasInput`
Description	input associated to the concept
Super-properties	SPHN attribute object^op
Domain(s)	Data Processing^c Reference Interpretation^c Library Preparation^c Sequencing Analysis^c Sample Processing^c Interpretation^c
Range	Data File^c Sample^c Result^c SPHN Concept^c

has insertion point^op # OPs

URI	`https://biomedit.ch/rdf/sphn-schema/sphn#hasInsertionPoint`
Description	anatomical site of insertion
Super-properties	has body site^op
Domain(s)	Access Device Presence^c
Range	Body Site^c

has institution code^op # OPs

URI	`https://biomedit.ch/rdf/sphn-schema/sphn#hasInstitutionCode`
Description	coded information specifying the institution of the concept
Super-properties	has code^op
Domain(s)	Data Provider^c
Range	Terminology^c Code^c

has instrument^op # OPs

URI	`https://biomedit.ch/rdf/sphn-schema/sphn#hasInstrument`
Description	instrument used for the concept
Super-properties	SPHN attribute object^op
Domain(s)	Lab Test^c Microbiology Biomolecule Presence Lab Test^c Antimicrobial Susceptibility Lab Test^c Microbiology Microscopy Lab Test^c Microorganism Identification Lab Test^c
Range	Lab Analyzer^c

has intended insert size^op # OPs

URI	`https://biomedit.ch/rdf/sphn-schema/sphn#hasIntendedInsertSize`
Description	intended insert size associated to the concept
Super-properties	has quantity^op
Domain(s)	Library Preparation^c
Range	Quantity^c

has intended read depth^op # OPs

URI	`https://biomedit.ch/rdf/sphn-schema/sphn#hasIntendedReadDepth`
Description	intended read depth associated to the concept
Super-properties	has quantity^op
Domain(s)	Sequencing Assay^c
Range	Quantity^c

has intended read length^op # OPs

URI	`https://biomedit.ch/rdf/sphn-schema/sphn#hasIntendedReadLength`
Description	intended read length associated to the concept
Super-properties	has quantity^op
Domain(s)	Sequencing Assay^c
Range	Quantity^c

has intent^op # OPs

URI	`https://biomedit.ch/rdf/sphn-schema/sphn#hasIntent`
Description	intention for the concept
Super-properties	SPHN attribute object^op
Domain(s)	Billed Procedure^c Medical Procedure^c Imaging Procedure^c Electrocardiographic Procedure^c Oncology Surgery^c Radiotherapy Procedure^c Drug Prescription^c Organ Support^c
Range	Intent^c

has kit code^op # OPs

URI	`https://biomedit.ch/rdf/sphn-schema/sphn#hasKitCode`
Description	coded information specifying the kit associated to the concept
Super-properties	has code^op
Domain(s)	Library Preparation^c
Range	Terminology^c Code^c

has lab test^op # OPs

URI	`https://biomedit.ch/rdf/sphn-schema/sphn#hasLabTest`
Description	lab test associated to the concept
Super-properties	SPHN attribute object^op
Domain(s)	Antimicrobial Susceptibility Lab Test Event^c Microbiology Biomolecule Presence Lab Test Event^c Microorganism Identification Lab Test Event^c Lab Test Event^c Microbiology Microscopy Lab Test Event^c
Range	Lab Test^c Microbiology Biomolecule Presence Lab Test^c Microbiology Microscopy Lab Test^c Antimicrobial Susceptibility Lab Test^c Microorganism Identification Lab Test^c

has laterality^op # OPs

URI	`https://biomedit.ch/rdf/sphn-schema/sphn#hasLaterality`
Description	localization with respect to the side of the body
Super-properties	SPHN attribute object^op
Domain(s)	Body Site^c
Range	Laterality^c

has library preparation^op # OPs

URI	`https://biomedit.ch/rdf/sphn-schema/sphn#hasLibraryPreparation`
Description	library preparation associated to the concept
Super-properties	SPHN attribute object^op
Domain(s)	Sequencing Assay^c
Range	Library Preparation^c

has location^op # OPs

URI	`https://biomedit.ch/rdf/sphn-schema/sphn#hasLocation`
Description	statement about a physical location
Super-properties	SPHN attribute object^op
Range	Location^c

has lower limit^op # OPs

URI	`https://biomedit.ch/rdf/sphn-schema/sphn#hasLowerLimit`
Description	lowest value of the concept
Super-properties	has quantity^op
Domain(s)	Reference Range^c
Range	Quantity^c

has manifestation code^op # OPs

URI	`https://biomedit.ch/rdf/sphn-schema/sphn#hasManifestationCode`
Description	coded information specifying the clinical symptom and/or sign that occurred during the specific concept
Super-properties	has code^op
Domain(s)	Allergy Episode^c
Range	Code^c Terminology^c

has manufactured dose form^op # OPs

URI	`https://biomedit.ch/rdf/sphn-schema/sphn#hasManufacturedDoseForm`
Description	dose form presented in the manufactured item
Super-properties	SPHN attribute object^op
Domain(s)	Drug Article^c
Range	Pharmaceutical Dose Form^c

has material type code^op # OPs

URI	`https://biomedit.ch/rdf/sphn-schema/sphn#hasMaterialTypeCode`
Description	coded information specifying the material type of the concept
Super-properties	has code^op
Domain(s)	Tumor Specimen^c Sample^c Isolate^c
Range	Terminology^c Code^c

has mean pressure^op # OPs

URI	`https://biomedit.ch/rdf/sphn-schema/sphn#hasMeanPressure`
Description	mean pressure of the concept
Super-properties	has quantity^op
Domain(s)	Blood Pressure^c
Range	Quantity^c

has mean read depth^op # OPs

URI	`https://biomedit.ch/rdf/sphn-schema/sphn#hasMeanReadDepth`
Description	mean read depth associated to the concept
Super-properties	has quantity^op
Domain(s)	Sequencing Run^c
Range	Quantity^c

has medical device^op # OPs

URI	`https://biomedit.ch/rdf/sphn-schema/sphn#hasMedicalDevice`
Description	medical device associated to the concept
Super-properties	SPHN attribute object^op
Domain(s)	Body Temperature Measurement^c Measurement^c Cardiac Output Measurement^c Circumference Measurement^c Access Device Presence^c Heart Rate Measurement^c Respiratory Rate Measurement^c Body Height Measurement^c Birth^c Oxygen Saturation Measurement^c Implant Presence^c Blood Pressure Measurement^c Body Weight Measurement^c
Range	Implant^c Medical Device^c Access Device^c

has method code^op # OPs

URI	`https://biomedit.ch/rdf/sphn-schema/sphn#hasMethodCode`
Description	coded information specifying the method of the concept
Super-properties	has code^op
Domain(s)	Blood Pressure Measurement^c Body Weight Measurement^c Body Temperature Measurement^c Measurement^c Oxygen Saturation Measurement^c Cardiac Index^c Cardiac Output Measurement^c Circumference Measurement^c Semantic Mapping^c Respiratory Rate Measurement^c Body Height Measurement^c Heart Rate Measurement^c Data Determination^c
Range	Terminology^c Code^c

has mode code^op # OPs

URI	`https://biomedit.ch/rdf/sphn-schema/sphn#hasModeCode`
Description	mode associated to the concept
Super-properties	has code^op
Domain(s)	Nutrition Intake^c
Range	Code^c Terminology^c

has notation^op # OPs

URI	`https://biomedit.ch/rdf/sphn-schema/sphn#hasNotation`
Description	description of the concept using a specific nomenclature or syntax
Super-properties	SPHN attribute object^op
Domain(s)	Variant Descriptor^c
Range	Variant Notation^c

has number of leads^op # OPs

URI	`https://biomedit.ch/rdf/sphn-schema/sphn#hasNumberOfLeads`
Description	number of leads used in the concept
Super-properties	has quantity^op
Domain(s)	Electrocardiographic Procedure^c
Range	Quantity^c

has numerical reference^op # OPs

URI	`https://biomedit.ch/rdf/sphn-schema/sphn#hasNumericalReference`
Description	numerical reference associated to the concept
Super-properties	SPHN attribute object^op
Domain(s)	Microorganism Identification Result^c Antimicrobial Susceptibility Result^c Lab Result^c Microbiology Biomolecule Presence Result^c Microbiology Microscopy Result^c
Range	Reference Value^c Reference Range^c

has organism^op # OPs

URI	`https://biomedit.ch/rdf/sphn-schema/sphn#hasOrganism`
Description	organism associated to the concept
Super-properties	SPHN attribute object^op
Domain(s)	Microorganism Identification Result^c Gene^c Isolate^c Transcript^c Protein^c
Range	Organism^c

has origin location^op # OPs

URI	`https://biomedit.ch/rdf/sphn-schema/sphn#hasOriginLocation`
Description	physical location where the individual came from
Super-properties	has location^op
Domain(s)	Healthcare Encounter^c Administrative Case^c
Range	Location^c

has outcome^op # OPs

URI	`https://biomedit.ch/rdf/sphn-schema/sphn#hasOutcome`
Description	result or effect of an action, situation, or event of the concept
Super-properties	SPHN attribute object^op
Domain(s)	Adverse Event^c
Range	SPHN Concept^c

has output^op # OPs

URI	`https://biomedit.ch/rdf/sphn-schema/sphn#hasOutput`
Description	output associated to the concept
Super-properties	SPHN attribute object^op
Domain(s)	Reference Interpretation^c Library Preparation^c Sequencing Analysis^c Electrocardiographic Procedure^c Sample Processing^c Interpretation^c Data Processing^c
Range	Data File^c Reference Interpretation Result^c Sample^c Electrocardiogram^c SPHN Concept^c

has output code^op # OPs

URI	`https://biomedit.ch/rdf/sphn-schema/sphn#hasOutputCode`
Description	coded information specifying the output of the concept
Super-properties	has code^op
Domain(s)	Semantic Mapping^c
Range	Terminology^c Code^c

has oxygen equipment^op # OPs

URI	`https://biomedit.ch/rdf/sphn-schema/sphn#hasOxygenEquipment`
Description	type of device used for oxygen therapy, e.g. nasal cannula, Venturi mask
Super-properties	SPHN attribute object^op
Domain(s)	Inhaled Oxygen Concentration^c
Range	Medical Device^c

has oxygen flow rate^op # OPs

URI	`https://biomedit.ch/rdf/sphn-schema/sphn#hasOxygenFlowRate`
Description	quantity and duration of oxygen flow rate administration
Super-properties	SPHN attribute object^op
Domain(s)	Inhaled Oxygen Concentration^c
Range	Drug Administration Event^c

has performer^op # OPs

URI	`https://biomedit.ch/rdf/sphn-schema/sphn#hasPerformer`
Description	person who performs or reports the concept
Super-properties	SPHN attribute object^op
Domain(s)	Heart Rate Measurement^c Tumor Stage Assessment Event^c Respiratory Rate Measurement^c Body Height Measurement^c Oxygen Saturation Measurement^c Blood Pressure Measurement^c Body Weight Measurement^c Assessment Event^c Tumor Grade Assessment Event^c Body Temperature Measurement^c Measurement^c Cardiac Output Measurement^c Circumference Measurement^c
Range	Performer^c

has predecessor^op # OPs

URI	`https://biomedit.ch/rdf/sphn-schema/sphn#hasPredecessor`
Description	process preceding this concept
Super-properties	SPHN attribute object^op
Domain(s)	Data Processing^c Sample Processing^c Library Preparation^c Sequencing Assay^c Assay^c Sequencing Analysis^c
Range	Sample Processing^c Data Processing^c Assay^c

has primary container^op # OPs

URI	`https://biomedit.ch/rdf/sphn-schema/sphn#hasPrimaryContainer`
Description	type of primary container of the concept
Super-properties	SPHN attribute object^op
Domain(s)	Tumor Specimen^c Sample^c Isolate^c
Range	SPHN Concept^c

has primary system^op # OPs

URI	`https://biomedit.ch/rdf/sphn-schema/sphn#hasPrimarySystem`
Description	primary system providing input to the concept
Super-properties	SPHN attribute object^op
Domain(s)	Source System^c
Range	Healthcare Primary Information System^c

has product code^op # OPs

URI	`https://biomedit.ch/rdf/sphn-schema/sphn#hasProductCode`
Description	coded information specifying the concept on the level of a commercial product
Super-properties	has code^op
Domain(s)	Medical Device^c Access Device^c Implant^c Lab Analyzer^c
Range	Terminology^c Code^c

has protein^op # OPs

URI	`https://biomedit.ch/rdf/sphn-schema/sphn#hasProtein`
Description	protein product of the concept
Super-properties	SPHN attribute object^op
Domain(s)	Transcript^c Gene^c
Range	Protein^c

has purpose^op # OPs

URI	`https://biomedit.ch/rdf/sphn-schema/sphn#hasPurpose`
Description	objective of the concept
Super-properties	SPHN attribute object^op
Domain(s)	Semantic Mapping^c Source System^c
Range	SPHN Concept^c

has quality control metric^op # OPs

URI	`https://biomedit.ch/rdf/sphn-schema/sphn#hasQualityControlMetric`
Description	quality control metric associated to the concept
Super-properties	SPHN attribute object^op
Domain(s)	Library Preparation^c Sequencing Run^c Sequencing Analysis^c Sample Processing^c Data Processing^c
Range	Quality Control Metric^c

has quantity^op # OPs

URI	`https://biomedit.ch/rdf/sphn-schema/sphn#hasQuantity`
Description	an amount or a number of the concept
Super-properties	SPHN attribute object^op
Domain(s)	Body Weight^c Lab Result^c Antimicrobial Susceptibility Result^c Body Mass Index^c Body Temperature^c Heart Rate^c Tumor Stage Assessment Result^c Quality Control Metric^c Cardiac Index^c Oxygen Saturation^c Circumference^c Gestational Age At Birth^c Microbiology Microscopy Result^c Inhaled Oxygen Concentration^c Cardiac Output^c Assessment Result^c Microbiology Biomolecule Presence Result^c Drug^c Exposure^c Respiratory Rate^c Tobacco Exposure^c Substance^c Age^c Reference Value^c Body Height^c Body Surface Area^c Tumor Grade Assessment Result^c Fluid Balance^c
Range	Quantity^c

has radiation quantity^op # OPs

URI	`https://biomedit.ch/rdf/sphn-schema/sphn#hasRadiationQuantity`
Description	amount of radiation (value and unit) delivered or applied
Super-properties	has quantity^op
Domain(s)	Radiotherapy Procedure^c
Range	Quantity^c

has rank^op # OPs

URI	`https://biomedit.ch/rdf/sphn-schema/sphn#hasRank`
Description	specifies the level of the concept
Super-properties	SPHN attribute object^op
Domain(s)	Billed Procedure^c Billed Diagnosis^c
Range	SPHN Concept^c

has reaction type code^op # OPs

URI	`https://biomedit.ch/rdf/sphn-schema/sphn#hasReactionTypeCode`
Description	coded information specifying the type of reaction
Super-properties	has code^op
Domain(s)	Allergy^c
Range	Terminology^c Code^c

has read count^op # OPs

URI	`https://biomedit.ch/rdf/sphn-schema/sphn#hasReadCount`
Description	ready count associated with to concept
Super-properties	has quantity^op
Domain(s)	Sequencing Run^c
Range	Quantity^c

has reason to stop code^op # OPs

URI	`https://biomedit.ch/rdf/sphn-schema/sphn#hasReasonToStopCode`
Description	coded information indicating the reason to stop the concept
Super-properties	has code^op
Domain(s)	Drug Administration Event^c
Range	Code^c Terminology^c

has reference^op # OPs

URI	`https://biomedit.ch/rdf/sphn-schema/sphn#hasReference`
Description	reference used to define the coordinates of the concept
Super-properties	SPHN attribute object^op
Domain(s)	Genomic Position^c
Range	Reference Sequence^c

has reference sequence^op # OPs

URI	`https://biomedit.ch/rdf/sphn-schema/sphn#hasReferenceSequence`
Description	reference sequence used to define the coordinates of the concept
Super-properties	SPHN attribute object^op
Domain(s)	Sequencing Analysis^c
Range	Reference Sequence^c

has regularity code^op # OPs

URI	`https://biomedit.ch/rdf/sphn-schema/sphn#hasRegularityCode`
Description	coded information specifying the regularity of the concept
Super-properties	has code^op
Domain(s)	Heart Rate^c
Range	Terminology^c Code^c

has relative temporality code^op # OPs

URI	`https://biomedit.ch/rdf/sphn-schema/sphn#hasRelativeTemporalityCode`
Description	coded information describing when the problem was reported in relation to the treatment pathway, e.g. on admission, intraoperative, post-radiation
Super-properties	has code^op
Domain(s)	Problem Condition^c
Range	Code^c Terminology^c

has resting point^op # OPs

URI	`https://biomedit.ch/rdf/sphn-schema/sphn#hasRestingPoint`
Description	anatomical site of the end position
Super-properties	has body site^op
Domain(s)	Access Device Presence^c
Range	Body Site^c

has result^op # OPs

URI	`https://biomedit.ch/rdf/sphn-schema/sphn#hasResult`
Description	evaluation outcome associated to the concept
Super-properties	SPHN attribute object^op
Domain(s)	Lab Test^c Microbiology Biomolecule Presence Lab Test^c Cardiac Output Measurement^c Circumference Measurement^c Microbiology Microscopy Lab Test^c Antimicrobial Susceptibility Lab Test^c Body Height Measurement^c Follow Up^c Heart Rate Measurement^c Tumor Grade Assessment^c Respiratory Rate Measurement^c Microorganism Identification Lab Test^c Assessment Component^c Assessment^c Oxygen Saturation Measurement^c Blood Pressure Measurement^c Body Weight Measurement^c Tumor Stage Assessment^c Body Temperature Measurement^c Measurement^c
Range	Circumference^c Body Weight^c Lab Result^c Heart Rate^c Result^c Cardiac Output^c Blood Pressure^c Microbiology Microscopy Result^c Respiratory Rate^c Assessment Result^c Microbiology Biomolecule Presence Result^c Body Height^c Microorganism Identification Result^c Antimicrobial Susceptibility Result^c Body Temperature^c Tumor Grade Assessment Result^c Vital Status^c Tumor Stage Assessment Result^c Oxygen Saturation^c

has route code^op # OPs

URI	`https://biomedit.ch/rdf/sphn-schema/sphn#hasRouteCode`
Description	coded information specifying the route of the concept
Super-properties	has code^op
Domain(s)	Exposure^c Tobacco Exposure^c
Range	Terminology^c Code^c

has sample^op # OPs

URI	`https://biomedit.ch/rdf/sphn-schema/sphn#hasSample`
Description	sample associated to the concept
Super-properties	SPHN attribute object^op
Domain(s)	Lab Test Event^c Assay^c Microbiology Microscopy Lab Test Event^c Biobanksample^c Antimicrobial Susceptibility Lab Test Event^c Sequencing Assay^c Microorganism Identification Lab Test Event^c Microbiology Biomolecule Presence Lab Test Event^c
Range	Isolate^c Sample^c

has sequence length^op # OPs

URI	`https://biomedit.ch/rdf/sphn-schema/sphn#hasSequenceLength`
Description	sequence length of the concept
Super-properties	has quantity^op
Domain(s)	Genomic Deletion^c Genomic Insertion^c
Range	Quantity^c

has sequencing instrument^op # OPs

URI	`https://biomedit.ch/rdf/sphn-schema/sphn#hasSequencingInstrument`
Description	device associated to the concept
Super-properties	SPHN attribute object^op
Domain(s)	Sequencing Assay^c
Range	Sequencing Instrument^c

has sequencing run^op # OPs

URI	`https://biomedit.ch/rdf/sphn-schema/sphn#hasSequencingRun`
Description	sequencing run associated to the concept
Super-properties	SPHN attribute object^op
Domain(s)	Sequencing Assay^c
Range	Sequencing Run^c

has severity code^op # OPs

URI	`https://biomedit.ch/rdf/sphn-schema/sphn#hasSeverityCode`
Description	coded information specifying the severity of the concept
Super-properties	has code^op
Domain(s)	Allergy^c Allergy Episode^c Adverse Event^c
Range	Code^c Terminology^c

has software^op # OPs

URI	`https://biomedit.ch/rdf/sphn-schema/sphn#hasSoftware`
Description	software associated to the concept
Super-properties	SPHN attribute object^op
Domain(s)	Medical Device^c Access Device^c Sequencing Analysis^c Implant^c Lab Analyzer^c Data Processing^c
Range	Software^c

has source data^op # OPs

URI	`https://biomedit.ch/rdf/sphn-schema/sphn#hasSourceData`
Description	source data associated to the concept
Super-properties	SPHN attribute object^op
Domain(s)	Semantic Mapping^c
Range	Source Data^c

has source system^op # OPs

URI	`https://biomedit.ch/rdf/sphn-schema/sphn#hasSourceSystem`
Description	link to a source system
Super-properties	SPHN attribute object^op
Domain(s)	Oxygen Saturation Measurement^c Care Handling^c Microbiology Biomolecule Presence Lab Test Event^c Assay^c Civil Status^c Vital Status^c Implant Presence^c Microbiology Microscopy Lab Test Event^c Resuscitation Directive^c Home Address^c Blood Pressure Measurement^c Nursing Diagnosis^c Tumor Stage Assessment^c Tumor Grade Assessment Event^c Death Date^c Body Mass Index^c Diagnosis^c Problem Condition^c Excluded Disorder^c Gestational Age At Birth^c Body Temperature Measurement^c Measurement^c Allergy^c Allergy Episode^c Lab Test Event^c Electrocardiographic Procedure^c Oncology Surgery^c Death^c Fluid Input Output^c Isolate^c Oncology Diagnosis^c Sequencing Analysis^c Cardiac Index^c Nutrition Intake^c Insurance Status^c Cardiac Output Measurement^c Adverse Event^c Biobanksample^c Circumference Measurement^c Antimicrobial Susceptibility Lab Test Event^c Drug Article^c Semantic Mapping^c Data Processing^c Sample Processing^c Body Position^c Inhaled Oxygen Concentration^c Radiotherapy Procedure^c Birth Date^c Interpretation^c Respiratory Rate Measurement^c Body Height Measurement^c Consent^c Source Data^c Access Device Presence^c Follow Up^c Data File^c Drug Administration Event^c Time Series Data File^c Variant Descriptor^c Heart Rate Measurement^c Drug^c Exposure^c Tumor Grade Assessment^c Billed Diagnosis^c Tumor Stage Assessment Event^c Substance^c Tumor Specimen^c Sample^c Drug Prescription^c Birth^c Reference Interpretation^c Organ Support^c Library Preparation^c Tobacco Exposure^c Administrative Sex^c Therapeutic Area^c Imaging Procedure^c Fluid Balance^c Sequencing Assay^c Billed Procedure^c Microorganism Identification Lab Test Event^c Nationality^c Body Weight Measurement^c Administrative Case^c Transplant Presence^c Assessment Event^c Age^c Assessment^c Body Surface Area^c Medical Procedure^c Healthcare Encounter^c
Range	Source System^c

has specialty name^op # OPs

URI	`https://biomedit.ch/rdf/sphn-schema/sphn#hasSpecialtyName`
Description	name of professional health care specialization
Super-properties	SPHN attribute object^op
Domain(s)	Therapeutic Area^c
Range	SPHN Concept^c

has staining method code^op # OPs

URI	`https://biomedit.ch/rdf/sphn-schema/sphn#hasStainingMethodCode`
Description	coded information specifying the staining method associated to the concept
Super-properties	has code^op
Domain(s)	Microbiology Microscopy Lab Test^c
Range	Code^c Terminology^c

has staining result code^op # OPs

URI	`https://biomedit.ch/rdf/sphn-schema/sphn#hasStainingResultCode`
Description	coded information specifying the staining result associated to the concept
Super-properties	has code^op
Domain(s)	Microbiology Microscopy Result^c
Range	Terminology^c Code^c

has standard operating procedure^op # OPs

URI	`https://biomedit.ch/rdf/sphn-schema/sphn#hasStandardOperatingProcedure`
Description	standard operating procedure associated to the concept
Super-properties	SPHN attribute object^op
Domain(s)	Assay^c Sequencing Analysis^c Data Processing^c Sample Processing^c Library Preparation^c Sequencing Assay^c
Range	Standard Operating Procedure^c

has start cytoband code^op # OPs

URI	`https://biomedit.ch/rdf/sphn-schema/sphn#hasStartCytobandCode`
Description	coded information specifying the start cytoband of the concept
Super-properties	has code^op
Domain(s)	Chromosomal Location^c
Range	Code^c Terminology^c

has status code^op # OPs

URI	`https://biomedit.ch/rdf/sphn-schema/sphn#hasStatusCode`
Description	coded information specifying the status of the concept
Super-properties	has code^op
Domain(s)	Consent^c
Range	Terminology^c Code^c

has subject age^op # OPs

URI	`https://biomedit.ch/rdf/sphn-schema/sphn#hasSubjectAge`
Description	age of the individual at the time of the event
Super-properties	SPHN attribute object^op
Domain(s)	Billed Diagnosis^c Nursing Diagnosis^c Oncology Diagnosis^c Diagnosis^c
Range	Age^c

has subject physiologic state^op # OPs

URI	`https://biomedit.ch/rdf/sphn-schema/sphn#hasSubjectPhysiologicState`
Description	physiologic state of the subject
Super-properties	SPHN attribute object^op
Domain(s)	Heart Rate Measurement^c Electrocardiographic Procedure^c
Range	Physiologic State^c

has subject pseudo identifier^op # OPs

URI	`https://biomedit.ch/rdf/sphn-schema/sphn#hasSubjectPseudoIdentifier`
Description	link to a pseudo code assigned as unique identifier to an individual by a data provider institute
Super-properties	SPHN attribute object^op
Domain(s)	Healthcare Encounter^c Microbiology Biomolecule Presence Lab Test Event^c Civil Status^c Vital Status^c Implant Presence^c Administrative Sex^c Imaging Procedure^c Resuscitation Directive^c Fluid Balance^c Blood Pressure Measurement^c Nursing Diagnosis^c Body Weight Measurement^c Assessment Event^c Tumor Grade Assessment Event^c Death Date^c Body Mass Index^c Body Temperature Measurement^c Measurement^c Allergy^c Body Surface Area^c Lab Test Event^c Oxygen Saturation Measurement^c Death^c Fluid Input Output^c Assay^c Isolate^c Oncology Diagnosis^c Sequencing Analysis^c Microbiology Microscopy Lab Test Event^c Home Address^c Cardiac Index^c Tumor Stage Assessment^c Nutrition Intake^c Cardiac Output Measurement^c Adverse Event^c Diagnosis^c Problem Condition^c Excluded Disorder^c Biobanksample^c Gestational Age At Birth^c Circumference Measurement^c Allergy Episode^c Electrocardiographic Procedure^c Oncology Surgery^c Sample Processing^c Radiotherapy Procedure^c Birth Date^c Insurance Status^c Consent^c Follow Up^c Drug Administration Event^c Time Series Data File^c Variant Descriptor^c Antimicrobial Susceptibility Lab Test Event^c Exposure^c Data Processing^c Tumor Stage Assessment Event^c Tumor Specimen^c Body Position^c Inhaled Oxygen Concentration^c Drug Prescription^c Respiratory Rate Measurement^c Body Height Measurement^c Birth^c Access Device Presence^c Data File^c Organ Support^c Library Preparation^c Tobacco Exposure^c Heart Rate Measurement^c Sequencing Assay^c Billed Procedure^c Microorganism Identification Lab Test Event^c Tumor Grade Assessment^c Billed Diagnosis^c Nationality^c Administrative Case^c Sample^c Transplant Presence^c Age^c Assessment^c Medical Procedure^c
Range	Subject Pseudo Identifier^c

has substance^op # OPs

URI	`https://biomedit.ch/rdf/sphn-schema/sphn#hasSubstance`
Description	substance associated to the concept
Super-properties	SPHN attribute object^op
Domain(s)	Fluid Input Output^c Nutrition Intake^c
Range	Substance^c

has swiss socio economic position^op # OPs

URI	`https://biomedit.ch/rdf/sphn-schema/sphn#hasSwissSocioEconomicPosition`
Description	area-based measure of socio-economic position (SEP) for Switzerland
Super-properties	SPHN attribute object^op
Domain(s)	Home Address^c
Range	Swiss Socio Economic Position^c

has systolic pressure^op # OPs

URI	`https://biomedit.ch/rdf/sphn-schema/sphn#hasSystolicPressure`
Description	systolic pressure of the concept
Super-properties	has quantity^op
Domain(s)	Blood Pressure^c
Range	Quantity^c

has target enrichment kit code^op # OPs

URI	`https://biomedit.ch/rdf/sphn-schema/sphn#hasTargetEnrichmentKitCode`
Description	coded information specifying the target enrichment kit associated to the concept
Super-properties	has code^op
Domain(s)	Library Preparation^c
Range	Code^c Terminology^c

has target location^op # OPs

URI	`https://biomedit.ch/rdf/sphn-schema/sphn#hasTargetLocation`
Description	physical location where the individual went to
Super-properties	has location^op
Domain(s)	Healthcare Encounter^c
Range	Location^c

has target molecule^op # OPs

URI	`https://biomedit.ch/rdf/sphn-schema/sphn#hasTargetMolecule`
Description	target molecule associated to the concept
Super-properties	SPHN attribute object^op
Domain(s)	Microbiology Biomolecule Presence Lab Test^c
Range	Protein^c Gene^c

has test kit^op # OPs

URI	`https://biomedit.ch/rdf/sphn-schema/sphn#hasTestKit`
Description	test kit used for the concept
Super-properties	SPHN attribute object^op
Domain(s)	Lab Test^c Microbiology Biomolecule Presence Lab Test^c Antimicrobial Susceptibility Lab Test^c Microbiology Microscopy Lab Test^c Microorganism Identification Lab Test^c
Range	Lab Analyzer^c

has therapeutic area^op # OPs

URI	`https://biomedit.ch/rdf/sphn-schema/sphn#hasTherapeuticArea`
Description	type of care provided
Super-properties	SPHN attribute object^op
Domain(s)	Healthcare Encounter^c
Range	Therapeutic Area^c

has time pattern^op # OPs

URI	`https://biomedit.ch/rdf/sphn-schema/sphn#hasTimePattern`
Description	type of repetitive sequence of events over time of the concept
Super-properties	SPHN attribute object^op
Domain(s)	Drug Administration Event^c Drug Prescription^c
Range	Time Pattern^c

has time to positivity^op # OPs

URI	`https://biomedit.ch/rdf/sphn-schema/sphn#hasTimeToPositivity`
Description	time to positivity associated to the concept
Super-properties	has quantity^op
Domain(s)	Microorganism Identification Result^c
Range	Quantity^c

has total copy number^op # OPs

URI	`https://biomedit.ch/rdf/sphn-schema/sphn#hasTotalCopyNumber`
Description	total number of copies of the allele
Super-properties	has quantity^op
Domain(s)	Copy Number Variation^c
Range	Quantity^c

has transcript^op # OPs

URI	`https://biomedit.ch/rdf/sphn-schema/sphn#hasTranscript`
Description	RNA product of the concept
Super-properties	SPHN attribute object^op
Domain(s)	Gene^c
Range	Transcript^c

has transplant^op # OPs

URI	`https://biomedit.ch/rdf/sphn-schema/sphn#hasTransplant`
Description	transplanted organ or tissue
Super-properties	SPHN attribute object^op
Domain(s)	Transplant Presence^c
Range	Transplant^c

has tumor purity^op # OPs

URI	`https://biomedit.ch/rdf/sphn-schema/sphn#hasTumorPurity`
Description	percentage of cancer cells in the sample
Super-properties	has quantity^op
Domain(s)	Tumor Specimen^c
Range	Quantity^c

has type code^op # OPs

URI	`https://biomedit.ch/rdf/sphn-schema/sphn#hasTypeCode`
Description	coded information specifying the type of the concept
Super-properties	has code^op
Domain(s)	Tobacco Exposure^c Time Pattern^c Care Handling^c Location^c Copy Number Variation^c Implant^c Lab Analyzer^c Consent^c Variant Descriptor^c Medical Device^c Access Device^c
Range	Terminology^c Code^c

has unit^op # OPs

URI	`https://biomedit.ch/rdf/sphn-schema/sphn#hasUnit`
Description	unit of the concept
Super-properties	SPHN attribute object^op
Domain(s)	Quantity^c
Range	Unit^c

has upper limit^op # OPs

URI	`https://biomedit.ch/rdf/sphn-schema/sphn#hasUpperLimit`
Description	top value of the concept
Super-properties	has quantity^op
Domain(s)	Reference Range^c
Range	Quantity^c

has verification status code^op # OPs

URI	`https://biomedit.ch/rdf/sphn-schema/sphn#hasVerificationStatusCode`
Description	coded information specifying the verification status of the concept
Super-properties	has code^op
Domain(s)	Allergy^c
Range	Terminology^c Code^c

has zygosity code^op # OPs

URI	`https://biomedit.ch/rdf/sphn-schema/sphn#hasZygosityCode`
Description	coded information specifying the allelic state of the concept
Super-properties	has code^op
Domain(s)	Variant Descriptor^c
Range	Terminology^c Code^c

Named Individuals ↑

<
<=
>
>=
ASCII
Acid Citrate Dextrose
Addiction Medicine
Alcohol Based
Aldehyde Based
Aldehyde-Based Stabilizer For CTCs
Allergology And Clinical Immunology
Allprotect ® Tissue Reagent
Anaesthesiology
Angiology
Billing
Biobank
Cardiac And Thoracic Vascular Surgery
Cardiology
Case Report Form
Cell Preparation Tube® Citrate
Cell Preparation Tube® Heparin
Chemical Additives / Stabilizers
Child And Adolescent Psychiatry And Psychotherapy
Child And Adolescent Psychology
Chiropractic Specialist
Citrate Phosphate Dextrose
Clinical Data Platform
Clinical Pharmacology And Toxicology
Clinical Psychology
Clinical Registry
Cohort
Community Pharmacy
Company
Complementary
Congenital Abnormality
Curved-Rod-Shaped
Data Repository
Death
Dermatology And Venereology
Du Bois
EDTA And Gel
Elongated
Endocrinology And Diabetology
Entire Cell
External Laboratory
Fatal
Federal Office
Filamentous
Foreign
Forensic Medicine
Gastroenterology
General
General Internal Medicine
General Medical Practitioner
General Medicine
Geriatric Medicine
Glass
Gynaecology And Obstetrics
Haematology
Hand Surgery
Health Insurance
Health Psychology
Healthcare Information System
Heat Stabilization
Hirudin
Hospital
Hospital Pharmacy
Hospitalisation Or Prolongation
ISO-8859-1
Infectology
Intensive Care Medicine
Inter-Residue Coordinates
Internal Medicine
Life-Threatening
Lithium Heparin
Lithium Heparin And Gel
Lithium Heparin And Rubber Plug
MD5
Medical Genetics
Medical Oncology
Mosteller
Multicellular
Nephrology
Neurology
Neuropsychology
Neurosurgery
Neutral Buffered Formalin
Non-Aldehyde-Based Stabilizer For Cell-Free Nucleic Acids
Nonaldehyde Based Without Acetic Acid
Nonaldehyde With Acetic Acid
Nonbuffered Formalin
None
None Of The Consequences Mentioned
Not Recovered
Nuclear Medicine
OMICS Facility
Occupational Medicine
Ophthalmology
Optimum Cutting Temperature Medium
Oragene Collection Container Or Equivalent
Oral And Maxillofacial Surgery
Oral Surgery
Orthodontics
Orthopaedic Surgery And Traumatology Of The Locomotor Apparatus
Other
Otorhinolaryngology
Ovoid
PAXgene Tissue
PAXgene® Blood DNA
PAXgene® Blood RNA+
PAXgene® Bone Marrow RNA
Paediatric Surgery
Paediatrics
Pathology
Patient Care
Periodontics
Permanent Damage Or Disability
Pharmaceutical Medicine
Pharmacy
Physical Filtration System
Physical Medicine And Rehabilitation
Plastic, Reconstructive And Aesthetic Surgery
Pneumology
Polyethylene Tube Sterile
Polypropylene Tube Sterile
Potassium EDTA
Prevention And Public Health
Principal
Private
Private Practice
Protease Inhibitors
Psychiatry And Psychotherapy
Psychotherapy
Quality Control
RNA Later
Radio-Oncology And Radiotherapy
Radiology
Reconstructive Dentistry
Recovered
Recovering
Recovering With Sequelae
Research
Research Laboratory
Research Organization
Residue Coordinates
Rheumatology
Rod-Shaped
Round
S8820 Protease Inhibitor Tablets Or Equivalent
SHA-256
SHA-512
Secondary
Semi-Private
Serum Separator Tube With Clot Activator
Serum Tube Without Clot Activator
Service Provider
Snap Freezing
Sodium Citrate
Sodium EDTA
Sodium Fluoride/Potassium Oxalate
Sodium Heparin
Spiral
Stool Collection Container With DNA Stabilizer
Supplementary
Surgery
Temporarily Serious Impact / Medically Important
Tempus® Tube
Thoracic Surgery
Trace Elements Tube
Tropical And Travel Medicine
UTF-16
UTF-8
Unicellular
University
Urology
Vacuum Technology Stabilization
Vascular Surgery
Visceral Medicine

ASCIIⁿⁱ

Class(es)

Data File encoding

URI	`https://biomedit.ch/rdf/sphn-schema/sphn/individual#ASCII`

Acid Citrate Dextroseⁿⁱ

Class(es)

Sample primary container

URI	`https://biomedit.ch/rdf/sphn-schema/sphn/individual#AcidCitrateDextrose`

Addiction Medicineⁿⁱ

Class(es)

Therapeutic Area specialty name

URI	`https://biomedit.ch/rdf/sphn-schema/sphn/individual#AddictionMedicine`

Alcohol Basedⁿⁱ

Class(es)

Sample fixation type

URI	`https://biomedit.ch/rdf/sphn-schema/sphn/individual#AlcoholBased`

Aldehyde Basedⁿⁱ

Class(es)

Sample fixation type

URI	`https://biomedit.ch/rdf/sphn-schema/sphn/individual#AldehydeBased`

Aldehyde-Based Stabilizer For CTCsⁿⁱ

Class(es)

Sample primary container

URI	`https://biomedit.ch/rdf/sphn-schema/sphn/individual#AldehydeBasedStabilizerForCTCs`

Allergology And Clinical Immunologyⁿⁱ

Class(es)

Therapeutic Area specialty name

URI	`https://biomedit.ch/rdf/sphn-schema/sphn/individual#AllergologyAndClinicalImmunology`

Allprotect ® Tissue Reagentⁿⁱ

Class(es)

Sample fixation type

URI	`https://biomedit.ch/rdf/sphn-schema/sphn/individual#AllprotectTissueReagent`

Anaesthesiologyⁿⁱ

Class(es)

Therapeutic Area specialty name

URI	`https://biomedit.ch/rdf/sphn-schema/sphn/individual#Anaesthesiology`

Angiologyⁿⁱ

Class(es)

Therapeutic Area specialty name

URI	`https://biomedit.ch/rdf/sphn-schema/sphn/individual#Angiology`

Billingⁿⁱ

Class(es)

Semantic Mapping purpose
Source System purpose

URI	`https://biomedit.ch/rdf/sphn-schema/sphn/individual#Billing`

Biobankⁿⁱ

Class(es)

Source System category

URI	`https://biomedit.ch/rdf/sphn-schema/sphn/individual#Biobank`

Cardiac And Thoracic Vascular Surgeryⁿⁱ

Class(es)

Therapeutic Area specialty name

URI	`https://biomedit.ch/rdf/sphn-schema/sphn/individual#CardiacAndThoracicVascularSurgery`

Cardiologyⁿⁱ

Class(es)

Therapeutic Area specialty name

URI	`https://biomedit.ch/rdf/sphn-schema/sphn/individual#Cardiology`

Case Report Formⁿⁱ

Class(es)

Source System category

URI	`https://biomedit.ch/rdf/sphn-schema/sphn/individual#CaseReportForm`

Cell Preparation Tube® Citrateⁿⁱ

Class(es)

Sample primary container

URI	`https://biomedit.ch/rdf/sphn-schema/sphn/individual#CellPreparationTubeCitrate`

Cell Preparation Tube® Heparinⁿⁱ

Class(es)

Sample primary container

URI	`https://biomedit.ch/rdf/sphn-schema/sphn/individual#CellPreparationTubeHeparin`

Chemical Additives / Stabilizersⁿⁱ

Class(es)

Sample primary container

URI	`https://biomedit.ch/rdf/sphn-schema/sphn/individual#ChemicalAdditivesStabilizers`

Child And Adolescent Psychiatry And Psychotherapyⁿⁱ

Class(es)

Therapeutic Area specialty name

URI	`https://biomedit.ch/rdf/sphn-schema/sphn/individual#ChildAndAdolescentPsychiatryAndPsychotherapy`

Child And Adolescent Psychologyⁿⁱ

Class(es)

Therapeutic Area specialty name

URI	`https://biomedit.ch/rdf/sphn-schema/sphn/individual#ChildAndAdolescentPsychology`

Chiropractic Specialistⁿⁱ

Class(es)

Therapeutic Area specialty name

URI	`https://biomedit.ch/rdf/sphn-schema/sphn/individual#ChiropracticSpecialist`

Citrate Phosphate Dextroseⁿⁱ

Class(es)

Sample primary container

URI	`https://biomedit.ch/rdf/sphn-schema/sphn/individual#CitratePhosphateDextrose`

Clinical Data Platformⁿⁱ

Class(es)

Source System category

URI	`https://biomedit.ch/rdf/sphn-schema/sphn/individual#ClinicalDataPlatform`

Clinical Pharmacology And Toxicologyⁿⁱ

Class(es)

Therapeutic Area specialty name

URI	`https://biomedit.ch/rdf/sphn-schema/sphn/individual#ClinicalPharmacologyAndToxicology`

Clinical Psychologyⁿⁱ

Class(es)

Therapeutic Area specialty name

URI	`https://biomedit.ch/rdf/sphn-schema/sphn/individual#ClinicalPsychology`

Clinical Registryⁿⁱ

Class(es)

Source System category

URI	`https://biomedit.ch/rdf/sphn-schema/sphn/individual#ClinicalRegistry`

Cohortⁿⁱ

Class(es)

Source System category

URI	`https://biomedit.ch/rdf/sphn-schema/sphn/individual#Cohort`

Community Pharmacyⁿⁱ

Class(es)

Therapeutic Area specialty name

URI	`https://biomedit.ch/rdf/sphn-schema/sphn/individual#CommunityPharmacy`

Companyⁿⁱ

Class(es)

Data Provider category

URI	`https://biomedit.ch/rdf/sphn-schema/sphn/individual#Company`

Complementaryⁿⁱ

Class(es)

Billed Diagnosis rank

URI	`https://biomedit.ch/rdf/sphn-schema/sphn/individual#Complementary`

Congenital Abnormalityⁿⁱ

Class(es)

Adverse Event consequences

URI	`https://biomedit.ch/rdf/sphn-schema/sphn/individual#CongenitalAbnormality`

Curved-Rod-Shapedⁿⁱ

Class(es)

Microbiology Microscopy Result cell morphology

URI	`https://biomedit.ch/rdf/sphn-schema/sphn/individual#CurvedRodShaped`

Data Repositoryⁿⁱ

Class(es)

Source System category

URI	`https://biomedit.ch/rdf/sphn-schema/sphn/individual#DataRepository`

Deathⁿⁱ

Class(es)

Adverse Event consequences

URI	`https://biomedit.ch/rdf/sphn-schema/sphn/individual#Death`

Dermatology And Venereologyⁿⁱ

Class(es)

Therapeutic Area specialty name

URI	`https://biomedit.ch/rdf/sphn-schema/sphn/individual#DermatologyAndVenereology`

Du Boisⁿⁱ

Class(es)

Body Surface Area calculation method

URI	`https://biomedit.ch/rdf/sphn-schema/sphn/individual#DuBois`

EDTA And Gelⁿⁱ

Class(es)

Sample primary container

URI	`https://biomedit.ch/rdf/sphn-schema/sphn/individual#EDTAAndGel`

Elongatedⁿⁱ

Class(es)

Microbiology Microscopy Result cell morphology

URI	`https://biomedit.ch/rdf/sphn-schema/sphn/individual#Elongated`

Endocrinology And Diabetologyⁿⁱ

Class(es)

Therapeutic Area specialty name

URI	`https://biomedit.ch/rdf/sphn-schema/sphn/individual#EndocrinologyAndDiabetology`

Entire Cellⁿⁱ

Class(es)

Microbiology Microscopy Result cell organization

URI	`https://biomedit.ch/rdf/sphn-schema/sphn/individual#EntireCell`

External Laboratoryⁿⁱ

Class(es)

Data Provider category

URI	`https://biomedit.ch/rdf/sphn-schema/sphn/individual#ExternalLaboratory`

Fatalⁿⁱ

Class(es)

Adverse Event outcome

URI	`https://biomedit.ch/rdf/sphn-schema/sphn/individual#Fatal`

Federal Officeⁿⁱ

Class(es)

Data Provider category

URI	`https://biomedit.ch/rdf/sphn-schema/sphn/individual#FederalOffice`

Filamentousⁿⁱ

Class(es)

Microbiology Microscopy Result cell morphology

URI	`https://biomedit.ch/rdf/sphn-schema/sphn/individual#Filamentous`

Foreignⁿⁱ

Class(es)

Insurance Status coverage type

URI	`https://biomedit.ch/rdf/sphn-schema/sphn/individual#Foreign`

Forensic Medicineⁿⁱ

Class(es)

Therapeutic Area specialty name

URI	`https://biomedit.ch/rdf/sphn-schema/sphn/individual#ForensicMedicine`

Gastroenterologyⁿⁱ

Class(es)

Therapeutic Area specialty name

URI	`https://biomedit.ch/rdf/sphn-schema/sphn/individual#Gastroenterology`

Generalⁿⁱ

Class(es)

Insurance Status coverage type

URI	`https://biomedit.ch/rdf/sphn-schema/sphn/individual#General`

General Internal Medicineⁿⁱ

Class(es)

Therapeutic Area specialty name

URI	`https://biomedit.ch/rdf/sphn-schema/sphn/individual#GeneralInternalMedicine`

General Medical Practitionerⁿⁱ

Class(es)

Therapeutic Area specialty name

URI	`https://biomedit.ch/rdf/sphn-schema/sphn/individual#GeneralMedicalPractitioner`

General Medicineⁿⁱ

Class(es)

Therapeutic Area specialty name

URI	`https://biomedit.ch/rdf/sphn-schema/sphn/individual#GeneralMedicine`

Geriatric Medicineⁿⁱ

Class(es)

Therapeutic Area specialty name

URI	`https://biomedit.ch/rdf/sphn-schema/sphn/individual#GeriatricMedicine`

Glassⁿⁱ

Class(es)

Sample primary container

URI	`https://biomedit.ch/rdf/sphn-schema/sphn/individual#Glass`

>ⁿⁱ

Class(es)

Comparator

URI	`https://biomedit.ch/rdf/sphn-schema/sphn/individual#GreaterThan`

>=ⁿⁱ

Class(es)

Comparator

URI	`https://biomedit.ch/rdf/sphn-schema/sphn/individual#GreaterThanOrEqual`

Gynaecology And Obstetricsⁿⁱ

Class(es)

Therapeutic Area specialty name

URI	`https://biomedit.ch/rdf/sphn-schema/sphn/individual#GynaecologyAndObstetrics`

Haematologyⁿⁱ

Class(es)

Therapeutic Area specialty name

URI	`https://biomedit.ch/rdf/sphn-schema/sphn/individual#Haematology`

Hand Surgeryⁿⁱ

Class(es)

Therapeutic Area specialty name

URI	`https://biomedit.ch/rdf/sphn-schema/sphn/individual#HandSurgery`

Health Insuranceⁿⁱ

Class(es)

Data Provider category

URI	`https://biomedit.ch/rdf/sphn-schema/sphn/individual#HealthInsurance`

Health Psychologyⁿⁱ

Class(es)

Therapeutic Area specialty name

URI	`https://biomedit.ch/rdf/sphn-schema/sphn/individual#HealthPsychology`

Healthcare Information Systemⁿⁱ

Class(es)

Source System category

URI	`https://biomedit.ch/rdf/sphn-schema/sphn/individual#HealthcareInformationSystem`

Heat Stabilizationⁿⁱ

Class(es)

Sample fixation type

URI	`https://biomedit.ch/rdf/sphn-schema/sphn/individual#HeatStabilization`

Hirudinⁿⁱ

Class(es)

Sample primary container

URI	`https://biomedit.ch/rdf/sphn-schema/sphn/individual#Hirudin`

Hospitalⁿⁱ

Class(es)

Data Provider category

URI	`https://biomedit.ch/rdf/sphn-schema/sphn/individual#Hospital`

Hospital Pharmacyⁿⁱ

Class(es)

Therapeutic Area specialty name

URI	`https://biomedit.ch/rdf/sphn-schema/sphn/individual#HospitalPharmacy`

Hospitalisation Or Prolongationⁿⁱ

Class(es)

Adverse Event consequences

URI	`https://biomedit.ch/rdf/sphn-schema/sphn/individual#HospitalisationOrProlongation`

ISO-8859-1ⁿⁱ

Class(es)

Data File encoding

URI	`https://biomedit.ch/rdf/sphn-schema/sphn/individual#ISO88591`

Infectologyⁿⁱ

Class(es)

Therapeutic Area specialty name

URI	`https://biomedit.ch/rdf/sphn-schema/sphn/individual#Infectology`

Intensive Care Medicineⁿⁱ

Class(es)

Therapeutic Area specialty name

URI	`https://biomedit.ch/rdf/sphn-schema/sphn/individual#IntensiveCareMedicine`

Inter-Residue Coordinatesⁿⁱ

Class(es)

Genomic Position coordinate convention

URI	`https://biomedit.ch/rdf/sphn-schema/sphn/individual#InterResidueCoordinates`

Internal Medicineⁿⁱ

Class(es)

Therapeutic Area specialty name

URI	`https://biomedit.ch/rdf/sphn-schema/sphn/individual#InternalMedicine`

<ⁿⁱ

Class(es)

Comparator

URI	`https://biomedit.ch/rdf/sphn-schema/sphn/individual#LessThan`

<=ⁿⁱ

Class(es)

Comparator

URI	`https://biomedit.ch/rdf/sphn-schema/sphn/individual#LessThanOrEqual`

Life-Threateningⁿⁱ

Class(es)

Adverse Event consequences

URI	`https://biomedit.ch/rdf/sphn-schema/sphn/individual#LifeThreatening`

Lithium Heparinⁿⁱ

Class(es)

Sample primary container

URI	`https://biomedit.ch/rdf/sphn-schema/sphn/individual#LithiumHeparin`

Lithium Heparin And Gelⁿⁱ

Class(es)

Sample primary container

URI	`https://biomedit.ch/rdf/sphn-schema/sphn/individual#LithiumHeparinAndGel`

Lithium Heparin And Rubber Plugⁿⁱ

Class(es)

Sample primary container

URI	`https://biomedit.ch/rdf/sphn-schema/sphn/individual#LithiumHeparinAndRubberPlug`

MD5ⁿⁱ

Class(es)

Hash algorithm

URI	`https://biomedit.ch/rdf/sphn-schema/sphn/individual#MD5`

Medical Geneticsⁿⁱ

Class(es)

Therapeutic Area specialty name

URI	`https://biomedit.ch/rdf/sphn-schema/sphn/individual#MedicalGenetics`

Medical Oncologyⁿⁱ

Class(es)

Therapeutic Area specialty name

URI	`https://biomedit.ch/rdf/sphn-schema/sphn/individual#MedicalOncology`

Mostellerⁿⁱ

Class(es)

Body Surface Area calculation method

URI	`https://biomedit.ch/rdf/sphn-schema/sphn/individual#Mosteller`

Multicellularⁿⁱ

Class(es)

Microbiology Microscopy Result cell organization

URI	`https://biomedit.ch/rdf/sphn-schema/sphn/individual#Multicellular`

Nephrologyⁿⁱ

Class(es)

Therapeutic Area specialty name

URI	`https://biomedit.ch/rdf/sphn-schema/sphn/individual#Nephrology`

Neurologyⁿⁱ

Class(es)

Therapeutic Area specialty name

URI	`https://biomedit.ch/rdf/sphn-schema/sphn/individual#Neurology`

Neuropsychologyⁿⁱ

Class(es)

Therapeutic Area specialty name

URI	`https://biomedit.ch/rdf/sphn-schema/sphn/individual#Neuropsychology`

Neurosurgeryⁿⁱ

Class(es)

Therapeutic Area specialty name

URI	`https://biomedit.ch/rdf/sphn-schema/sphn/individual#Neurosurgery`

Neutral Buffered Formalinⁿⁱ

Class(es)

Sample fixation type

URI	`https://biomedit.ch/rdf/sphn-schema/sphn/individual#NeutralBufferedFormalin`

Non-Aldehyde-Based Stabilizer For Cell-Free Nucleic Acidsⁿⁱ

Class(es)

Sample primary container

URI	`https://biomedit.ch/rdf/sphn-schema/sphn/individual#NonAldehydeBasedStabilizerForCellFreeNucleicAcids`

Nonaldehyde Based Without Acetic Acidⁿⁱ

Class(es)

Sample fixation type

URI	`https://biomedit.ch/rdf/sphn-schema/sphn/individual#NonaldehydeBasedWithoutAceticAcid`

Nonaldehyde With Acetic Acidⁿⁱ

Class(es)

Sample fixation type

URI	`https://biomedit.ch/rdf/sphn-schema/sphn/individual#NonaldehydeWithAceticAcid`

Nonbuffered Formalinⁿⁱ

Class(es)

Sample fixation type

URI	`https://biomedit.ch/rdf/sphn-schema/sphn/individual#NonbufferedFormalin`

Noneⁿⁱ

Class(es)

Insurance Status coverage type

URI	`https://biomedit.ch/rdf/sphn-schema/sphn/individual#None`

None Of The Consequences Mentionedⁿⁱ

Class(es)

Adverse Event consequences

URI	`https://biomedit.ch/rdf/sphn-schema/sphn/individual#NoneOfTheConsequencesMentioned`

Not Recoveredⁿⁱ

Class(es)

Adverse Event outcome

URI	`https://biomedit.ch/rdf/sphn-schema/sphn/individual#NotRecovered`

Nuclear Medicineⁿⁱ

Class(es)

Therapeutic Area specialty name

URI	`https://biomedit.ch/rdf/sphn-schema/sphn/individual#NuclearMedicine`

OMICS Facilityⁿⁱ

Class(es)

Source System category

URI	`https://biomedit.ch/rdf/sphn-schema/sphn/individual#OMICSFacility`

Occupational Medicineⁿⁱ

Class(es)

Therapeutic Area specialty name

URI	`https://biomedit.ch/rdf/sphn-schema/sphn/individual#OccupationalMedicine`

Ophthalmologyⁿⁱ

Class(es)

Therapeutic Area specialty name

URI	`https://biomedit.ch/rdf/sphn-schema/sphn/individual#Ophthalmology`

Optimum Cutting Temperature Mediumⁿⁱ

Class(es)

Sample fixation type

URI	`https://biomedit.ch/rdf/sphn-schema/sphn/individual#OptimumCuttingTemperatureMedium`

Oragene Collection Container Or Equivalentⁿⁱ

Class(es)

Sample primary container

URI	`https://biomedit.ch/rdf/sphn-schema/sphn/individual#OrageneCollectionContainerOrEquivalent`

Oral And Maxillofacial Surgeryⁿⁱ

Class(es)

Therapeutic Area specialty name

URI	`https://biomedit.ch/rdf/sphn-schema/sphn/individual#OralAndMaxillofacialSurgery`

Oral Surgeryⁿⁱ

Class(es)

Therapeutic Area specialty name

URI	`https://biomedit.ch/rdf/sphn-schema/sphn/individual#OralSurgery`

Orthodonticsⁿⁱ

Class(es)

Therapeutic Area specialty name

URI	`https://biomedit.ch/rdf/sphn-schema/sphn/individual#Orthodontics`

Orthopaedic Surgery And Traumatology Of The Locomotor Apparatusⁿⁱ

Class(es)

Therapeutic Area specialty name

URI	`https://biomedit.ch/rdf/sphn-schema/sphn/individual#OrthopaedicSurgeryAndTraumatologyOfTheLocomotorApparatus`

Otherⁿⁱ

Class(es)

Body Surface Area calculation method
Insurance Status coverage type
Sample fixation type
Sample primary container
Microbiology Microscopy Result cell morphology
Therapeutic Area specialty name

URI	`https://biomedit.ch/rdf/sphn-schema/sphn/individual#Other`

Otorhinolaryngologyⁿⁱ

Class(es)

Therapeutic Area specialty name

URI	`https://biomedit.ch/rdf/sphn-schema/sphn/individual#Otorhinolaryngology`

Ovoidⁿⁱ

Class(es)

Microbiology Microscopy Result cell morphology

URI	`https://biomedit.ch/rdf/sphn-schema/sphn/individual#Ovoid`

PAXgene® Blood DNAⁿⁱ

Class(es)

Sample primary container

URI	`https://biomedit.ch/rdf/sphn-schema/sphn/individual#PAXgeneBloodDNA`

PAXgene® Blood RNA+ⁿⁱ

Class(es)

Sample primary container

URI	`https://biomedit.ch/rdf/sphn-schema/sphn/individual#PAXgeneBloodRNAplus`

PAXgene® Bone Marrow RNAⁿⁱ

Class(es)

Sample primary container

URI	`https://biomedit.ch/rdf/sphn-schema/sphn/individual#PAXgeneBoneMarrowRNA`

PAXgene Tissueⁿⁱ

Class(es)

Sample fixation type

URI	`https://biomedit.ch/rdf/sphn-schema/sphn/individual#PAXgeneTissue`

Paediatric Surgeryⁿⁱ

Class(es)

Therapeutic Area specialty name

URI	`https://biomedit.ch/rdf/sphn-schema/sphn/individual#PaediatricSurgery`

Paediatricsⁿⁱ

Class(es)

Therapeutic Area specialty name

URI	`https://biomedit.ch/rdf/sphn-schema/sphn/individual#Paediatrics`

Pathologyⁿⁱ

Class(es)

Therapeutic Area specialty name

URI	`https://biomedit.ch/rdf/sphn-schema/sphn/individual#Pathology`

Patient Careⁿⁱ

Class(es)

Semantic Mapping purpose
Source System purpose

URI	`https://biomedit.ch/rdf/sphn-schema/sphn/individual#PatientCare`

Periodonticsⁿⁱ

Class(es)

Therapeutic Area specialty name

URI	`https://biomedit.ch/rdf/sphn-schema/sphn/individual#Periodontics`

Permanent Damage Or Disabilityⁿⁱ

Class(es)

Adverse Event consequences

URI	`https://biomedit.ch/rdf/sphn-schema/sphn/individual#PermanentDamageOrDisability`

Pharmaceutical Medicineⁿⁱ

Class(es)

Therapeutic Area specialty name

URI	`https://biomedit.ch/rdf/sphn-schema/sphn/individual#PharmaceuticalMedicine`

Pharmacyⁿⁱ

Class(es)

Data Provider category

URI	`https://biomedit.ch/rdf/sphn-schema/sphn/individual#Pharmacy`

Physical Filtration Systemⁿⁱ

Class(es)

Sample primary container

URI	`https://biomedit.ch/rdf/sphn-schema/sphn/individual#PhysicalFiltrationSystem`

Physical Medicine And Rehabilitationⁿⁱ

Class(es)

Therapeutic Area specialty name

URI	`https://biomedit.ch/rdf/sphn-schema/sphn/individual#PhysicalMedicineAndRehabilitation`

Plastic, Reconstructive And Aesthetic Surgeryⁿⁱ

Class(es)

Therapeutic Area specialty name

URI	`https://biomedit.ch/rdf/sphn-schema/sphn/individual#PlasticReconstructiveAndAestheticSurgery`

Pneumologyⁿⁱ

Class(es)

Therapeutic Area specialty name

URI	`https://biomedit.ch/rdf/sphn-schema/sphn/individual#Pneumology`

Polyethylene Tube Sterileⁿⁱ

Class(es)

Sample primary container

URI	`https://biomedit.ch/rdf/sphn-schema/sphn/individual#PolyethyleneTubeSterile`

Polypropylene Tube Sterileⁿⁱ

Class(es)

Sample primary container

URI	`https://biomedit.ch/rdf/sphn-schema/sphn/individual#PolypropyleneTubeSterile`

Potassium EDTAⁿⁱ

Class(es)

Sample primary container

URI	`https://biomedit.ch/rdf/sphn-schema/sphn/individual#PotassiumEDTA`

Prevention And Public Healthⁿⁱ

Class(es)

Therapeutic Area specialty name

URI	`https://biomedit.ch/rdf/sphn-schema/sphn/individual#PreventionAndPublicHealth`

Principalⁿⁱ

Class(es)

Billed Diagnosis rank
Billed Procedure rank

URI	`https://biomedit.ch/rdf/sphn-schema/sphn/individual#Principal`

Privateⁿⁱ

Class(es)

Insurance Status coverage type

URI	`https://biomedit.ch/rdf/sphn-schema/sphn/individual#Private`

Private Practiceⁿⁱ

Class(es)

Data Provider category

URI	`https://biomedit.ch/rdf/sphn-schema/sphn/individual#PrivatePractice`

Protease Inhibitorsⁿⁱ

Class(es)

Sample primary container

URI	`https://biomedit.ch/rdf/sphn-schema/sphn/individual#ProteaseInhibitors`

Psychiatry And Psychotherapyⁿⁱ

Class(es)

Therapeutic Area specialty name

URI	`https://biomedit.ch/rdf/sphn-schema/sphn/individual#PsychiatryAndPsychotherapy`

Psychotherapyⁿⁱ

Class(es)

Therapeutic Area specialty name

URI	`https://biomedit.ch/rdf/sphn-schema/sphn/individual#Psychotherapy`

Quality Controlⁿⁱ

Class(es)

Semantic Mapping purpose
Source System purpose

URI	`https://biomedit.ch/rdf/sphn-schema/sphn/individual#QualityControl`

RNA Laterⁿⁱ

Class(es)

Sample fixation type
Sample primary container

URI	`https://biomedit.ch/rdf/sphn-schema/sphn/individual#RNALater`

Radio-Oncology And Radiotherapyⁿⁱ

Class(es)

Therapeutic Area specialty name

URI	`https://biomedit.ch/rdf/sphn-schema/sphn/individual#RadioOncologyAndRadiotherapy`

Radiologyⁿⁱ

Class(es)

Therapeutic Area specialty name

URI	`https://biomedit.ch/rdf/sphn-schema/sphn/individual#Radiology`

Reconstructive Dentistryⁿⁱ

Class(es)

Therapeutic Area specialty name

URI	`https://biomedit.ch/rdf/sphn-schema/sphn/individual#ReconstructiveDentistry`

Recoveredⁿⁱ

Class(es)

Adverse Event outcome

URI	`https://biomedit.ch/rdf/sphn-schema/sphn/individual#Recovered`

Recoveringⁿⁱ

Class(es)

Adverse Event outcome

URI	`https://biomedit.ch/rdf/sphn-schema/sphn/individual#Recovering`

Recovering With Sequelaeⁿⁱ

Class(es)

Adverse Event outcome

URI	`https://biomedit.ch/rdf/sphn-schema/sphn/individual#RecoveringWithSequelae`

Researchⁿⁱ

Class(es)

Semantic Mapping purpose
Source System purpose

URI	`https://biomedit.ch/rdf/sphn-schema/sphn/individual#Research`

Research Laboratoryⁿⁱ

Class(es)

Source System category

URI	`https://biomedit.ch/rdf/sphn-schema/sphn/individual#ResearchLaboratory`

Research Organizationⁿⁱ

Class(es)

Data Provider category

URI	`https://biomedit.ch/rdf/sphn-schema/sphn/individual#ResearchOrganization`

Residue Coordinatesⁿⁱ

Class(es)

Genomic Position coordinate convention

URI	`https://biomedit.ch/rdf/sphn-schema/sphn/individual#ResidueCoordinates`

Rheumatologyⁿⁱ

Class(es)

Therapeutic Area specialty name

URI	`https://biomedit.ch/rdf/sphn-schema/sphn/individual#Rheumatology`

Rod-Shapedⁿⁱ

Class(es)

Microbiology Microscopy Result cell morphology

URI	`https://biomedit.ch/rdf/sphn-schema/sphn/individual#RodShaped`

Roundⁿⁱ

Class(es)

Microbiology Microscopy Result cell morphology

URI	`https://biomedit.ch/rdf/sphn-schema/sphn/individual#Round`

S8820 Protease Inhibitor Tablets Or Equivalentⁿⁱ

Class(es)

Sample primary container

URI	`https://biomedit.ch/rdf/sphn-schema/sphn/individual#S8820ProteaseInhibitorTabletsOrEquivalent`

SHA-256ⁿⁱ

Class(es)

Hash algorithm

URI	`https://biomedit.ch/rdf/sphn-schema/sphn/individual#SHA256`

SHA-512ⁿⁱ

Class(es)

Hash algorithm

URI	`https://biomedit.ch/rdf/sphn-schema/sphn/individual#SHA512`

Secondaryⁿⁱ

Class(es)

Billed Diagnosis rank

URI	`https://biomedit.ch/rdf/sphn-schema/sphn/individual#Secondary`

Semi-Privateⁿⁱ

Class(es)

Insurance Status coverage type

URI	`https://biomedit.ch/rdf/sphn-schema/sphn/individual#SemiPrivate`

Serum Separator Tube With Clot Activatorⁿⁱ

Class(es)

Sample primary container

URI	`https://biomedit.ch/rdf/sphn-schema/sphn/individual#SerumSeparatorTubeWithClotActivator`

Serum Tube Without Clot Activatorⁿⁱ

Class(es)

Sample primary container

URI	`https://biomedit.ch/rdf/sphn-schema/sphn/individual#SerumTubeWithoutClotActivator`

Service Providerⁿⁱ

Class(es)

Data Provider category

URI	`https://biomedit.ch/rdf/sphn-schema/sphn/individual#ServiceProvider`

Snap Freezingⁿⁱ

Class(es)

Sample fixation type

URI	`https://biomedit.ch/rdf/sphn-schema/sphn/individual#SnapFreezing`

Sodium Citrateⁿⁱ

Class(es)

Sample primary container

URI	`https://biomedit.ch/rdf/sphn-schema/sphn/individual#SodiumCitrate`

Sodium EDTAⁿⁱ

Class(es)

Sample primary container

URI	`https://biomedit.ch/rdf/sphn-schema/sphn/individual#SodiumEDTA`

Sodium Fluoride/Potassium Oxalateⁿⁱ

Class(es)

Sample primary container

URI	`https://biomedit.ch/rdf/sphn-schema/sphn/individual#SodiumFluoridePotassiumOxalate`

Sodium Heparinⁿⁱ

Class(es)

Sample primary container

URI	`https://biomedit.ch/rdf/sphn-schema/sphn/individual#SodiumHeparin`

Spiralⁿⁱ

Class(es)

Microbiology Microscopy Result cell morphology

URI	`https://biomedit.ch/rdf/sphn-schema/sphn/individual#Spiral`

Stool Collection Container With DNA Stabilizerⁿⁱ

Class(es)

Sample primary container

URI	`https://biomedit.ch/rdf/sphn-schema/sphn/individual#StoolCollectionContainerWithDNAStabilizer`

Supplementaryⁿⁱ

Class(es)

Billed Procedure rank

URI	`https://biomedit.ch/rdf/sphn-schema/sphn/individual#Supplementary`

Surgeryⁿⁱ

Class(es)

Therapeutic Area specialty name

URI	`https://biomedit.ch/rdf/sphn-schema/sphn/individual#Surgery`

Temporarily Serious Impact / Medically Importantⁿⁱ

Class(es)

Adverse Event consequences

URI	`https://biomedit.ch/rdf/sphn-schema/sphn/individual#TemporarilySeriousImpactMedicallyImportant`

Tempus® Tubeⁿⁱ

Class(es)

Sample primary container

URI	`https://biomedit.ch/rdf/sphn-schema/sphn/individual#TempusTube`

Thoracic Surgeryⁿⁱ

Class(es)

Therapeutic Area specialty name

URI	`https://biomedit.ch/rdf/sphn-schema/sphn/individual#ThoracicSurgery`

Trace Elements Tubeⁿⁱ

Class(es)

Sample primary container

URI	`https://biomedit.ch/rdf/sphn-schema/sphn/individual#TraceElementsTube`

Tropical And Travel Medicineⁿⁱ

Class(es)

Therapeutic Area specialty name

URI	`https://biomedit.ch/rdf/sphn-schema/sphn/individual#TropicalAndTravelMedicine`

UTF-16ⁿⁱ

Class(es)

Data File encoding

URI	`https://biomedit.ch/rdf/sphn-schema/sphn/individual#UTF16`

UTF-8ⁿⁱ

Class(es)

Data File encoding

URI	`https://biomedit.ch/rdf/sphn-schema/sphn/individual#UTF8`

Unicellularⁿⁱ

Class(es)

Microbiology Microscopy Result cell organization

URI	`https://biomedit.ch/rdf/sphn-schema/sphn/individual#Unicellular`

Universityⁿⁱ

Class(es)

Data Provider category

URI	`https://biomedit.ch/rdf/sphn-schema/sphn/individual#University`

Urologyⁿⁱ

Class(es)

Therapeutic Area specialty name

URI	`https://biomedit.ch/rdf/sphn-schema/sphn/individual#Urology`

Vacuum Technology Stabilizationⁿⁱ

Class(es)

Sample fixation type

URI	`https://biomedit.ch/rdf/sphn-schema/sphn/individual#VacuumTechnologyStabilization`

Vascular Surgeryⁿⁱ

Class(es)

Therapeutic Area specialty name

URI	`https://biomedit.ch/rdf/sphn-schema/sphn/individual#VascularSurgery`

Visceral Medicineⁿⁱ

Class(es)

Therapeutic Area specialty name

URI	`https://biomedit.ch/rdf/sphn-schema/sphn/individual#VisceralMedicine`

URI	`https://biomedit.ch/rdf/sphn-ontology/sphn#AdministrativeGender`
Description	Administrative Gender
Parents	Deprecated^c

URI	`https://biomedit.ch/rdf/sphn-ontology/sphn#Biosample`
Description	Biosample
Parents	Deprecated^c

URI	`https://biomedit.ch/rdf/sphn-ontology/sphn#Catheter`
Description	Catheter
Parents	Deprecated^c

URI	`https://biomedit.ch/rdf/sphn-ontology/sphn#CentralVenousPressure`
Description	Central Venous Pressure
Parents	Deprecated^c

URI	`https://biomedit.ch/rdf/sphn-ontology/sphn#CircumferenceMeasure`
Description	Circumference Measure
Parents	Deprecated^c

URI	`https://biomedit.ch/rdf/sphn-ontology/sphn#DataProviderInstitute`
Description	Data Provider Institute
Parents	Deprecated^c

URI	`https://biomedit.ch/rdf/sphn-ontology/sphn#DeathStatus`
Description	Death Status
Parents	Deprecated^c

URI	`https://biomedit.ch/rdf/sphn-ontology/sphn#DiagnosticRadiologicExamination`
Description	Diagnostic Radiologic Examination
Parents	Deprecated^c

URI	`https://biomedit.ch/rdf/sphn-ontology/sphn#FOPHDiagnosis`
Description	FOPH Diagnosis
Parents	Deprecated^c

URI	`https://biomedit.ch/rdf/sphn-ontology/sphn#FOPHProcedure`
Description	FOPH Procedure
Parents	Deprecated^c

URI	`https://biomedit.ch/rdf/sphn-ontology/sphn#ICDODiagnosis`
Description	ICD-O Diagnosis
Parents	Deprecated^c

URI	`https://biomedit.ch/rdf/sphn-ontology/sphn#MeasurementMethod`
Description	Measurement Method
Parents	Deprecated^c

URI	`https://biomedit.ch/rdf/sphn-ontology/sphn#Reference`
Description	Reference
Parents	Deprecated^c

URI	`https://biomedit.ch/rdf/sphn-ontology/sphn#SimpleScore`
Description	Simple Score
Parents	Deprecated^c

URI	`https://biomedit.ch/rdf/sphn-ontology/sphn#SystemicArterialBloodPressure`
Description	Systemic Arterial Blood Pressure
Parents	Deprecated^c

URI	`https://biomedit.ch/rdf/sphn-ontology/sphn#TNMClassification`
Description	TNM Classification
Parents	Deprecated^c

URI	`https://biomedit.ch/rdf/sphn-ontology/sphn#TumorGrade`
Description	Tumor Grade
Parents	Deprecated^c

URI	`https://biomedit.ch/rdf/sphn-ontology/sphn#TumorStage`
Description	Tumor Stage
Parents	Deprecated^c

URI	`https://biomedit.ch/rdf/sphn-schema/sphn#Deprecated`
Description	Deprecated classes of SPHN that existed in the previous version
Children (Sub-classes)	Tumor Stage^c TNM Classification^c Death Status^c Diagnostic Radiologic Examination^c Biosample^c Administrative Gender^c Circumference Measure^c Catheter^c FOPH Procedure^c Systemic Arterial Blood Pressure^c FOPH Diagnosis^c Reference^c Measurement Method^c Data Provider Institute^c Central Venous Pressure^c ICD-O Diagnosis^c Simple Score^c Tumor Grade^c

URI	`https://biomedit.ch/rdf/sphn-schema/sphn#Comparator`
Description	qualifier describing whether the value is the precise one or not
Parents	Value Set^c
Value set members (Individuals)	> <= < >=

The SPHN RDF Schema

Metadata

Description

Table of Contents

Schema Explorer↑

SchemaScope

Classes ↑

Access Device c # Classes

Access Device Presence c # Classes

Administrative Case c # Classes

Administrative Sex c # Classes

Adverse Event c # Classes

Age c # Classes

Allergen c # Classes

Allergy c # Classes

Allergy Episode c # Classes

Antimicrobial Susceptibility Lab Test c # Classes

Antimicrobial Susceptibility Lab Test Event c # Classes

Antimicrobial Susceptibility Result c # Classes

Assay c # Classes

Assessment c # Classes

Assessment Component c # Classes

Assessment Event c # Classes

Assessment Result c # Classes

Billed Diagnosis c # Classes

Billed Procedure c # Classes

Biobanksample c # Classes

Birth c # Classes

Birth Date c # Classes

Blood Pressure c # Classes

Blood Pressure Measurement c # Classes

Body Height c # Classes

Body Height Measurement c # Classes

Body Mass Index c # Classes

Body Position c # Classes

Body Site c # Classes

Body Surface Area c # Classes

Body Temperature c # Classes

Body Temperature Measurement c # Classes

Body Weight c # Classes

Body Weight Measurement c # Classes

Cardiac Index c # Classes

Cardiac Output c # Classes

Cardiac Output Measurement c # Classes

Care Handling c # Classes

Chromosomal Location c # Classes

Chromosome c # Classes

Circumference c # Classes

Circumference Measurement c # Classes

Civil Status c # Classes

Code c # Classes

Consent c # Classes

Copy Number Variation c # Classes

Country c # Classes

Data Determination c # Classes

Data File c # Classes

Data Processing c # Classes

Data Provider c # Classes

Data Release c # Classes

Death c # Classes

Death Date c # Classes

Department c # Classes

Diagnosis c # Classes

Drug c # Classes

Drug Administration Event c # Classes

Drug Article c # Classes

Drug Prescription c # Classes

Electrocardiogram c # Classes

Electrocardiographic Procedure c # Classes

Excluded Disorder c # Classes

Exposure c # Classes

Fluid Balance c # Classes

Fluid Input Output c # Classes

Follow Up c # Classes

Gene c # Classes

Gene Panel c # Classes

Genetic Variation c # Classes

Genomic Deletion c # Classes

Genomic Insertion c # Classes

Genomic Position c # Classes

Access Device ^c # Classes

Access Device Presence ^c # Classes

Administrative Case ^c # Classes

Administrative Sex ^c # Classes

Adverse Event ^c # Classes

Age ^c # Classes

Allergen ^c # Classes

Allergy ^c # Classes

Allergy Episode ^c # Classes

Antimicrobial Susceptibility Lab Test ^c # Classes

Antimicrobial Susceptibility Lab Test Event ^c # Classes

Antimicrobial Susceptibility Result ^c # Classes

Assay ^c # Classes

Assessment ^c # Classes

Assessment Component ^c # Classes

Assessment Event ^c # Classes

Assessment Result ^c # Classes

Billed Diagnosis ^c # Classes

Billed Procedure ^c # Classes

Biobanksample ^c # Classes

Birth ^c # Classes

Birth Date ^c # Classes

Blood Pressure ^c # Classes

Blood Pressure Measurement ^c # Classes

Body Height ^c # Classes

Body Height Measurement ^c # Classes

Body Mass Index ^c # Classes

Body Position ^c # Classes

Body Site ^c # Classes

Body Surface Area ^c # Classes

Body Temperature ^c # Classes

Body Temperature Measurement ^c # Classes

Body Weight ^c # Classes

Body Weight Measurement ^c # Classes

Cardiac Index ^c # Classes

Cardiac Output ^c # Classes

Cardiac Output Measurement ^c # Classes

Care Handling ^c # Classes

Chromosomal Location ^c # Classes

Chromosome ^c # Classes

Circumference ^c # Classes

Circumference Measurement ^c # Classes

Civil Status ^c # Classes

Code ^c # Classes

Consent ^c # Classes

Copy Number Variation ^c # Classes

Country ^c # Classes

Data Determination ^c # Classes

Data File ^c # Classes

Data Processing ^c # Classes

Data Provider ^c # Classes

Data Release ^c # Classes

Death ^c # Classes

Death Date ^c # Classes

Department ^c # Classes

Diagnosis ^c # Classes

Drug ^c # Classes

Drug Administration Event ^c # Classes

Drug Article ^c # Classes

Drug Prescription ^c # Classes

Electrocardiogram ^c # Classes

Electrocardiographic Procedure ^c # Classes

Excluded Disorder ^c # Classes

Exposure ^c # Classes

Fluid Balance ^c # Classes

Fluid Input Output ^c # Classes

Follow Up ^c # Classes

Gene ^c # Classes

Gene Panel ^c # Classes

Genetic Variation ^c # Classes

Genomic Deletion ^c # Classes

Genomic Insertion ^c # Classes

Genomic Position ^c # Classes

Gestational Age At Birth ^c # Classes

Hash ^c # Classes

Healthcare Encounter ^c # Classes

Healthcare Primary Information System ^c # Classes

Heart Rate ^c # Classes

Heart Rate Measurement ^c # Classes

Home Address ^c # Classes

URI	`https://biomedit.ch/rdf/sphn-schema/sphn#ValueSet`
Description	List of value sets provided by SPHN
Parents	SPHN Concept^c
Children (Sub-classes)	Insurance Status coverage type^c Comparator^c Billed Procedure rank^c Microbiology Microscopy Result cell morphology^c Billed Diagnosis rank^c Source System purpose^c Semantic Mapping purpose^c Data File encoding^c Sample primary container^c Body Surface Area calculation method^c Microbiology Microscopy Result cell organization^c Sample fixation type^c Hash algorithm^c Adverse Event outcome^c Therapeutic Area specialty name^c Source System category^c Adverse Event consequences^c Genomic Position coordinate convention^c Data Provider category^c

URI	`https://biomedit.ch/rdf/sphn-schema/sphn#SPHNAttributeDatatype`
Description	SPHN datatype attribute defined by the dataset

URI	`https://biomedit.ch/rdf/sphn-schema/sphn#hasAdmissionDateTime`
Description	datetime the individual enters the healthcare provider institute, e.g. gets registered at the admission counter
Super-properties	has datetime^dp
Domain(s)	Administrative Case^c
Data type	xsd:dateTime^c

URI	`https://biomedit.ch/rdf/sphn-schema/sphn#hasAlternateAllele`
Description	the alternate nucleotide (A;T;C;G) of the concept
Super-properties	SPHN attribute datatype^dp
Domain(s)	Single Nucleotide Variation^c
Data type	xsd:string^c

URI	`https://biomedit.ch/rdf/sphn-schema/sphn#hasBiobankName`
Description	name of the biobank where the sample is stored
Super-properties	has name^dp
Domain(s)	Biobanksample^c
Data type	xsd:string^c

URI	`https://biomedit.ch/rdf/sphn-schema/sphn#hasCodingSystemAndVersion`
Description	name and version of the coding system
Super-properties	SPHN attribute datatype^dp
Domain(s)	Variant Notation^c Code^c
Data type	xsd:string^c

URI	`https://biomedit.ch/rdf/sphn-schema/sphn#hasCollectionDateTime`
Description	datetime of collection of the concept
Super-properties	has datetime^dp
Domain(s)	Tumor Specimen^c Sample^c Isolate^c
Data type	xsd:dateTime^c

URI	`https://biomedit.ch/rdf/sphn-schema/sphn#hasCreationDateTime`
Description	datetime the concept was created
Super-properties	has datetime^dp
Domain(s)	Data File^c Time Series Data File^c
Data type	xsd:dateTime^c

URI	`https://biomedit.ch/rdf/sphn-schema/sphn#hasDateTime`
Description	datetime of the concept
Super-properties	SPHN attribute datatype^dp
Domain(s)	Microorganism Identification Lab Test Event^c Assessment Event^c Tumor Grade Assessment Event^c Body Temperature^c Lab Test Event^c Microbiology Microscopy Lab Test Event^c Oxygen Saturation^c Circumference^c Body Weight^c Allergy Episode^c Sequencing Run^c Heart Rate^c Interpretation^c Follow Up^c Cardiac Output^c Blood Pressure^c Antimicrobial Susceptibility Lab Test Event^c Semantic Mapping^c Inhaled Oxygen Concentration^c Respiratory Rate^c Consent^c Reference Interpretation^c Tumor Stage Assessment Event^c Body Height^c Microbiology Biomolecule Presence Lab Test Event^c
Data type	xsd:dateTime^c

URI	`https://biomedit.ch/rdf/sphn-schema/sphn#hasDay`
Description	day of the concept
Super-properties	SPHN attribute datatype^dp
Domain(s)	Birth Date^c Death Date^c
Data type	xsd:gDay^c
