The SPHN RDF Schema

Classes ↑

Access Device Presence
Administrative Case
Administrative Gender
Adverse Event
Age
Allergen
Allergy
Allergy Episode
Biobanksample
Birth Date
Blood Pressure
Body Height
Body Mass Index
Body Position
Body Site
Body Surface Area

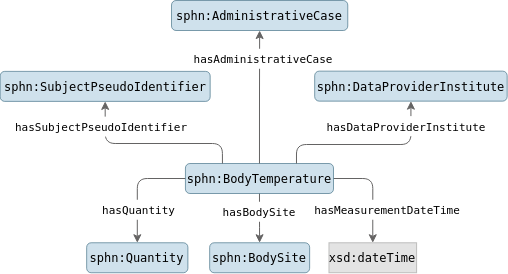

Body Temperature
Body Weight
Cardiac Index
Cardiac Output
Care Handling
Chromosomal Location
Chromosome

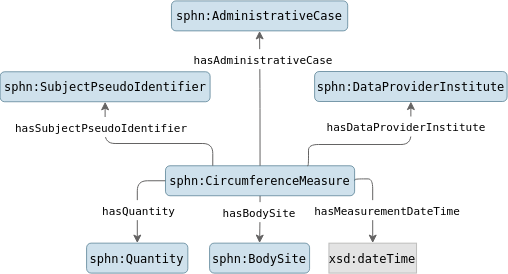

Circumference Measure
Civil Status

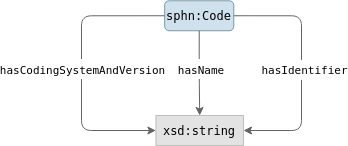

Code

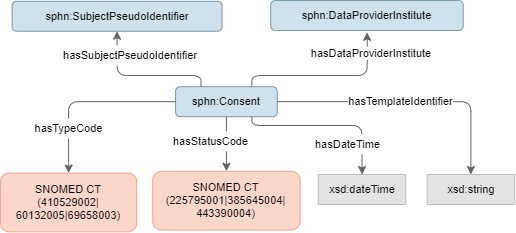

Consent
Data Determination

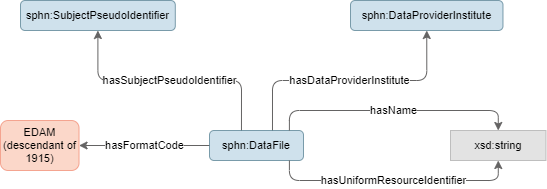

Data File
Data Provider Institute
Data Release
Death Date
Death Status
Diagnosis

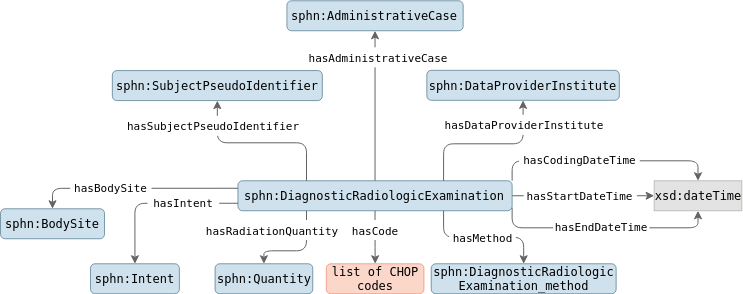

Diagnostic Radiologic Examination

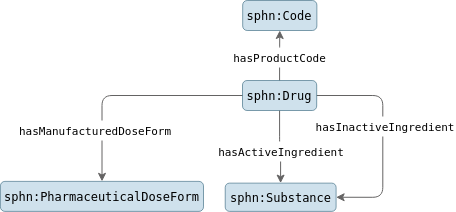

Drug

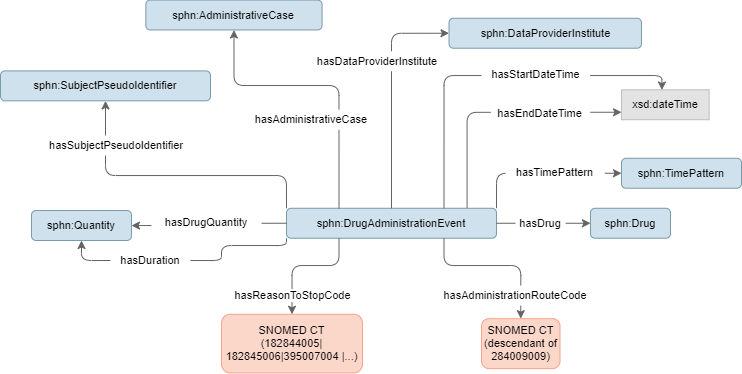

Drug Administration Event
Drug Prescription
Electrocardiogram
Electrocardiographic Procedure

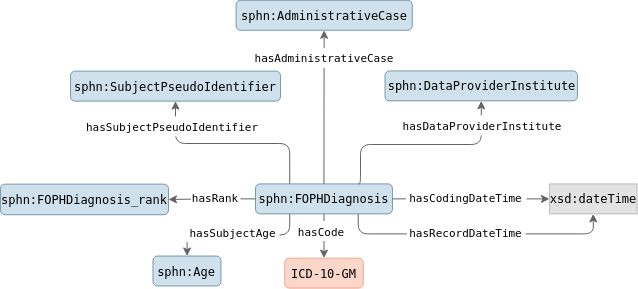

FOPH Diagnosis

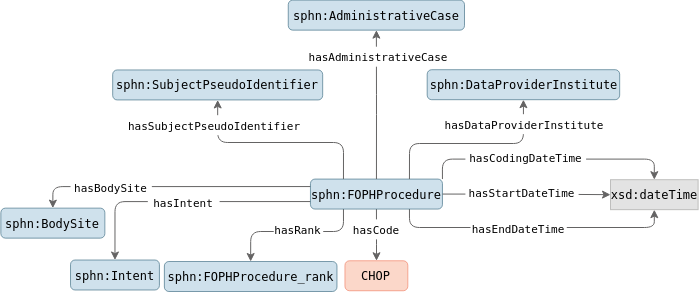

FOPH Procedure
Gene

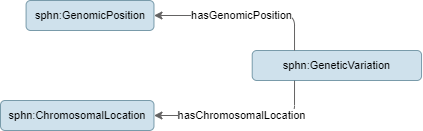

Genetic Variation

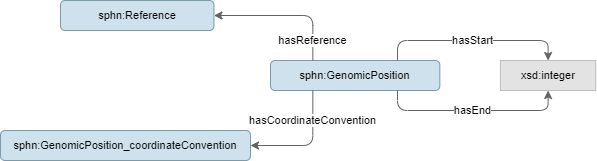

Genomic Position

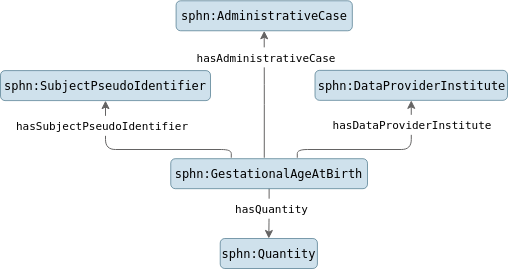

Gestational Age at Birth

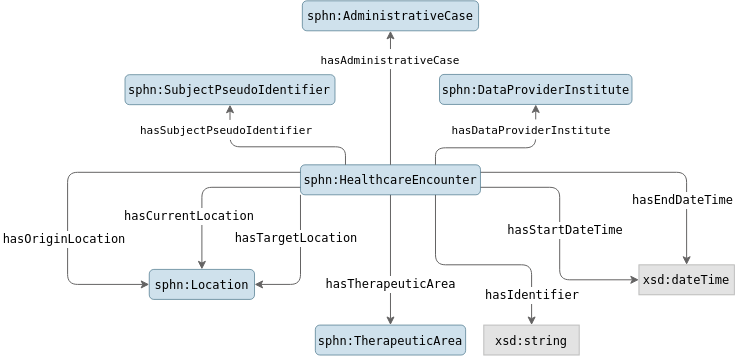

Healthcare Encounter

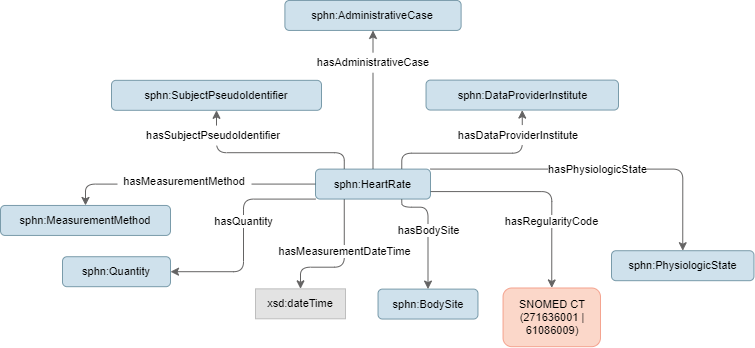

Heart Rate

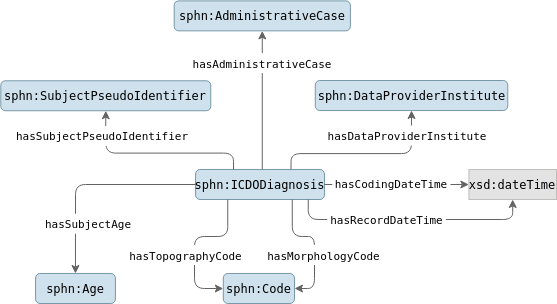

ICD-O Diagnosis
Inhaled Oxygen Concentration
Intent
Lab Analyzer
Lab Result
Lab Test
Laterality
Location
Measurement
Measurement Method

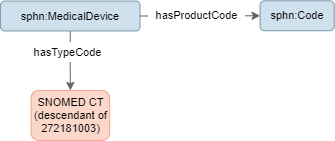

Medical Device

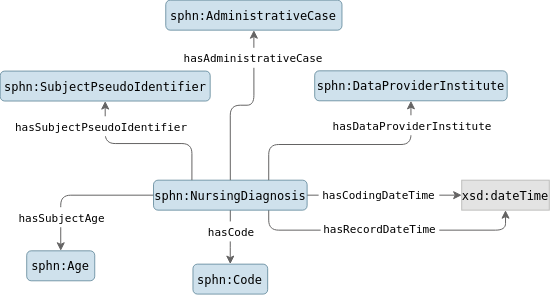

Nursing Diagnosis

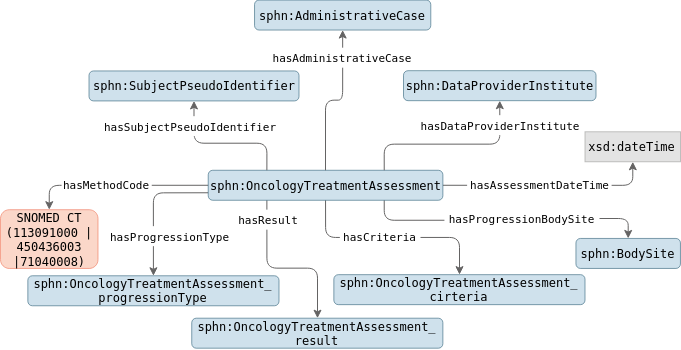

Oncology Treatment Assessment
Organism

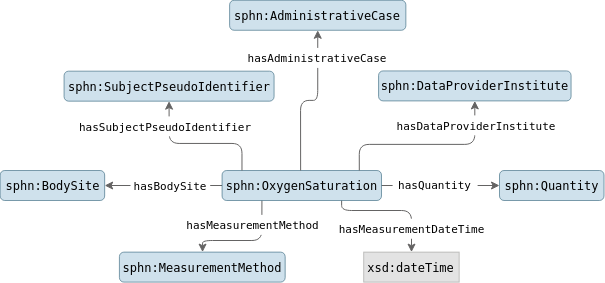

Oxygen Saturation
Pharmaceutical Dose Form
Physiologic State

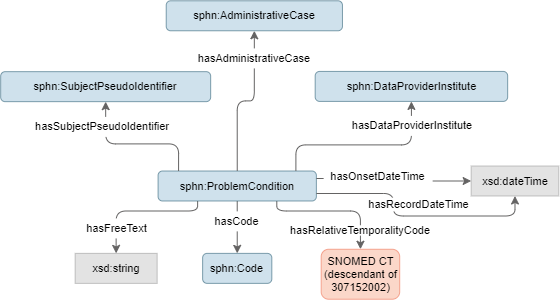

Problem Condition
Procedure
Protein
Quantity
Radiotherapy Procedure
Reference
Reference Range
Respiratory Rate
SPHN Concept

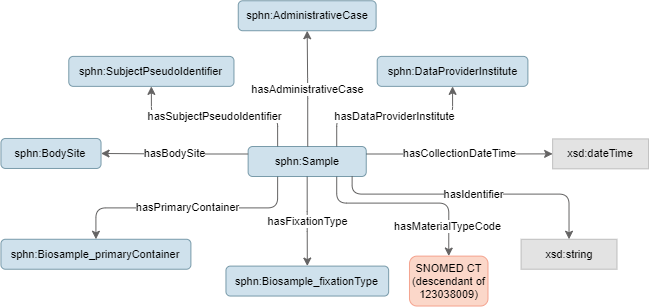

Sample

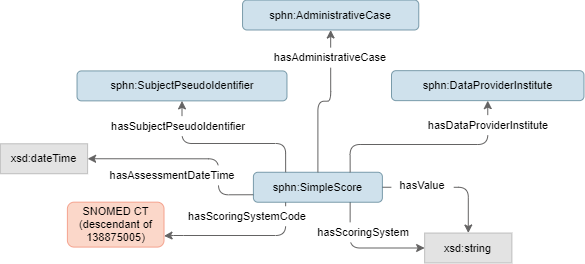

Simple Score
Single Nucleotide Variation

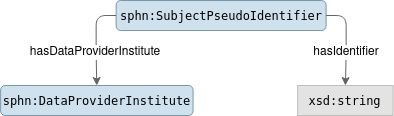

Subject Pseudo Identifier

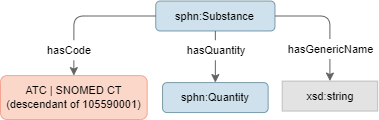

Substance
TNM Classification
Terminology
Therapeutic Area
Time Pattern

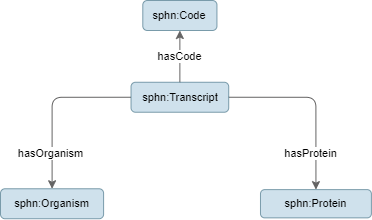

Transcript
Tumor Grade

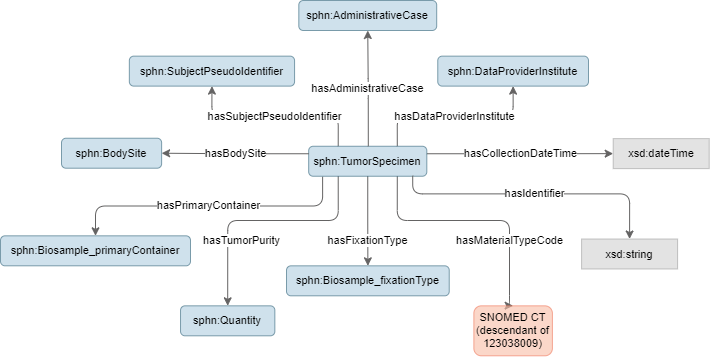

Tumor Specimen

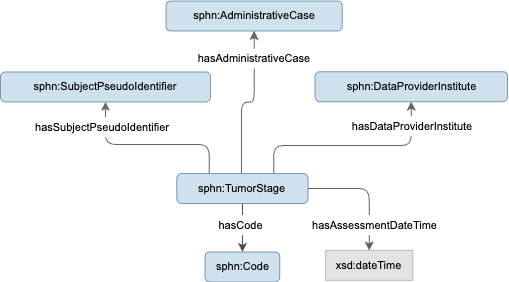

Tumor Stage
Unit

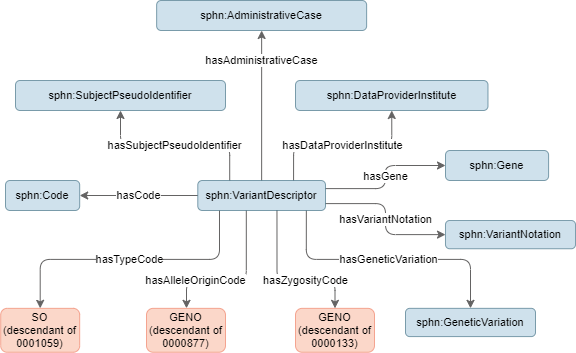

Variant Descriptor
Variant Notation

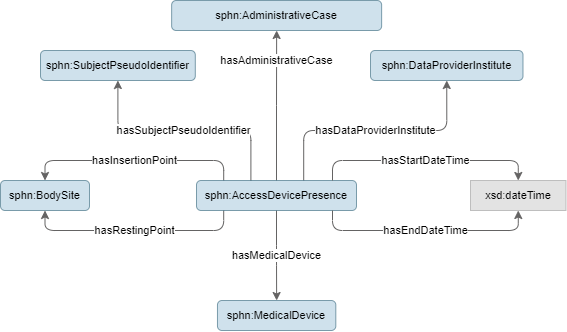

Access Device Presence^c # Classes

Property (In the domain of)		Cardinality	Class or Datatype	Restriction
URI	`https://biomedit.ch/rdf/sphn-ontology/sphn#AccessDevicePresence`
Description	application of medical access device, such as cannula, tube, catheter or drainage
Schema representation
Meaning binding (Equivalent-classes)	SNOMED 397578001 \| Device in situ (finding) \|^c
Parents	SPHN Concept^c
	has insertion point^op	0 .. 1	Body Site^c
	has resting point^op	0 .. 1	Body Site^c
	has data provider institute^op	1 .. 1	Data Provider Institute^c
	has administrative case^op	0 .. 1	Administrative Case^c
	has medical device^op	1 .. 1		Yes
	has subject pseudo identifier^op	1 .. 1	Subject Pseudo Identifier^c
	has end datetime^dp	0 .. 1	xsd:dateTime^c
	has start datetime^dp	0 .. 1	xsd:dateTime^c

Restrictions	has medical device^op / has type code^op : descendants of the given classes are allowed SNOMED 105789008 \| Cannula/tube/catheter, device (physical object) \|^c

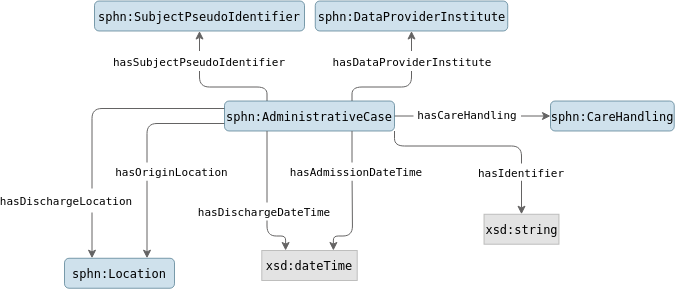

Administrative Case^c # Classes

Property (In the domain of)		Cardinality	Class or Datatype
URI	`https://biomedit.ch/rdf/sphn-ontology/sphn#AdministrativeCase`
Description	administrative artefact for billing according to Swiss DRG
Schema representation
Parents	SPHN Concept^c
	has subject pseudo identifier^op	1 .. 1	Subject Pseudo Identifier^c
	has admission datetime^dp	1 .. 1	xsd:dateTime^c
	has discharge location^op	0 .. 1	Location^c
	has care handling^op	0 .. 1	Care Handling^c
	has identifier^dp	1 .. 1	xsd:string^c
	has origin location^op	0 .. 1	Location^c
	has data provider institute^op	1 .. 1	Data Provider Institute^c
	has discharge datetime^dp	0 .. 1	xsd:dateTime^c

Restrictions	None
Used in (In the range of)	has administrative case^op

Administrative Gender^c # Classes

Property (In the domain of)		Cardinality	Class or Datatype	Restriction
URI	`https://biomedit.ch/rdf/sphn-ontology/sphn#AdministrativeGender`
Description	the gender of the individual used for administrative purposes
Schema representation
Meaning binding (Equivalent-classes)	SNOMED 365873007 \| Gender finding (finding) \|^c
Parents	SPHN Concept^c
	has code^op	1 .. 1		Yes
	has record datetime^dp	0 .. 1	xsd:dateTime^c
	has subject pseudo identifier^op	1 .. 1	Subject Pseudo Identifier^c

Restrictions	has code^op : descendants of the given classes are not allowed SNOMED 446151000124109 \| Identifies as male gender (finding) \|^c SNOMED 446141000124107 \| Identifies as female gender (finding) \|^c SNOMED 74964007 \| Other (qualifier value) \|^c

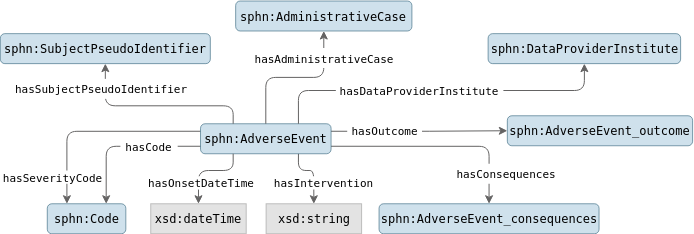

Adverse Event^c # Classes

Property (In the domain of)		Cardinality	Class or Datatype	Restriction
URI	`https://biomedit.ch/rdf/sphn-ontology/sphn#AdverseEvent`
Description	results from an intervention that caused unintentional harm
Schema representation
Meaning binding (Equivalent-classes)	SNOMED 281647001 \| Adverse reaction (disorder) \|^c
Parents	SPHN Concept^c
	has consequences^op	0 .. 1		Yes
	has intervention^dp	0 .. 1	xsd:string^c
	has subject pseudo identifier^op	1 .. 1	Subject Pseudo Identifier^c
	has outcome^op	0 .. 1		Yes
	has onset datetime^dp	0 .. 1	xsd:dateTime^c
	has data provider institute^op	1 .. 1	Data Provider Institute^c
	has severity code^op	0 .. 1	Terminology^c or Code^c
	has administrative case^op	0 .. 1	Administrative Case^c
	has code^op	1 .. 1		Yes

Restrictions	has consequences^op : Adverse Event consequences^c has outcome^op : Adverse Event outcome^c has code^op : Code^c
Notes	sphn:hasCode allowed coding system: MedDRA sphn:hasSeverityCode allowed coding system: CTCAE or other

Restrictions

has consequences^op :

Adverse Event consequences^c

has outcome^op :

Adverse Event outcome^c

has code^op :

Code^c

Notes

sphn:hasCode allowed coding system: MedDRA

sphn:hasSeverityCode allowed coding system: CTCAE or other

Age^c # Classes

Property (In the domain of)		Cardinality	Class or Datatype	Restriction
URI	`https://biomedit.ch/rdf/sphn-ontology/sphn#Age`
Description	time elapsed since birth of the individual
Schema representation
Meaning binding (Equivalent-classes)	SNOMED 397669002 \| Age (qualifier value) \|^c LOINC 30525-0 \| Age \|^c
Parents	SPHN Concept^c
	has determination datetime^dp	1 .. 1	xsd:dateTime^c
	has subject pseudo identifier^op	1 .. 1	Subject Pseudo Identifier^c
	has quantity^op	1 .. 1		Yes

Restrictions	has quantity^op / has unit^op / has code^op : ucum:min^c ucum:h^c ucum:d^c ucum:wk^c ucum:mo^c ucum:a^c
Used in (In the range of)	has subject age^op

Allergen^c # Classes

Property (In the domain of)		Cardinality	Restriction
URI	`https://biomedit.ch/rdf/sphn-ontology/sphn#Allergen`
Description	any substance, product or physical force producing immediate hypersensitivity
Schema representation
Parents	SPHN Concept^c
	has code^op	1 .. *	Yes

Restrictions	has code^op : Code^c SNOMED 138875005 \| SNOMED CT Concept (SNOMED RT+CTV3) \|^c sphn-atc:ATC^c
Notes	sphn:hasCode allowed coding system: SNOMED CT, ATC, GTIN
Used in (In the range of)	has allergen^op

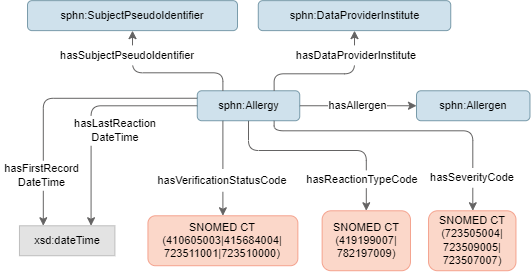

Allergy^c # Classes

Property (In the domain of)		Cardinality	Class or Datatype	Restriction
URI	`https://biomedit.ch/rdf/sphn-ontology/sphn#Allergy`
Description	risk of harmful or undesirable, physiological response which is unique to an individual and associated with exposure to an allergen
Schema representation
Meaning binding (Equivalent-classes)	SNOMED 418038007 \| Propensity to adverse reactions to substance (finding) \|^c
Parents	SPHN Concept^c
	has last reaction datetime^dp	0 .. 1	xsd:dateTime^c
	has subject pseudo identifier^op	1 .. 1	Subject Pseudo Identifier^c
	has first record datetime^dp	0 .. 1	xsd:dateTime^c
	has allergen^op	0 .. 1	Allergen^c
	has reaction type code^op	0 .. 1		Yes
	has verification status code^op	0 .. 1		Yes
	has data provider institute^op	1 .. 1	Data Provider Institute^c
	has severity code^op	0 .. 1		Yes

Restrictions	has reaction type code^op : descendants of the given classes are not allowed SNOMED 419199007 \| Allergy to substance (finding) \|^c SNOMED 782197009 \| Intolerance to substance (finding) \|^c has verification status code^op : descendants of the given classes are not allowed SNOMED 410605003 \| Confirmed present (qualifier value) \|^c SNOMED 415684004 \| Suspected (qualifier value) \|^c SNOMED 723511001 \| Refuted (qualifier value) \|^c SNOMED 723510000 \| Entered in error (qualifier value) \|^c has severity code^op : descendants of the given classes are not allowed SNOMED 723505004 \| Low risk (qualifier value) \|^c SNOMED 723509005 \| High risk (qualifier value) \|^c SNOMED 723507007 \| Unable to determine risk (qualifier value) \|^c

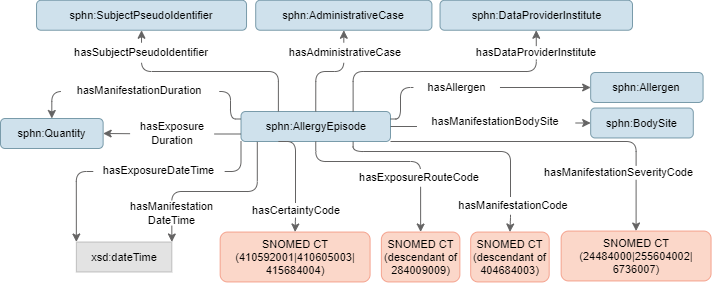

Allergy Episode^c # Classes

Property (In the domain of)		Cardinality	Class or Datatype	Restriction
URI	`https://biomedit.ch/rdf/sphn-ontology/sphn#AllergyEpisode`
Description	manifestation of an allergic reaction following an exposure to an allergen
Schema representation
Parents	SPHN Concept^c
	has certainty code^op	0 .. 1		Yes
	has manifestation code^op	0 .. 1		Yes
	has manifestation body site^op	0 .. 1	Body Site^c
	has manifestation duration^op	0 .. 1	Quantity^c
	has data provider institute^op	1 .. 1	Data Provider Institute^c
	has administrative case^op	0 .. 1	Administrative Case^c
	has subject pseudo identifier^op	1 .. 1	Subject Pseudo Identifier^c
	has exposure datetime^dp	0 .. 1	xsd:dateTime^c
	has exposure route code^op	0 .. 1		Yes
	has manifestation severity code^op	0 .. 1		Yes
	has manifestation datetime^dp	0 .. 1	xsd:dateTime^c
	has allergen^op	1 .. 1	Allergen^c
	has exposure duration^op	0 .. 1	Quantity^c

Restrictions	has certainty code^op : descendants of the given classes are not allowed SNOMED 415684004 \| Suspected (qualifier value) \|^c SNOMED 410592001 \| Probably present (qualifier value) \|^c SNOMED 410605003 \| Confirmed present (qualifier value) \|^c has manifestation code^op : descendants of the given classes are allowed SNOMED 404684003 \| Clinical finding (finding) \|^c has exposure route code^op : descendants of the given classes are allowed SNOMED 284009009 \| Route of administration value (qualifier value) \|^c has manifestation severity code^op : descendants of the given classes are not allowed SNOMED 255604002 \| Mild (qualifier value) \|^c SNOMED 6736007 \| Moderate (severity modifier) (qualifier value) \|^c SNOMED 24484000 \| Severe (severity modifier) (qualifier value) \|^c

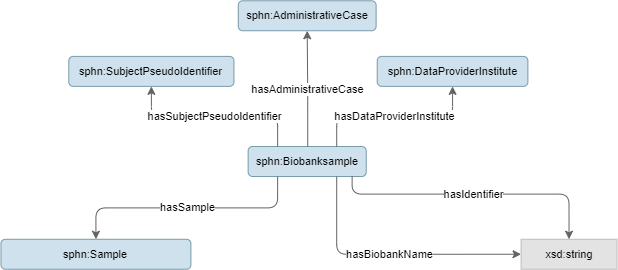

Biobanksample^c # Classes

Property (In the domain of)		Cardinality	Class or Datatype
URI	`https://biomedit.ch/rdf/sphn-ontology/sphn#Biobanksample`
Description	biosample stored in a biobank
Schema representation
Parents	SPHN Concept^c
	has identifier^dp	1 .. 1	xsd:string^c
	has data provider institute^op	1 .. 1	Data Provider Institute^c
	has administrative case^op	0 .. 1	Administrative Case^c
	has biobank name^dp	1 .. 1	xsd:string^c
	has sample^op	1 .. 1	Sample^c
	has subject pseudo identifier^op	1 .. 1	Subject Pseudo Identifier^c

Restrictions	None

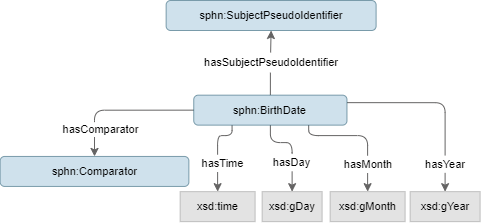

Birth Date^c # Classes

Property (In the domain of)		Cardinality	Class or Datatype	Restriction
URI	`https://biomedit.ch/rdf/sphn-ontology/sphn#BirthDate`
Description	the date and time of birth of the individual
Schema representation
Meaning binding (Equivalent-classes)	LOINC 21112-8 \| Birth date \|^c SNOMED 184099003 \| Date of birth (observable entity) \|^c
Parents	SPHN Concept^c
	has day^dp	0 .. 1	xsd:gDay^c
	has comparator^op	0 .. 1		Yes
	has year^dp	1 .. 1	xsd:gYear^c
	has time^dp	0 .. 1	xsd:time^c
	has month^dp	0 .. 1	xsd:gMonth^c
	has subject pseudo identifier^op	1 .. *	Subject Pseudo Identifier^c

Restrictions	has comparator^op : Comparator^c

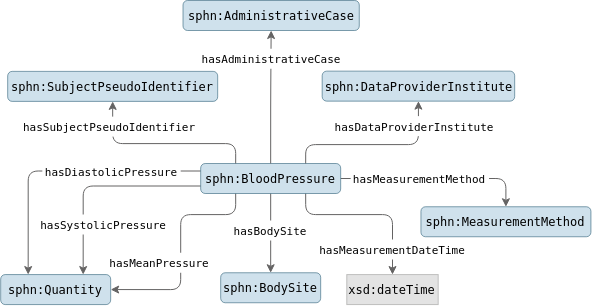

Blood Pressure^c # Classes

Property (In the domain of)		Cardinality	Class or Datatype	Restriction
URI	`https://biomedit.ch/rdf/sphn-ontology/sphn#BloodPressure`
Description	blood pressure measured either in the artery, in the vein, or in the pulmonary circulation
Schema representation
Parents	Measurement^c
	has subject pseudo identifier^op	1 .. 1	Subject Pseudo Identifier^c
	has diastolic pressure^op	0 .. 1		Yes
	has body site^op	0 .. 1		Yes
	has systolic pressure^op	0 .. 1		Yes
	has mean pressure^op	0 .. 1		Yes
	has data provider institute^op	1 .. 1	Data Provider Institute^c
	has administrative case^op	0 .. 1	Administrative Case^c
	has measurement datetime^dp	1 .. 1	xsd:dateTime^c
	has measurement method^op	0 .. 1		Yes

Restrictions	has diastolic pressure^op / has unit^op / has code^op : ucum:mmsblHgsbr^c has body site^op / has code^op : descendants of the given classes are not allowed SNOMED 113257007 \| Structure of cardiovascular system (body structure) \|^c SNOMED 40983000 \| Structure of upper extremity between shoulder and elbow (body structure) \|^c SNOMED 8205005 \| Wrist region structure (body structure) \|^c SNOMED 7569003 \| Finger structure (body structure) \|^c SNOMED 344001 \| Ankle region structure (body structure) \|^c has systolic pressure^op / has unit^op / has code^op : ucum:mmsblHgsbr^c has mean pressure^op / has unit^op / has code^op : ucum:mmsblHgsbr^c has measurement method^op / has code^op : descendants of the given classes are allowed SNOMED 716777001 \| Hemodynamic monitoring (regime/therapy) \|^c SNOMED 46973005 \| Blood pressure taking (procedure) \|^c

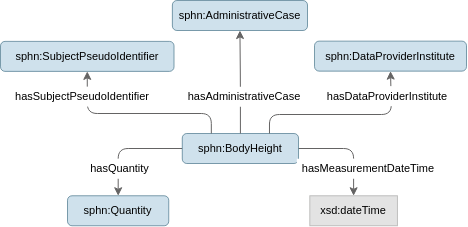

Body Height^c # Classes

Property (In the domain of)		Cardinality	Class or Datatype
URI	`https://biomedit.ch/rdf/sphn-ontology/sphn#BodyHeight`
Description	height of the individual
Schema representation
Meaning binding (Equivalent-classes)	LOINC 8302-2 \| Body height \|^c SNOMED 50373000 \| Body height measure (observable entity) \|^c
Parents	Measurement^c
	has quantity^op	1 .. 1	Quantity^c
	has data provider institute^op	1 .. 1	Data Provider Institute^c
	has administrative case^op	0 .. 1	Administrative Case^c
	has measurement datetime^dp	1 .. 1	xsd:dateTime^c
	has subject pseudo identifier^op	1 .. 1	Subject Pseudo Identifier^c

Restrictions	None

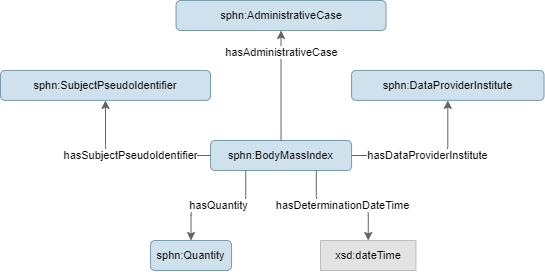

Body Mass Index^c # Classes

Property (In the domain of)		Cardinality	Class or Datatype	Restriction
URI	`https://biomedit.ch/rdf/sphn-ontology/sphn#BodyMassIndex`
Description	body weight in kilograms divided by the square of the body height in meters
Schema representation
Meaning binding (Equivalent-classes)	LOINC 39156-5 \| Body mass index (BMI) [Ratio] \|^c SNOMED 60621009 \| Body mass index (observable entity) \|^c
Parents	SPHN Concept^c
	has data provider institute^op	1 .. 1	Data Provider Institute^c
	has administrative case^op	0 .. 1	Administrative Case^c
	has determination datetime^dp	0 .. 1	xsd:dateTime^c
	has subject pseudo identifier^op	1 .. 1	Subject Pseudo Identifier^c
	has quantity^op	1 .. 1		Yes

Restrictions	has quantity^op / has unit^op / has code^op : ucum:kgperm2^c

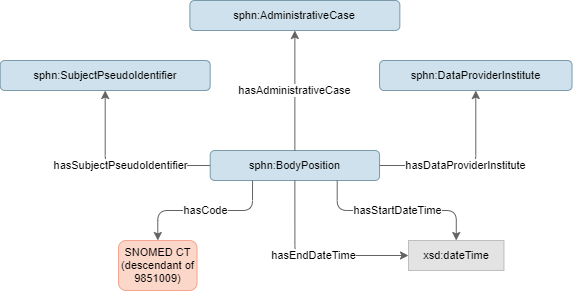

Body Position^c # Classes

Property (In the domain of)		Cardinality	Class or Datatype	Restriction
URI	`https://biomedit.ch/rdf/sphn-ontology/sphn#BodyPosition`
Description	position of the body during a certain time interval, examination or therapy
Schema representation
Meaning binding (Equivalent-classes)	SNOMED 397155001 \| Body position (observable entity) \|^c
Parents	SPHN Concept^c
	has start datetime^dp	0 .. 1	xsd:dateTime^c
	has data provider institute^op	1 .. 1	Data Provider Institute^c
	has administrative case^op	0 .. 1	Administrative Case^c
	has code^op	1 .. 1		Yes
	has subject pseudo identifier^op	1 .. 1	Subject Pseudo Identifier^c
	has end datetime^dp	0 .. 1	xsd:dateTime^c

Restrictions	has code^op : descendants of the given classes are allowed SNOMED 9851009 \| Body position finding (finding) \|^c

Body Site^c # Classes

Property (In the domain of)		Cardinality	Class or Datatype	Restriction
URI	`https://biomedit.ch/rdf/sphn-ontology/sphn#BodySite`
Description	any anatomical structure, any nonspecific and anatomical site, as well as morphologic abnormalities
Schema representation
Meaning binding (Equivalent-classes)	LOINC 39111-0 \| Body site \|^c SNOMED 123037004 \| Body structure (body structure) \|^c
Parents	SPHN Concept^c
	has laterality^op	0 .. 1	Laterality^c
	has code^op	1 .. 1		Yes

Restrictions	has code^op : descendants of the given classes are allowed SNOMED 123037004 \| Body structure (body structure) \|^c
Used in (In the range of)	has resting point^op has manifestation body site^op has body site^op has progression body site^op has insertion point^op

Body Surface Area^c # Classes

Property (In the domain of)		Cardinality	Class or Datatype	Restriction
URI	`https://biomedit.ch/rdf/sphn-ontology/sphn#BodySurfaceArea`
Description	two dimensional measure of the outer layer of the body

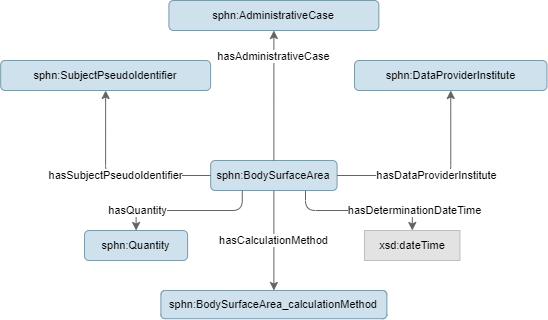

Schema representation
Meaning binding (Equivalent-classes)	SNOMED 301898006 \| Body surface area (observable entity) \|^c LOINC 8277-6 \| Body surface area \|^c
Parents	SPHN Concept^c
	has data provider institute^op	1 .. 1	Data Provider Institute^c
	has administrative case^op	0 .. 1	Administrative Case^c
	has subject pseudo identifier^op	1 .. 1	Subject Pseudo Identifier^c
	has calculation method^op	0 .. 1		Yes
	has quantity^op	1 .. 1		Yes
	has determination datetime^dp	0 .. 1	xsd:dateTime^c

Restrictions	has calculation method^op : Body Surface Area calculation method^c has quantity^op / has unit^op / has code^op : ucum:m2^c

Body Temperature^c # Classes

Property (In the domain of)		Cardinality	Class or Datatype
URI	`https://biomedit.ch/rdf/sphn-ontology/sphn#BodyTemperature`
Description	body temperature of the individual
Schema representation
Meaning binding (Equivalent-classes)	LOINC 8310-5 \| Body temperature \|^c SNOMED 386725007 \| Body temperature (observable entity) \|^c
Parents	Measurement^c
	has body site^op	0 .. 1	Body Site^c
	has measurement datetime^dp	1 .. 1	xsd:dateTime^c
	has data provider institute^op	1 .. 1	Data Provider Institute^c
	has administrative case^op	0 .. 1	Administrative Case^c
	has subject pseudo identifier^op	1 .. 1	Subject Pseudo Identifier^c
	has quantity^op	1 .. 1	Quantity^c

Restrictions	None

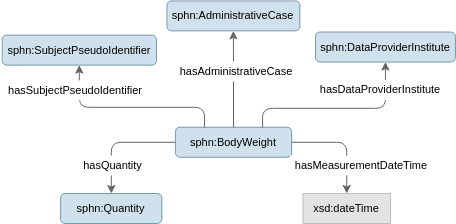

Body Weight^c # Classes

Property (In the domain of)		Cardinality	Class or Datatype
URI	`https://biomedit.ch/rdf/sphn-ontology/sphn#BodyWeight`
Description	weight of the individual
Schema representation
Meaning binding (Equivalent-classes)	LOINC 29463-7 \| Body weight \|^c SNOMED 27113001 \| Body weight (observable entity) \|^c
Parents	Measurement^c
	has data provider institute^op	1 .. 1	Data Provider Institute^c
	has administrative case^op	0 .. 1	Administrative Case^c
	has measurement datetime^dp	1 .. 1	xsd:dateTime^c
	has subject pseudo identifier^op	1 .. 1	Subject Pseudo Identifier^c
	has quantity^op	1 .. 1	Quantity^c

Restrictions	None

Cardiac Index^c # Classes

Property (In the domain of)		Cardinality	Class or Datatype	Restriction
URI	`https://biomedit.ch/rdf/sphn-ontology/sphn#CardiacIndex`
Description	cardiac output in relation to the body surface area (BSA)

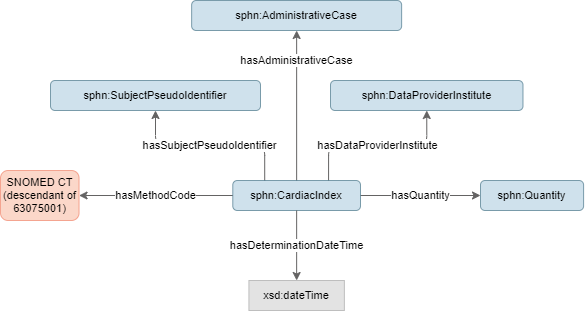

Schema representation
Meaning binding (Equivalent-classes)	SNOMED 54993008 \| Cardiac index (observable entity) \|^c
Parents	SPHN Concept^c
	has subject pseudo identifier^op	1 .. 1	Subject Pseudo Identifier^c
	has method code^op	0 .. 1		Yes
	has quantity^op	1 .. 1		Yes
	has data provider institute^op	1 .. 1	Data Provider Institute^c
	has administrative case^op	0 .. 1	Administrative Case^c
	has determination datetime^dp	0 .. 1	xsd:dateTime^c

Restrictions	has method code^op : descendants of the given classes are allowed SNOMED 63075001 \| Monitoring of cardiac output/cardiac index (regime/therapy) \|^c has quantity^op / has unit^op / has code^op : ucum:Lperminperm2^c

Cardiac Output^c # Classes

Property (In the domain of)		Cardinality	Class or Datatype	Restriction
URI	`https://biomedit.ch/rdf/sphn-ontology/sphn#CardiacOutput`
Description	volume of blood passing through the heart per unit of time

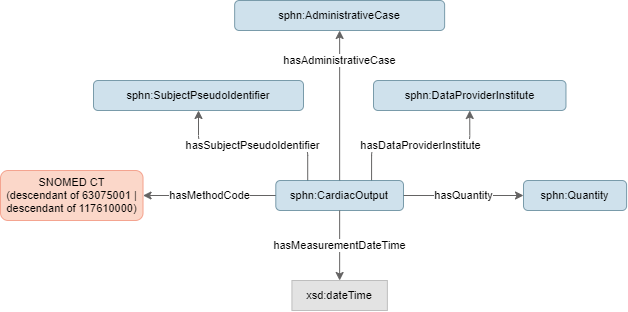

Schema representation
Meaning binding (Equivalent-classes)	SNOMED 82799009 \| Cardiac output (observable entity) \|^c
Parents	Measurement^c
	has quantity^op	1 .. 1		Yes
	has method code^op	0 .. 1		Yes
	has data provider institute^op	1 .. 1	Data Provider Institute^c
	has measurement datetime^dp	0 .. 1	xsd:dateTime^c
	has subject pseudo identifier^op	1 .. 1	Subject Pseudo Identifier^c
	has administrative case^op	0 .. 1	Administrative Case^c

Restrictions	has quantity^op / has unit^op / has code^op : ucum:Lpermin^c has method code^op : descendants of the given classes are allowed SNOMED 63075001 \| Monitoring of cardiac output/cardiac index (regime/therapy) \|^c SNOMED 117610000 \| Measurement of cardiac output (procedure) \|^c

Care Handling^c # Classes

Property (In the domain of)		Cardinality	Restriction
URI	`https://biomedit.ch/rdf/sphn-ontology/sphn#CareHandling`
Description	describes the relationship between the individual and care provider institute
Schema representation
Meaning binding (Equivalent-classes)	SNOMED 225365006 \| Care regime (regime/therapy) \|^c
Parents	SPHN Concept^c
	has type code^op	1 .. 1	Yes

Restrictions	has type code^op : descendants of the given classes are not allowed SNOMED 394656005 \| Inpatient care (regime/therapy) \|^c SNOMED 371883000 \| Outpatient procedure (procedure) \|^c SNOMED 304903009 \| Provision of day care (regime/therapy) \|^c
Used in (In the range of)	has care handling^op

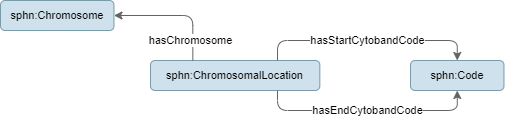

Chromosomal Location^c # Classes

Property (In the domain of)		Cardinality	Class or Datatype	Restriction
URI	`https://biomedit.ch/rdf/sphn-ontology/sphn#ChromosomalLocation`
Description	chromosome locus defined as cytoband intervals
Schema representation
Meaning binding (Equivalent-classes)	SO 0000830 \| chromosome_part \|^c GENO 0000614 \| chromosomal region \|^c
Parents	SPHN Concept^c
	has start cytoband code^op	1 .. 1		Yes
	has chromosome^op	1 .. 1	Chromosome^c
	has end cytoband code^op	1 .. 1		Yes

Restrictions	has start cytoband code^op : Code^c has end cytoband code^op : Code^c
Notes	sphn:hasEndCytobandCode allowed coding system: ISCN sphn:hasStartCytobandCode allowed coding system: ISCN
Used in (In the range of)	has chromosomal location^op

Restrictions

has start cytoband code^op :

Code^c

has end cytoband code^op :

Code^c

Notes

sphn:hasEndCytobandCode allowed coding system: ISCN

sphn:hasStartCytobandCode allowed coding system: ISCN

Used in
(In the range of)

has chromosomal location^op

Chromosome^c # Classes

Property (In the domain of)		Cardinality	Restriction
URI	`https://biomedit.ch/rdf/sphn-ontology/sphn#Chromosome`
Description	thread-like structure composed of tightly coiled DNA and histones or circular DNA (mitochondrial DNA). These structures act as carriers of genetic information
Schema representation
Meaning binding (Equivalent-classes)	LOINC 48000-4 \| Chromosome [Identifier] in Blood or Tissue by Molecular genetics method \|^c SNOMED 91272006 \| Chromosome (cell structure) \|^c
Parents	SPHN Concept^c
	has code^op	1 .. 1	Yes

Restrictions	has code^op : descendants of the given classes are allowed SNOMED 91272006 \| Chromosome (cell structure) \|^c
Used in (In the range of)	has chromosome^op

Circumference Measure^c # Classes

Property (In the domain of)		Cardinality	Class or Datatype	Restriction
URI	`https://biomedit.ch/rdf/sphn-ontology/sphn#CircumferenceMeasure`
Description	circumference measurement of a body site
Schema representation
Meaning binding (Equivalent-classes)	SNOMED 248365001 \| Circumference measure (observable entity) \|^c
Parents	Measurement^c
	has subject pseudo identifier^op	1 .. 1	Subject Pseudo Identifier^c
	has quantity^op	1 .. 1	Quantity^c
	has body site^op	1 .. 1		Yes
	has measurement datetime^dp	1 .. 1	xsd:dateTime^c
	has data provider institute^op	1 .. 1	Data Provider Institute^c
	has administrative case^op	0 .. 1	Administrative Case^c

Restrictions	has body site^op / has code^op : descendants of the given classes are not allowed SNOMED 69536005 \| Head structure (body structure) \|^c SNOMED 33673004 \| Structure of waist (surface region) (body structure) \|^c SNOMED 29836001 \| Hip region structure (body structure) \|^c SNOMED 45048000 \| Neck structure (body structure) \|^c

Civil Status^c # Classes

Property (In the domain of)		Cardinality	Class or Datatype	Restriction
URI	`https://biomedit.ch/rdf/sphn-ontology/sphn#CivilStatus`
Description	the civil status indicates the familial and social situation of the individual
Schema representation
Meaning binding (Equivalent-classes)	SNOMED 365581002 \| Finding of marital or partnership status (finding) \|^c
Parents	SPHN Concept^c
	has subject pseudo identifier^op	1 .. 1	Subject Pseudo Identifier^c
	has event datetime^dp	0 .. 1	xsd:dateTime^c
	has code^op	1 .. 1		Yes

Restrictions	has code^op : descendants of the given classes are not allowed SNOMED 125681006 \| Single person (finding) \|^c SNOMED 87915002 \| Married (finding) \|^c SNOMED 33553000 \| Widowed (finding) \|^c SNOMED 20295000 \| Divorced (finding) \|^c SNOMED 14012001 \| Common law partnership (finding) \|^c SNOMED 266945001 \| Broken with partner (finding) \|^c

Code^c # Classes

Property (In the domain of)		Cardinality	Class or Datatype
URI	`https://biomedit.ch/rdf/sphn-ontology/sphn#Code`
Description	symbols and/or expressions defined in a coding system
Schema representation
Parents	SPHN Concept^c
	has name^dp	0 .. 1	xsd:string^c
	has coding system and version^dp	1 .. 1	xsd:string^c
	has identifier^dp	1 .. 1	xsd:string^c

Restrictions	None
Used in (In the range of)	has exposure route code^op has qualitative result code^op has topography code^op has severity code^op has reaction type code^op has type code^op has end cytoband code^op has scoring system code^op has material type code^op has product code^op has reason to stop code^op has certainty code^op has start cytoband code^op has format code^op has administration route code^op has verification status code^op has relative temporality code^op has allele origin code^op has code^op has manifestation code^op has status code^op has regularity code^op has method code^op has manifestation severity code^op has zygosity code^op has morphology code^op

Consent^c # Classes

Property (In the domain of)		Cardinality	Class or Datatype	Restriction
URI	`https://biomedit.ch/rdf/sphn-ontology/sphn#Consent`
Description	information on the individual’s permission to make health related data and collected samples available for research purposes
Schema representation
Meaning binding (Equivalent-classes)	SNOMED 371537001 \| Consent report (record artifact) \|^c LOINC 59284-0 \| Consent Document \|^c
Parents	SPHN Concept^c
	has data provider institute^op	1 .. 1	Data Provider Institute^c
	has type code^op	1 .. 1		Yes
	has status code^op	0 .. 1		Yes
	has template identifier^dp	0 .. 1	xsd:string^c
	has subject pseudo identifier^op	1 .. 1	Subject Pseudo Identifier^c
	has datetime^dp	1 .. 1	xsd:dateTime^c

Restrictions	has type code^op : descendants of the given classes are not allowed SNOMED 69658003 \| Specific (qualifier value) \|^c SNOMED 60132005 \| Generalized (qualifier value) \|^c SNOMED 410529002 \| Not needed (qualifier value) \|^c has status code^op : descendants of the given classes are not allowed SNOMED 385645004 \| Accepted (qualifier value) \|^c SNOMED 443390004 \| Refused (qualifier value) \|^c SNOMED 225795001 \| Is informed (finding) \|^c

Data Determination^c # Classes

Property (In the domain of)		Cardinality	Restriction
URI	`https://biomedit.ch/rdf/sphn-ontology/sphn#DataDetermination`
Description	describes how the data was determined, e.g. measured, calculated
Schema representation
Parents	SPHN Concept^c
	has method code^op	1 .. 1	Yes

Restrictions	has method code^op : descendants of the given classes are not allowed SNOMED 258104002 \| Measured (qualifier value) \|^c SNOMED 258090004 \| Calculated (qualifier value) \|^c SNOMED 87982008 \| Manual (qualifier value) \|^c SNOMED 414135002 \| Estimated (qualifier value) \|^c SNOMED 263760002 \| Forced (qualifier value) \|^c
Used in (In the range of)	has data determination^op

Data File^c # Classes

Property (In the domain of)		Cardinality	Class or Datatype	Restriction
URI	`https://biomedit.ch/rdf/sphn-ontology/sphn#DataFile`
Description	electronic resource of information, which can be stored, accessed and transferred as a single unit
Schema representation
Parents	SPHN Concept^c
	has data provider institute^op	1 .. 1	Data Provider Institute^c
	has subject pseudo identifier^op	1 .. 1	Subject Pseudo Identifier^c
	has uniform resource identifier^dp	0 .. 1	xsd:string^c
	has name^dp	0 .. 1	xsd:string^c
	has format code^op	0 .. 1		Yes

Restrictions	has format code^op : Code^c
Notes	sphn:hasFormatCode allowed coding system: EDAM:format_1915
Used in (In the range of)	has data file^op

Data Provider Institute^c # Classes

Property (In the domain of)		Cardinality	Restriction
URI	`https://biomedit.ch/rdf/sphn-ontology/sphn#DataProviderInstitute`
Description	institute providing the data
Schema representation
Parents	SPHN Concept^c
	has code^op	1 .. 1	Yes

Restrictions	has code^op : Code^c
Notes	sphn:hasCode allowed coding system: UID
Used in (In the range of)	has data provider institute^op

Data Release^c # Classes

Property (In the domain of)		Cardinality	Class or Datatype
URI	`https://biomedit.ch/rdf/sphn-ontology/sphn#DataRelease`
Description	Metadata about the release of the data
Schema representation
Parents	SPHN Concept^c
	has extraction datetime^dp	1 .. 1	xsd:dateTime^c

Restrictions	None

Death Date^c # Classes

Property (In the domain of)		Cardinality	Class or Datatype
URI	`https://biomedit.ch/rdf/sphn-ontology/sphn#DeathDate`
Description	the date and time of death of the individual
Schema representation
Meaning binding (Equivalent-classes)	LOINC 81954-0 \| Date of death [Date] \|^c SNOMED 399753006 \| Date of death (observable entity) \|^c
Parents	SPHN Concept^c
	has year^dp	1 .. 1	xsd:gYear^c
	has time^dp	0 .. 1	xsd:time^c
	has subject pseudo identifier^op	1 .. *	Subject Pseudo Identifier^c
	has month^dp	0 .. 1	xsd:gMonth^c
	has day^dp	0 .. 1	xsd:gDay^c

Restrictions	None
Used in (In the range of)	has death date^op

Death Status^c # Classes

Property (In the domain of)		Cardinality	Class or Datatype	Restriction
URI	`https://biomedit.ch/rdf/sphn-ontology/sphn#DeathStatus`
Description	death information availability
Schema representation
Parents	SPHN Concept^c
	has death date^op	0 .. 1	Death Date^c
	has subject pseudo identifier^op	1 .. *	Subject Pseudo Identifier^c
	has code^op	1 .. 1		Yes

Restrictions	has code^op : descendants of the given classes are not allowed SNOMED 419099009 \| Dead (finding) \|^c

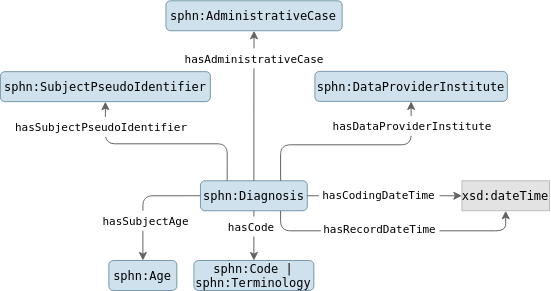

Diagnosis^c # Classes

URI	`https://biomedit.ch/rdf/sphn-ontology/sphn#Diagnosis`
Description	determination of the presence of a disease, condition, or injury from expressed signs and symptoms and assessments such as physical examination, laboratory test, or the like
Schema representation
Meaning binding (Equivalent-classes)	SNOMED 439401001 \| Diagnosis (observable entity) \|^c
Parents	SPHN Concept^c
Children (Sub-classes)	FOPH Diagnosis^c ICD-O Diagnosis^c Nursing Diagnosis^c

	Cardinality	Class or Datatype
has data provider institute^op	1 .. 1	Data Provider Institute^c
has administrative case^op	0 .. 1	Administrative Case^c
has code^op	1 .. *	Code^c or Terminology^c
has coding datetime^dp	0 .. 1	xsd:dateTime^c
has record datetime^dp	0 .. 1	xsd:dateTime^c
has subject pseudo identifier^op	1 .. 1	Subject Pseudo Identifier^c
has subject age^op	0 .. 1	Age^c

Restrictions	None
Notes	sphn:hasCode allowed coding system: SNOMED CT, ICD-10, ICD-O-3 Topography, ICD-O-3 Morphology, NANDA, ORPHA or other
Used in (In the range of)	has indication to start^op

Diagnostic Radiologic Examination^c # Classes

Property (In the domain of)		Cardinality	Class or Datatype	Restriction
URI	`https://biomedit.ch/rdf/sphn-ontology/sphn#DiagnosticRadiologicExamination`
Description	radiographic procedure using the emission of x-rays to form an image of the structure penetrated by the radiation
Schema representation
Meaning binding (Equivalent-classes)	SNOMED 363680008 \| Radiographic imaging procedure (procedure) \|^c
Parents	Procedure^c
	has data provider institute^op	1 .. 1	Data Provider Institute^c
	has administrative case^op	0 .. 1	Administrative Case^c
	has code^op	1 .. 1		Yes
	has start datetime^dp	1 .. 1	xsd:dateTime^c
	has body site^op	0 .. 1	Body Site^c
	has coding datetime^dp	0 .. 1	xsd:dateTime^c
	has method^op	0 .. 1		Yes
	has subject pseudo identifier^op	1 .. 1	Subject Pseudo Identifier^c
	has end datetime^dp	0 .. 1	xsd:dateTime^c
	has radiation quantity^op	0 .. 1		Yes
	has intent^op	0 .. 1	Intent^c

Restrictions	has code^op : descendants of the given classes are allowed CHOP 00.21 \| Intravaskuläre Bildgebung von extrakraniellen Hirngefässen \|^c CHOP 00.22 \| Intravaskuläre Bildgebung von intrathorakalen Gefässen \|^c CHOP 00.23 \| Intravaskuläre Bildgebung von peripheren Gefässen \|^c CHOP 00.25 \| Intravaskuläre Bildgebung der Nierengefässe \|^c CHOP 00.28 \| Intravaskuläre Bildgebung sonstiger bezeichneter Gefässe \|^c CHOP 87.01 \| Pneumoenzephalographie \|^c CHOP 87.02 \| Sonstige Kontrastradiographie von Gehirn und Schädel \|^c CHOP 87.03 \| Computertomographie des Schädels \|^c CHOP 87.04.00 \| Sonstige Tomographie des Kopfes, n.n.bez. \|^c CHOP 87.04.10 \| Computertomographie des Gesichtsschädel, Nasennebenhöhlen, Oberkiefer, Unterkiefer, Zähne, Kiefergelenke und Schädelbasis \|^c CHOP 87.04.11 \| Computertomographie des Halses \|^c CHOP 87.04.99 \| Sonstige Tomographie des Kopfes, sonstige \|^c CHOP 87.05 \| Kontrast-Dakryozystographie \|^c CHOP 87.06 \| Kontrast-Radiographie des Nasopharynx \|^c CHOP 87.07 \| Kontrast-Laryngographie \|^c CHOP 87.08 \| Zervikale Lymphangiographie \|^c CHOP 87.09.00 \| Sonstige Weichteil-Radiographie von Gesicht, Kopf und Hals, n.n.bez. \|^c CHOP 87.09.10 \| Diagnostische Sialographie \|^c CHOP 87.09.99 \| Sonstige Weichteil-Radiographie von Gesicht, Kopf und Hals, sonstige \|^c CHOP 87.12 \| Sonstige Zahnradiographie \|^c CHOP 87.13 \| Kontrast-Arthrographie des Temporomandibulargelenks \|^c CHOP 87.14 \| Kontrast-Radiographie der Orbita \|^c CHOP 87.15 \| Sinographie \|^c CHOP 87.18 \| Schädel Spezialaufnahme \|^c CHOP 87.21.00 \| Kontrast-Myelographie, n.n.bez. \|^c CHOP 87.21.10 \| Vertebrale Diskographie \|^c CHOP 87.21.99 \| Kontrast-Myelographie, sonstige \|^c CHOP 87.22 \| Sonstige Radiographie der Halswirbelsäule \|^c CHOP 87.23 \| Sonstige Radiographie der Brustwirbelsäule \|^c CHOP 87.24 \| Sonstige Radiographie der lumbosakralen Wirbelsäule \|^c CHOP 87.29 \| Sonstige Radiographie der Wirbelsäule \|^c CHOP 87.31 \| Endotracheale Bronchographie \|^c CHOP 87.32 \| Sonstige Kontrast-Bronchographie \|^c CHOP 87.33 \| Mediastinale Pneumographie \|^c CHOP 87.34 \| Intrathorakale Lymphangiographie \|^c CHOP 87.35 \| Galaktographie \|^c CHOP 87.36 \| Xerographie der Mamma \|^c CHOP 87.37.00 \| Sonstige Mammographie, n.n.bez. \|^c CHOP 87.37.10 \| Zystographie der Mamma mit Luft oder Kontrastmittel \|^c CHOP 87.37.99 \| Sonstige Mammographie, sonstige \|^c CHOP 87.38 \| Fistulographie der Brustwand \|^c CHOP 87.39 \| Sonstige Weichteil-Radiographie der Brustwand \|^c CHOP 87.41.00 \| Computertomographie des Thorax, n.n.bez. \|^c CHOP 87.41.10 \| Computertomographie des Herzens, n.n.bez. \|^c CHOP 87.41.11 \| Computertomographie des Herzens, nativ, in Ruhe \|^c CHOP 87.41.12 \| Computertomographie des Herzens, nativ, unter körperlicher Belastung \|^c CHOP 87.41.13 \| Computertomographie des Herzens, nativ, unter medikamentöser Belastung \|^c CHOP 87.41.14 \| Computertomographie des Herzens, mit Kontrastmittel, in Ruhe \|^c CHOP 87.41.15 \| Computertomographie des Herzens, mit Kontrastmittel, unter körperlicher Belastung \|^c CHOP 87.41.16 \| Computertomographie des Herzens, mit Kontrastmittel, unter medikamentöser Belastung \|^c CHOP 87.41.19 \| Computertomographie des Herzens, sonstige \|^c CHOP 87.41.99 \| Computertomographie des Thorax, sonstige \|^c CHOP 87.49 \| Sonstige Thoraxröntgenaufnahme \|^c CHOP 87.51 \| Perkutane transhepatische Cholangiographie \|^c CHOP 87.52 \| Intravenöse Cholangiographie \|^c CHOP 87.53 \| Intraoperative Cholangiographie \|^c CHOP 87.54.00 \| Sonstige Cholangiographie, n.n.bez. \|^c CHOP 87.54.10 \| Cholangiographie nach ERCP \|^c CHOP 87.54.99 \| Sonstige Cholangiographie, sonstige \|^c CHOP 87.59.00 \| Sonstige Radiographie der Gallenwege, n.n.bez. \|^c CHOP 87.59.10 \| Orale Cholezystographie \|^c CHOP 87.59.99 \| Sonstige Radiographie der Gallenwege, sonstige \|^c CHOP 87.61.00 \| Ösophagusbreischluck, n.n.bez. \|^c CHOP 87.61.10 \| Pharynxösophagus-Darstellung \|^c CHOP 87.61.99 \| Ösophagusbreischluck, sonstige \|^c CHOP 87.62 \| Magen-Darm-Passage \|^c CHOP 87.63 \| Selektive Dünndarmpassage \|^c CHOP 87.64.00 \| Kolonkontrasteinlauf, n.n.bez. \|^c CHOP 87.64.10 \| Kolondarstellung, Monokontrast \|^c CHOP 87.64.20 \| Kolondarstellung, Doppelkontrast (Holzknecht) \|^c CHOP 87.64.30 \| Defäkographie \|^c CHOP 87.64.99 \| Kolonkontrasteinlauf, sonstige \|^c CHOP 87.65 \| Sonstige Radiographie des Darms \|^c CHOP 87.66 \| Kontrast-Pankreatographie \|^c CHOP 87.69 \| Sonstige Radiographie des Verdauungstrakts, sonstige \|^c CHOP 87.71 \| Computertomographie der Niere \|^c CHOP 87.72 \| Sonstige Tomographie der Niere \|^c CHOP 87.73 \| Intravenöse Urographie \|^c CHOP 87.74 \| Retrograde Pyelographie \|^c CHOP 87.75 \| Perkutane Pyelographie \|^c CHOP 87.76.00 \| Retrograde Urethrozystographie, n.n.bez. \|^c CHOP 87.76.10 \| Zystographie \|^c CHOP 87.76.99 \| Retrograde Urethrozystographie, sonstige \|^c CHOP 87.77.00 \| Sonstige Zystographie, n.n.bez. \|^c CHOP 87.77.10 \| Miktionszystourographie [MCUG] \|^c CHOP 87.77.99 \| Sonstige Zystographie, sonstige \|^c CHOP 87.78 \| Radiographie eines Ileum-Conduits \|^c CHOP 87.79 \| Radiographie der Harnwege, sonstige \|^c CHOP 87.81 \| Radiographie des graviden Uterus \|^c CHOP 87.82 \| Gas-Hysterosalpingographie \|^c CHOP 87.83 \| Hysterosalpingographie mit Kontrastmittel \|^c CHOP 87.84 \| Perkutane Hysterographie \|^c CHOP 87.85 \| Sonstige Radiographie von Tubae uterinae und Uterus \|^c CHOP 87.89 \| Radiographie der weiblichen Genitalorgane, sonstige \|^c CHOP 87.91 \| Röntgenkontrastdarstellung der Samenblase \|^c CHOP 87.92 \| Sonstige Radiographie von Prostata und Samenblasen \|^c CHOP 87.93 \| Röntgenkontrastdarstellung der Epididymis \|^c CHOP 87.94 \| Röntgenkontrastdarstellung der Samenleiter \|^c CHOP 87.95 \| Sonstige Radiographie von Epididymis und Vas deferens \|^c CHOP 87.99 \| Radiographie der männlichen Genitalorgane, sonstige \|^c CHOP 88.01.00 \| Computertomographie des Abdomens, n.n.bez. \|^c CHOP 88.01.10 \| Computertomographie gesamtes Abdomen \|^c CHOP 88.01.20 \| Computertomographie Oberbauch \|^c CHOP 88.01.99 \| Computertomographie des Abdomens, sonstige \|^c CHOP 88.02 \| Sonstige Tomographie des Abdomens \|^c CHOP 88.03 \| Fistulographie der Bauchwand \|^c CHOP 88.04 \| Abdominale Lymphographie \|^c CHOP 88.09 \| Sonstige Weichteil-Radiographie der Bauchwand \|^c CHOP 88.11 \| Pelvigraphie mit Kontrastmittel \|^c CHOP 88.12 \| Pneumo-Pelvigraphie \|^c CHOP 88.13 \| Sonstige peritoneale Pneumographie \|^c CHOP 88.14 \| Retroperitoneale Fistulographie \|^c CHOP 88.15 \| Retroperitoneale Pneumographie \|^c CHOP 88.16 \| Sonstige retroperitoneale Radiographie \|^c CHOP 88.19 \| Sonstige Radiographie des Abdomens, sonstige \|^c CHOP 88.21 \| Skelettröntgen von Schulter und Oberarm \|^c CHOP 88.22 \| Skelettröntgen von Ellenbogen und Unterarm \|^c CHOP 88.23 \| Skelettröntgen von Handgelenk und Hand \|^c CHOP 88.24 \| Skelettröntgen der oberen Extremität, n.n.bez. \|^c CHOP 88.25 \| Pelvimetrie \|^c CHOP 88.26 \| Sonstiges Skelettröntgen von Becken und Hüfte \|^c CHOP 88.27 \| Skelettröntgen von Oberschenkel, Knie und Unterschenkel \|^c CHOP 88.28 \| Skelettröntgen von Sprunggelenk und Fuss \|^c CHOP 88.29 \| Skelettröntgen der unteren Extremität, n.n.bez. \|^c CHOP 88.31 \| Skelettübersicht \|^c CHOP 88.32 \| Kontrast-Arthrographie \|^c CHOP 88.33 \| Sonstiges Skelettröntgen \|^c CHOP 88.34 \| Lymphographie der oberen Extremität \|^c CHOP 88.35 \| Sonstige Weichteil-Radiographie der oberen Extremität \|^c CHOP 88.36 \| Lymphographie der unteren Extremität \|^c CHOP 88.37 \| Sonstige Weichteil-Radiographie der unteren Extremität \|^c CHOP 88.38.00 \| Sonstige Computertomographie, n.n.bez. \|^c CHOP 88.38.20 \| Computertomographie des Schultergelenkes und der Oberarme \|^c CHOP 88.38.21 \| Computertomographie der Ellenbogengelenke und der Vorderarme \|^c CHOP 88.38.22 \| Computertomographie der Handgelenke und der Hand \|^c CHOP 88.38.30 \| Computertomographie der Hüfte und des Oberschenkel \|^c CHOP 88.38.31 \| Computertomographie des Kniegelenks und der Unterschenkel \|^c CHOP 88.38.32 \| Computertomographie des Fusses und der Sprunggelenke \|^c CHOP 88.38.40 \| Computertomographie der Wirbelsäule \|^c CHOP 88.38.41 \| Computertomographie des Beckens und des Iliosakralgelenkes \|^c CHOP 88.38.50 \| {CT}-Angiographie aller Gefässe \|^c CHOP 88.38.51 \| Ganzkörper-Computertomographie \|^c CHOP 88.38.60 \| {CT}-gesteuerte Intervention \|^c CHOP 88.38.99 \| Sonstige Computertomographie, sonstige \|^c CHOP 88.39.00 \| Sonstige und nicht bezeichnete Radiographie, n.n.bez. \|^c CHOP 88.39.10 \| Intraoperatives Röntgen \|^c CHOP 88.39.20 \| Funktionelle Durchleuchtung, n.n.bez. \|^c CHOP 88.39.21 \| Funktionelle Durchleuchtung, Gelenk, Thorax, Wirbelsäule \|^c CHOP 88.39.30 \| Interventionen unter Durchleuchtung \|^c CHOP 88.39.99 \| Sonstige und nicht bezeichnete Radiographie, sonstige \|^c CHOP 88.40 \| Arteriographie mit Kontrastmittel, nicht näher bezeichnete Lokalisation \|^c CHOP 88.41.11 \| Arteriographie der Zerebralarterien \|^c CHOP 88.41.21 \| Spinale Arteriographie \|^c CHOP 88.42.00 \| Aortographie, n.n.bez. \|^c CHOP 88.42.10 \| Arteriographie, obere Extremitäten und thorakale Aorta \|^c CHOP 88.42.11 \| Arteriographie, abdominelle Aorta \|^c CHOP 88.42.99 \| Aortographie, sonstige \|^c CHOP 88.43 \| Arteriographie der Pulmonalarterien \|^c CHOP 88.44 \| Arteriographie anderer intrathorakaler Gefässe \|^c CHOP 88.45 \| Arteriographie der Nierenarterien \|^c CHOP 88.46 \| Arteriographie der Plazenta \|^c CHOP 88.47 \| Arteriographie anderer intraabdominaler Arterien \|^c CHOP 88.48.00 \| Arteriographie der A. femoralis und anderer Arterien der unteren Extremitäten, n.n.bez. \|^c CHOP 88.48.10 \| Arteriographie, Beinangiographie \|^c CHOP 88.48.99 \| Arteriographie der A. femoralis und anderer Arterien der unteren Extremitäten, sonstige \|^c CHOP 88.49.00 \| Arteriographie anderer bezeichneter Lokalisationen, n.n.bez. \|^c CHOP 88.49.10 \| Angiographische Darstellung eines Dialyse-Shunts in Direktpunktion \|^c CHOP 88.49.11 \| Arteriographie, Beckenarterien als Übersicht \|^c CHOP 88.49.99 \| Arteriographie anderer bezeichneter Lokalisationen, sonstige \|^c CHOP 88.50 \| Angiokardiographie, n.n.bez. \|^c CHOP 88.51 \| Angiokardiographie der Vv. cavae \|^c CHOP 88.52 \| Angiokardiographie von Strukturen des rechten Herzens \|^c CHOP 88.53 \| Angiokardiographie von Strukturen des linken Herzens \|^c CHOP 88.54 \| Kombinierte Angiokardiographie des rechten und linken Herzens \|^c CHOP 88.55 \| Koronare Arteriographie mit einem einzigen Katheter \|^c CHOP 88.56 \| Koronare Arteriographie mit zwei Kathetern \|^c CHOP 88.57 \| Sonstige und nicht näher bezeichnete koronare Arteriographie \|^c CHOP 88.58 \| Negativ-Kontrast Radiographie des Herzens \|^c CHOP 88.59 \| Intraoperative Fluoreszenzangiographie der Gefässe \|^c CHOP 88.60 \| Phlebographie mit Kontrastmittel, nicht näher bezeichnete Lokalisation \|^c CHOP 88.61.00 \| Phlebographie der Kopf- und Halsvenen mit Kontrastmittel, n.n.bez. \|^c CHOP 88.61.10 \| Phlebographie der intrakranialen Venen \|^c CHOP 88.61.99 \| Phlebographie der Kopf- und Halsvenen mit Kontrastmittel, sonstige \|^c CHOP 88.62 \| Phlebographie der Pulmonalvenen mit Kontrastmittel \|^c CHOP 88.63.00 \| Phlebographie anderer intrathorakaler Venen mit Kontrastmittel, n.n.bez. \|^c CHOP 88.63.10 \| Phlebographie der V. cava superior \|^c CHOP 88.63.99 \| Phlebographie anderer intrathorakaler Venen mit Kontrastmittel, sonstige \|^c CHOP 88.64 \| Portographie mit Kontrastmittel \|^c CHOP 88.65 \| Phlebographie anderer intraabdominaler Venen mit Kontrastmittel \|^c CHOP 88.66 \| Phlebographie der Femoralvenen und anderer Venen der unteren Extremität mit Kontrastmittel \|^c CHOP 88.67 \| Phlebographie anderer bezeichneter Lokalisationen mit Kontrastmittel \|^c CHOP 88.68 \| Impedanz-Phlebographie \|^c CHOP 88.69 \| Phlebographie der Venen der oberen Extremitäten \|^c CHOP 88.90.10 \| Fistulographie \|^c CHOP 88.90.30 \| Radiographiegesteuerte Intervention \|^c CHOP 88.91.00 \| Kernspintomographie von Gehirn und Hirnstamm, n.n.bez. \|^c CHOP 88.91.10 \| Kernspintomographie von Gehirn und Hirnstamm \|^c CHOP 88.91.11 \| Funktionelle Kernspintomographie von Gehirn und Hirnstamm \|^c CHOP 88.91.99 \| Kernspintomographie von Gehirn und Hirnstamm, sonstige \|^c CHOP 88.92.00 \| Kernspintomographie von Thorax und Myokard, n.n.bez. \|^c CHOP 88.92.10 \| MRI von Thorax, n.n.bez. \|^c CHOP 88.92.11 \| MRI von Thorax, in Ruhe, n.n.bez. \|^c CHOP 88.92.12 \| MRI von Thorax, in Ruhe, mit Kontrastmittel \|^c CHOP 88.92.13 \| MRI von Thorax mit Belastung, n.n.bez. \|^c CHOP 88.92.14 \| MRI von Thorax mit Belastung und Kontrastmittel \|^c CHOP 88.92.19 \| MRI von Thorax, sonstige \|^c CHOP 88.92.20 \| MRI von Herz und zentralen Gefäss, n.n.bez. \|^c CHOP 88.92.21 \| MRI von Herz und zentralen Gefäss in Ruhe, n.n.bez. \|^c CHOP 88.92.22 \| MRI von Herz und zentralen Gefäss in Ruhe, mit Kontrastmittel \|^c CHOP 88.92.23 \| MRI von Herz und zentralen Gefäss mit Belastung, n.n.bez. \|^c CHOP 88.92.24 \| MRI von Herz und zentralen Gefäss mit Belastung und Kontrastmittel \|^c CHOP 88.92.29 \| MRI von Herz und zentralen Gefäss, sonstige \|^c CHOP 88.92.30 \| MRI von hilären und mediastinalen Strukturen, n.n.bez. \|^c CHOP 88.92.31 \| MRI von hilären und mediastinalen Strukturen in Ruhe, n.n.bez. \|^c CHOP 88.92.32 \| MRI von hilären und mediastinalen Strukturen in Ruhe, mit Kontrastmittel \|^c CHOP 88.92.33 \| MRI von hilären und mediastinalen Strukturen mit Belastung, n.n.bez. \|^c CHOP 88.92.34 \| MRI von hilären und mediastinalen Strukturen mit Belastung und Kontrastmittel \|^c CHOP 88.92.39 \| MRI von hilären und mediastinalen Strukturen, sonstige \|^c CHOP 88.92.99 \| Kernspintomographie von Thorax und Myokard, sonstige \|^c CHOP 88.94.00 \| Kernspintomographie des Muskuloskelettalsystems, n.n.bez. \|^c CHOP 88.94.10 \| MRI-Schultergelenk und Oberarme \|^c CHOP 88.94.11 \| MRI-Ellenbogengelenke und Vorderarme \|^c CHOP 88.94.12 \| MRI-Handgelenke und Hand \|^c CHOP 88.94.13 \| MRI-Hüfte und Oberschenkel \|^c CHOP 88.94.14 \| MRI-Kniegelenk und Unterschenkel \|^c CHOP 88.94.16 \| MRI-Fuss und Sprunggelenke, Fussgelenke \|^c CHOP 88.94.99 \| Kernspintomographie des Muskuloskelettalsystems, sonstige \|^c CHOP 88.95 \| Kernspintomographie von Becken, Prostata und Harnblase \|^c CHOP 88.96 \| Sonstige intraoperative Kernspintomographie \|^c CHOP 88.97.00 \| Kernspintomographie anderer und nicht definierter Lokalisationen, n.n.bez. \|^c CHOP 88.97.10 \| MRI-Angiographie aller Gefässe \|^c CHOP 88.97.11 \| MRI-Spektroskopie \|^c CHOP 88.97.12 \| Ganzkörper-MRI \|^c CHOP 88.97.14 \| MRI-Übersicht und Teilstücke der Wirbelsäule \|^c CHOP 88.97.15 \| MRI-Gesichtsschädel/Nasennebenhöhlen \|^c CHOP 88.97.16 \| MRI-Hals \|^c CHOP 88.97.17 \| MRI-Abdomen, Becken \|^c CHOP 88.97.18 \| MRI-Defäkographie \|^c CHOP 88.97.19 \| MRI-Mamma(e) \|^c CHOP 88.97.20 \| Magnetresonanz-Cholangiopankreatikographie [MRCP] \|^c CHOP 88.97.99 \| Kernspintomographie anderer und nicht definierter Lokalisationen, sonstige \|^c CHOP 88.98.00 \| Radiologische Mineralgehaltsbestimmung, n.n.bez. \|^c CHOP 88.98.10 \| Knochendensitometrie mit Doppelenergie-Röntgen-Absorptiometrie [DXA] \|^c CHOP 88.98.99 \| Radiologische Mineralgehaltsbestimmung, sonstige \|^c CHOP 92.01 \| Schilddrüsenszintigraphie und Radioisotopenfunktionsstudien \|^c CHOP 92.02 \| Leberszintigraphie und Radioisotopenfunktionsstudie \|^c CHOP 92.03 \| Nierenszintigraphie und Radioisotopenfunktionsstudie \|^c CHOP 92.04 \| Gastrointestinale Szintigraphie und Radioisotopenfunktionsstudie \|^c CHOP 92.05.00 \| Kardiovaskuläre und hämatopoetische Szintigraphie und Radioisotopenfunktionsstudie, n.n.bez. \|^c CHOP 92.05.09 \| Kardiovaskuläre und hämatopoetische Szintigraphie und Radioisotopenfunktionsstudie, sonstige \|^c CHOP 92.05.10 \| Myokardperfusionsszintigraphie, n.n.bez. \|^c CHOP 92.05.11 \| Myokardperfusionsszintigraphie in Ruhe \|^c CHOP 92.05.12 \| Myokardperfusionsszintigraphie mit physikalischer Belastung \|^c CHOP 92.05.13 \| Myokardperfusionsszintigraphie mit pharmakologischer Belastung \|^c CHOP 92.05.14 \| Single Photon Emission Computed Tomography [SPECT], Myokard \|^c CHOP 92.05.19 \| Myokardperfusionsszintigraphie, sonstige \|^c CHOP 92.09.00 \| Sonstige Radioisotopenfunktionsstudie, n.n.bez. \|^c CHOP 92.09.10 \| Single Photon Emission Computed Tomography [SPECT], andere Lokalisationen \|^c CHOP 92.09.99 \| Sonstige Radioisotopenfunktionsstudie, sonstige \|^c CHOP 92.11.00 \| Positronenemissionstomographie des Gehirns \|^c CHOP 92.11.08 \| Sonstige zerebrale Szintigraphie \|^c CHOP 92.12 \| Szintigraphie anderer Lokalisationen am Kopf \|^c CHOP 92.13 \| Parathyroidea-Szintigraphie \|^c CHOP 92.14 \| Knochen-Szintigraphie \|^c CHOP 92.15 \| Lungen-Szintigraphie \|^c CHOP 92.16 \| Szintigraphie des lymphatischen Systems \|^c CHOP 92.18.00 \| Ganzkörperszintigraphie, n.n.bez. \|^c CHOP 92.18.01 \| Ganzkörperszintigraphie zur Lokalisationsdiagnostik, Tumorszintigraphie mit Antikörpern oder rezeptorgerichteten Substanzen, n.n.bez. \|^c CHOP 92.18.02 \| Ganzkörperszintigraphie zur Lokalisationsdiagnostik, Ganzkörperszintigraphie zur Entzündungsdiagnostik \|^c CHOP 92.18.03 \| Ganzkörperszintigraphie zur Lokalisationsdiagnostik, Ganzkörperszintigraphie mit Radiojod, ohne Gabe von rekombinantem Thyreotropin [rh-TSH] \|^c CHOP 92.18.04 \| Ganzkörperszintigraphie zur Lokalisationsdiagnostik, Ganzkörperszintigraphie mit Radiojod, mit Gabe von rekombinantem Thyreotropin [rh-TSH] \|^c CHOP 92.18.05 \| Radiorezeptoren-selektive prätherapeutische Diagnostik (Ga-68-markiertes Peptid) \|^c CHOP 92.18.08 \| Ganzkörperszintigraphie zur Lokalisationsdiagnostik, sonstige \|^c CHOP 92.19.00 \| Positronenemissionstomographie des Herzens \|^c CHOP 92.19.01 \| Positronenemissionstomographie des gesamten Körperstammes \|^c CHOP 92.19.02 \| Andere Positronenemissionstomographie \|^c CHOP 92.19.03 \| Positronenemissionstomographie mit F-18-Ethylcholin bei Prostatakarzinom \|^c CHOP 92.19.04 \| Zelluläre Hypoxie-Diagnostik mit 18-F-Misonidazol \|^c CHOP 92.19.05 \| Positronenemissionstomographie mit Computertomographie [PET/CT] des gesamten Körperstammes/Kopfes mit DOTA-markierten Rezeptorliganden \|^c CHOP 92.19.06 \| Positronenemissionstomographie mit Computertomographie [PET/CT] des gesamten Körperstammes/Kopfes mit 18-F-DOPA \|^c CHOP 92.19.08 \| Sonstige Szintigraphie anderer Lokalisationen \|^c has method^op : Diagnostic Radiologic Examination method^c has radiation quantity^op / has unit^op / has code^op : ucum:Gy^c ucum:cGy^c ucum:mCi^c ucum:MBq^c

Drug^c # Classes

Property (In the domain of)		Cardinality	Class or Datatype	Restriction
URI	`https://biomedit.ch/rdf/sphn-ontology/sphn#Drug`
Description	any substance with the intent to prevent, diagnose, treat, or relieve symptoms of a disease or abnormal condition
Schema representation
Meaning binding (Equivalent-classes)	SNOMED 410942007 \| Drug or medicament (substance) \|^c
Parents	SPHN Concept^c
	has manufactured dose form^op	0 .. 1	Pharmaceutical Dose Form^c
	has inactive ingredient^op	0 .. *	Substance^c
	has product code^op	0 .. 1		Yes
	has active ingredient^op	0 .. *	Substance^c

Restrictions	has product code^op : Code^c
Notes	sphn:hasProductCode allowed coding system: GTIN
Used in (In the range of)	has drug^op

Drug Administration Event^c # Classes

Property (In the domain of)		Cardinality	Class or Datatype	Restriction
URI	`https://biomedit.ch/rdf/sphn-ontology/sphn#DrugAdministrationEvent`
Description	single event at which a drug was administered to the patient; this could be a single time point in case of a pill/cream or a duration in case of a single infusion pack or a single patch; one or many drug administration events are initiated by a drug prescription depending on the frequency stated in the prescription
Schema representation
Meaning binding (Equivalent-classes)	SNOMED 182832007 \| Procedure related to management of drug administration (procedure) \|^c
Parents	SPHN Concept^c
	has data provider institute^op	1 .. 1	Data Provider Institute^c
	has administrative case^op	0 .. 1	Administrative Case^c
	has drug quantity^op	0 .. 1	Quantity^c
	has drug^op	1 .. 1	Drug^c
	has time pattern^op	0 .. 1	Time Pattern^c
	has subject pseudo identifier^op	1 .. 1	Subject Pseudo Identifier^c
	has duration^op	0 .. 1	Quantity^c
	has end datetime^dp	0 .. 1	xsd:dateTime^c
	has reason to stop code^op	0 .. 1		Yes
	has start datetime^dp	1 .. 1	xsd:dateTime^c
	has administration route code^op	0 .. 1		Yes

Restrictions	has reason to stop code^op : descendants of the given classes are not allowed SNOMED 441308009 \| New diagnosis (observable entity) \|^c SNOMED 395009001 \| Medication stopped - side effect (situation) \|^c SNOMED 182872003 \| Drug discontinued - too expensive (situation) \|^c SNOMED 182846007 \| Doctor stopped drugs - medical aim achieved (situation) \|^c SNOMED 395007004 \| Medication stopped - ineffective (situation) \|^c SNOMED 31438003 \| Drug resistance (disorder) \|^c SNOMED 182845006 \| Doctor stopped drugs - avoid interaction (situation) \|^c SNOMED 182844005 \| Doctor stopped drugs - patient dislikes (situation) \|^c SNOMED 419620001 \| Death (event) \|^c SNOMED 399307001 \| Lost to follow-up (finding) \|^c SNOMED 74964007 \| Other (qualifier value) \|^c has administration route code^op : descendants of the given classes are allowed SNOMED 284009009 \| Route of administration value (qualifier value) \|^c
Used in (In the range of)	has oxygen flow rate^op

Drug Prescription^c # Classes

Property (In the domain of)		Cardinality	Class or Datatype	Restriction
URI	`https://biomedit.ch/rdf/sphn-ontology/sphn#DrugPrescription`
Description	plan that defines at which frequency a drug should be administered to a patient with a given quantity; at every frequency time point a drug administration event should occur
Schema representation
Meaning binding (Equivalent-classes)	SNOMED 33633005 \| Prescription of drug (procedure) \|^c
Parents	SPHN Concept^c
	has data provider institute^op	1 .. 1	Data Provider Institute^c
	has administrative case^op	0 .. 1	Administrative Case^c
	has drug quantity^op	0 .. 1	Quantity^c
	has indication to start^op	0 .. 1	Intent^c or Diagnosis^c
	has last administration datetime^dp	0 .. 1	xsd:dateTime^c
	has drug^op	1 .. 1	Drug^c
	has time pattern^op	0 .. 1	Time Pattern^c
	has subject pseudo identifier^op	1 .. 1	Subject Pseudo Identifier^c
	has intent^op	0 .. 1	Intent^c
	has administration route code^op	0 .. 1		Yes
	has first administration datetime^dp	1 .. 1	xsd:dateTime^c
	has frequency^op	0 .. 1	Quantity^c

Restrictions	has administration route code^op : descendants of the given classes are allowed SNOMED 284009009 \| Route of administration value (qualifier value) \|^c

Electrocardiogram^c # Classes

Property (In the domain of)		Cardinality	Class or Datatype
URI	`https://biomedit.ch/rdf/sphn-ontology/sphn#Electrocardiogram`
Description	output of an electrocardiographic procedure
Schema representation
Parents	SPHN Concept^c
	has data file^op	1 .. *	Data File^c

Restrictions	None
Used in (In the range of)	has output^op

Electrocardiographic Procedure^c # Classes

Property (In the domain of)		Cardinality	Class or Datatype	Restriction
URI	`https://biomedit.ch/rdf/sphn-ontology/sphn#ElectrocardiographicProcedure`
Description	electrographic procedure on the heart which results in a graph of voltage versus time visualizing the electrical activity of the heart muscle using electrodes placed on the skin
Meaning binding (Equivalent-classes)	SNOMED 29303009 \| Electrocardiographic procedure (procedure) \|^c
Parents	Procedure^c
	has intent^op	0 .. 1		Yes
	has number of leads^op	0 .. 1	Quantity^c
	has start datetime^dp	1 .. 1	xsd:dateTime^c
	has body site^op	0 .. 1	Body Site^c
	has physiologic state^op	0 .. 1		Yes
	has data provider institute^op	1 .. 1	Data Provider Institute^c
	has administrative case^op	0 .. 1	Administrative Case^c
	has code^op	1 .. *		Yes
	has coding datetime^dp	0 .. 1	xsd:dateTime^c
	has output^op	0 .. 1	Electrocardiogram^c
	has subject pseudo identifier^op	1 .. 1	Subject Pseudo Identifier^c
	has end datetime^dp	0 .. 1	xsd:dateTime^c

Restrictions	has intent^op / has code^op : descendants of the given classes are not allowed SNOMED 360156006 \| Screening - procedure intent (qualifier value) \|^c SNOMED 261004008 \| Diagnostic intent (qualifier value) \|^c has physiologic state^op / has code^op : descendants of the given classes are not allowed SNOMED 128975004 \| Resting state (finding) \|^c SNOMED 128976003 \| Exercise state (finding) \|^c has code^op : descendants of the given classes are allowed SNOMED 29303009 \| Electrocardiographic procedure (procedure) \|^c

FOPH Diagnosis^c # Classes

Property (In the domain of)		Cardinality	Class or Datatype	Restriction
URI	`https://biomedit.ch/rdf/sphn-ontology/sphn#FOPHDiagnosis`
Description	discharge diagnosis given respecting the rules of FOPH and used for building the DRGs, e.g. K35 acute appendicitis
Schema representation
Meaning binding (Equivalent-classes)	SNOMED 89100005 \| Final diagnosis (discharge) (contextual qualifier) (qualifier value) \|^c LOINC 38999-9 \| Hospital discharge DRG [Interpretation] \|^c
Parents	Diagnosis^c
	has subject age^op	0 .. 1	Age^c
	has data provider institute^op	1 .. 1	Data Provider Institute^c
	has administrative case^op	0 .. 1	Administrative Case^c
	has code^op	1 .. 1		Yes
	has coding datetime^dp	0 .. 1	xsd:dateTime^c
	has record datetime^dp	0 .. 1	xsd:dateTime^c
	has rank^op	0 .. 1		Yes
	has subject pseudo identifier^op	1 .. 1	Subject Pseudo Identifier^c

Restrictions	has code^op : icd-10-gm:ICD-10-GM^c has rank^op : FOPH Diagnosis rank^c

FOPH Procedure^c # Classes

Property (In the domain of)		Cardinality	Class or Datatype	Restriction
URI	`https://biomedit.ch/rdf/sphn-ontology/sphn#FOPHProcedure`
Description	procedure, coded respecting the rules of FOPH and used for building the DRGs, e.g. Z57.34 open biopsy of the urinary bladder
Schema representation
Parents	Procedure^c
	has data provider institute^op	1 .. 1	Data Provider Institute^c
	has start datetime^dp	1 .. 1	xsd:dateTime^c
	has body site^op	0 .. 1	Body Site^c
	has coding datetime^dp	0 .. 1	xsd:dateTime^c
	has administrative case^op	0 .. 1	Administrative Case^c
	has code^op	1 .. 1		Yes
	has rank^op	0 .. 1		Yes
	has subject pseudo identifier^op	1 .. 1	Subject Pseudo Identifier^c
	has end datetime^dp	0 .. 1	xsd:dateTime^c
	has intent^op	0 .. 1	Intent^c

Restrictions	has code^op : descendants of the given classes are allowed chop:CHOP^c has rank^op : FOPH Procedure rank^c

Gene^c # Classes

Property (In the domain of)		Cardinality	Class or Datatype
URI	`https://biomedit.ch/rdf/sphn-ontology/sphn#Gene`
Description	fundamental unit of heredity that contains necessary elements to encore for a transcript
Schema representation
Meaning binding (Equivalent-classes)	SO 0000704 \| gene \|^c SNOMED 67271001 \| Gene (substance) \|^c
Parents	SPHN Concept^c
	has transcript^op	0 .. *	Transcript^c
	has organism^op	0 .. 1	Organism^c
	has code^op	1 .. 1	Code^c or Terminology^c
	has protein^op	0 .. *	Protein^c

Restrictions	None
Notes	sphn:hasCode allowed coding system: HGNC, NCBI Gene, Ensembl or other
Used in (In the range of)	has gene^op

Genetic Variation^c # Classes

URI	`https://biomedit.ch/rdf/sphn-ontology/sphn#GeneticVariation`
Description	a genetic variation occurring at a defined position
Schema representation
Meaning binding (Equivalent-classes)	SO 0001060 \| sequence_variant \|^c GENO 0000476 \| variant \|^c
Parents	SPHN Concept^c
Children (Sub-classes)	Single Nucleotide Variation^c

Property (In the domain of)			Cardinality	Class or Datatype		Restriction
	has chromosomal location^op		0 .. 1	Chromosomal Location^c
	has genomic position^op		0 .. 1	Genomic Position^c

Restrictions	None
Used in (In the range of)	has genetic variation^op

Genomic Position^c # Classes

Property (In the domain of)		Cardinality	Class or Datatype	Restriction
URI	`https://biomedit.ch/rdf/sphn-ontology/sphn#GenomicPosition`
Description	genomic position with respect to a reference
Schema representation
Meaning binding (Equivalent-classes)	GENO 0000902 \| genomic feature location \|^c
Parents	SPHN Concept^c
	has coordinate convention^op	1 .. 1		Yes
	has start^dp	1 .. 1	xsd:double^c
	has reference^op	1 .. 1	Reference^c
	has end^dp	1 .. 1	xsd:double^c

Restrictions	has coordinate convention^op : Genomic Position coordinate convention^c
Used in (In the range of)	has genomic position^op

Gestational Age at Birth^c # Classes

Property (In the domain of)		Cardinality	Class or Datatype	Restriction
URI	`https://biomedit.ch/rdf/sphn-ontology/sphn#GestationalAgeAtBirth`
Description	gestational age of a child at birth
Schema representation
Meaning binding (Equivalent-classes)	LOINC 76516-4 \| Gestational age--at birth \|^c SNOMED 412726003 \| Length of gestation at birth (observable entity) \|^c
Parents	SPHN Concept^c
	has quantity^op	1 .. 1		Yes
	has data provider institute^op	1 .. *	Data Provider Institute^c
	has administrative case^op	0 .. *	Administrative Case^c
	has subject pseudo identifier^op	1 .. *	Subject Pseudo Identifier^c

Restrictions	has quantity^op / has unit^op / has code^op : ucum:d^c

Healthcare Encounter^c # Classes

Property (In the domain of)		Cardinality	Class or Datatype
URI	`https://biomedit.ch/rdf/sphn-ontology/sphn#HealthcareEncounter`
Description	an interaction between an individual and a specific unit or service of a healthcare provider institute, e.g. emergency, intensive care unit, for the purpose of providing healthcare service(s) or assessing the health status of an individual
Schema representation
Meaning binding (Equivalent-classes)	SNOMED 308335008 \| Patient encounter procedure (procedure) \|^c
Parents	SPHN Concept^c
	has end datetime^dp	0 .. 1	xsd:dateTime^c
	has identifier^dp	1 .. 1	xsd:string^c
	has start datetime^dp	1 .. 1	xsd:dateTime^c
	has origin location^op	0 .. 1	Location^c
	has data provider institute^op	1 .. 1	Data Provider Institute^c
	has administrative case^op	0 .. 1	Administrative Case^c
	has target location^op	0 .. 1	Location^c
	has current location^op	1 .. 1	Location^c
	has therapeutic area^op	0 .. 1	Therapeutic Area^c
	has subject pseudo identifier^op	1 .. 1	Subject Pseudo Identifier^c

Restrictions	None

Heart Rate^c # Classes

Property (In the domain of)		Cardinality	Class or Datatype	Restriction
URI	`https://biomedit.ch/rdf/sphn-ontology/sphn#HeartRate`
Description	frequency of the heart beats, i.e. the number of time a heart beats per unit of time
Schema representation
Meaning binding (Equivalent-classes)	SNOMED 364075005 \| Heart rate (observable entity) \|^c LOINC 8867-4 \| Heart rate \|^c
Parents	Measurement^c
	has subject pseudo identifier^op	1 .. 1	Subject Pseudo Identifier^c
	has quantity^op	1 .. 1	Quantity^c
	has data provider institute^op	1 .. 1	Data Provider Institute^c
	has administrative case^op	0 .. 1	Administrative Case^c
	has body site^op	0 .. 1	Body Site^c
	has measurement datetime^dp	1 .. 1	xsd:dateTime^c
	has measurement method^op	0 .. 1	Measurement Method^c
	has regularity code^op	0 .. 1		Yes
	has physiologic state^op	0 .. 1	Physiologic State^c

Restrictions	has regularity code^op : descendants of the given classes are not allowed SNOMED 271636001 \| Pulse regular (finding) \|^c SNOMED 61086009 \| Pulse irregular (finding) \|^c

ICD-O Diagnosis^c # Classes

Property (In the domain of)		Cardinality	Class or Datatype	Restriction
URI	`https://biomedit.ch/rdf/sphn-ontology/sphn#ICDODiagnosis`
Description	ICD-O diagnosis
Schema representation
Parents	Diagnosis^c
	has record datetime^dp	0 .. 1	xsd:dateTime^c
	has subject pseudo identifier^op	1 .. 1	Subject Pseudo Identifier^c
	has topography code^op	0 .. 1		Yes
	has morphology code^op	1 .. 1		Yes
	has subject age^op	0 .. 1	Age^c
	has data provider institute^op	1 .. 1	Data Provider Institute^c
	has administrative case^op	0 .. 1	Administrative Case^c
	has coding datetime^dp	0 .. 1	xsd:dateTime^c

Restrictions

has topography code^op :

Code^c

has morphology code^op :

Code^c

Notes

sphn:hasMorphologyCode allowed coding system: ICD-O-3 Morphology

sphn:hasTopographyCode allowed coding system: ICD-O-3 Topography

Inhaled Oxygen Concentration^c # Classes

Property (In the domain of)		Cardinality	Class or Datatype	Restriction
URI	`https://biomedit.ch/rdf/sphn-ontology/sphn#InhaledOxygenConcentration`
Description	fraction of inspired oxygen (FiO2) either calculated knowing the device used and the amount of oxygen administrated or coming from the respiratory system settings
Schema representation
Meaning binding (Equivalent-classes)	LOINC 3150-0 \| Inhaled oxygen concentration \|^c SNOMED 250774007 \| Inspired oxygen concentration (observable entity) \|^c
Parents	Measurement^c
	has quantity^op	1 .. 1		Yes
	has data provider institute^op	1 .. 1	Data Provider Institute^c
	has administrative case^op	0 .. 1	Administrative Case^c
	has measurement datetime^dp	1 .. 1	xsd:dateTime^c
	has data determination^op	0 .. 1	Data Determination^c
	has oxygen flow rate^op	0 .. 1	Drug Administration Event^c
	has subject pseudo identifier^op	1 .. 1	Subject Pseudo Identifier^c
	has oxygen equipment^op	0 .. 1	Medical Device^c

Restrictions	has quantity^op / has unit^op / has code^op : ucum:percent^c

Intent^c # Classes

Property (In the domain of)		Cardinality	Restriction
URI	`https://biomedit.ch/rdf/sphn-ontology/sphn#Intent`
Description	treatment or procedure purpose
Schema representation
Meaning binding (Equivalent-classes)	SNOMED 363675004 \| Intents (nature of procedure values) (qualifier value) \|^c
Parents	SPHN Concept^c
	has code^op	1 .. 1	Yes

Restrictions	has code^op : descendants of the given classes are allowed SNOMED 363675004 \| Intents (nature of procedure values) (qualifier value) \|^c
Used in (In the range of)	has indication to start^op has intent^op

Lab Analyzer^c # Classes

Property (In the domain of)		Cardinality	Class or Datatype	Restriction
URI	`https://biomedit.ch/rdf/sphn-ontology/sphn#LabAnalyzer`
Description	laboratory analyzer used to assess medical laboratory samples
Schema representation
Parents	Medical Device^c
	has product code^op	0 .. 1	Terminology^c or Code^c
	has type code^op	0 .. 1		Yes

Restrictions

has type code^op :

Code^c

Notes

sphn:hasTypeCode allowed coding system: GMDN, EMDN

sphn:hasProductCode allowed coding system: UDI-DI from GUDID, or other

Used in
(In the range of)

has test kit^op
has instrument^op

Lab Result^c # Classes

Property (In the domain of)		Cardinality	Class or Datatype
URI	`https://biomedit.ch/rdf/sphn-ontology/sphn#LabResult`
Description	transmitted laboratory analysis results for a specific biosample analyzed

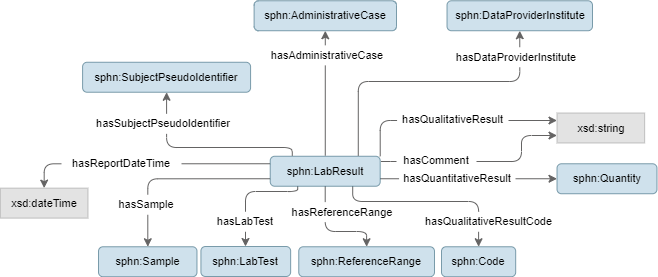

Schema representation
Meaning binding (Equivalent-classes)	SNOMED 118246004 \| Laboratory test finding (navigational concept) \|^c
Parents	SPHN Concept^c
	has subject pseudo identifier^op	1 .. 1	Subject Pseudo Identifier^c
	has qualitative result code^op	0 .. 1	Terminology^c or Code^c
	has qualitative result^dp	0 .. 1	xsd:string^c
	has report datetime^dp	1 .. 1	xsd:dateTime^c
	has sample^op	0 .. 1	Sample^c
	has quantitative result^op	0 .. 1	Quantity^c
	has comment^dp	0 .. 1	xsd:string^c
	has lab test^op	1 .. 1	Lab Test^c
	has reference range^op	0 .. 1	Reference Range^c
	has data provider institute^op	1 .. 1	Data Provider Institute^c
	has administrative case^op	0 .. 1	Administrative Case^c

Restrictions	None

Lab Test^c # Classes

Property (In the domain of)		Cardinality	Class or Datatype	Restriction
URI	`https://biomedit.ch/rdf/sphn-ontology/sphn#LabTest`
Description	lab test information including information elements provided by LOINC, instrument and test kit
Schema representation
Meaning binding (Equivalent-classes)	SNOMED 15220000 \| Laboratory test (procedure) \|^c
Parents	SPHN Concept^c
	has instrument^op	0 .. 1	Lab Analyzer^c
	has test kit^op	0 .. 1	Lab Analyzer^c
	has code^op	1 .. 1		Yes

Restrictions	has code^op : descendants of the given classes are allowed LOINC \| LOINC \|^c
Used in (In the range of)	has lab test^op

Laterality^c # Classes

Property (In the domain of)		Cardinality	Restriction
URI	`https://biomedit.ch/rdf/sphn-ontology/sphn#Laterality`
Description	localization with respect to the side of the body
Schema representation
Meaning binding (Equivalent-classes)	LOINC 20228-3 \| Anatomic part Laterality \|^c
Parents	SPHN Concept^c
	has code^op	1 .. 1	Yes

Restrictions	has code^op : descendants of the given classes are not allowed SNOMED 7771000 \| Left (qualifier value) \|^c SNOMED 24028007 \| Right (qualifier value) \|^c SNOMED 51440002 \| Right and left (qualifier value) \|^c SNOMED 66459002 \| Unilateral (qualifier value) \|^c
Used in (In the range of)	has laterality^op

Location^c # Classes

Property (In the domain of)		Cardinality	Class or Datatype	Restriction
URI	`https://biomedit.ch/rdf/sphn-ontology/sphn#Location`
Description	physical location or medical division taking care of the individual
Schema representation
Parents	SPHN Concept^c
	has data provider institute^op	1 .. 1	Data Provider Institute^c
	has type code^op	1 .. 1		Yes
	has exact^dp	0 .. 1	xsd:string^c

Restrictions	has type code^op : descendants of the given classes are allowed SNOMED 276339004 \| Environment (environment) \|^c
Used in (In the range of)	has discharge location^op has location^op has origin location^op has target location^op has current location^op

Measurement^c # Classes

URI	`https://biomedit.ch/rdf/sphn-ontology/sphn#Measurement`
Description	annotation used to indicate the size or magnitude of something that was determined by comparison to a standard
Parents	SPHN Concept^c
Children (Sub-classes)	Body Weight^c Heart Rate^c Body Height^c Cardiac Output^c Body Temperature^c Oxygen Saturation^c Blood Pressure^c Inhaled Oxygen Concentration^c Circumference Measure^c Respiratory Rate^c

Measurement Method^c # Classes

Property (In the domain of)		Cardinality	Restriction
URI	`https://biomedit.ch/rdf/sphn-ontology/sphn#MeasurementMethod`
Description	procedure used to measure an amount, quantity, size, level, extent, or magnitude, resulting in an qualitative or quantitative value
Schema representation
Meaning binding (Equivalent-classes)	SNOMED 122869004 \| Measurement procedure (procedure) \|^c
Parents	SPHN Concept^c
	has code^op	1 .. 1	Yes

Restrictions	has code^op : descendants of the given classes are allowed SNOMED 128927009 \| Procedure by method (procedure) \|^c
Used in (In the range of)	has measurement method^op

Medical Device^c # Classes

URI	`https://biomedit.ch/rdf/sphn-ontology/sphn#MedicalDevice`
Description	product intended for medical use when the main effect is not achieved by a medicinal product; medical devices include, but are not limited to, implants, instruments, devices, in vitro diagnostics
Schema representation
Meaning binding (Equivalent-classes)	SNOMED 63653004 \| Biomedical device (physical object) \|^c
Parents	SPHN Concept^c
Children (Sub-classes)	Lab Analyzer^c

Property (In the domain of)			Cardinality	Class or Datatype		Restriction
	has type code^op		0 .. 1			Yes
	has product code^op		0 .. 1	Terminology^c or Code^c

Restrictions	has type code^op : descendants of the given classes are allowed SNOMED 272181003 \| Clinical equipment and/or device (physical object) \|^c
Used in (In the range of)	has medical device^op has oxygen equipment^op

Nursing Diagnosis^c # Classes

Property (In the domain of)		Cardinality	Class or Datatype	Restriction
URI	`https://biomedit.ch/rdf/sphn-ontology/sphn#NursingDiagnosis`
Description	clinical judgment concerning a human response to health conditions/life processes, or a vulnerability for that response, by an individual, family, group or community; a nursing diagnosis provides the basis for selection of nursing interventions to achieve outcomes for which the nurse has accountability
Schema representation
Parents	Diagnosis^c
	has subject age^op	0 .. 1	Age^c
	has data provider institute^op	1 .. 1	Data Provider Institute^c
	has administrative case^op	0 .. 1	Administrative Case^c
	has code^op	1 .. 1		Yes
	has coding datetime^dp	0 .. 1	xsd:dateTime^c
	has record datetime^dp	0 .. 1	xsd:dateTime^c
	has subject pseudo identifier^op	1 .. 1	Subject Pseudo Identifier^c

Restrictions	has code^op : Code^c
Notes	sphn:hasCode allowed coding system: NANDA

Oncology Treatment Assessment^c # Classes

Property (In the domain of)		Cardinality	Class or Datatype	Restriction
URI	`https://biomedit.ch/rdf/sphn-ontology/sphn#OncologyTreatmentAssessment`
Description	assessment of oncology treatment
Schema representation
Meaning binding (Equivalent-classes)	SNOMED 370807008 \| Evaluation of response to medications (procedure) \|^c
Parents	SPHN Concept^c
	has progression type^op	0 .. 1		Yes
	has subject pseudo identifier^op	1 .. 1	Subject Pseudo Identifier^c
	has method code^op	0 .. 1		Yes
	has criteria^op	0 .. 1		Yes
	has assessment datetime^dp	1 .. 1	xsd:dateTime^c
	has result^op	0 .. 1		Yes
	has data provider institute^op	1 .. 1	Data Provider Institute^c
	has administrative case^op	0 .. 1	Administrative Case^c
	has progression body site^op	0 .. 1	Body Site^c

Restrictions	has progression type^op : Oncology Treatment Assessment progression type^c has method code^op : descendants of the given classes are not allowed SNOMED 113091000 \| Magnetic resonance imaging (procedure) \|^c SNOMED 71040008 \| Computed tomography follow-up (procedure) \|^c SNOMED 450436003 \| Positron emission tomography with computed tomography (procedure) \|^c has criteria^op : Oncology Treatment Assessment criteria^c has result^op : Oncology Treatment Assessment result^c

Organism^c # Classes

Property (In the domain of)		Cardinality	Restriction
URI	`https://biomedit.ch/rdf/sphn-ontology/sphn#Organism`
Description	living system capable of replicating or reproducing, growth and maintenance. An organism may be unicellular or multicellular
Schema representation
Meaning binding (Equivalent-classes)	SNOMED 410607006 \| Organism (organism) \|^c
Parents	SPHN Concept^c
	has code^op	1 .. 1	Yes

Restrictions	has code^op : descendants of the given classes are allowed SNOMED 410607006 \| Organism (organism) \|^c
Used in (In the range of)	has organism^op

Oxygen Saturation^c # Classes

Property (In the domain of)		Cardinality	Class or Datatype	Restriction
URI	`https://biomedit.ch/rdf/sphn-ontology/sphn#OxygenSaturation`
Description	fraction of oxygen present in the blood
Schema representation
Meaning binding (Equivalent-classes)	SNOMED 103228002 \| Hemoglobin saturation with oxygen (observable entity) \|^c
Parents	Measurement^c
	has subject pseudo identifier^op	1 .. 1	Subject Pseudo Identifier^c
	has quantity^op	1 .. 1		Yes
	has body site^op	0 .. 1		Yes
	has data provider institute^op	1 .. 1	Data Provider Institute^c
	has administrative case^op	0 .. 1	Administrative Case^c
	has measurement datetime^dp	0 .. 1	xsd:dateTime^c
	has measurement method^op	0 .. 1		Yes

Restrictions

has quantity^op / has unit^op / has code^op :

ucum:percent^c

has body site^op / has code^op : descendants of the given classes are allowed

snomed:SNOMED^c

has measurement method^op / has code^op : descendants of the given classes are allowed

snomed:SNOMED^c

Notes

sphn:hasMeasurementMethod/sphn:hasCode recommended values: 252465000 | Pulse oximetry (procedure) |

Pharmaceutical Dose Form^c # Classes

Property (In the domain of)		Cardinality	Restriction
URI	`https://biomedit.ch/rdf/sphn-ontology/sphn#PharmaceuticalDoseForm`
Description	physical manifestation of a product that contains the active ingredient(s) and/or inactive ingredient(s) that are intended to be delivered to the patient
Schema representation
Meaning binding (Equivalent-classes)	SNOMED 736542009 \| Pharmaceutical dose form (dose form) \|^c LOINC 74055-5 \| Dose form of Medication \|^c
Parents	SPHN Concept^c
	has code^op	1 .. 1	Yes

Restrictions	has code^op : SNOMED 736542009 \| Pharmaceutical dose form (dose form) \|^c Code^c
Notes	sphn:hasCode allowed coding system: SNOMED CT, EDQM
Used in (In the range of)	has manufactured dose form^op

Physiologic State^c # Classes

Property (In the domain of)		Cardinality	Restriction
URI	`https://biomedit.ch/rdf/sphn-ontology/sphn#PhysiologicState`
Description	physiologic state of the individual, e.g. resting, exercise
Schema representation
Meaning binding (Equivalent-classes)	SNOMED 128973006 \| Finding related physiologic patient state (finding) \|^c
Parents	SPHN Concept^c
	has code^op	1 .. 1	Yes

Restrictions	has code^op : descendants of the given classes are allowed SNOMED 128973006 \| Finding related physiologic patient state (finding) \|^c
Used in (In the range of)	has physiologic state^op

Problem Condition^c # Classes

Property (In the domain of)		Cardinality	Class or Datatype	Restriction
URI	`https://biomedit.ch/rdf/sphn-ontology/sphn#ProblemCondition`
Description	clinical condition, problem, diagnosis, or other event, situation, issue, or clinical concept that has risen to a level of concern
Schema representation
Meaning binding (Equivalent-classes)	SNOMED 55607006 \| Problem (finding) \|^c LOINC 44100-6 \| Medical problem \|^c
Parents	SPHN Concept^c
	has subject pseudo identifier^op	1 .. 1	Subject Pseudo Identifier^c
	has onset datetime^dp	0 .. 1	xsd:dateTime^c
	has free text^dp	0 .. 1	xsd:string^c
	has relative temporality code^op	0 .. 1		Yes
	has data provider institute^op	1 .. 1	Data Provider Institute^c
	has code^op	0 .. 1	Code^c or Terminology^c
	has administrative case^op	0 .. 1	Administrative Case^c
	has record datetime^dp	0 .. 1	xsd:dateTime^c

Restrictions	has relative temporality code^op : descendants of the given classes are allowed SNOMED 307152002 \| Temporal periods relating to procedure (qualifier value) \|^c
Notes	sphn:hasCode allowed coding system: ICPC or other

Procedure^c # Classes

URI	`https://biomedit.ch/rdf/sphn-ontology/sphn#Procedure`
Description	invasive or non-invasive intervention performed for, with or on behalf of an individual whose purpose is to assess, improve, maintain, promote or modify health, functioning or health conditions
Schema representation
Meaning binding (Equivalent-classes)	SNOMED 71388002 \| Procedure (procedure) \|^c
Parents	SPHN Concept^c
Children (Sub-classes)	Electrocardiographic Procedure^c Radiotherapy Procedure^c FOPH Procedure^c Diagnostic Radiologic Examination^c

	Cardinality	Class or Datatype	Restriction
has subject pseudo identifier^op	1 .. 1	Subject Pseudo Identifier^c
has end datetime^dp	0 .. 1	xsd:dateTime^c
has intent^op	0 .. 1	Intent^c
has start datetime^dp	1 .. 1	xsd:dateTime^c
has body site^op	0 .. 1	Body Site^c
has data provider institute^op	1 .. 1	Data Provider Institute^c
has administrative case^op	0 .. 1	Administrative Case^c
has code^op	1 .. *		Yes
has coding datetime^dp	0 .. 1	xsd:dateTime^c

Restrictions	has code^op : SNOMED 138875005 \| SNOMED CT Concept (SNOMED RT+CTV3) \|^c chop:CHOP^c Terminology^c
Notes	sphn:hasCode allowed coding system: SNOMED CT, CHOP or other

Protein^c # Classes

Property (In the domain of)		Cardinality	Class or Datatype
URI	`https://biomedit.ch/rdf/sphn-ontology/sphn#Protein`
Description	molecule composed by one or more chains of amino acids
Schema representation
Meaning binding (Equivalent-classes)	SNOMED 88878007 \| Protein (substance) \|^c SO 0000104 \| polypeptide \|^c
Parents	SPHN Concept^c
	has code^op	1 .. 1	Code^c or Terminology^c
	has organism^op	0 .. 1	Organism^c

Restrictions	None
Notes	sphn:hasCode allowed coding system: UniProtKB or other
Used in (In the range of)	has protein^op

Quantity^c # Classes

Property (In the domain of)		Cardinality	Class or Datatype	Restriction
URI	`https://biomedit.ch/rdf/sphn-ontology/sphn#Quantity`
Description	an amount or a number of something
Schema representation
Parents	SPHN Concept^c
	has value^dp	1 .. 1		Yes
	has unit^op	1 .. 1	Unit^c
	has comparator^op	0 .. 1		Yes

Restrictions	has value^dp : xsd:double^c has comparator^op : Comparator^c
Used in (In the range of)	has lower limit^op has tumor purity^op has manifestation duration^op has diastolic pressure^op has frequency^op has radiation quantity^op has quantity^op has exposure duration^op has quantitative result^op has mean pressure^op has number of leads^op has systolic pressure^op has duration^op has fractions number^op has upper limit^op has drug quantity^op

Radiotherapy Procedure^c # Classes

Property (In the domain of)		Cardinality	Class or Datatype	Restriction
URI	`https://biomedit.ch/rdf/sphn-ontology/sphn#RadiotherapyProcedure`
Description	given radiotherapy procedure during oncological treatment
Schema representation
Meaning binding (Equivalent-classes)	SNOMED 108290001 \| Radiation oncology AND/OR radiotherapy (procedure) \|^c
Parents	Procedure^c
	has data provider institute^op	1 .. 1	Data Provider Institute^c
	has start datetime^dp	1 .. 1	xsd:dateTime^c
	has body site^op	0 .. 1	Body Site^c
	has fractions number^op	0 .. 1	Quantity^c
	has administrative case^op	0 .. 1	Administrative Case^c
	has code^op	1 .. *		Yes
	has coding datetime^dp	0 .. 1	xsd:dateTime^c
	has subject pseudo identifier^op	1 .. 1	Subject Pseudo Identifier^c
	has end datetime^dp	0 .. 1	xsd:dateTime^c
	has radiation quantity^op	0 .. 1		Yes
	has intent^op	0 .. 1	Intent^c

Restrictions	has code^op : descendants of the given classes are not allowed SNOMED 33195004 \| External beam radiation therapy procedure (procedure) \|^c SNOMED 115959002 \| Stereotactic radiosurgery (procedure) \|^c SNOMED 395096001 \| Stereotactic radiotherapy (procedure) \|^c SNOMED 152198000 \| Brachytherapy (procedure) \|^c SNOMED 399315003 \| Radionuclide therapy (procedure) \|^c SNOMED 168524008 \| Radiotherapy - intraoperative control (procedure) \|^c SNOMED 78080008 \| Hyperthermia treatment of cancer (procedure) \|^c SNOMED 74964007 \| Other (qualifier value) \|^c has radiation quantity^op / has unit^op / has code^op : ucum:Gy^c ucum:cGy^c ucum:mCi^c ucum:MBq^c

Reference^c # Classes

Property (In the domain of)		Cardinality	Class or Datatype
URI	`https://biomedit.ch/rdf/sphn-ontology/sphn#Reference`
Description	reference construct used for comparison purposes
Schema representation
Meaning binding (Equivalent-classes)	GENO 0000152 \| reference \|^c
Parents	SPHN Concept^c
	has code^op	1 .. 1	Code^c or Terminology^c

Restrictions	None
Notes	sphn:hasCode allowed coding system: NCBI GenBank or other
Used in (In the range of)	has reference^op

Reference Range^c # Classes

Property (In the domain of)		Cardinality	Class or Datatype
URI	`https://biomedit.ch/rdf/sphn-ontology/sphn#ReferenceRange`
Description	interval of values that is deemed normal for a physiologic measurement in healthy individuals
Schema representation
Parents	SPHN Concept^c
	has lower limit^op	0 .. 1	Quantity^c
	has upper limit^op	0 .. 1	Quantity^c

Restrictions	None
Used in (In the range of)	has reference range^op

Respiratory Rate^c # Classes

Property (In the domain of)		Cardinality	Class or Datatype	Restriction
URI	`https://biomedit.ch/rdf/sphn-ontology/sphn#RespiratoryRate`
Description	frequency at which the breathing occurs
Schema representation
Meaning binding (Equivalent-classes)	SNOMED 86290005 \| Respiratory rate (observable entity) \|^c
Parents	Measurement^c
	has subject pseudo identifier^op	1 .. 1	Subject Pseudo Identifier^c
	has quantity^op	1 .. 1	Quantity^c
	has data provider institute^op	1 .. 1	Data Provider Institute^c
	has administrative case^op	0 .. 1	Administrative Case^c
	has determination datetime^dp	0 .. 1	xsd:dateTime^c
	has measurement datetime^dp	0 .. *	xsd:dateTime^c
	has data determination^op	0 .. 1		Yes

Restrictions	has data determination^op / has method code^op : descendants of the given classes are not allowed SNOMED 258104002 \| Measured (qualifier value) \|^c SNOMED 258090004 \| Calculated (qualifier value) \|^c SNOMED 87982008 \| Manual (qualifier value) \|^c SNOMED 263760002 \| Forced (qualifier value) \|^c

SPHN Concept^c # Classes

URI	`https://biomedit.ch/rdf/sphn-ontology/sphn#SPHNConcept`
Description	SPHN Concepts defined by the SPHN dataset
Children (Sub-classes)	Healthcare Encounter^c Transcript^c Substance^c Tumor Stage^c Allergy Episode^c Laterality^c Physiologic State^c Gestational Age at Birth^c Allergen^c Tumor Grade^c Sample^c Drug Prescription^c Location^c Access Device Presence^c Cardiac Index^c Quantity^c Body Site^c Administrative Case^c Code^c Civil Status^c Death Date^c Tumor Specimen^c Data Determination^c Simple Score^c Drug^c Data File^c Measurement Method^c Gene^c Chromosomal Location^c Measurement^c Administrative Gender^c Chromosome^c Time Pattern^c Body Surface Area^c Variant Notation^c Age^c Therapeutic Area^c Drug Administration Event^c Protein^c Intent^c Data Provider Institute^c Subject Pseudo Identifier^c Procedure^c Lab Test^c Lab Result^c Genomic Position^c Oncology Treatment Assessment^c Electrocardiogram^c TNM Classification^c Body Position^c Pharmaceutical Dose Form^c Value Set^c Adverse Event^c Care Handling^c Data Release^c Consent^c Unit^c Diagnosis^c Body Mass Index^c Birth Date^c Death Status^c Problem Condition^c Organism^c Biobanksample^c Medical Device^c Variant Descriptor^c Allergy^c Terminology^c Genetic Variation^c Reference^c Reference Range^c

Used in (In the range of)	has fixation type^op has comparator^op has rank^op has method^op has outcome^op has specialty name^op has result^op has primary container^op has progression type^op has consequences^op has calculation method^op has criteria^op has coordinate convention^op

Sample^c # Classes

Property (In the domain of)		Cardinality	Class or Datatype	Restriction
URI	`https://biomedit.ch/rdf/sphn-ontology/sphn#Sample`
Description	any material sample for testing, diagnostic, propagation, treatment or research purposes
Schema representation
Meaning binding (Equivalent-classes)	SNOMED 123038009 \| Specimen (specimen) \|^c
Parents	SPHN Concept^c
	has subject pseudo identifier^op	1 .. 1	Subject Pseudo Identifier^c
	has material type code^op	0 .. *		Yes
	has primary container^op	0 .. 1		Yes
	has collection datetime^dp	1 .. 1	xsd:dateTime^c
	has identifier^dp	0 .. *	xsd:string^c
	has data provider institute^op	1 .. 1	Data Provider Institute^c
	has body site^op	0 .. 1	Body Site^c
	has administrative case^op	0 .. 1	Administrative Case^c
	has fixation type^op	0 .. 1		Yes

Restrictions	has material type code^op : descendants of the given classes are allowed SNOMED 123038009 \| Specimen (specimen) \|^c has primary container^op : Sample primary container^c has fixation type^op : Sample fixation type^c
Used in (In the range of)	has sample^op

Simple Score^c # Classes

Property (In the domain of)		Cardinality	Class or Datatype	Restriction
URI	`https://biomedit.ch/rdf/sphn-ontology/sphn#SimpleScore`
Description	score given using a scoring system based on procedures that serve to classify e.g. health status, disease pattern or injury pattern and are used in medicine
Schema representation
Meaning binding (Equivalent-classes)	SNOMED 782487009 \| Assessment score (observable entity) \|^c
Parents	SPHN Concept^c
	has value^dp	1 .. 1		Yes
	has data provider institute^op	1 .. 1	Data Provider Institute^c
	has administrative case^op	0 .. 1	Administrative Case^c
	has scoring system code^op	0 .. 1		Yes
	has subject pseudo identifier^op	1 .. 1	Subject Pseudo Identifier^c
	has scoring system^dp	0 .. 1	xsd:string^c
	has assessment datetime^dp	1 .. 1	xsd:dateTime^c

Restrictions	has value^dp : xsd:string^c has scoring system code^op : descendants of the given classes are allowed snomed:SNOMED^c
Notes	sphn:hasScoringSystemCode recommended values: 386554004 \|Glasgow coma scale (assessment scale)\|, 273481004 \|Geriatric depression scale (assessment scale)\|, 273617000 \|Mini-mental state examination (assessment scale)\|, 225908003 \|Pain score (observable entity)\|, 279101002 \|Verbal rating scale (assessment scale)\|, 273903006 \|Visual analog scale (assessment scale)\|, 273812009 \|Simplified acute physiology scale II (assessment scale)\|, 169895004 \|Apgar score at 1 minute (observable entity)\|, 169909004 \|Apgar score at 5 minutes (observable entity)\|, 169922007 \|Apgar score at 10 minutes (observable entity)\|, 459231000124102 \| Sequential Organ Failure Assessment (assessment scale)\|

Single Nucleotide Variation^c # Classes

Property (In the domain of)		Cardinality	Class or Datatype
URI	`https://biomedit.ch/rdf/sphn-ontology/sphn#SingleNucleotideVariation`
Description	single nucleotide change in a DNA sequence at a specific location
Schema representation
Meaning binding (Equivalent-classes)	SO 0001483 \| SNV \|^c
Parents	Genetic Variation^c
	has chromosomal location^op	0 .. 1	Chromosomal Location^c
	has genomic position^op	0 .. 1	Genomic Position^c
	has alternate allele^dp	1 .. 1	xsd:string^c
	has reference allele^dp	1 .. 1	xsd:string^c

Restrictions	None

Subject Pseudo Identifier^c # Classes

Property (In the domain of)		Cardinality	Class or Datatype
URI	`https://biomedit.ch/rdf/sphn-ontology/sphn#SubjectPseudoIdentifier`
Description	a pseudo code assigned as unique identifier to an individual by a data provider institute
Schema representation
Parents	SPHN Concept^c
	has identifier^dp	1 .. 1	xsd:string^c
	has data provider institute^op	1 .. 1	Data Provider Institute^c

Restrictions	None
Used in (In the range of)	has subject pseudo identifier^op

Substance^c # Classes

Property (In the domain of)		Cardinality	Class or Datatype	Restriction
URI	`https://biomedit.ch/rdf/sphn-ontology/sphn#Substance`
Description	any matter of defined composition that has discrete existence, whose origin may be biological, mineral or chemical
Schema representation
Meaning binding (Equivalent-classes)	SNOMED 105590001 \| Substance (substance) \|^c
Parents	SPHN Concept^c
	has code^op	0 .. 1		Yes
	has generic name^dp	0 .. 1	xsd:string^c
	has quantity^op	0 .. 1	Quantity^c

Restrictions	has code^op : descendants of the given classes are allowed SNOMED 105590001 \| Substance (substance) \|^c
Used in (In the range of)	has inactive ingredient^op has active ingredient^op

TNM Classification^c # Classes

Property (In the domain of)		Cardinality	Class or Datatype	Restriction
URI	`https://biomedit.ch/rdf/sphn-ontology/sphn#TNMClassification`
Description	classification of malignant tumor
Schema representation
Meaning binding (Equivalent-classes)	SNOMED 399566009 \| Tumor-node-metastasis (TNM) category (observable entity) \|^c
Parents	SPHN Concept^c
	has T suffix^dp	0 .. 1	xsd:string^c
	has version^dp	0 .. 1	xsd:string^c
	has subject pseudo identifier^op	1 .. 1	Subject Pseudo Identifier^c
	has assessment datetime^dp	1 .. 1	xsd:dateTime^c
	has N prefix^dp	0 .. 1	xsd:string^c
	has N suffix^dp	0 .. 1	xsd:string^c
	has M prefix^dp	0 .. 1	xsd:string^c
	has value^dp	1 .. 1		Yes
	has data provider institute^op	1 .. 1	Data Provider Institute^c
	has administrative case^op	0 .. 1	Administrative Case^c
	has T prefix^dp	0 .. 1	xsd:string^c
	has M suffix^dp	0 .. 1	xsd:string^c

Restrictions	has value^dp : xsd:string^c

Terminology^c # Classes

URI	`https://biomedit.ch/rdf/sphn-ontology/sphn#Terminology`
Description	Terminology class for grouping external resources used in the SPHN project
Parents	SPHN Concept^c
Children (Sub-classes)	SNOMED 138875005 \| SNOMED CT Concept (SNOMED RT+CTV3) \|^c sphn-geno:GENO^c ucum:UCUM^c sphn-atc:ATC^c sphn-so:SO^c sphn-hgnc:HGNC^c chop:CHOP^c LOINC \| LOINC \|^c icd-10-gm:ICD-10-GM^c

Used in
(In the range of)

has exposure route code^op
has qualitative result code^op
has severity code^op
has type code^op
has end cytoband code^op
has scoring system code^op
has material type code^op
has product code^op
has reason to stop code^op
has start cytoband code^op
has format code^op
has administration route code^op
has topography code^op
has reaction type code^op
has verification status code^op
has relative temporality code^op
has certainty code^op
has allele origin code^op
has manifestation code^op
has regularity code^op
has code^op
has zygosity code^op
has status code^op
has method code^op
has manifestation severity code^op
has morphology code^op

Therapeutic Area^c # Classes

Property (In the domain of)		Cardinality	Restriction
URI	`https://biomedit.ch/rdf/sphn-ontology/sphn#TherapeuticArea`
Description	professional health care specialization
Schema representation
Meaning binding (Equivalent-classes)	SNOMED 394658006 \| Clinical specialty (qualifier value) \|^c
Parents	SPHN Concept^c
	has specialty name^op	1 .. 1	Yes

Restrictions	has specialty name^op : Therapeutic Area specialty name^c
Used in (In the range of)	has therapeutic area^op

Time Pattern^c # Classes

Property (In the domain of)		Cardinality	Restriction
URI	`https://biomedit.ch/rdf/sphn-ontology/sphn#TimePattern`
Description	type of time period during which a treatment was given or an assessment was performed; this can be single time points or a continuous event
Schema representation
Meaning binding (Equivalent-classes)	SNOMED 272103003 \| Time patterns (qualifier value) \|^c
Parents	SPHN Concept^c
	has type code^op	1 .. 1	Yes

Restrictions	has type code^op : descendants of the given classes are not allowed SNOMED 255238004 \| Continuous (qualifier value) \|^c SNOMED 7087005 \| Intermittent (qualifier value) \|^c SNOMED 385432009 \| Not applicable (qualifier value) \|^c
Used in (In the range of)	has time pattern^op

Transcript^c # Classes

Property (In the domain of)		Cardinality	Class or Datatype
URI	`https://biomedit.ch/rdf/sphn-ontology/sphn#Transcript`
Description	RNA molecules that are made from a DNA template
Schema representation
Meaning binding (Equivalent-classes)	SO 0000673 \| transcript \|^c
Parents	SPHN Concept^c
	has code^op	1 .. 1	Code^c or Terminology^c
	has organism^op	0 .. 1	Organism^c
	has protein^op	0 .. 1	Protein^c

Restrictions	None
Notes	sphn:hasCode allowed coding system: Ensembl or other
Used in (In the range of)	has transcript^op

Tumor Grade^c # Classes

Property (In the domain of)		Cardinality	Class or Datatype
URI	`https://biomedit.ch/rdf/sphn-ontology/sphn#TumorGrade`
Description	tumor cells and tumor tissue abnormality
Schema representation
Meaning binding (Equivalent-classes)	LOINC 21858-6 \| Grade Cancer \|^c SNOMED 373372005 \| Histological grade finding (finding) \|^c
Parents	SPHN Concept^c
	has assessment datetime^dp	1 .. 1	xsd:dateTime^c
	has data provider institute^op	1 .. 1	Data Provider Institute^c
	has administrative case^op	0 .. 1	Administrative Case^c
	has code^op	1 .. 1	Code^c or Terminology^c
	has subject pseudo identifier^op	1 .. 1	Subject Pseudo Identifier^c

Restrictions	None

Tumor Specimen^c # Classes

Property (In the domain of)		Cardinality	Class or Datatype	Restriction
URI	`https://biomedit.ch/rdf/sphn-ontology/sphn#TumorSpecimen`
Description	tumor specimen, volume and fixation method used
Schema representation
Meaning binding (Equivalent-classes)	SNOMED 258435002 \| Tumor tissue specimen (specimen) \|^c
Parents	SPHN Concept^c
	has identifier^dp	0 .. *	xsd:string^c
	has primary container^op	0 .. 1		Yes
	has body site^op	0 .. 1	Body Site^c
	has data provider institute^op	1 .. 1	Data Provider Institute^c
	has administrative case^op	0 .. 1	Administrative Case^c
	has fixation type^op	0 .. 1		Yes
	has tumor purity^op	0 .. 1		Yes
	has subject pseudo identifier^op	1 .. 1	Subject Pseudo Identifier^c
	has material type code^op	0 .. *		Yes
	has collection datetime^dp	1 .. 1	xsd:dateTime^c

Restrictions	has primary container^op : Tumor Specimen primary container^c has fixation type^op : Tumor Specimen fixation type^c has tumor purity^op / has unit^op / has code^op : ucum:percent^c has material type code^op : descendants of the given classes are allowed SNOMED 123038009 \| Specimen (specimen) \|^c

Tumor Stage^c # Classes

Property (In the domain of)		Cardinality	Class or Datatype
URI	`https://biomedit.ch/rdf/sphn-ontology/sphn#TumorStage`
Description	growth extent of the tumor and how far the tumor has spread
Schema representation
Meaning binding (Equivalent-classes)	LOINC 21908-9 \| Stage group.clinical Cancer \|^c SNOMED 254292007 \| Tumor staging (tumor staging) \|^c
Parents	SPHN Concept^c
	has subject pseudo identifier^op	1 .. 1	Subject Pseudo Identifier^c
	has assessment datetime^dp	1 .. 1	xsd:dateTime^c
	has data provider institute^op	1 .. 1	Data Provider Institute^c
	has administrative case^op	0 .. 1	Administrative Case^c
	has code^op	1 .. 1	Code^c or Terminology^c

Restrictions	None

Unit^c # Classes

Property (In the domain of)		Cardinality	Restriction
URI	`https://biomedit.ch/rdf/sphn-ontology/sphn#Unit`
Description	unit of measurement
Schema representation
Meaning binding (Equivalent-classes)	SNOMED 767524001 \| Unit of measure (qualifier value) \|^c
Parents	SPHN Concept^c
	has code^op	1 .. 1	Yes

Restrictions	has code^op : ucum:UCUM^c
Used in (In the range of)	has unit^op

Variant Descriptor^c # Classes

Property (In the domain of)		Cardinality	Class or Datatype	Restriction
URI	`https://biomedit.ch/rdf/sphn-ontology/sphn#VariantDescriptor`
Description	human-readable description of the variant
Schema representation
Parents	SPHN Concept^c
	has subject pseudo identifier^op	1 .. *	Subject Pseudo Identifier^c
	has zygosity code^op	0 .. 1		Yes
	has genetic variation^op	0 .. 1	Genetic Variation^c
	has gene^op	0 .. 1	Gene^c
	has data provider institute^op	1 .. *	Data Provider Institute^c
	has allele origin code^op	0 .. 1		Yes
	has administrative case^op	0 .. *	Administrative Case^c
	has code^op	0 .. 1	Code^c or Terminology^c
	has notation^op	0 .. 1	Variant Notation^c
	has type code^op	0 .. 1		Yes

Restrictions	has zygosity code^op : GENO 0000133 \| zygosity \|^c has allele origin code^op : GENO 0000877 \| allele origin \|^c has type code^op : GENO \| sequence_alteration \|^c
Notes	sphn:hasCode allowed coding system: ClinVar, RefSNP or other

Variant Notation^c # Classes

Property (In the domain of)		Cardinality	Class or Datatype	Restriction
URI	`https://biomedit.ch/rdf/sphn-ontology/sphn#VariantNotation`
Description	description of the variant using a specific nomenclature
Schema representation
Parents	SPHN Concept^c
	has value^dp	1 .. 1		Yes
	has coding system and version^dp	1 .. 1	xsd:string^c

Restrictions	has value^dp : xsd:string^c
Used in (In the range of)	has notation^op

Object Properties ↑

SPHN attribute object
has active ingredient
has administration route code
has administrative case
has allele origin code
has allergen
has body site
has calculation method
has care handling
has certainty code
has chromosomal location
has chromosome
has code
has comparator
has consequences
has coordinate convention
has criteria
has current location
has data determination
has data file
has data provider institute
has death date
has diastolic pressure
has discharge location
has drug
has drug quantity
has duration
has end cytoband code
has exposure duration
has exposure route code
has fixation type
has format code
has fractions number
has frequency
has gene
has genetic variation
has genomic position
has inactive ingredient
has indication to start
has insertion point
has instrument
has intent
has lab test
has laterality
has location
has lower limit
has manifestation body site
has manifestation code
has manifestation duration
has manifestation severity code
has manufactured dose form
has material type code
has mean pressure
has measurement method
has medical device
has method
has method code
has morphology code
has notation
has number of leads
has organism
has origin location
has outcome
has output
has oxygen equipment
has oxygen flow rate
has physiologic state
has primary container
has product code
has progression body site
has progression type
has protein
has qualitative result code
has quantitative result
has quantity
has radiation quantity
has rank
has reaction type code
has reason to stop code
has reference
has reference range
has regularity code
has relative temporality code
has resting point
has result
has sample
has scoring system code
has severity code
has specialty name
has start cytoband code
has status code
has subject age
has subject pseudo identifier
has systolic pressure
has target location
has test kit
has therapeutic area
has time pattern
has topography code
has transcript
has tumor purity
has type code
has unit
has upper limit
has verification status code
has zygosity code

SPHN attribute object^op # OPs

URI	`https://biomedit.ch/rdf/sphn-ontology/sphn#SPHNAttributeObject`
Description	SPHN object attribute defined by the dataset

has active ingredient^op # OPs

URI	`https://biomedit.ch/rdf/sphn-ontology/sphn#hasActiveIngredient`
Description	pharmaceutically active component of the concept
Super-properties	SPHN attribute object^op
Domain(s)	Drug^c
Range	Substance^c

has administration route code^op # OPs

URI	`https://biomedit.ch/rdf/sphn-ontology/sphn#hasAdministrationRouteCode`
Description	code, name, coding system and version describing the route of administration
Super-properties	has code^op
Domain(s)	Drug Prescription^c Drug Administration Event^c
Range	Terminology^c Code^c

has administrative case^op # OPs

URI	`https://biomedit.ch/rdf/sphn-ontology/sphn#hasAdministrativeCase`
Description	link to an interaction between an individual and healthcare provider(s) via an administrative case identifier for the purpose of providing healthcare service(s) or assessing the health status of an individual
Super-properties	SPHN attribute object^op
Domain(s)	Diagnosis^c Drug Administration Event^c Diagnostic Radiologic Examination^c Drug Prescription^c Body Surface Area^c Body Mass Index^c Simple Score^c Access Device Presence^c Nursing Diagnosis^c Body Position^c Body Temperature^c Body Weight^c Allergy Episode^c Biobanksample^c Body Height^c Tumor Specimen^c FOPH Procedure^c Radiotherapy Procedure^c Heart Rate^c Healthcare Encounter^c FOPH Diagnosis^c Electrocardiographic Procedure^c Gestational Age at Birth^c Inhaled Oxygen Concentration^c Tumor Grade^c Procedure^c Problem Condition^c Sample^c Tumor Stage^c Cardiac Output^c Cardiac Index^c Circumference Measure^c Blood Pressure^c TNM Classification^c Oxygen Saturation^c Respiratory Rate^c Oncology Treatment Assessment^c ICD-O Diagnosis^c Variant Descriptor^c Adverse Event^c Lab Result^c
Range	Administrative Case^c

has allele origin code^op # OPs

URI	`https://biomedit.ch/rdf/sphn-ontology/sphn#hasAlleleOriginCode`
Description	code, name, coding system and version describing the origin of the allele decribed by the concept
Super-properties	has code^op
Domain(s)	Variant Descriptor^c
Range	Terminology^c Code^c

has allergen^op # OPs

URI	`https://biomedit.ch/rdf/sphn-ontology/sphn#hasAllergen`
Description	any substance, product or physical force producing immediate hypersensitivity responsible for the concept
Super-properties	SPHN attribute object^op
Domain(s)	Allergy^c Allergy Episode^c
Range	Allergen^c

has body site^op # OPs

URI	`https://biomedit.ch/rdf/sphn-ontology/sphn#hasBodySite`
Description	body site where the concept was measured, performed or collected
Super-properties	SPHN attribute object^op
Domain(s)	Body Temperature^c Tumor Specimen^c FOPH Procedure^c Diagnostic Radiologic Examination^c Radiotherapy Procedure^c Electrocardiographic Procedure^c Procedure^c Sample^c Heart Rate^c Circumference Measure^c Blood Pressure^c Oxygen Saturation^c
Range	Body Site^c

has calculation method^op # OPs

URI	`https://biomedit.ch/rdf/sphn-ontology/sphn#hasCalculationMethod`
Description	formula or method for calculating the concept
Super-properties	SPHN attribute object^op
Domain(s)	Body Surface Area^c
Range	SPHN Concept^c

has care handling^op # OPs

URI	`https://biomedit.ch/rdf/sphn-ontology/sphn#hasCareHandling`
Description	describes the relationship between the patient and care provider institute
Super-properties	SPHN attribute object^op
Domain(s)	Administrative Case^c
Range	Care Handling^c

has certainty code^op # OPs

URI	`https://biomedit.ch/rdf/sphn-ontology/sphn#hasCertaintyCode`
Description	code, name, coding system and version describing the degree of certainty (from a clinical point of view) that the specific substance triggered the concept
Super-properties	has code^op
Domain(s)	Allergy Episode^c
Range	Code^c Terminology^c

has chromosomal location^op # OPs

URI	`https://biomedit.ch/rdf/sphn-ontology/sphn#hasChromosomalLocation`
Description	chromosomal location of the concept
Super-properties	SPHN attribute object^op
Domain(s)	Genetic Variation^c Single Nucleotide Variation^c
Range	Chromosomal Location^c

has chromosome^op # OPs

URI	`https://biomedit.ch/rdf/sphn-ontology/sphn#hasChromosome`
Description	chromosome associated to the concept
Super-properties	SPHN attribute object^op
Domain(s)	Chromosomal Location^c
Range	Chromosome^c

has code^op # OPs

URI	`https://biomedit.ch/rdf/sphn-ontology/sphn#hasCode`
Description	code, name, coding system and version describing the concept
Super-properties	SPHN attribute object^op
Domain(s)	Diagnosis^c Diagnostic Radiologic Examination^c Measurement Method^c Nursing Diagnosis^c Body Position^c Pharmaceutical Dose Form^c Substance^c Administrative Gender^c FOPH Procedure^c Unit^c Problem Condition^c Radiotherapy Procedure^c Reference^c FOPH Diagnosis^c Body Site^c Electrocardiographic Procedure^c Organism^c Laterality^c Protein^c Tumor Grade^c Chromosome^c Procedure^c Allergen^c Tumor Stage^c Intent^c Transcript^c Variant Descriptor^c Death Status^c Physiologic State^c Gene^c Civil Status^c Adverse Event^c Data Provider Institute^c Lab Test^c
Range	Code^c Terminology^c

has comparator^op # OPs

URI	`https://biomedit.ch/rdf/sphn-ontology/sphn#hasComparator`
Description	qualifier describing whether the value is the precise one or not
Super-properties	SPHN attribute object^op
Domain(s)	Birth Date^c Quantity^c
Range	SPHN Concept^c

has consequences^op # OPs

URI	`https://biomedit.ch/rdf/sphn-ontology/sphn#hasConsequences`
Description	consequences of the concept
Super-properties	SPHN attribute object^op
Domain(s)	Adverse Event^c
Range	SPHN Concept^c

has coordinate convention^op # OPs

URI	`https://biomedit.ch/rdf/sphn-ontology/sphn#hasCoordinateConvention`
Description	convention used for the interpretation of coordinates used in the concept
Super-properties	SPHN attribute object^op
Domain(s)	Genomic Position^c
Range	SPHN Concept^c

has criteria^op # OPs

URI	`https://biomedit.ch/rdf/sphn-ontology/sphn#hasCriteria`
Description	criteria used for the concept
Super-properties	SPHN attribute object^op
Domain(s)	Oncology Treatment Assessment^c
Range	SPHN Concept^c

has current location^op # OPs

URI	`https://biomedit.ch/rdf/sphn-ontology/sphn#hasCurrentLocation`
Description	physical location where the individual received medical care
Super-properties	has location^op
Domain(s)	Healthcare Encounter^c
Range	Location^c

has data determination^op # OPs

URI	`https://biomedit.ch/rdf/sphn-ontology/sphn#hasDataDetermination`
Description	indicates whether the value was measured, calculated or set as a parameter of the ventilator
Super-properties	SPHN attribute object^op
Domain(s)	Inhaled Oxygen Concentration^c Respiratory Rate^c
Range	Data Determination^c

has data file^op # OPs

URI	`https://biomedit.ch/rdf/sphn-ontology/sphn#hasDataFile`
Description	data file associated to the concept
Super-properties	SPHN attribute object^op
Domain(s)	Electrocardiogram^c
Range	Data File^c

has data provider institute^op # OPs

URI	`https://biomedit.ch/rdf/sphn-ontology/sphn#hasDataProviderInstitute`
Description	link to the unique business identification number (UID) of the healthcare institute providing the data
Super-properties	SPHN attribute object^op
Domain(s)	Consent^c Diagnosis^c Data File^c FOPH Procedure^c Drug Administration Event^c Diagnostic Radiologic Examination^c Drug Prescription^c Body Surface Area^c Body Mass Index^c Simple Score^c Access Device Presence^c Nursing Diagnosis^c Radiotherapy Procedure^c Body Position^c Body Temperature^c Body Weight^c Allergy Episode^c FOPH Diagnosis^c Location^c Biobanksample^c Body Height^c Tumor Specimen^c Problem Condition^c Sample^c Heart Rate^c Cardiac Output^c Healthcare Encounter^c Electrocardiographic Procedure^c Gestational Age at Birth^c Inhaled Oxygen Concentration^c Subject Pseudo Identifier^c Tumor Grade^c Procedure^c Administrative Case^c Tumor Stage^c Cardiac Index^c Circumference Measure^c Blood Pressure^c TNM Classification^c Oxygen Saturation^c Respiratory Rate^c Oncology Treatment Assessment^c ICD-O Diagnosis^c Variant Descriptor^c Adverse Event^c Allergy^c Lab Result^c
Range	Data Provider Institute^c

has death date^op # OPs

URI	`https://biomedit.ch/rdf/sphn-ontology/sphn#hasDeathDate`
Description	datetime of death for the individual
Super-properties	SPHN attribute object^op
Domain(s)	Death Status^c
Range	Death Date^c

has diastolic pressure^op # OPs

URI	`https://biomedit.ch/rdf/sphn-ontology/sphn#hasDiastolicPressure`
Description	measured diastolic pressure value and unit
Super-properties	has quantity^op
Domain(s)	Blood Pressure^c
Range	Quantity^c

has discharge location^op # OPs

URI	`https://biomedit.ch/rdf/sphn-ontology/sphn#hasDischargeLocation`
Description	location where the individual went to when leaving the healthcare provider institute, e.g. nursing home
Super-properties	has location^op
Domain(s)	Administrative Case^c
Range	Location^c

has drug^op # OPs

URI	`https://biomedit.ch/rdf/sphn-ontology/sphn#hasDrug`
Description	any substance with the intent to prevent, diagnose, treat, or relieve symptoms of a disease or abnormal condition used in or causing the concept
Super-properties	SPHN attribute object^op
Domain(s)	Drug Administration Event^c Drug Prescription^c
Range	Drug^c

has drug quantity^op # OPs

URI	`https://biomedit.ch/rdf/sphn-ontology/sphn#hasDrugQuantity`
Description	quantity of a drug of the concept
Super-properties	has quantity^op
Domain(s)	Drug Administration Event^c Drug Prescription^c
Range	Quantity^c

has duration^op # OPs

URI	`https://biomedit.ch/rdf/sphn-ontology/sphn#hasDuration`
Description	duration of an event
Super-properties	has quantity^op
Domain(s)	Drug Administration Event^c
Range	Quantity^c

has end cytoband code^op # OPs

URI	`https://biomedit.ch/rdf/sphn-ontology/sphn#hasEndCytobandCode`
Description	end cytoband of the concept
Super-properties	has code^op
Domain(s)	Chromosomal Location^c
Range	Terminology^c Code^c

has exposure duration^op # OPs

URI	`https://biomedit.ch/rdf/sphn-ontology/sphn#hasExposureDuration`
Description	duration of the exposure to the substance
Super-properties	has duration^op
Domain(s)	Allergy Episode^c
Range	Quantity^c

has exposure route code^op # OPs

URI	`https://biomedit.ch/rdf/sphn-ontology/sphn#hasExposureRouteCode`
Description	code, name, coding system and version describing how the individual was exposed to the substance
Super-properties	has code^op
Domain(s)	Allergy Episode^c
Range	Terminology^c Code^c

has fixation type^op # OPs

URI	`https://biomedit.ch/rdf/sphn-ontology/sphn#hasFixationType`
Description	fixation or stabilization type
Super-properties	SPHN attribute object^op
Domain(s)	Tumor Specimen^c Sample^c
Range	SPHN Concept^c

has format code^op # OPs

URI	`https://biomedit.ch/rdf/sphn-ontology/sphn#hasFormatCode`
Description	code, name, coding system and version describing the format of the concept
Super-properties	has code^op
Domain(s)	Data File^c
Range	Terminology^c Code^c

has fractions number^op # OPs

URI	`https://biomedit.ch/rdf/sphn-ontology/sphn#hasFractionsNumber`
Description	number of fractions applied during an event
Super-properties	has quantity^op
Domain(s)	Radiotherapy Procedure^c
Range	Quantity^c

has frequency^op # OPs

URI	`https://biomedit.ch/rdf/sphn-ontology/sphn#hasFrequency`
Description	number of events per unit of time
Super-properties	has quantity^op
Domain(s)	Drug Prescription^c
Range	Quantity^c

has gene^op # OPs

URI	`https://biomedit.ch/rdf/sphn-ontology/sphn#hasGene`
Description	specific gene(s) context where the concept occurs
Super-properties	SPHN attribute object^op
Domain(s)	Variant Descriptor^c
Range	Gene^c

has genetic variation^op # OPs

URI	`https://biomedit.ch/rdf/sphn-ontology/sphn#hasGeneticVariation`
Description	concept described by its position and sequence change
Super-properties	SPHN attribute object^op
Domain(s)	Variant Descriptor^c
Range	Genetic Variation^c

has genomic position^op # OPs

URI	`https://biomedit.ch/rdf/sphn-ontology/sphn#hasGenomicPosition`
Description	genomic position of the concept
Super-properties	SPHN attribute object^op
Domain(s)	Genetic Variation^c Single Nucleotide Variation^c
Range	Genomic Position^c

has inactive ingredient^op # OPs

URI	`https://biomedit.ch/rdf/sphn-ontology/sphn#hasInactiveIngredient`
Description	inert ingredients or excipients, and generally have no pharmacological effect of the concept
Super-properties	SPHN attribute object^op
Domain(s)	Drug^c
Range	Substance^c

has indication to start^op # OPs

URI	`https://biomedit.ch/rdf/sphn-ontology/sphn#hasIndicationToStart`
Description	indication to start the concept
Super-properties	SPHN attribute object^op
Domain(s)	Drug Prescription^c
Range	Intent^c Diagnosis^c

has insertion point^op # OPs

URI	`https://biomedit.ch/rdf/sphn-ontology/sphn#hasInsertionPoint`
Description	point of insertion
Super-properties	has body site^op
Domain(s)	Access Device Presence^c
Range	Body Site^c

has instrument^op # OPs

URI	`https://biomedit.ch/rdf/sphn-ontology/sphn#hasInstrument`
Description	instrument used for the concept
Super-properties	SPHN attribute object^op
Domain(s)	Lab Test^c
Range	Lab Analyzer^c

has intent^op # OPs

URI	`https://biomedit.ch/rdf/sphn-ontology/sphn#hasIntent`
Description	intention for the concept
Super-properties	SPHN attribute object^op
Domain(s)	Electrocardiographic Procedure^c Procedure^c Drug Prescription^c FOPH Procedure^c Diagnostic Radiologic Examination^c Radiotherapy Procedure^c
Range	Intent^c

has lab test^op # OPs

URI	`https://biomedit.ch/rdf/sphn-ontology/sphn#hasLabTest`
Description	lab test information associated to the concept
Super-properties	SPHN attribute object^op
Domain(s)	Lab Result^c
Range	Lab Test^c

has laterality^op # OPs

URI	`https://biomedit.ch/rdf/sphn-ontology/sphn#hasLaterality`
Description	localization with respect to the side of the body
Super-properties	SPHN attribute object^op
Domain(s)	Body Site^c
Range	Laterality^c

has location^op # OPs

URI	`https://biomedit.ch/rdf/sphn-ontology/sphn#hasLocation`
Description	statement about a physical location
Super-properties	SPHN attribute object^op
Range	Location^c

has lower limit^op # OPs

URI	`https://biomedit.ch/rdf/sphn-ontology/sphn#hasLowerLimit`
Description	lowest value of the concept
Super-properties	has quantity^op
Domain(s)	Reference Range^c
Range	Quantity^c

has manifestation body site^op # OPs

URI	`https://biomedit.ch/rdf/sphn-ontology/sphn#hasManifestationBodySite`
Description	location in the body where the manifestation occurs (also referred to as manifestation location)
Super-properties	has body site^op
Domain(s)	Allergy Episode^c
Range	Body Site^c

has manifestation code^op # OPs

URI	`https://biomedit.ch/rdf/sphn-ontology/sphn#hasManifestationCode`
Description	code, name, coding system and version describing the clinical symptom and/or sign that occurred during the specific concept
Super-properties	has code^op
Domain(s)	Allergy Episode^c
Range	Terminology^c Code^c

has manifestation duration^op # OPs

URI	`https://biomedit.ch/rdf/sphn-ontology/sphn#hasManifestationDuration`
Description	duration of manifestation
Super-properties	has duration^op
Domain(s)	Allergy Episode^c
Range	Quantity^c

has manifestation severity code^op # OPs

URI	`https://biomedit.ch/rdf/sphn-ontology/sphn#hasManifestationSeverityCode`
Description	code, name, coding system and version describing the severity of the manifestation
Super-properties	has code^op
Domain(s)	Allergy Episode^c
Range	Code^c Terminology^c

has manufactured dose form^op # OPs

URI	`https://biomedit.ch/rdf/sphn-ontology/sphn#hasManufacturedDoseForm`
Description	dose form presented in the manufactured item, e.g. powder
Super-properties	SPHN attribute object^op
Domain(s)	Drug^c
Range	Pharmaceutical Dose Form^c

has material type code^op # OPs

URI	`https://biomedit.ch/rdf/sphn-ontology/sphn#hasMaterialTypeCode`
Description	code, name, coding system and version describing the material type of the concept
Super-properties	has code^op
Domain(s)	Sample^c Tumor Specimen^c
Range	Terminology^c Code^c

has mean pressure^op # OPs

URI	`https://biomedit.ch/rdf/sphn-ontology/sphn#hasMeanPressure`
Description	measured average pressure value and unit
Super-properties	has quantity^op
Domain(s)	Blood Pressure^c
Range	Quantity^c

has measurement method^op # OPs

URI	`https://biomedit.ch/rdf/sphn-ontology/sphn#hasMeasurementMethod`
Description	measurement method of the concept
Super-properties	SPHN attribute object^op
Domain(s)	Heart Rate^c Blood Pressure^c Oxygen Saturation^c
Range	Measurement Method^c

has medical device^op # OPs

URI	`https://biomedit.ch/rdf/sphn-ontology/sphn#hasMedicalDevice`
Description	product intended for medical use when the main effect is not achieved by a medicinal product; medical devices include, but are not limited to, implants, instruments, devices, in vitro diagnostics, used in the concept
Super-properties	SPHN attribute object^op
Domain(s)	Access Device Presence^c
Range	Medical Device^c

has method^op # OPs

URI	`https://biomedit.ch/rdf/sphn-ontology/sphn#hasMethod`
Description	method used for the concept
Super-properties	SPHN attribute object^op
Domain(s)	Diagnostic Radiologic Examination^c
Range	SPHN Concept^c

has method code^op # OPs

URI	`https://biomedit.ch/rdf/sphn-ontology/sphn#hasMethodCode`
Description	code, name, coding system and version describing the method used for the assessment of the concept
Super-properties	has code^op
Domain(s)	Data Determination^c Cardiac Output^c Cardiac Index^c Oncology Treatment Assessment^c
Range	Code^c Terminology^c

has morphology code^op # OPs

URI	`https://biomedit.ch/rdf/sphn-ontology/sphn#hasMorphologyCode`
Description	code, name, coding system and version describing the characteristics of the tumor itself, including its cell type and biological activity; the code is composed of four digits that indicate the cell type or histology and one digit that indicates the behaviour
Super-properties	has code^op
Domain(s)	ICD-O Diagnosis^c
Range	Terminology^c Code^c

has notation^op # OPs

URI	`https://biomedit.ch/rdf/sphn-ontology/sphn#hasNotation`
Description	description of the concept using a specific nomenclature or syntax
Super-properties	SPHN attribute object^op
Domain(s)	Variant Descriptor^c
Range	Variant Notation^c

has number of leads^op # OPs

URI	`https://biomedit.ch/rdf/sphn-ontology/sphn#hasNumberOfLeads`
Description	number of leads used in the concept
Super-properties	has quantity^op
Domain(s)	Electrocardiographic Procedure^c
Range	Quantity^c

has organism^op # OPs

URI	`https://biomedit.ch/rdf/sphn-ontology/sphn#hasOrganism`
Description	organism associated to the concept
Super-properties	SPHN attribute object^op
Domain(s)	Gene^c Transcript^c Protein^c
Range	Organism^c

has origin location^op # OPs

URI	`https://biomedit.ch/rdf/sphn-ontology/sphn#hasOriginLocation`
Description	location where the individual came from, e.g. home, another hospital
Super-properties	has location^op
Domain(s)	Healthcare Encounter^c Administrative Case^c
Range	Location^c

has outcome^op # OPs

URI	`https://biomedit.ch/rdf/sphn-ontology/sphn#hasOutcome`
Description	result or effect of an action, situation, or event of the concept
Super-properties	SPHN attribute object^op
Domain(s)	Adverse Event^c
Range	SPHN Concept^c

has output^op # OPs

URI	`https://biomedit.ch/rdf/sphn-ontology/sphn#hasOutput`
Description	output of the concept
Super-properties	SPHN attribute object^op
Domain(s)	Electrocardiographic Procedure^c
Range	Electrocardiogram^c

has oxygen equipment^op # OPs

URI	`https://biomedit.ch/rdf/sphn-ontology/sphn#hasOxygenEquipment`
Description	type of device used for oxygen therapy, e.g. nasal cannula, Venturi mask
Super-properties	SPHN attribute object^op
Domain(s)	Inhaled Oxygen Concentration^c
Range	Medical Device^c

has oxygen flow rate^op # OPs

URI	`https://biomedit.ch/rdf/sphn-ontology/sphn#hasOxygenFlowRate`
Description	quantity and duration of oxygen flow rate administration
Super-properties	SPHN attribute object^op
Domain(s)	Inhaled Oxygen Concentration^c
Range	Drug Administration Event^c

has physiologic state^op # OPs

URI	`https://biomedit.ch/rdf/sphn-ontology/sphn#hasPhysiologicState`
Description	physiologic state of the individual
Super-properties	SPHN attribute object^op
Domain(s)	Electrocardiographic Procedure^c Heart Rate^c
Range	Physiologic State^c

has primary container^op # OPs

URI	`https://biomedit.ch/rdf/sphn-ontology/sphn#hasPrimaryContainer`
Description	type of primary container of the concept
Super-properties	SPHN attribute object^op
Domain(s)	Tumor Specimen^c Sample^c
Range	SPHN Concept^c

has product code^op # OPs

URI	`https://biomedit.ch/rdf/sphn-ontology/sphn#hasProductCode`
Description	code, name, coding system and version describing the product of the concept
Super-properties	has code^op
Domain(s)	Lab Analyzer^c Drug^c Medical Device^c
Range	Terminology^c Code^c

has progression body site^op # OPs

URI	`https://biomedit.ch/rdf/sphn-ontology/sphn#hasProgressionBodySite`
Description	body site where the progression was observed
Super-properties	has body site^op
Domain(s)	Oncology Treatment Assessment^c
Range	Body Site^c

has progression type^op # OPs

URI	`https://biomedit.ch/rdf/sphn-ontology/sphn#hasProgressionType`
Description	type of progression
Super-properties	SPHN attribute object^op
Domain(s)	Oncology Treatment Assessment^c
Range	SPHN Concept^c

has protein^op # OPs

URI	`https://biomedit.ch/rdf/sphn-ontology/sphn#hasProtein`
Description	protein product of the concept
Super-properties	SPHN attribute object^op
Domain(s)	Transcript^c Gene^c
Range	Protein^c

has qualitative result code^op # OPs

URI	`https://biomedit.ch/rdf/sphn-ontology/sphn#hasQualitativeResultCode`
Description	code, name, coding system and version describing the qualitative result of the concept
Super-properties	has code^op
Domain(s)	Lab Result^c
Range	Terminology^c Code^c

has quantitative result^op # OPs

URI	`https://biomedit.ch/rdf/sphn-ontology/sphn#hasQuantitativeResult`
Description	value and unit of the quantitative result of the concept
Super-properties	has quantity^op
Domain(s)	Lab Result^c
Range	Quantity^c

has quantity^op # OPs

URI	`https://biomedit.ch/rdf/sphn-ontology/sphn#hasQuantity`
Description	value and unit of the concept
Super-properties	SPHN attribute object^op
Domain(s)	Inhaled Oxygen Concentration^c Body Height^c Heart Rate^c Cardiac Output^c Circumference Measure^c Oxygen Saturation^c Gestational Age at Birth^c Cardiac Index^c Respiratory Rate^c Body Surface Area^c Body Temperature^c Body Weight^c Age^c Body Mass Index^c Measurement^c Substance^c
Range	Quantity^c

has radiation quantity^op # OPs

URI	`https://biomedit.ch/rdf/sphn-ontology/sphn#hasRadiationQuantity`
Description	amount of radiation (value and unit) delivered or applied
Super-properties	has quantity^op
Domain(s)	Diagnostic Radiologic Examination^c Radiotherapy Procedure^c
Range	Quantity^c

has rank^op # OPs

URI	`https://biomedit.ch/rdf/sphn-ontology/sphn#hasRank`
Description	specifies the level of the concept
Super-properties	SPHN attribute object^op
Domain(s)	FOPH Procedure^c FOPH Diagnosis^c
Range	SPHN Concept^c

has reaction type code^op # OPs

URI	`https://biomedit.ch/rdf/sphn-ontology/sphn#hasReactionTypeCode`
Description	code, name, coding system and version describing the type of reaction observed for the concept
Super-properties	has code^op
Domain(s)	Allergy^c
Range	Code^c Terminology^c

has reason to stop code^op # OPs

URI	`https://biomedit.ch/rdf/sphn-ontology/sphn#hasReasonToStopCode`
Description	code, name, coding system and version indicating the reason to stop the concept
Super-properties	has code^op
Domain(s)	Drug Administration Event^c
Range	Terminology^c Code^c

has reference^op # OPs

URI	`https://biomedit.ch/rdf/sphn-ontology/sphn#hasReference`
Description	reference used to define the coordinates of the concept
Super-properties	SPHN attribute object^op
Domain(s)	Genomic Position^c
Range	Reference^c

has reference range^op # OPs

URI	`https://biomedit.ch/rdf/sphn-ontology/sphn#hasReferenceRange`
Description	normal range of the concept
Super-properties	SPHN attribute object^op
Domain(s)	Lab Result^c
Range	Reference Range^c

has regularity code^op # OPs

URI	`https://biomedit.ch/rdf/sphn-ontology/sphn#hasRegularityCode`
Description	code, name, coding system and version describing the regular or irregular state of the heart rate
Super-properties	has code^op
Domain(s)	Heart Rate^c
Range	Terminology^c Code^c

has relative temporality code^op # OPs

URI	`https://biomedit.ch/rdf/sphn-ontology/sphn#hasRelativeTemporalityCode`
Description	code, name, coding system and version describing when the problem was reported in relation to the treatment pathway, e.g. on admission, intraoperative, post-radiation
Super-properties	has code^op
Domain(s)	Problem Condition^c
Range	Terminology^c Code^c

has resting point^op # OPs

URI	`https://biomedit.ch/rdf/sphn-ontology/sphn#hasRestingPoint`
Description	point of resting
Super-properties	has body site^op
Domain(s)	Access Device Presence^c
Range	Body Site^c

has result^op # OPs

URI	`https://biomedit.ch/rdf/sphn-ontology/sphn#hasResult`
Description	result associated to the concept
Super-properties	SPHN attribute object^op
Domain(s)	Oncology Treatment Assessment^c
Range	SPHN Concept^c

has sample^op # OPs

URI	`https://biomedit.ch/rdf/sphn-ontology/sphn#hasSample`
Description	any material sample for testing, diagnostic, propagation, treatment or research purposes associated to the concept
Super-properties	SPHN attribute object^op
Domain(s)	Lab Result^c Biobanksample^c
Range	Sample^c

has scoring system code^op # OPs

URI	`https://biomedit.ch/rdf/sphn-ontology/sphn#hasScoringSystemCode`
Description	code, name, coding system and version describing the scoring system
Super-properties	has code^op
Domain(s)	Simple Score^c
Range	Terminology^c Code^c

has severity code^op # OPs

URI	`https://biomedit.ch/rdf/sphn-ontology/sphn#hasSeverityCode`
Description	code, name, coding system and version describing the severity of the concept
Super-properties	has code^op
Domain(s)	Adverse Event^c Allergy^c
Range	Terminology^c Code^c

has specialty name^op # OPs

URI	`https://biomedit.ch/rdf/sphn-ontology/sphn#hasSpecialtyName`
Description	name of professional health care specialization
Super-properties	SPHN attribute object^op
Domain(s)	Therapeutic Area^c
Range	SPHN Concept^c

has start cytoband code^op # OPs

URI	`https://biomedit.ch/rdf/sphn-ontology/sphn#hasStartCytobandCode`
Description	start cytoband of the concept
Super-properties	has code^op
Domain(s)	Chromosomal Location^c
Range	Terminology^c Code^c

has status code^op # OPs

URI	`https://biomedit.ch/rdf/sphn-ontology/sphn#hasStatusCode`
Description	code, name, coding system and version describing the status of the concept
Super-properties	has code^op
Domain(s)	Consent^c
Range	Code^c Terminology^c

has subject age^op # OPs

URI	`https://biomedit.ch/rdf/sphn-ontology/sphn#hasSubjectAge`
Description	age of the individual at the time of the event
Super-properties	SPHN attribute object^op
Domain(s)	Nursing Diagnosis^c FOPH Diagnosis^c Diagnosis^c ICD-O Diagnosis^c
Range	Age^c

has subject pseudo identifier^op # OPs

URI	`https://biomedit.ch/rdf/sphn-ontology/sphn#hasSubjectPseudoIdentifier`
Description	link to a pseudo code assigned as unique identifier to an individual by a data provider institute
Super-properties	SPHN attribute object^op
Domain(s)	Procedure^c Problem Condition^c Sample^c Administrative Case^c Heart Rate^c Cardiac Index^c Circumference Measure^c Blood Pressure^c TNM Classification^c Oxygen Saturation^c Respiratory Rate^c Oncology Treatment Assessment^c Variant Descriptor^c Death Status^c Civil Status^c Adverse Event^c Allergy^c Lab Result^c Consent^c Tumor Stage^c Death Date^c Diagnosis^c Data File^c ICD-O Diagnosis^c Drug Administration Event^c Drug Prescription^c Body Surface Area^c Body Mass Index^c Simple Score^c Access Device Presence^c Body Position^c Body Temperature^c Body Weight^c Allergy Episode^c Body Height^c Tumor Specimen^c Age^c FOPH Procedure^c Cardiac Output^c Diagnostic Radiologic Examination^c Nursing Diagnosis^c Radiotherapy Procedure^c Administrative Gender^c Healthcare Encounter^c FOPH Diagnosis^c Electrocardiographic Procedure^c Biobanksample^c Birth Date^c Gestational Age at Birth^c Inhaled Oxygen Concentration^c Tumor Grade^c
Range	Subject Pseudo Identifier^c

has systolic pressure^op # OPs

URI	`https://biomedit.ch/rdf/sphn-ontology/sphn#hasSystolicPressure`
Description	measured systolic pressure value and unit
Super-properties	has quantity^op
Domain(s)	Blood Pressure^c
Range	Quantity^c

has target location^op # OPs

URI	`https://biomedit.ch/rdf/sphn-ontology/sphn#hasTargetLocation`
Description	physical location where the individual went to
Super-properties	has location^op
Domain(s)	Healthcare Encounter^c
Range	Location^c

has test kit^op # OPs

URI	`https://biomedit.ch/rdf/sphn-ontology/sphn#hasTestKit`
Description	test kit used for the concept
Super-properties	SPHN attribute object^op
Domain(s)	Lab Test^c
Range	Lab Analyzer^c

has therapeutic area^op # OPs

URI	`https://biomedit.ch/rdf/sphn-ontology/sphn#hasTherapeuticArea`
Description	type of care provided
Super-properties	SPHN attribute object^op
Domain(s)	Healthcare Encounter^c
Range	Therapeutic Area^c

has time pattern^op # OPs

URI	`https://biomedit.ch/rdf/sphn-ontology/sphn#hasTimePattern`
Description	type of time period during which a treatment was given or an assessment was performed
Super-properties	SPHN attribute object^op
Domain(s)	Drug Administration Event^c Drug Prescription^c
Range	Time Pattern^c

has topography code^op # OPs

URI	`https://biomedit.ch/rdf/sphn-ontology/sphn#hasTopographyCode`
Description	code, name, coding system and version of the topography code that describes the anatomical site of origin of the neoplasm
Super-properties	has code^op
Domain(s)	ICD-O Diagnosis^c
Range	Code^c Terminology^c

has transcript^op # OPs

URI	`https://biomedit.ch/rdf/sphn-ontology/sphn#hasTranscript`
Description	RNA product of the concept
Super-properties	SPHN attribute object^op
Domain(s)	Gene^c
Range	Transcript^c

has tumor purity^op # OPs

URI	`https://biomedit.ch/rdf/sphn-ontology/sphn#hasTumorPurity`
Description	percentage of cancer cells in the sample
Super-properties	has quantity^op
Domain(s)	Tumor Specimen^c
Range	Quantity^c

has type code^op # OPs

URI	`https://biomedit.ch/rdf/sphn-ontology/sphn#hasTypeCode`
Description	code, name, coding system and version describing the type of the concept
Super-properties	has code^op
Domain(s)	Medical Device^c Consent^c Location^c Time Pattern^c Lab Analyzer^c Variant Descriptor^c Care Handling^c
Range	Terminology^c Code^c

has unit^op # OPs

URI	`https://biomedit.ch/rdf/sphn-ontology/sphn#hasUnit`
Description	unit of the amount, e.g. mL, mg, min
Super-properties	SPHN attribute object^op
Domain(s)	Quantity^c
Range	Unit^c

has upper limit^op # OPs

URI	`https://biomedit.ch/rdf/sphn-ontology/sphn#hasUpperLimit`
Description	top value of the concept
Super-properties	has quantity^op
Domain(s)	Reference Range^c
Range	Quantity^c

has verification status code^op # OPs

URI	`https://biomedit.ch/rdf/sphn-ontology/sphn#hasVerificationStatusCode`
Description	code, name, coding system and version of the verification status of the concept
Super-properties	has code^op
Domain(s)	Allergy^c
Range	Terminology^c Code^c

has zygosity code^op # OPs

URI	`https://biomedit.ch/rdf/sphn-ontology/sphn#hasZygosityCode`
Description	code, name, coding system and version describing the allelic state of the concept
Super-properties	has code^op
Domain(s)	Variant Descriptor^c
Range	Terminology^c Code^c

Datatype Properties ↑

SPHN attribute datatype
has admission datetime
has alternate allele
has assessment datetime
has biobank name
has coding datetime
has coding system and version
has collection datetime
has comment
has datetime
has day
has determination datetime
has discharge datetime
has end
has end datetime
has event datetime
has exact
has exposure datetime
has extraction datetime
has first administration datetime
has first record datetime
has free text
has generic name
has identifier
has intervention
has last administration datetime
has last reaction datetime
has M prefix
has M suffix
has manifestation datetime
has measurement datetime
has month
has N prefix
has N suffix
has name
has onset datetime
has qualitative result
has record datetime
has reference allele
has report datetime
has scoring system
has start
has start datetime
has T prefix
has T suffix
has template identifier
has time
has uniform resource identifier
has value
has version
has year

SPHN attribute datatype^dp # DPs

URI	`https://biomedit.ch/rdf/sphn-ontology/sphn#SPHNAttributeDatatype`
Description	SPHN datatype attribute defined by the dataset

has admission datetime^dp # DPs

URI	`https://biomedit.ch/rdf/sphn-ontology/sphn#hasAdmissionDateTime`
Description	datetime the individual enters the healthcare provider institute, e.g. gets registered at the admission counter
Super-properties	has datetime^dp
Domain(s)	Administrative Case^c
Data type	xsd:dateTime^c

has alternate allele^dp # DPs

URI	`https://biomedit.ch/rdf/sphn-ontology/sphn#hasAlternateAllele`
Description	the alternate nucleotide (A;T;C;G) of the concept
Super-properties	SPHN attribute datatype^dp
Domain(s)	Single Nucleotide Variation^c
Data type	xsd:string^c

has assessment datetime^dp # DPs

URI	`https://biomedit.ch/rdf/sphn-ontology/sphn#hasAssessmentDateTime`
Description	datetime at which the concept was assessed
Super-properties	has datetime^dp
Domain(s)	Tumor Grade^c TNM Classification^c Tumor Stage^c Oncology Treatment Assessment^c Simple Score^c
Data type	xsd:dateTime^c

has biobank name^dp # DPs

URI	`https://biomedit.ch/rdf/sphn-ontology/sphn#hasBiobankName`
Description	name of the biobank where the sample is stored
Super-properties	SPHN attribute datatype^dp
Domain(s)	Biobanksample^c
Data type	xsd:string^c

has coding datetime^dp # DPs

URI	`https://biomedit.ch/rdf/sphn-ontology/sphn#hasCodingDateTime`
Description	datetime the concept was coded
Super-properties	has datetime^dp
Domain(s)	Diagnosis^c FOPH Procedure^c Diagnostic Radiologic Examination^c Nursing Diagnosis^c Radiotherapy Procedure^c FOPH Diagnosis^c Electrocardiographic Procedure^c Procedure^c ICD-O Diagnosis^c
Data type	xsd:dateTime^c

has coding system and version^dp # DPs

URI	`https://biomedit.ch/rdf/sphn-ontology/sphn#hasCodingSystemAndVersion`
Description	name and version of the coding system
Super-properties	SPHN attribute datatype^dp
Domain(s)	Code^c Variant Notation^c
Data type	xsd:string^c

has collection datetime^dp # DPs

URI	`https://biomedit.ch/rdf/sphn-ontology/sphn#hasCollectionDateTime`
Description	datetime of collection of the concept
Super-properties	has datetime^dp
Domain(s)	Sample^c Tumor Specimen^c
Data type	xsd:dateTime^c

has comment^dp # DPs

URI	`https://biomedit.ch/rdf/sphn-ontology/sphn#hasComment`
Description	comment or remark to the concept
Super-properties	SPHN attribute datatype^dp
Domain(s)	Lab Result^c
Data type	xsd:string^c

has datetime^dp # DPs

URI	`https://biomedit.ch/rdf/sphn-ontology/sphn#hasDateTime`
Description	datetime of the concept
Super-properties	SPHN attribute datatype^dp
Domain(s)	Consent^c
Data type	xsd:dateTime^c

has day^dp # DPs

URI	`https://biomedit.ch/rdf/sphn-ontology/sphn#hasDay`
Description	day of the concept
Super-properties	SPHN attribute datatype^dp
Domain(s)	Birth Date^c Death Date^c
Data type	xsd:gDay^c

has determination datetime^dp # DPs

URI	`https://biomedit.ch/rdf/sphn-ontology/sphn#hasDeterminationDateTime`
Description	datetime of determination of the concept
Super-properties	has datetime^dp
Domain(s)	Age^c Body Mass Index^c Cardiac Index^c Respiratory Rate^c Body Surface Area^c
Data type	xsd:dateTime^c

has discharge datetime^dp # DPs

URI	`https://biomedit.ch/rdf/sphn-ontology/sphn#hasDischargeDateTime`
Description	datetime the individual leaves the healthcare provider institute
Super-properties	has datetime^dp
Domain(s)	Administrative Case^c
Data type	xsd:dateTime^c

has end^dp # DPs

URI	`https://biomedit.ch/rdf/sphn-ontology/sphn#hasEnd`
Description	end of the concept
Super-properties	SPHN attribute datatype^dp
Domain(s)	Genomic Position^c
Data type	xsd:double^c

has end datetime^dp # DPs

URI	`https://biomedit.ch/rdf/sphn-ontology/sphn#hasEndDateTime`
Description	datetime at which the concept ended
Super-properties	has datetime^dp
Domain(s)	Healthcare Encounter^c Procedure^c Access Device Presence^c FOPH Procedure^c Drug Administration Event^c Diagnostic Radiologic Examination^c Radiotherapy Procedure^c Body Position^c Electrocardiographic Procedure^c
Data type	xsd:dateTime^c

has event datetime^dp # DPs

URI	`https://biomedit.ch/rdf/sphn-ontology/sphn#hasEventDateTime`
Description	datetime of the event
Super-properties	has datetime^dp
Domain(s)	Civil Status^c
Data type	xsd:dateTime^c

has exact^dp # DPs

URI	`https://biomedit.ch/rdf/sphn-ontology/sphn#hasExact`
Description	location specifying in greater detail the general location type (class), e.g. a specific ward in a specific hospital or full address of a discharge location
Super-properties	SPHN attribute datatype^dp
Domain(s)	Location^c
Data type	xsd:string^c

has exposure datetime^dp # DPs

URI	`https://biomedit.ch/rdf/sphn-ontology/sphn#hasExposureDateTime`
Description	datetime of exposure to the substance
Super-properties	has datetime^dp
Domain(s)	Allergy Episode^c
Data type	xsd:dateTime^c

has extraction datetime^dp # DPs

URI	`https://biomedit.ch/rdf/sphn-ontology/sphn#hasExtractionDateTime`
Description	date of the extraction of the clinical data
Super-properties	has datetime^dp
Domain(s)	Data Release^c
Data type	xsd:dateTime^c

has first administration datetime^dp # DPs

URI	`https://biomedit.ch/rdf/sphn-ontology/sphn#hasFirstAdministrationDateTime`
Description	datetime of first administration
Super-properties	has datetime^dp
Domain(s)	Drug Prescription^c
Data type	xsd:dateTime^c

has first record datetime^dp # DPs

URI	`https://biomedit.ch/rdf/sphn-ontology/sphn#hasFirstRecordDateTime`
Description	datetime the concept was first recorded
Super-properties	has record datetime^dp
Domain(s)	Allergy^c
Data type	xsd:dateTime^c

has free text^dp # DPs

URI	`https://biomedit.ch/rdf/sphn-ontology/sphn#hasFreeText`
Description	free text related to the concept
Super-properties	SPHN attribute datatype^dp
Domain(s)	Problem Condition^c
Data type	xsd:string^c

has generic name^dp # DPs

URI	`https://biomedit.ch/rdf/sphn-ontology/sphn#hasGenericName`
Description	name of the substance, for not yet approved medications the international nonproprietary name (INN) of a substance given by the World Health Organization (WHO)
Super-properties	SPHN attribute datatype^dp
Domain(s)	Substance^c
Data type	xsd:string^c

has identifier^dp # DPs

URI	`https://biomedit.ch/rdf/sphn-ontology/sphn#hasIdentifier`
Description	unique identifier identifying the concept
Super-properties	SPHN attribute datatype^dp
Domain(s)	Tumor Specimen^c Healthcare Encounter^c Biobanksample^c Subject Pseudo Identifier^c Sample^c Administrative Case^c Code^c
Data type	xsd:string^c

has intervention^dp # DPs

URI	`https://biomedit.ch/rdf/sphn-ontology/sphn#hasIntervention`
Description	intervention suspected to be the cause of the concept, e.g. drug
Super-properties	SPHN attribute datatype^dp
Domain(s)	Adverse Event^c
Data type	xsd:string^c

has last administration datetime^dp # DPs

URI	`https://biomedit.ch/rdf/sphn-ontology/sphn#hasLastAdministrationDateTime`
Description	datetime of last administration
Super-properties	has datetime^dp
Domain(s)	Drug Prescription^c
Data type	xsd:dateTime^c

has last reaction datetime^dp # DPs

URI	`https://biomedit.ch/rdf/sphn-ontology/sphn#hasLastReactionDateTime`
Description	datetime of the last reaction
Super-properties	has datetime^dp
Domain(s)	Allergy^c
Data type	xsd:dateTime^c

has M prefix^dp # DPs

URI	`https://biomedit.ch/rdf/sphn-ontology/sphn#hasMPrefix`
Description	prefix associated to the metastasis (M), as defined in the TNM coding system, e.g. c
Super-properties	SPHN attribute datatype^dp
Domain(s)	TNM Classification^c
Data type	xsd:string^c

has M suffix^dp # DPs

URI	`https://biomedit.ch/rdf/sphn-ontology/sphn#hasMSuffix`
Description	suffix associated to the metastasis (M), as defined in the TNM coding system, e.g. 1b
Super-properties	SPHN attribute datatype^dp
Domain(s)	TNM Classification^c
Data type	xsd:string^c

has manifestation datetime^dp # DPs

URI	`https://biomedit.ch/rdf/sphn-ontology/sphn#hasManifestationDateTime`
Description	datetime when manifestation showed
Super-properties	has datetime^dp
Domain(s)	Allergy Episode^c
Data type	xsd:dateTime^c

has measurement datetime^dp # DPs

URI	`https://biomedit.ch/rdf/sphn-ontology/sphn#hasMeasurementDateTime`
Description	datetime of measurement
Super-properties	has datetime^dp
Domain(s)	Body Temperature^c Body Weight^c Body Height^c Measurement^c Heart Rate^c Cardiac Output^c Circumference Measure^c Inhaled Oxygen Concentration^c Blood Pressure^c Oxygen Saturation^c Respiratory Rate^c
Data type	xsd:dateTime^c

has month^dp # DPs

URI	`https://biomedit.ch/rdf/sphn-ontology/sphn#hasMonth`
Description	month of the concept
Super-properties	SPHN attribute datatype^dp
Domain(s)	Death Date^c Birth Date^c
Data type	xsd:gMonth^c

has N prefix^dp # DPs

URI	`https://biomedit.ch/rdf/sphn-ontology/sphn#hasNPrefix`
Description	prefix associated to the nearby tissues (N), as defined in the TNM coding system, e.g. c
Super-properties	SPHN attribute datatype^dp
Domain(s)	TNM Classification^c
Data type	xsd:string^c

has N suffix^dp # DPs

URI	`https://biomedit.ch/rdf/sphn-ontology/sphn#hasNSuffix`
Description	suffix associated to the nearby tissues (N), as defined in the TNM coding system, e.g. x
Super-properties	SPHN attribute datatype^dp
Domain(s)	TNM Classification^c
Data type	xsd:string^c

has name^dp # DPs

URI	`https://biomedit.ch/rdf/sphn-ontology/sphn#hasName`
Description	name associated to the concept
Super-properties	SPHN attribute datatype^dp
Domain(s)	Code^c Data File^c
Data type	xsd:string^c

has onset datetime^dp # DPs

URI	`https://biomedit.ch/rdf/sphn-ontology/sphn#hasOnsetDateTime`
Description	datetime the concept first occurred or was observed
Super-properties	has datetime^dp
Domain(s)	Problem Condition^c Adverse Event^c
Data type	xsd:dateTime^c

has qualitative result^dp # DPs

URI	`https://biomedit.ch/rdf/sphn-ontology/sphn#hasQualitativeResult`
Description	qualitative results of the concept
Super-properties	SPHN attribute datatype^dp
Domain(s)	Lab Result^c
Data type	xsd:string^c

has record datetime^dp # DPs

URI	`https://biomedit.ch/rdf/sphn-ontology/sphn#hasRecordDateTime`
Description	datetime the concept was recorded
Super-properties	has datetime^dp
Domain(s)	ICD-O Diagnosis^c Diagnosis^c Nursing Diagnosis^c Administrative Gender^c FOPH Diagnosis^c Problem Condition^c
Data type	xsd:dateTime^c

has reference allele^dp # DPs

URI	`https://biomedit.ch/rdf/sphn-ontology/sphn#hasReferenceAllele`
Description	the reference nucleotide (A;T;C;G) of the concept
Super-properties	SPHN attribute datatype^dp
Domain(s)	Single Nucleotide Variation^c
Data type	xsd:string^c

has report datetime^dp # DPs

URI	`https://biomedit.ch/rdf/sphn-ontology/sphn#hasReportDateTime`
Description	datetime the concept was reported
Super-properties	has datetime^dp
Domain(s)	Lab Result^c
Data type	xsd:dateTime^c

has scoring system^dp # DPs

URI	`https://biomedit.ch/rdf/sphn-ontology/sphn#hasScoringSystem`
Description	name and version of the scoring system, e.g. Glasgow Coma Scale, geriatric depression scale-15
Super-properties	SPHN attribute datatype^dp
Domain(s)	Simple Score^c
Data type	xsd:string^c

has start^dp # DPs

URI	`https://biomedit.ch/rdf/sphn-ontology/sphn#hasStart`
Description	start of the concept
Super-properties	SPHN attribute datatype^dp
Domain(s)	Genomic Position^c
Data type	xsd:double^c

has start datetime^dp # DPs

URI	`https://biomedit.ch/rdf/sphn-ontology/sphn#hasStartDateTime`
Description	datetime at which the concept started
Super-properties	has datetime^dp
Domain(s)	Body Position^c FOPH Procedure^c Diagnostic Radiologic Examination^c Radiotherapy Procedure^c Healthcare Encounter^c Electrocardiographic Procedure^c Procedure^c Drug Administration Event^c Access Device Presence^c
Data type	xsd:dateTime^c

has T prefix^dp # DPs

URI	`https://biomedit.ch/rdf/sphn-ontology/sphn#hasTPrefix`
Description	prefix associated to the primary tumor (T), as defined in the TNM coding system, e.g. c
Super-properties	SPHN attribute datatype^dp
Domain(s)	TNM Classification^c
Data type	xsd:string^c

has T suffix^dp # DPs

URI	`https://biomedit.ch/rdf/sphn-ontology/sphn#hasTSuffix`
Description	suffix associated to the primary tumor (T), as defined in the TNM coding system, e.g. 1a
Super-properties	SPHN attribute datatype^dp
Domain(s)	TNM Classification^c
Data type	xsd:string^c

has template identifier^dp # DPs

URI	`https://biomedit.ch/rdf/sphn-ontology/sphn#hasTemplateIdentifier`
Description	unique identifier identifying the template of the concept
Super-properties	has identifier^dp
Domain(s)	Consent^c
Data type	xsd:string^c

has time^dp # DPs

URI	`https://biomedit.ch/rdf/sphn-ontology/sphn#hasTime`
Description	time of the concept
Super-properties	SPHN attribute datatype^dp
Domain(s)	Death Date^c Birth Date^c
Data type	xsd:time^c

has uniform resource identifier^dp # DPs

URI	`https://biomedit.ch/rdf/sphn-ontology/sphn#hasUniformResourceIdentifier`
Description	unique identifier of the concept that allows the system to identify all the information needed to access the resource
Super-properties	has identifier^dp
Domain(s)	Data File^c
Data type	xsd:string^c

has value^dp # DPs

URI	`https://biomedit.ch/rdf/sphn-ontology/sphn#hasValue`
Description	value of the concept
Super-properties	SPHN attribute datatype^dp
Domain(s)	Simple Score^c Quantity^c Variant Notation^c TNM Classification^c
Data type	xsd:double^c xsd:string^c

has version^dp # DPs

URI	`https://biomedit.ch/rdf/sphn-ontology/sphn#hasVersion`
Description	version of the concept value or code
Super-properties	SPHN attribute datatype^dp
Domain(s)	TNM Classification^c
Data type	xsd:string^c

has year^dp # DPs

URI	`https://biomedit.ch/rdf/sphn-ontology/sphn#hasYear`
Description	year of the concept
Super-properties	SPHN attribute datatype^dp
Domain(s)	Death Date^c Birth Date^c
Data type	xsd:gYear^c

Named Individuals ↑

<
<=
>
>=
Acid citrate dextrose
Addiction medicine
Alcohol based
Aldehyde based
Aldehyde-based stabilizer for CTCs
Allergology and clinical immunology
Allprotect ® tissue reagent
Anaesthesiology
Angiology
CT
Cardiac and thoracic vascular surgery
Cardiology
Cell Preparation Tube® citrate
Cell Preparation Tube® heparin
Chemical additives / stabilizers
Child and adolescent psychiatry and psychotherapy
Child and adolescent psychology
Chiropractic specialist
Citrate phosphate dextrose
Clinical Psychology
Clinical pharmacology and toxicology
Community pharmacy
Congenital abnormality
Death
Dermatology and venereology
EDTA and gel
Endocrinology and Diabetology
Fatal
Forensic medicine
Gastroenterology
General internal medicine
General medical practitioner
General medicine
Geriatric medicine
Glass
Gynaecology and obstetrics
Haematology
Hand surgery
Health Psychology
Heat stabilization
Hirudin
Hospital pharmacy
Hospitalisation or prolongation
Infectology
Intensive care medicine
Inter-residue coordinates
Internal medicine
Life-threatening
Lithium heparin
Lithium heparin and gel
Lithium heparin and rubber plug
MRI
Medical genetics
Medical oncology
Nephrology
Neurology
Neuropsychology
Neurosurgery
Neutral buffered formalin
Non-aldehyde-based stabilizer for cell-free nucleic acids
Nonaldehyde based without acetic acid
Nonaldehyde with acetic acid
Nonbuffered formalin
None of the consequences mentioned
Not recovered
Nuclear medicine
Occupational medicine
Ophthalmology
Optimum cutting temperature medium
Oragene collection container or equivalent
Oral and maxillofacial surgery
Oral surgery
Orthodontics
Orthopaedic surgery and traumatology of the locomotor apparatus
Otorhinolaryngology
PAXgene tissue
PAXgene® blood DNA
PAXgene® blood RNA+
PAXgene® bone marrow RNA
PET
PET CT
Paediatric surgery
Paediatrics
Pathology
Periodontics
Permanent damage or disability
Pharmaceutical medicine
Physical filtration system
Physical medicine and rehabilitation
Plastic, reconstructive and aesthetic surgery
Pneumology
Polyethylene tube sterile
Polypropylene tube sterile
Potassium EDTA
Prevention and public health
Protease inhibitors
Psychiatry and psychotherapy
Psychotherapy
RECIST 1.0
RECIST 1.1
RNA Later
Radio-oncology and radiotherapy
Radiology
Reconstructive dentistry
Recovered
Recovering
Recovering with sequelae
Residue coordinates
Rheumatology
S8820 protease inhibitor tablets or equivalent
SPECT
Serum separator tube with clot activator
Serum tube without clot activator
Snap freezing
Sodium EDTA
Sodium citrate
Sodium fluoride/potassium oxalate
Sodium heparin
Stool collection container with DNA stabilizer
Surgery
Temporarily serious impact / medically important
Tempus® tube
Thoracic surgery
Trace elements tube
Tropical and travel medicine
Urology
Vacuum technology stabilization
Vascular surgery
Visceral medicine
X-ray
biochemical
complementary
complete response
du bois
localized
metastatic
mosteller
other
partial response
principal
progressive disease
regional
secondary
stable disease
supplementary
traceable author statement

Acid citrate dextroseⁿⁱ

Class(es)

Tumor Specimen primary container
Sample primary container

URI	`https://biomedit.ch/rdf/sphn-ontology/sphn#AcidCitrateDextrose`

Addiction medicineⁿⁱ

Class(es)

Therapeutic Area specialty name

URI	`https://biomedit.ch/rdf/sphn-ontology/sphn#AddictionMedicine`

Alcohol basedⁿⁱ

Class(es)

Tumor Specimen fixation type
Sample fixation type

URI	`https://biomedit.ch/rdf/sphn-ontology/sphn#AlcoholBased`

Aldehyde basedⁿⁱ

Class(es)

Tumor Specimen fixation type
Sample fixation type

URI	`https://biomedit.ch/rdf/sphn-ontology/sphn#AldehydeBased`

Aldehyde-based stabilizer for CTCsⁿⁱ

Class(es)

Tumor Specimen primary container
Sample primary container

URI	`https://biomedit.ch/rdf/sphn-ontology/sphn#AldehydeBasedStabilizerForCTCs`

Allergology and clinical immunologyⁿⁱ

Class(es)

Therapeutic Area specialty name

URI	`https://biomedit.ch/rdf/sphn-ontology/sphn#AllergologyAndClinicalImmunology`

Allprotect ® tissue reagentⁿⁱ

Class(es)

Tumor Specimen fixation type
Sample fixation type

URI	`https://biomedit.ch/rdf/sphn-ontology/sphn#AllprotectTissueReagent`

Anaesthesiologyⁿⁱ

Class(es)

Therapeutic Area specialty name

URI	`https://biomedit.ch/rdf/sphn-ontology/sphn#Anaesthesiology`

Angiologyⁿⁱ

Class(es)

Therapeutic Area specialty name

URI	`https://biomedit.ch/rdf/sphn-ontology/sphn#Angiology`

biochemicalⁿⁱ

Class(es)

Oncology Treatment Assessment progression type

URI	`https://biomedit.ch/rdf/sphn-ontology/sphn#Biochemical`

CTⁿⁱ

Class(es)

Diagnostic Radiologic Examination method

URI	`https://biomedit.ch/rdf/sphn-ontology/sphn#CT`

Cardiac and thoracic vascular surgeryⁿⁱ

Class(es)

Therapeutic Area specialty name

URI	`https://biomedit.ch/rdf/sphn-ontology/sphn#CardiacAndThoracicVascularSurgery`

Cardiologyⁿⁱ

Class(es)

Therapeutic Area specialty name

URI	`https://biomedit.ch/rdf/sphn-ontology/sphn#Cardiology`

Cell Preparation Tube® citrateⁿⁱ

Class(es)

Tumor Specimen primary container
Sample primary container

URI	`https://biomedit.ch/rdf/sphn-ontology/sphn#CellPreparationTubeCitrate`

Cell Preparation Tube® heparinⁿⁱ

Class(es)

Tumor Specimen primary container
Sample primary container

URI	`https://biomedit.ch/rdf/sphn-ontology/sphn#CellPreparationTubeHeparin`

Chemical additives / stabilizersⁿⁱ

Class(es)

Tumor Specimen primary container
Sample primary container

URI	`https://biomedit.ch/rdf/sphn-ontology/sphn#ChemicalAdditivesStabilizers`

Child and adolescent psychiatry and psychotherapyⁿⁱ

Class(es)

Therapeutic Area specialty name

URI	`https://biomedit.ch/rdf/sphn-ontology/sphn#ChildAndAdolescentPsychiatryAndPsychotherapy`

Child and adolescent psychologyⁿⁱ

Class(es)

Therapeutic Area specialty name

URI	`https://biomedit.ch/rdf/sphn-ontology/sphn#ChildAndAdolescentPsychology`

Chiropractic specialistⁿⁱ

Class(es)

Therapeutic Area specialty name

URI	`https://biomedit.ch/rdf/sphn-ontology/sphn#ChiropracticSpecialist`

Citrate phosphate dextroseⁿⁱ

Class(es)

Tumor Specimen primary container
Sample primary container

URI	`https://biomedit.ch/rdf/sphn-ontology/sphn#CitratePhosphateDextrose`

Clinical pharmacology and toxicologyⁿⁱ

Class(es)

Therapeutic Area specialty name

URI	`https://biomedit.ch/rdf/sphn-ontology/sphn#ClinicalPharmacologyAndToxicology`

Clinical Psychologyⁿⁱ

Class(es)

Therapeutic Area specialty name

URI	`https://biomedit.ch/rdf/sphn-ontology/sphn#ClinicalPsychology`

Community pharmacyⁿⁱ

Class(es)

Therapeutic Area specialty name

URI	`https://biomedit.ch/rdf/sphn-ontology/sphn#CommunityPharmacy`

complementaryⁿⁱ

Class(es)

FOPH Diagnosis rank

URI	`https://biomedit.ch/rdf/sphn-ontology/sphn#Complementary`

complete responseⁿⁱ

Class(es)

Oncology Treatment Assessment result

URI	`https://biomedit.ch/rdf/sphn-ontology/sphn#CompleteResponse`

Congenital abnormalityⁿⁱ

Class(es)

Adverse Event consequences

URI	`https://biomedit.ch/rdf/sphn-ontology/sphn#CongenitalAbnormality`

Deathⁿⁱ

Class(es)

Adverse Event consequences

URI	`https://biomedit.ch/rdf/sphn-ontology/sphn#Death`

Dermatology and venereologyⁿⁱ

Class(es)

Therapeutic Area specialty name

URI	`https://biomedit.ch/rdf/sphn-ontology/sphn#DermatologyAndVenereology`

du boisⁿⁱ

Class(es)

Body Surface Area calculation method

URI	`https://biomedit.ch/rdf/sphn-ontology/sphn#DuBois`

EDTA and gelⁿⁱ

Class(es)

Tumor Specimen primary container
Sample primary container

URI	`https://biomedit.ch/rdf/sphn-ontology/sphn#EDTAAndGel`

Endocrinology and Diabetologyⁿⁱ

Class(es)

Therapeutic Area specialty name

URI	`https://biomedit.ch/rdf/sphn-ontology/sphn#EndocrinologyAndDiabetology`

Fatalⁿⁱ

Class(es)

Adverse Event outcome

URI	`https://biomedit.ch/rdf/sphn-ontology/sphn#Fatal`

Forensic medicineⁿⁱ

Class(es)

Therapeutic Area specialty name

URI	`https://biomedit.ch/rdf/sphn-ontology/sphn#ForensicMedicine`

Gastroenterologyⁿⁱ

Class(es)

Therapeutic Area specialty name

URI	`https://biomedit.ch/rdf/sphn-ontology/sphn#Gastroenterology`

General internal medicineⁿⁱ

Class(es)

Therapeutic Area specialty name

URI	`https://biomedit.ch/rdf/sphn-ontology/sphn#GeneralInternalMedicine`

General medical practitionerⁿⁱ

Class(es)

Therapeutic Area specialty name

URI	`https://biomedit.ch/rdf/sphn-ontology/sphn#GeneralMedicalPractitioner`

General medicineⁿⁱ

Class(es)

Therapeutic Area specialty name

URI	`https://biomedit.ch/rdf/sphn-ontology/sphn#GeneralMedicine`

Geriatric medicineⁿⁱ

Class(es)

Therapeutic Area specialty name

URI	`https://biomedit.ch/rdf/sphn-ontology/sphn#GeriatricMedicine`

Glassⁿⁱ

Class(es)

Tumor Specimen primary container
Sample primary container

URI	`https://biomedit.ch/rdf/sphn-ontology/sphn#Glass`

>ⁿⁱ

Class(es)

Comparator

URI	`https://biomedit.ch/rdf/sphn-ontology/sphn#GreaterThan`

>=ⁿⁱ

Class(es)

Comparator

URI	`https://biomedit.ch/rdf/sphn-ontology/sphn#GreaterThanOrEqual`

Gynaecology and obstetricsⁿⁱ

Class(es)

Therapeutic Area specialty name

URI	`https://biomedit.ch/rdf/sphn-ontology/sphn#GynaecologyAndObstetrics`

Haematologyⁿⁱ

Class(es)

Therapeutic Area specialty name

URI	`https://biomedit.ch/rdf/sphn-ontology/sphn#Haematology`

Hand surgeryⁿⁱ

Class(es)

Therapeutic Area specialty name

URI	`https://biomedit.ch/rdf/sphn-ontology/sphn#HandSurgery`

Health Psychologyⁿⁱ

Class(es)

Therapeutic Area specialty name

URI	`https://biomedit.ch/rdf/sphn-ontology/sphn#HealthPsychology`

Heat stabilizationⁿⁱ

Class(es)

Tumor Specimen fixation type
Sample fixation type

URI	`https://biomedit.ch/rdf/sphn-ontology/sphn#HeatStabilization`

Hirudinⁿⁱ

Class(es)

Tumor Specimen primary container
Sample primary container

URI	`https://biomedit.ch/rdf/sphn-ontology/sphn#Hirudin`

Hospital pharmacyⁿⁱ

Class(es)

Therapeutic Area specialty name

URI	`https://biomedit.ch/rdf/sphn-ontology/sphn#HospitalPharmacy`

Hospitalisation or prolongationⁿⁱ

Class(es)

Adverse Event consequences

URI	`https://biomedit.ch/rdf/sphn-ontology/sphn#HospitalisationOrProlongation`

Infectologyⁿⁱ

Class(es)

Therapeutic Area specialty name

URI	`https://biomedit.ch/rdf/sphn-ontology/sphn#Infectology`

Intensive care medicineⁿⁱ

Class(es)

Therapeutic Area specialty name

URI	`https://biomedit.ch/rdf/sphn-ontology/sphn#IntensiveCareMedicine`

Inter-residue coordinatesⁿⁱ

Class(es)

Genomic Position coordinate convention

URI	`https://biomedit.ch/rdf/sphn-ontology/sphn#InterResidueCoordinates`

Internal medicineⁿⁱ

Class(es)

Therapeutic Area specialty name

URI	`https://biomedit.ch/rdf/sphn-ontology/sphn#InternalMedicine`

<ⁿⁱ

Class(es)

Comparator

URI	`https://biomedit.ch/rdf/sphn-ontology/sphn#LessThan`

<=ⁿⁱ

Class(es)

Comparator

URI	`https://biomedit.ch/rdf/sphn-ontology/sphn#LessThanOrEqual`

Life-threateningⁿⁱ

Class(es)

Adverse Event consequences

URI	`https://biomedit.ch/rdf/sphn-ontology/sphn#LifeThreatening`

Lithium heparinⁿⁱ

Class(es)

Tumor Specimen primary container
Sample primary container

URI	`https://biomedit.ch/rdf/sphn-ontology/sphn#LithiumHeparin`

Lithium heparin and gelⁿⁱ

Class(es)

Tumor Specimen primary container
Sample primary container

URI	`https://biomedit.ch/rdf/sphn-ontology/sphn#LithiumHeparinAndGel`

Lithium heparin and rubber plugⁿⁱ

Class(es)

Tumor Specimen primary container
Sample primary container

URI	`https://biomedit.ch/rdf/sphn-ontology/sphn#LithiumHeparinAndRubberPlug`

localizedⁿⁱ

Class(es)

Oncology Treatment Assessment progression type

URI	`https://biomedit.ch/rdf/sphn-ontology/sphn#Localized`

MRIⁿⁱ

Class(es)

Diagnostic Radiologic Examination method

URI	`https://biomedit.ch/rdf/sphn-ontology/sphn#MRI`

Medical geneticsⁿⁱ

Class(es)

Therapeutic Area specialty name

URI	`https://biomedit.ch/rdf/sphn-ontology/sphn#MedicalGenetics`

Medical oncologyⁿⁱ

Class(es)

Therapeutic Area specialty name

URI	`https://biomedit.ch/rdf/sphn-ontology/sphn#MedicalOncology`

metastaticⁿⁱ

Class(es)

Oncology Treatment Assessment progression type

URI	`https://biomedit.ch/rdf/sphn-ontology/sphn#Metastatic`

mostellerⁿⁱ

Class(es)

Body Surface Area calculation method

URI	`https://biomedit.ch/rdf/sphn-ontology/sphn#Mosteller`

Nephrologyⁿⁱ

Class(es)

Therapeutic Area specialty name

URI	`https://biomedit.ch/rdf/sphn-ontology/sphn#Nephrology`

Neurologyⁿⁱ

Class(es)

Therapeutic Area specialty name

URI	`https://biomedit.ch/rdf/sphn-ontology/sphn#Neurology`

Neuropsychologyⁿⁱ

Class(es)

Therapeutic Area specialty name

URI	`https://biomedit.ch/rdf/sphn-ontology/sphn#Neuropsychology`

Neurosurgeryⁿⁱ

Class(es)

Therapeutic Area specialty name

URI	`https://biomedit.ch/rdf/sphn-ontology/sphn#Neurosurgery`

Neutral buffered formalinⁿⁱ

Class(es)

Tumor Specimen fixation type
Sample fixation type

URI	`https://biomedit.ch/rdf/sphn-ontology/sphn#NeutralBufferedFormalin`

Non-aldehyde-based stabilizer for cell-free nucleic acidsⁿⁱ

Class(es)

Tumor Specimen primary container
Sample primary container

URI	`https://biomedit.ch/rdf/sphn-ontology/sphn#NonAldehydeBasedStabilizerForCellFreeNucleicAcids`

Nonaldehyde based without acetic acidⁿⁱ

Class(es)

Tumor Specimen fixation type
Sample fixation type

URI	`https://biomedit.ch/rdf/sphn-ontology/sphn#NonaldehydeBasedWithoutAceticAcid`

Nonaldehyde with acetic acidⁿⁱ

Class(es)

Tumor Specimen fixation type
Sample fixation type

URI	`https://biomedit.ch/rdf/sphn-ontology/sphn#NonaldehydeWithAceticAcid`

Nonbuffered formalinⁿⁱ

Class(es)

Tumor Specimen fixation type
Sample fixation type

URI	`https://biomedit.ch/rdf/sphn-ontology/sphn#NonbufferedFormalin`

None of the consequences mentionedⁿⁱ

Class(es)

Adverse Event consequences

URI	`https://biomedit.ch/rdf/sphn-ontology/sphn#NoneOfTheConsequencesMentioned`

Not recoveredⁿⁱ

Class(es)

Adverse Event outcome

URI	`https://biomedit.ch/rdf/sphn-ontology/sphn#NotRecovered`

Nuclear medicineⁿⁱ

Class(es)

Therapeutic Area specialty name

URI	`https://biomedit.ch/rdf/sphn-ontology/sphn#NuclearMedicine`

Occupational medicineⁿⁱ

Class(es)

Therapeutic Area specialty name

URI	`https://biomedit.ch/rdf/sphn-ontology/sphn#OccupationalMedicine`

Ophthalmologyⁿⁱ

Class(es)

Therapeutic Area specialty name

URI	`https://biomedit.ch/rdf/sphn-ontology/sphn#Ophthalmology`

Optimum cutting temperature mediumⁿⁱ

Class(es)

Tumor Specimen fixation type
Sample fixation type

URI	`https://biomedit.ch/rdf/sphn-ontology/sphn#OptimumCuttingTemperatureMedium`

Oragene collection container or equivalentⁿⁱ

Class(es)

Tumor Specimen primary container
Sample primary container

URI	`https://biomedit.ch/rdf/sphn-ontology/sphn#OrageneCollectionContainerOrEquivalent`

Oral and maxillofacial surgeryⁿⁱ

Class(es)

Therapeutic Area specialty name

URI	`https://biomedit.ch/rdf/sphn-ontology/sphn#OralAndMaxillofacialSurgery`

Oral surgeryⁿⁱ

Class(es)

Therapeutic Area specialty name

URI	`https://biomedit.ch/rdf/sphn-ontology/sphn#OralSurgery`

Orthodonticsⁿⁱ

Class(es)

Therapeutic Area specialty name

URI	`https://biomedit.ch/rdf/sphn-ontology/sphn#Orthodontics`

Orthopaedic surgery and traumatology of the locomotor apparatusⁿⁱ

Class(es)

Therapeutic Area specialty name

URI	`https://biomedit.ch/rdf/sphn-ontology/sphn#OrthopaedicSurgeryAndTraumatologyOfTheLocomotorApparatus`

otherⁿⁱ

Class(es)

Tumor Specimen primary container
Sample primary container
Body Surface Area calculation method
Tumor Specimen fixation type
Therapeutic Area specialty name
Sample fixation type

URI	`https://biomedit.ch/rdf/sphn-ontology/sphn#Other`

Otorhinolaryngologyⁿⁱ

Class(es)

Therapeutic Area specialty name

URI	`https://biomedit.ch/rdf/sphn-ontology/sphn#Otorhinolaryngology`

PAXgene® blood DNAⁿⁱ

Class(es)

Tumor Specimen primary container
Sample primary container

URI	`https://biomedit.ch/rdf/sphn-ontology/sphn#PAXgeneBloodDNA`

PAXgene® blood RNA+ⁿⁱ

Class(es)

Tumor Specimen primary container
Sample primary container

URI	`https://biomedit.ch/rdf/sphn-ontology/sphn#PAXgeneBloodRNAplus`

PAXgene® bone marrow RNAⁿⁱ

Class(es)

Tumor Specimen primary container
Sample primary container

URI	`https://biomedit.ch/rdf/sphn-ontology/sphn#PAXgeneBoneMarrowRNA`

PAXgene tissueⁿⁱ

Class(es)

Tumor Specimen fixation type
Sample fixation type

URI	`https://biomedit.ch/rdf/sphn-ontology/sphn#PAXgeneTissue`

PETⁿⁱ

Class(es)

Diagnostic Radiologic Examination method

URI	`https://biomedit.ch/rdf/sphn-ontology/sphn#PET`

PET CTⁿⁱ

Class(es)

Diagnostic Radiologic Examination method

URI	`https://biomedit.ch/rdf/sphn-ontology/sphn#PETCT`

Paediatric surgeryⁿⁱ

Class(es)

Therapeutic Area specialty name

URI	`https://biomedit.ch/rdf/sphn-ontology/sphn#PaediatricSurgery`

Paediatricsⁿⁱ

Class(es)

Therapeutic Area specialty name

URI	`https://biomedit.ch/rdf/sphn-ontology/sphn#Paediatrics`

partial responseⁿⁱ

Class(es)

Oncology Treatment Assessment result

URI	`https://biomedit.ch/rdf/sphn-ontology/sphn#PartialResponse`

Pathologyⁿⁱ

Class(es)

Therapeutic Area specialty name

URI	`https://biomedit.ch/rdf/sphn-ontology/sphn#Pathology`

Periodonticsⁿⁱ

Class(es)

Therapeutic Area specialty name

URI	`https://biomedit.ch/rdf/sphn-ontology/sphn#Periodontics`

Permanent damage or disabilityⁿⁱ

Class(es)

Adverse Event consequences

URI	`https://biomedit.ch/rdf/sphn-ontology/sphn#PermanentDamageOrDisability`

Pharmaceutical medicineⁿⁱ

Class(es)

Therapeutic Area specialty name

URI	`https://biomedit.ch/rdf/sphn-ontology/sphn#PharmaceuticalMedicine`

Physical filtration systemⁿⁱ

Class(es)

Tumor Specimen primary container
Sample primary container

URI	`https://biomedit.ch/rdf/sphn-ontology/sphn#PhysicalFiltrationSystem`

Physical medicine and rehabilitationⁿⁱ

Class(es)

Therapeutic Area specialty name

URI	`https://biomedit.ch/rdf/sphn-ontology/sphn#PhysicalMedicineAndRehabilitation`

Plastic, reconstructive and aesthetic surgeryⁿⁱ

Class(es)

Therapeutic Area specialty name

URI	`https://biomedit.ch/rdf/sphn-ontology/sphn#PlasticReconstructiveAndAestheticSurgery`

Pneumologyⁿⁱ

Class(es)

Therapeutic Area specialty name

URI	`https://biomedit.ch/rdf/sphn-ontology/sphn#Pneumology`

Polyethylene tube sterileⁿⁱ

Class(es)

Tumor Specimen primary container
Sample primary container

URI	`https://biomedit.ch/rdf/sphn-ontology/sphn#PolyethyleneTubeSterile`

Polypropylene tube sterileⁿⁱ

Class(es)

Tumor Specimen primary container
Sample primary container

URI	`https://biomedit.ch/rdf/sphn-ontology/sphn#PolypropyleneTubeSterile`

Potassium EDTAⁿⁱ

Class(es)

Tumor Specimen primary container
Sample primary container

URI	`https://biomedit.ch/rdf/sphn-ontology/sphn#PotassiumEDTA`

Prevention and public healthⁿⁱ

Class(es)

Therapeutic Area specialty name

URI	`https://biomedit.ch/rdf/sphn-ontology/sphn#PreventionAndPublicHealth`

principalⁿⁱ

Class(es)

FOPH Procedure rank
FOPH Diagnosis rank

URI	`https://biomedit.ch/rdf/sphn-ontology/sphn#Principal`

progressive diseaseⁿⁱ

Class(es)

Oncology Treatment Assessment result

URI	`https://biomedit.ch/rdf/sphn-ontology/sphn#ProgressiveDisease`

Protease inhibitorsⁿⁱ

Class(es)

Tumor Specimen primary container
Sample primary container

URI	`https://biomedit.ch/rdf/sphn-ontology/sphn#ProteaseInhibitors`

Psychiatry and psychotherapyⁿⁱ

Class(es)

Therapeutic Area specialty name

URI	`https://biomedit.ch/rdf/sphn-ontology/sphn#PsychiatryAndPsychotherapy`

Psychotherapyⁿⁱ

Class(es)

Therapeutic Area specialty name

URI	`https://biomedit.ch/rdf/sphn-ontology/sphn#Psychotherapy`

RECIST 1.0ⁿⁱ

Class(es)

Oncology Treatment Assessment criteria

URI	`https://biomedit.ch/rdf/sphn-ontology/sphn#RECIST1dot0`

RECIST 1.1ⁿⁱ

Class(es)

Oncology Treatment Assessment criteria

URI	`https://biomedit.ch/rdf/sphn-ontology/sphn#RECIST1dot1`

RNA Laterⁿⁱ

Class(es)

Tumor Specimen fixation type
Tumor Specimen primary container
Sample fixation type
Sample primary container

URI	`https://biomedit.ch/rdf/sphn-ontology/sphn#RNALater`

Radio-oncology and radiotherapyⁿⁱ

Class(es)

Therapeutic Area specialty name

URI	`https://biomedit.ch/rdf/sphn-ontology/sphn#RadioOncologyAndRadiotherapy`

Radiologyⁿⁱ

Class(es)

Therapeutic Area specialty name

URI	`https://biomedit.ch/rdf/sphn-ontology/sphn#Radiology`

Reconstructive dentistryⁿⁱ

Class(es)

Therapeutic Area specialty name

URI	`https://biomedit.ch/rdf/sphn-ontology/sphn#ReconstructiveDentistry`

Recoveredⁿⁱ

Class(es)

Adverse Event outcome

URI	`https://biomedit.ch/rdf/sphn-ontology/sphn#Recovered`

Recoveringⁿⁱ

Class(es)

Adverse Event outcome

URI	`https://biomedit.ch/rdf/sphn-ontology/sphn#Recovering`

Recovering with sequelaeⁿⁱ

Class(es)

Adverse Event outcome

URI	`https://biomedit.ch/rdf/sphn-ontology/sphn#RecoveringWithSequelae`

regionalⁿⁱ

Class(es)

Oncology Treatment Assessment progression type

URI	`https://biomedit.ch/rdf/sphn-ontology/sphn#Regional`

Residue coordinatesⁿⁱ

Class(es)

Genomic Position coordinate convention

URI	`https://biomedit.ch/rdf/sphn-ontology/sphn#ResidueCoordinates`

Rheumatologyⁿⁱ

Class(es)

Therapeutic Area specialty name

URI	`https://biomedit.ch/rdf/sphn-ontology/sphn#Rheumatology`

S8820 protease inhibitor tablets or equivalentⁿⁱ

Class(es)

Tumor Specimen primary container
Sample primary container

URI	`https://biomedit.ch/rdf/sphn-ontology/sphn#S8820ProteaseInhibitorTabletsOrEquivalent`

SPECTⁿⁱ

Class(es)

Diagnostic Radiologic Examination method

URI	`https://biomedit.ch/rdf/sphn-ontology/sphn#SPECT`

secondaryⁿⁱ

Class(es)

FOPH Diagnosis rank

URI	`https://biomedit.ch/rdf/sphn-ontology/sphn#Secondary`

Serum separator tube with clot activatorⁿⁱ

Class(es)

Tumor Specimen primary container
Sample primary container

URI	`https://biomedit.ch/rdf/sphn-ontology/sphn#SerumSeparatorTubeWithClotActivator`

Serum tube without clot activatorⁿⁱ

Class(es)

Tumor Specimen primary container
Sample primary container

URI	`https://biomedit.ch/rdf/sphn-ontology/sphn#SerumTubeWithoutClotActivator`

Snap freezingⁿⁱ

Class(es)

Tumor Specimen fixation type
Sample fixation type

URI	`https://biomedit.ch/rdf/sphn-ontology/sphn#SnapFreezing`

Sodium citrateⁿⁱ

Class(es)

Tumor Specimen primary container
Sample primary container

URI	`https://biomedit.ch/rdf/sphn-ontology/sphn#SodiumCitrate`

Sodium EDTAⁿⁱ

Class(es)

Tumor Specimen primary container
Sample primary container

URI	`https://biomedit.ch/rdf/sphn-ontology/sphn#SodiumEDTA`

Sodium fluoride/potassium oxalateⁿⁱ

Class(es)

Tumor Specimen primary container
Sample primary container

URI	`https://biomedit.ch/rdf/sphn-ontology/sphn#SodiumFluoridePotassiumOxalate`

Sodium heparinⁿⁱ

Class(es)

Tumor Specimen primary container
Sample primary container

URI	`https://biomedit.ch/rdf/sphn-ontology/sphn#SodiumHeparin`

stable diseaseⁿⁱ

Class(es)

Oncology Treatment Assessment result

URI	`https://biomedit.ch/rdf/sphn-ontology/sphn#StableDisease`

Stool collection container with DNA stabilizerⁿⁱ

Class(es)

Tumor Specimen primary container
Sample primary container

URI	`https://biomedit.ch/rdf/sphn-ontology/sphn#StoolCollectionContainerWithDNAStabilizer`

supplementaryⁿⁱ

Class(es)

FOPH Procedure rank

URI	`https://biomedit.ch/rdf/sphn-ontology/sphn#Supplementary`

Surgeryⁿⁱ

Class(es)

Therapeutic Area specialty name

URI	`https://biomedit.ch/rdf/sphn-ontology/sphn#Surgery`

Temporarily serious impact / medically importantⁿⁱ

Class(es)

Adverse Event consequences

URI	`https://biomedit.ch/rdf/sphn-ontology/sphn#TemporarilySeriousImpactMedicallyImportant`

Tempus® tubeⁿⁱ

Class(es)

Tumor Specimen primary container
Sample primary container

URI	`https://biomedit.ch/rdf/sphn-ontology/sphn#TempusTube`

Thoracic surgeryⁿⁱ

Class(es)

Therapeutic Area specialty name

URI	`https://biomedit.ch/rdf/sphn-ontology/sphn#ThoracicSurgery`

Trace elements tubeⁿⁱ

Class(es)

Tumor Specimen primary container
Sample primary container

URI	`https://biomedit.ch/rdf/sphn-ontology/sphn#TraceElementsTube`

traceable author statementⁿⁱ

Class(es)

Oncology Treatment Assessment criteria

URI	`https://biomedit.ch/rdf/sphn-ontology/sphn#TraceableAuthorStatement`

Tropical and travel medicineⁿⁱ

Class(es)

Therapeutic Area specialty name

URI	`https://biomedit.ch/rdf/sphn-ontology/sphn#TropicalAndTravelMedicine`

Urologyⁿⁱ

Class(es)

Therapeutic Area specialty name

URI	`https://biomedit.ch/rdf/sphn-ontology/sphn#Urology`

Vacuum technology stabilizationⁿⁱ

Class(es)

Tumor Specimen fixation type
Sample fixation type

URI	`https://biomedit.ch/rdf/sphn-ontology/sphn#VacuumTechnologyStabilization`

Vascular surgeryⁿⁱ

Class(es)

Therapeutic Area specialty name

URI	`https://biomedit.ch/rdf/sphn-ontology/sphn#VascularSurgery`

Visceral medicineⁿⁱ

Class(es)

Therapeutic Area specialty name

URI	`https://biomedit.ch/rdf/sphn-ontology/sphn#VisceralMedicine`

X-rayⁿⁱ

Class(es)

Diagnostic Radiologic Examination method

URI	`https://biomedit.ch/rdf/sphn-ontology/sphn#X-ray`

URI	`https://biomedit.ch/rdf/sphn-ontology/sphn#Biosample`
Description	any material sample taken from a biological entity for testing, diagnostic, propagation, treatment or research purposes
Parents	Deprecated^c

URI	`https://biomedit.ch/rdf/sphn-ontology/sphn#Catheter`
Description	medical device composed of a tube of varying size and length
Parents	Deprecated^c

URI	`https://biomedit.ch/rdf/sphn-ontology/sphn#CentralVenousPressure`
Description	central venous pressure measured in the venae cavae
Parents	Deprecated^c

URI	`https://biomedit.ch/rdf/sphn-ontology/sphn#Deprecated`
Description	Deprecated classes of SPHN that existed in the previous version
Children (Sub-classes)	Catheter^c Biosample^c Central Venous Pressure^c Systemic Arterial Blood Pressure^c

URI	`https://biomedit.ch/rdf/sphn-ontology/sphn#SystemicArterialBloodPressure`
Description	arterial blood pressure in systemic circulation
Parents	Deprecated^c

URI	`https://biomedit.ch/rdf/sphn-ontology/sphn#TumorSpecimen_primaryContainer`
Description	type of primary container in which the specimen is collected
Parents	Value Set^c
Value set members (Individuals)	Lithium heparin and gel Cell Preparation Tube® citrate Tempus® tube Sodium fluoride/potassium oxalate RNA Later Sodium EDTA Trace elements tube other EDTA and gel S8820 protease inhibitor tablets or equivalent PAXgene® blood RNA+ Serum tube without clot activator Chemical additives / stabilizers Aldehyde-based stabilizer for CTCs Oragene collection container or equivalent Hirudin Polyethylene tube sterile Serum separator tube with clot activator Lithium heparin and rubber plug Non-aldehyde-based stabilizer for cell-free nucleic acids PAXgene® blood DNA Polypropylene tube sterile Sodium citrate Cell Preparation Tube® heparin Stool collection container with DNA stabilizer Citrate phosphate dextrose Acid citrate dextrose Glass Physical filtration system PAXgene® bone marrow RNA Sodium heparin Protease inhibitors Lithium heparin Potassium EDTA

URI	`https://biomedit.ch/rdf/sphn-ontology/sphn#ValueSet`
Description	List of value sets provided by SPHN
Parents	SPHN Concept^c
Children (Sub-classes)	Body Surface Area calculation method^c Adverse Event consequences^c Sample primary container^c Comparator^c FOPH Diagnosis rank^c Sample fixation type^c Genomic Position coordinate convention^c Oncology Treatment Assessment result^c Tumor Specimen primary container^c FOPH Procedure rank^c Diagnostic Radiologic Examination method^c Tumor Specimen fixation type^c Oncology Treatment Assessment criteria^c Oncology Treatment Assessment progression type^c Adverse Event outcome^c Therapeutic Area specialty name^c

URI	`https://biomedit.ch/rdf/sphn-ontology/sphn#replaces`
Description	Property that links the new version of an SPHN class replacing an SPHN old class

^c	Classes
^op	Object Properties
^fp	Functional Properties
^dp	Data Properties
^ap	Annotation Properties
^p	Properties
ⁿⁱ	Named Individuals

The SPHN RDF Schema

Metadata

Description

Table of Contents

Classes ↑

Access Device Presencec # Classes

Administrative Casec # Classes

Administrative Genderc # Classes

Adverse Eventc # Classes

Agec # Classes

Allergenc # Classes

Allergyc # Classes

Allergy Episodec # Classes

Biobanksamplec # Classes

Birth Datec # Classes

Blood Pressurec # Classes

Body Heightc # Classes

Body Mass Indexc # Classes

Body Positionc # Classes

Body Sitec # Classes

Body Surface Areac # Classes

Body Temperaturec # Classes

Body Weightc # Classes

Cardiac Indexc # Classes

Cardiac Outputc # Classes

Care Handlingc # Classes

Chromosomal Locationc # Classes

Chromosomec # Classes

Circumference Measurec # Classes

Civil Statusc # Classes

Codec # Classes

Consentc # Classes

Data Determinationc # Classes

Data Filec # Classes

Data Provider Institutec # Classes

Data Releasec # Classes

Death Datec # Classes

Death Statusc # Classes

Diagnosisc # Classes

Diagnostic Radiologic Examinationc # Classes

Drugc # Classes

Drug Administration Eventc # Classes

Drug Prescriptionc # Classes

Electrocardiogramc # Classes

Electrocardiographic Procedurec # Classes

FOPH Diagnosisc # Classes

FOPH Procedurec # Classes

Genec # Classes

Genetic Variationc # Classes

Genomic Positionc # Classes

Gestational Age at Birthc # Classes

Healthcare Encounterc # Classes

Heart Ratec # Classes

ICD-O Diagnosisc # Classes

Inhaled Oxygen Concentrationc # Classes

Intentc # Classes

Lab Analyzerc # Classes

Lab Resultc # Classes

Lab Testc # Classes

Lateralityc # Classes

Locationc # Classes

Measurementc # Classes

Measurement Methodc # Classes

Medical Devicec # Classes

Nursing Diagnosisc # Classes

Oncology Treatment Assessmentc # Classes

Organismc # Classes

Oxygen Saturationc # Classes

Pharmaceutical Dose Formc # Classes

Physiologic Statec # Classes

Problem Conditionc # Classes

Procedurec # Classes

Proteinc # Classes

Quantityc # Classes

Radiotherapy Procedurec # Classes

Referencec # Classes

Reference Rangec # Classes

Respiratory Ratec # Classes

SPHN Conceptc # Classes

Samplec # Classes

Access Device Presence^c # Classes

Administrative Case^c # Classes

Administrative Gender^c # Classes

Adverse Event^c # Classes

Age^c # Classes

Allergen^c # Classes

Allergy^c # Classes

Allergy Episode^c # Classes

Biobanksample^c # Classes

Birth Date^c # Classes

Blood Pressure^c # Classes

Body Height^c # Classes

Body Mass Index^c # Classes

Body Position^c # Classes

Body Site^c # Classes

Body Surface Area^c # Classes

Body Temperature^c # Classes

Body Weight^c # Classes

Cardiac Index^c # Classes

Cardiac Output^c # Classes

Care Handling^c # Classes

Chromosomal Location^c # Classes

Chromosome^c # Classes

Circumference Measure^c # Classes

Civil Status^c # Classes

Code^c # Classes

Consent^c # Classes

Data Determination^c # Classes

Data File^c # Classes

Data Provider Institute^c # Classes

Data Release^c # Classes

Death Date^c # Classes

Death Status^c # Classes

Diagnosis^c # Classes

Diagnostic Radiologic Examination^c # Classes

Drug^c # Classes

Drug Administration Event^c # Classes

Drug Prescription^c # Classes

Electrocardiogram^c # Classes

Electrocardiographic Procedure^c # Classes

FOPH Diagnosis^c # Classes

FOPH Procedure^c # Classes

Gene^c # Classes

Genetic Variation^c # Classes

Genomic Position^c # Classes

Gestational Age at Birth^c # Classes

Healthcare Encounter^c # Classes

Heart Rate^c # Classes

ICD-O Diagnosis^c # Classes

Inhaled Oxygen Concentration^c # Classes

Intent^c # Classes

Lab Analyzer^c # Classes

Lab Result^c # Classes

Lab Test^c # Classes

Laterality^c # Classes

Location^c # Classes

Measurement^c # Classes

Measurement Method^c # Classes

Medical Device^c # Classes

Nursing Diagnosis^c # Classes

Oncology Treatment Assessment^c # Classes

Organism^c # Classes

Oxygen Saturation^c # Classes

Pharmaceutical Dose Form^c # Classes

Physiologic State^c # Classes

Problem Condition^c # Classes

Procedure^c # Classes

Protein^c # Classes

Quantity^c # Classes

Radiotherapy Procedure^c # Classes

Reference^c # Classes

Reference Range^c # Classes

Respiratory Rate^c # Classes

SPHN Concept^c # Classes

Sample^c # Classes

Simple Score^c # Classes

Single Nucleotide Variation^c # Classes

Subject Pseudo Identifier^c # Classes

Substance^c # Classes

TNM Classification^c # Classes
