The SPHN RDF Schema

Metadata

URI
https://biomedit.ch/rdf/sphn-ontology/sphn
Version URI
https://biomedit.ch/rdf/sphn-ontology/sphn/2022/1
Prior Version
https://biomedit.ch/rdf/sphn-ontology/sphn/2021/2
Imports
http://snomed.info/sct/900000000000207008/version/20220207
https://biomedit.ch/rdf/sphn-resource/atc/2022/1
https://biomedit.ch/rdf/sphn-resource/chop/2022/1
https://biomedit.ch/rdf/sphn-resource/icd-10-gm/2022/2
https://biomedit.ch/rdf/sphn-resource/loinc/2.72/1
https://biomedit.ch/rdf/sphn-resource/ucum/2021/1
License
https://creativecommons.org/licenses/by-nc-sa/4.0/
SPHN RDF Schema
RDF (turtle)
External Terminologies in RDF
BioMedIT Portal (with Switch edu-ID)

Description

The RDF schema describing concepts defined in the official SPHN dataset

Table of Contents

  1. Classes
  2. Object Properties
  3. Datatype Properties
  4. Annotation Properties
  5. Named Individuals
  6. Namespaces
  7. Legend

Classes

SPHN Conceptc # Classes

URI https://biomedit.ch/rdf/sphn-ontology/sphn#SPHNConcept
Description

SPHN Concepts defined by the SPHN dataset

Children
(Sub-classes)

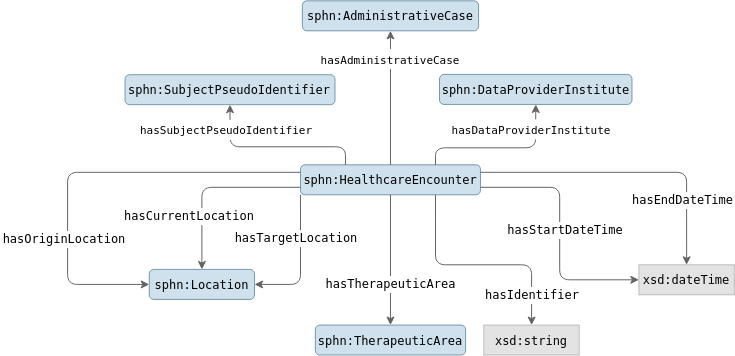

Healthcare Encounterc
Therapeutic Areac
Death Datec
Agec
Drug Prescriptionc
Birth Datec
Consentc
Measurementc
Terminologyc
Adverse Eventc

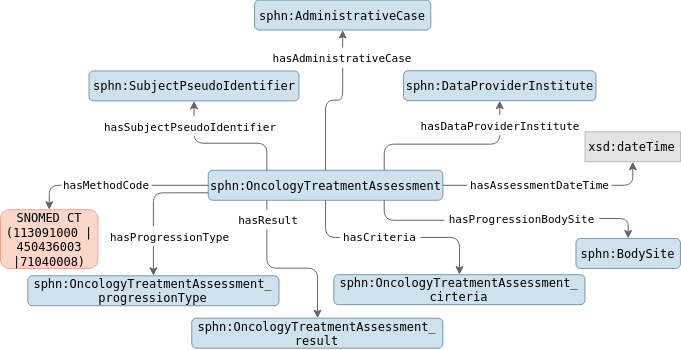

Oncology Treatment Assessmentc
Value Setc
Problem Conditionc
Diagnosisc
Body Sitec
Reference Rangec
Biosamplec
Drugc
Allergyc
TNM Classificationc
Lab Testc
Data Determinationc
Administrative Genderc
Tumor Specimenc
Lateralityc

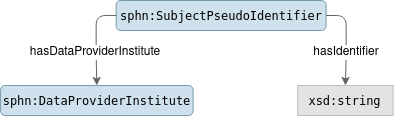

Subject Pseudo Identifierc
Procedurec
Time Patternc
Pharmaceutical Dose Formc
Simple Scorec
Measurement Methodc
Care Handlingc
Drug Administration Eventc
Tumor Stagec
Data Provider Institutec
Data Releasec
Allergy Episodec
Locationc
Administrative Casec
Codec
Biobanksamplec
Death Statusc
Intentc
Quantityc
Inhaled Oxygen Concentrationc
Substancec
Tumor Gradec
Unitc

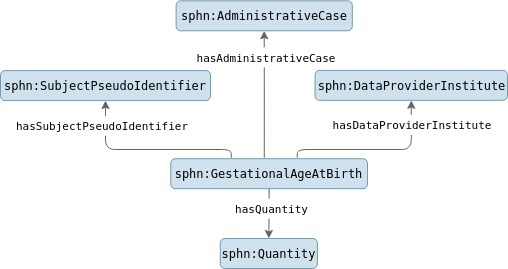

Gestational Age at Birthc
Civil Statusc
Lab Resultc

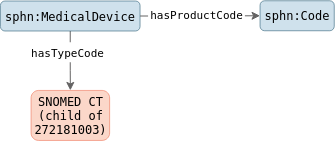

Medical Devicec
Used in
(In the range of)
has classop
has substance categoryop
has material type liquidop
has primary containerop
has storage containerop
has methodop
has resultop
has material type tissueop
has indication to startop
has rankop
has fixation typeop
has comparatorop
has criteriaop
has progression typeop
has specialty nameop
has consequencesop
has outcomeop

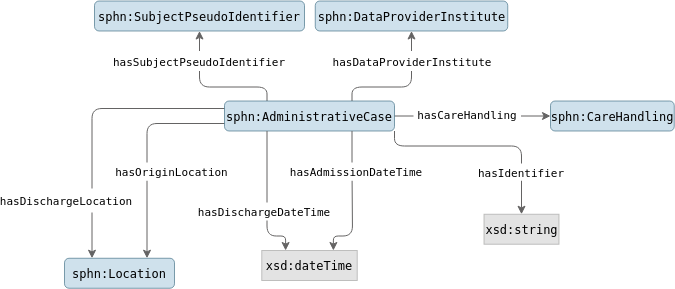

Administrative Casec # Classes

URI https://biomedit.ch/rdf/sphn-ontology/sphn#AdministrativeCase
Description

administrative artefact for billing according to Swiss DRG

Schema representation
Parents
SPHN Conceptc
Property
(In the domain of)
Cardinality Class or Datatype Restriction
has admission date timedp
1 .. 1 xsd:dateTimec
has origin locationop
0 .. 1 Locationc
has discharge locationop
0 .. 1 Locationc
has discharge date timedp
0 .. 1 xsd:dateTimec
has subject pseudo identifierop
1 .. 1 Subject Pseudo Identifierc
has identifierdp
1 .. 1 xsd:stringc
has care handlingop
0 .. 1 Care Handlingc
has data provider instituteop
1 .. 1 Data Provider Institutec
Restrictions None
Used in
(In the range of)
has administrative caseop

Administrative Genderc # Classes

URI https://biomedit.ch/rdf/sphn-ontology/sphn#AdministrativeGender
Description

the gender of the individual used for administrative purposes

Schema representation
Meaning binding
(Equivalent-classes)
SNOMED 365873007 | Gender finding (finding) |c
Parents
SPHN Conceptc
Property
(In the domain of)
Cardinality Class or Datatype Restriction
has subject pseudo identifierop
1 .. * Subject Pseudo Identifierc
has codeop
1 .. 1 Yes
has record date timedp
0 .. 1 xsd:dateTimec
Restrictions
has codeop : children of the given classes are not allowed

SNOMED 261665006 | Unknown (qualifier value) |c SNOMED 703117000 | Masculine gender (finding) |c SNOMED 703118005 | Feminine gender (finding) |c SNOMED 74964007 | Other (qualifier value) |c

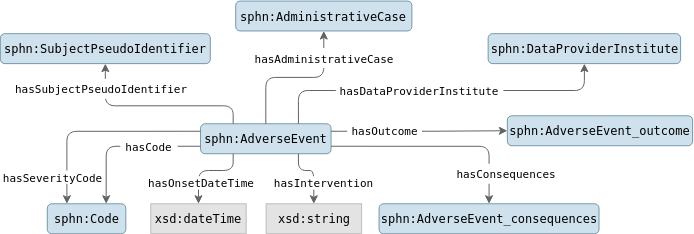

Adverse Eventc # Classes

URI https://biomedit.ch/rdf/sphn-ontology/sphn#AdverseEvent
Description

results from an intervention that caused unintentional harm

Schema representation
Meaning binding
(Equivalent-classes)
SNOMED 281647001 | Adverse reaction (disorder) |c
Parents
SPHN Conceptc
Property
(In the domain of)
Cardinality Class or Datatype Restriction
has codeop
1 .. 1 Terminologyc or Codec
has administrative caseop
0 .. 1 Administrative Casec
has consequencesop
0 .. 1 Yes
has outcomeop
0 .. 1 Yes
has onset date timedp
0 .. 1 xsd:dateTimec
has subject pseudo identifierop
1 .. 1 Subject Pseudo Identifierc
has interventiondp
0 .. 1 xsd:stringc
has severity codeop
0 .. 1 Terminologyc or Codec
has data provider instituteop
1 .. 1 Data Provider Institutec
Restrictions
has consequencesop :

Adverse Event consequencesc

has outcomeop :

Adverse Event outcomec

Notes

sphn:hasSeverityCode allowed coding system: CTCAE or other

sphn:hasCode allowed coding system: MedDRA

Agec # Classes

URI https://biomedit.ch/rdf/sphn-ontology/sphn#Age
Description

time elapsed after birth of the individual

Schema representation
Meaning binding
(Equivalent-classes)
LOINC 30525-0 | Age |c
SNOMED 397669002 | Age (qualifier value) |c
Parents
SPHN Conceptc
Property
(In the domain of)
Cardinality Class or Datatype Restriction
has subject pseudo identifierop
1 .. 1 Subject Pseudo Identifierc
has quantityop
1 .. 1 Yes
has determination date timedp
1 .. 1 xsd:dateTimec
Restrictions
has quantityop / has unitop / has codeop :

ucum:ac ucum:dc ucum:hc ucum:minc ucum:moc ucum:wkc

Used in
(In the range of)
has subject ageop

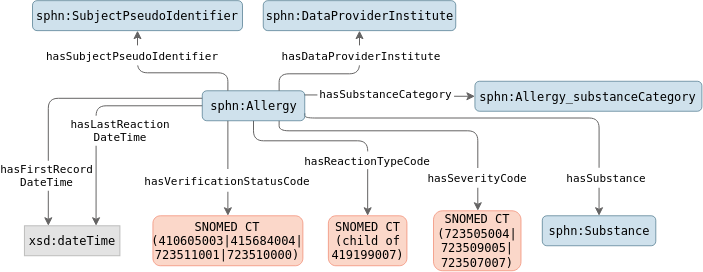

Allergyc # Classes

URI https://biomedit.ch/rdf/sphn-ontology/sphn#Allergy
Description

risk of harmful or undesirable, physiological response which is unique to an individual and associated with exposure to a substance

Schema representation
Meaning binding
(Equivalent-classes)
SNOMED 418038007 | Propensity to adverse reactions to substance (finding) |c
Parents
SPHN Conceptc
Property
(In the domain of)
Cardinality Class or Datatype Restriction
has verification status codeop
0 .. 1 Yes
has substanceop
0 .. 1 Substancec
has data provider instituteop
1 .. 1 Data Provider Institutec
has reaction type codeop
0 .. 1 Yes
has subject pseudo identifierop
1 .. 1 Subject Pseudo Identifierc
has first record date timedp
0 .. 1 xsd:dateTimec
has severity codeop
0 .. 1 Yes
has last reaction date timedp
0 .. 1 xsd:dateTimec
has substance categoryop
0 .. 1 Yes
Restrictions
has verification status codeop : children of the given classes are not allowed

SNOMED 410605003 | Confirmed present (qualifier value) |c SNOMED 415684004 | Suspected (qualifier value) |c SNOMED 723510000 | Entered in error (qualifier value) |c SNOMED 723511001 | Refuted (qualifier value) |c

has reaction type codeop : children of the given classes are not allowed

SNOMED 261665006 | Unknown (qualifier value) |c SNOMED 419199007 | Allergy to substance (finding) |c SNOMED 782197009 | Intolerance to substance (finding) |c

has severity codeop : children of the given classes are not allowed

SNOMED 723505004 | Low risk (qualifier value) |c SNOMED 723507007 | Unable to determine risk (qualifier value) |c SNOMED 723509005 | High risk (qualifier value) |c

has substance categoryop :

Allergy substance categoryc

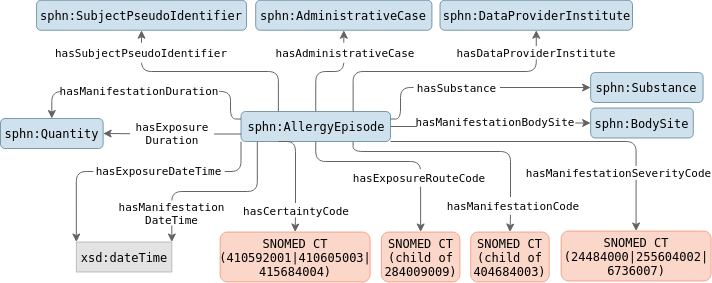

Allergy Episodec # Classes

URI https://biomedit.ch/rdf/sphn-ontology/sphn#AllergyEpisode
Description

manifestation of an allergic reaction following an exposure to a substance

Schema representation
Parents
SPHN Conceptc
Property
(In the domain of)
Cardinality Class or Datatype Restriction
has manifestation body siteop
0 .. 1 Body Sitec
has substanceop
1 .. 1 Substancec
has exposure date timedp
0 .. 1 xsd:dateTimec
has manifestation codeop
0 .. 1 Yes
has manifestation durationop
0 .. 1 Quantityc
has manifestation severity codeop
0 .. 1 Yes
has exposure route codeop
0 .. 1 Yes
has subject pseudo identifierop
1 .. 1 Subject Pseudo Identifierc
has certainty codeop
0 .. 1 Yes
has exposure durationop
0 .. 1 Quantityc
has administrative caseop
0 .. 1 Administrative Casec
has manifestation date timedp
0 .. 1 xsd:dateTimec
has data provider instituteop
1 .. 1 Data Provider Institutec
Restrictions
has manifestation codeop : children of the given classes are allowed

SNOMED 404684003 | Clinical finding (finding) |c

has manifestation severity codeop : children of the given classes are not allowed

SNOMED 24484000 | Severe (severity modifier) (qualifier value) |c SNOMED 255604002 | Mild (qualifier value) |c SNOMED 6736007 | Moderate (severity modifier) (qualifier value) |c

has exposure route codeop : children of the given classes are allowed

SNOMED 284009009 | Route of administration value (qualifier value) |c

has certainty codeop : children of the given classes are not allowed

SNOMED 410592001 | Probably present (qualifier value) |c SNOMED 410605003 | Confirmed present (qualifier value) |c SNOMED 415684004 | Suspected (qualifier value) |c

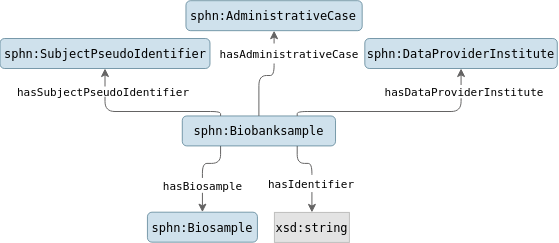

Biobanksamplec # Classes

URI https://biomedit.ch/rdf/sphn-ontology/sphn#Biobanksample
Description

biosample stored in a biobank

Schema representation
Parents
SPHN Conceptc
Property
(In the domain of)
Cardinality Class or Datatype Restriction
has data provider instituteop
1 .. 1 Data Provider Institutec
has biosampleop
1 .. 1 Biosamplec
has subject pseudo identifierop
1 .. 1 Subject Pseudo Identifierc
has identifierdp
1 .. 1 xsd:stringc
has administrative caseop
0 .. 1 Administrative Casec
Restrictions None

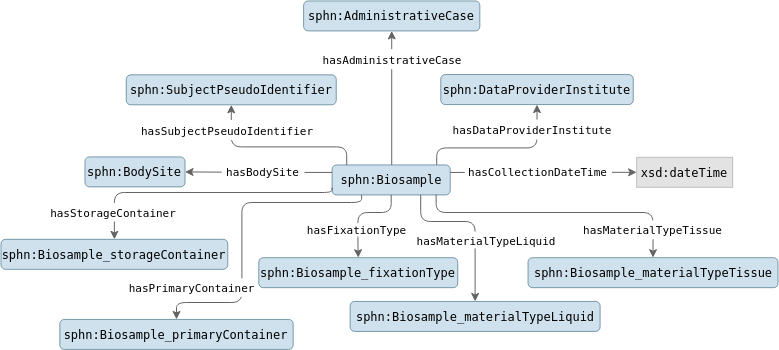

Biosamplec # Classes

URI https://biomedit.ch/rdf/sphn-ontology/sphn#Biosample
Description

any material sample taken from a biological entity for testing, diagnostic, propagation, treatment or research purposes

Schema representation
Meaning binding
(Equivalent-classes)
SNOMED 123038009 | Specimen (specimen) |c
Parents
SPHN Conceptc
Property
(In the domain of)
Cardinality Class or Datatype Restriction
has fixation typeop
0 .. 1 Yes
has material type liquidop
0 .. 1 Yes
has material type tissueop
0 .. 1 Yes
has administrative caseop
0 .. 1 Administrative Casec
has storage containerop
0 .. 1 Yes
has data provider instituteop
1 .. 1 Data Provider Institutec
has primary containerop
0 .. 1 Yes
has body siteop
0 .. 1 Body Sitec
has subject pseudo identifierop
1 .. 1 Subject Pseudo Identifierc
has collection date timedp
1 .. 1 xsd:dateTimec
Restrictions
has fixation typeop :

Biosample fixation typec

has material type liquidop :

Biosample material type liquidc

has material type tissueop :

Biosample material type tissuec

has storage containerop :

Biosample storage containerc

has primary containerop :

Biosample primary containerc

Used in
(In the range of)
has biosampleop

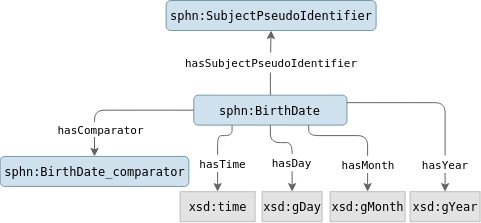

Birth Datec # Classes

URI https://biomedit.ch/rdf/sphn-ontology/sphn#BirthDate
Description

the datetime of birth of the individual

Schema representation
Meaning binding
(Equivalent-classes)
LOINC 21112-8 | Birth date |c
SNOMED 184099003 | Date of birth (observable entity) |c
Parents
SPHN Conceptc
Property
(In the domain of)
Cardinality Class or Datatype Restriction
has timedp
0 .. 1 xsd:timec
has subject pseudo identifierop
1 .. * Subject Pseudo Identifierc
has comparatorop
0 .. 1 Yes
has daydp
0 .. 1 xsd:gDayc
has monthdp
0 .. 1 xsd:gMonthc
has yeardp
1 .. 1 xsd:gYearc
Restrictions
has comparatorop :

Birth Date comparatorc

Body Sitec # Classes

URI https://biomedit.ch/rdf/sphn-ontology/sphn#BodySite
Description

any anatomical structure, any nonspecific and anatomical site, as well as morphologic abnormalities

Schema representation
Meaning binding
(Equivalent-classes)
LOINC 39111-0 | Body site |c
SNOMED 123037004 | Body structure (body structure) |c
Parents
SPHN Conceptc
Property
(In the domain of)
Cardinality Class or Datatype Restriction
has codeop
1 .. 1 Yes
has lateralityop
0 .. 1 Lateralityc
Restrictions
has codeop : children of the given classes are allowed

SNOMED 123037004 | Body structure (body structure) |c

Used in
(In the range of)
has progression body siteop
has body siteop
has manifestation body siteop

Care Handlingc # Classes

URI https://biomedit.ch/rdf/sphn-ontology/sphn#CareHandling
Description

describes the relationship between the individual and care provider institute

Schema representation
Meaning binding
(Equivalent-classes)
SNOMED 225365006 | Care regime (regime/therapy) |c
Parents
SPHN Conceptc
Property
(In the domain of)
Cardinality Class or Datatype Restriction
has type codeop
1 .. 1 Yes
Restrictions
has type codeop : children of the given classes are not allowed

SNOMED 261665006 | Unknown (qualifier value) |c SNOMED 304903009 | Provision of day care (regime/therapy) |c SNOMED 371883000 | Outpatient procedure (procedure) |c SNOMED 394656005 | Inpatient care (regime/therapy) |c

Used in
(In the range of)
has care handlingop

Civil Statusc # Classes

URI https://biomedit.ch/rdf/sphn-ontology/sphn#CivilStatus
Description

the civil status indicates the familial and social situation of the individual

Schema representation
Meaning binding
(Equivalent-classes)
SNOMED 365581002 | Finding of marital or partnership status (finding) |c
Parents
SPHN Conceptc
Property
(In the domain of)
Cardinality Class or Datatype Restriction
has codeop
1 .. 1 Yes
has event date timedp
0 .. 1 xsd:dateTimec
has subject pseudo identifierop
1 .. * Subject Pseudo Identifierc
Restrictions
has codeop : children of the given classes are not allowed

SNOMED 125681006 | Single person (finding) |c SNOMED 14012001 | Common law partnership (finding) |c SNOMED 160504008 | Marital state unknown (finding) |c SNOMED 20295000 | Divorced (finding) |c SNOMED 266945001 | Broken with partner (finding) |c SNOMED 33553000 | Widowed (finding) |c SNOMED 87915002 | Married (finding) |c

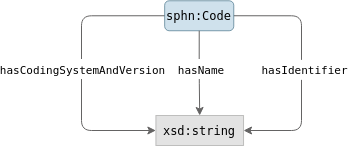

Codec # Classes

URI https://biomedit.ch/rdf/sphn-ontology/sphn#Code
Description

symbols and/or expressions defined in a coding system

Schema representation
Parents
SPHN Conceptc
Property
(In the domain of)
Cardinality Class or Datatype Restriction
has identifierdp
1 .. 1 xsd:stringc
has namedp
0 .. 1 xsd:stringc
has coding system and versiondp
1 .. 1 xsd:stringc
Restrictions None
Used in
(In the range of)
has topography codeop
has manifestation codeop
has certainty codeop
has reaction type codeop
has morphology codeop
has exposure route codeop
has physiologic state codeop
has status codeop
has scoring system codeop
has manifestation severity codeop
has severity codeop
has quantitative result codeop
has regularity codeop
has codeop
has method codeop
has verification status codeop
has administration route codeop
has relative temporality codeop
has product codeop
has type codeop
has reason to stop codeop

Data Determinationc # Classes

URI https://biomedit.ch/rdf/sphn-ontology/sphn#DataDetermination
Description

describes how the data was determined, e.g. measured, calculated

Schema representation
Parents
SPHN Conceptc
Property
(In the domain of)
Cardinality Class or Datatype Restriction
has method codeop
1 .. 1 Yes
Restrictions
has method codeop : children of the given classes are not allowed

SNOMED 258090004 | Calculated (qualifier value) |c SNOMED 258104002 | Measured (qualifier value) |c SNOMED 261665006 | Unknown (qualifier value) |c SNOMED 263760002 | Forced (qualifier value) |c SNOMED 414135002 | Estimated (qualifier value) |c SNOMED 87982008 | Manual (qualifier value) |c

Used in
(In the range of)
has data determinationop

Data Provider Institutec # Classes

URI https://biomedit.ch/rdf/sphn-ontology/sphn#DataProviderInstitute
Description

healthcare institute providing the data

Schema representation
Parents
SPHN Conceptc
Property
(In the domain of)
Cardinality Class or Datatype Restriction
has codeop
1 .. 1 Terminologyc or Codec
Restrictions None
Notes

sphn:hasCode allowed coding system: UID

Used in
(In the range of)
has data provider instituteop

Data Releasec # Classes

URI https://biomedit.ch/rdf/sphn-ontology/sphn#DataRelease
Description

metadata about the release of the data

Schema representation
Parents
SPHN Conceptc
Property
(In the domain of)
Cardinality Class or Datatype Restriction
has extraction date timedp
1 .. 1 xsd:dateTimec
Restrictions None

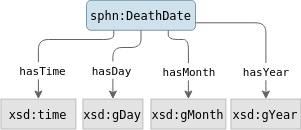

Death Datec # Classes

URI https://biomedit.ch/rdf/sphn-ontology/sphn#DeathDate
Description

datetime of death for the individual

Schema representation
Meaning binding
(Equivalent-classes)
LOINC 81954-0 | Date of death [Date] |c
SNOMED 399753006 | Date of death (observable entity) |c
Parents
SPHN Conceptc
Property
(In the domain of)
Cardinality Class or Datatype Restriction
has yeardp
1 .. 1 xsd:gYearc
has subject pseudo identifierop
1 .. * Subject Pseudo Identifierc
has timedp
0 .. 1 xsd:timec
has daydp
0 .. 1 xsd:gDayc
has monthdp
0 .. 1 xsd:gMonthc
Restrictions None
Used in
(In the range of)
has death dateop

Death Statusc # Classes

URI https://biomedit.ch/rdf/sphn-ontology/sphn#DeathStatus
Description

death information availability

Schema representation
Parents
SPHN Conceptc
Property
(In the domain of)
Cardinality Class or Datatype Restriction
has codeop
1 .. 1 Yes
has death dateop
0 .. 1 Death Datec
has subject pseudo identifierop
1 .. * Subject Pseudo Identifierc
Restrictions
has codeop : children of the given classes are not allowed

SNOMED 261665006 | Unknown (qualifier value) |c SNOMED 419099009 | Dead (finding) |c

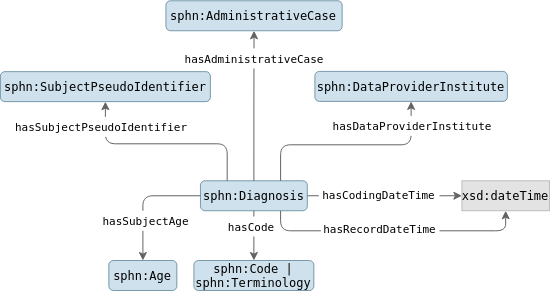

Diagnosisc # Classes

URI https://biomedit.ch/rdf/sphn-ontology/sphn#Diagnosis
Description

determination of the presence of a disease, condition, or injury from expressed signs and symptoms and assessments such as physical examination, laboratory test, or the like

Schema representation
Meaning binding
(Equivalent-classes)
SNOMED 439401001 | Diagnosis (observable entity) |c
Parents
SPHN Conceptc
Children
(Sub-classes)
Nursing Diagnosisc
FOPH Diagnosisc
ICD-O Diagnosisc
Property
(In the domain of)
Cardinality Class or Datatype Restriction
has record date timedp
0 .. 1 xsd:dateTimec
has subject ageop
0 .. 1 Agec
has data provider instituteop
1 .. 1 Data Provider Institutec
has codeop
1 .. 1 Terminologyc or Codec
has administrative caseop
1 .. 1 Administrative Casec
has subject pseudo identifierop
1 .. 1 Subject Pseudo Identifierc
has coding date timedp
0 .. 1 xsd:dateTimec
Restrictions None
Notes

sphn:hasCode allowed coding system: SNOMED CT, ICD-10, ICD-O-3 Topography, ICD-O-3 Morphology, NANDA, ORPHA or other

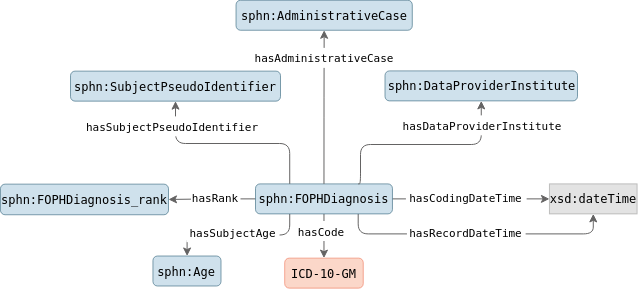

FOPH Diagnosisc # Classes

URI https://biomedit.ch/rdf/sphn-ontology/sphn#FOPHDiagnosis
Description

discharge diagnosis given respecting the rules of FOPH and used for building the DRGs, e.g. K35 acute appendicitis

Schema representation
Meaning binding
(Equivalent-classes)
LOINC 38999-9 | Hospital discharge DRG [Interpretation] |c
SNOMED 89100005 | Final diagnosis (discharge) (contextual qualifier) (qualifier value) |c
Parents
Diagnosisc
Property
(In the domain of)
Cardinality Class or Datatype Restriction
has record date timedp
0 .. 1 xsd:dateTimec
has subject ageop
0 .. 1 Agec
has data provider instituteop
1 .. 1 Data Provider Institutec
has codeop
1 .. 1 Yes
has administrative caseop
1 .. 1 Administrative Casec
has rankop
0 .. 1 Yes
has subject pseudo identifierop
1 .. 1 Subject Pseudo Identifierc
has coding date timedp
0 .. 1 xsd:dateTimec
Restrictions
has codeop :

icd-10-gm:ICD-10-GMc

has rankop :

FOPH Diagnosis rankc

ICD-O Diagnosisc # Classes

URI https://biomedit.ch/rdf/sphn-ontology/sphn#ICDODiagnosis
Description

ICD-O diagnosis

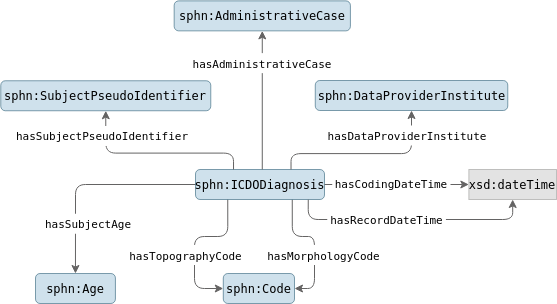

Schema representation
Parents
Diagnosisc
Property
(In the domain of)
Cardinality Class or Datatype Restriction
has morphology codeop
1 .. 1 Terminologyc or Codec
has subject pseudo identifierop
1 .. 1 Subject Pseudo Identifierc
has topography codeop
0 .. 1 Codec or Terminologyc
has coding date timedp
0 .. 1 xsd:dateTimec
has record date timedp
0 .. 1 xsd:dateTimec
has administrative caseop
0 .. 1 Administrative Casec
has subject ageop
0 .. 1 Agec
has data provider instituteop
1 .. 1 Data Provider Institutec
Restrictions None
Notes

sphn:hasTopographyCode allowed coding system: ICD-O-3 Topography

sphn:hasMorphologyCode allowed coding system: ICD-O-3 Morphology

Nursing Diagnosisc # Classes

URI https://biomedit.ch/rdf/sphn-ontology/sphn#NursingDiagnosis
Description

clinical judgment concerning a human response to health conditions/life processes, or a vulnerability for that response, by an individual, family, group or community; a nursing diagnosis provides the basis for selection of nursing interventions to achieve outcomes for which the nurse has accountability

Schema representation
Parents
Diagnosisc
Property
(In the domain of)
Cardinality Class or Datatype Restriction
has subject pseudo identifierop
1 .. 1 Subject Pseudo Identifierc
has coding date timedp
0 .. 1 xsd:dateTimec
has codeop
1 .. 1 Terminologyc or Codec
has record date timedp
0 .. 1 xsd:dateTimec
has administrative caseop
1 .. 1 Administrative Casec
has subject ageop
0 .. 1 Agec
has data provider instituteop
1 .. 1 Data Provider Institutec
Restrictions None
Notes

sphn:hasCode allowed coding system: NANDA

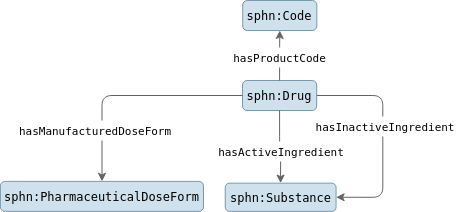

Drugc # Classes

URI https://biomedit.ch/rdf/sphn-ontology/sphn#Drug
Description

medication that can be given to the patient

Schema representation
Meaning binding
(Equivalent-classes)
SNOMED 410942007 | Drug or medicament (substance) |c
Parents
SPHN Conceptc
Property
(In the domain of)
Cardinality Class or Datatype Restriction
has active ingredientop
0 .. * Substancec
has inactive ingredientop
0 .. * Substancec
has product codeop
0 .. 1 Terminologyc or Codec
has manufactured dose formop
0 .. 1 Pharmaceutical Dose Formc
Restrictions None
Notes

sphn:hasProductCode allowed coding system: GTIN

Used in
(In the range of)
has drugop

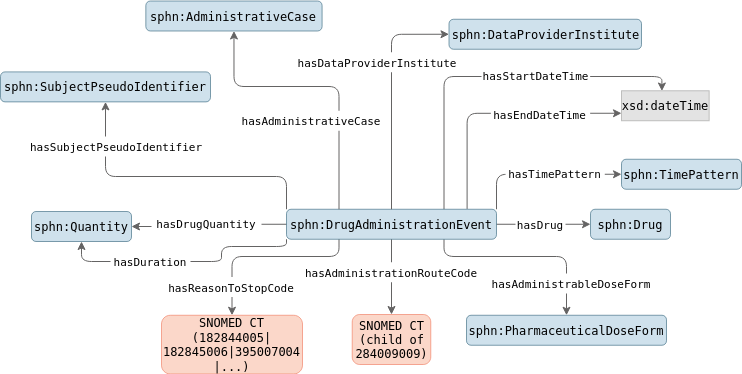

Drug Administration Eventc # Classes

URI https://biomedit.ch/rdf/sphn-ontology/sphn#DrugAdministrationEvent
Description

single event at which drugs were administered to the patient; this could be a single time point in case of a pill/cream or a duration in case of a single infusion pack or a single patch; one or many drug administration events are initiated by a drug prescription depending on the frequency stated in the prescription

Schema representation
Meaning binding
(Equivalent-classes)
SNOMED 182832007 | Procedure related to management of drug administration (procedure) |c
Parents
SPHN Conceptc
Property
(In the domain of)
Cardinality Class or Datatype Restriction
has start date timedp
1 .. 1 xsd:dateTimec
has data provider instituteop
1 .. 1 Data Provider Institutec
has reason to stop codeop
0 .. 1 Yes
has drugop
1 .. 1 Drugc
has drug quantityop
0 .. 1 Quantityc
has administration route codeop
0 .. 1 Yes
has time patternop
0 .. 1 Time Patternc
has subject pseudo identifierop
1 .. 1 Subject Pseudo Identifierc
has administrable dose formop
0 .. 1 Pharmaceutical Dose Formc
has end date timedp
0 .. 1 xsd:dateTimec
has administrative caseop
1 .. 1 Administrative Casec
has durationop
0 .. 1 Quantityc
Restrictions
has reason to stop codeop : children of the given classes are not allowed

SNOMED 182844005 | Doctor stopped drugs - patient dislikes (situation) |c SNOMED 182845006 | Doctor stopped drugs - avoid interaction (situation) |c SNOMED 182846007 | Doctor stopped drugs - medical aim achieved (situation) |c SNOMED 182872003 | Drug discontinued - too expensive (situation) |c SNOMED 31438003 | Drug resistance (disorder) |c SNOMED 395007004 | Medication stopped - ineffective (situation) |c SNOMED 395009001 | Medication stopped - side effect (situation) |c SNOMED 399307001 | Lost to follow-up (finding) |c SNOMED 419620001 | Death (event) |c SNOMED 441308009 | New diagnosis (observable entity) |c SNOMED 74964007 | Other (qualifier value) |c

has administration route codeop : children of the given classes are allowed

SNOMED 284009009 | Route of administration value (qualifier value) |c

Used in
(In the range of)
has oxygen flow rateop

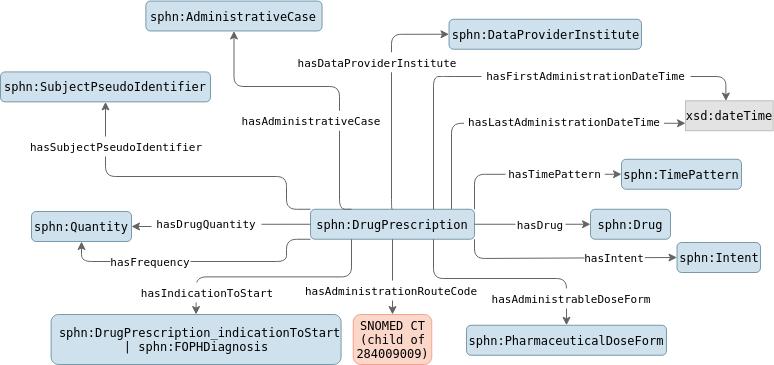

Drug Prescriptionc # Classes

URI https://biomedit.ch/rdf/sphn-ontology/sphn#DrugPrescription
Description

plan that defines at which frequency a drug should be administered to a patient with a given quantity; at every frequency time point a drug administration event should occur

Schema representation
Parents
SPHN Conceptc
Property
(In the domain of)
Cardinality Class or Datatype Restriction
has data provider instituteop
1 .. 1 Data Provider Institutec
has frequencyop
0 .. 1 Quantityc
has drugop
1 .. 1 Drugc
has administrative caseop
1 .. 1 Administrative Casec
has last administration date timedp
1 .. 1 xsd:dateTimec
has time patternop
0 .. 1 Time Patternc
has intentop
0 .. 1 Intentc
has drug quantityop
0 .. 1 Quantityc
has administration route codeop
0 .. 1 Yes
has subject pseudo identifierop
1 .. 1 Subject Pseudo Identifierc
has indication to startop
0 .. 1 Yes
has administrable dose formop
0 .. 1 Pharmaceutical Dose Formc
has first administration date timedp
1 .. 1 xsd:dateTimec
Restrictions
has administration route codeop : children of the given classes are allowed

SNOMED 284009009 | Route of administration value (qualifier value) |c

has indication to startop :

Drug Prescription indication to startc FOPH Diagnosisc

Gestational Age at Birthc # Classes

URI https://biomedit.ch/rdf/sphn-ontology/sphn#GestationalAgeAtBirth
Description

gestational age of a child at birth

Schema representation
Meaning binding
(Equivalent-classes)
LOINC 76516-4 | Gestational age--at birth |c
SNOMED 412726003 | Length of gestation at birth (observable entity) |c
Parents
SPHN Conceptc
Property
(In the domain of)
Cardinality Class or Datatype Restriction
has subject pseudo identifierop
1 .. * Subject Pseudo Identifierc
has administrative caseop
1 .. * Administrative Casec
has data provider instituteop
1 .. * Data Provider Institutec
has quantityop
1 .. 1 Yes
Restrictions
has quantityop / has unitop / has codeop :

ucum:dc

Healthcare Encounterc # Classes

URI https://biomedit.ch/rdf/sphn-ontology/sphn#HealthcareEncounter
Description

an interaction between an individual and a specific unit or service of a healthcare provider institute, e.g. emergency, intensive care unit, for the purpose of providing healthcare service(s) or assessing the health status of an individual

Schema representation
Meaning binding
(Equivalent-classes)
SNOMED 308335008 | Patient encounter procedure (procedure) |c
Parents
SPHN Conceptc
Property
(In the domain of)
Cardinality Class or Datatype Restriction
has current locationop
1 .. 1 Locationc
has subject pseudo identifierop
1 .. 1 Subject Pseudo Identifierc
has identifierdp
1 .. 1 xsd:stringc
has end date timedp
0 .. 1 xsd:dateTimec
has start date timedp
1 .. 1 xsd:dateTimec
has data provider instituteop
1 .. 1 Data Provider Institutec
has administrative caseop
1 .. 1 Administrative Casec
has therapeutic areaop
0 .. 1 Therapeutic Areac
has origin locationop
0 .. 1 Locationc
has target locationop
0 .. 1 Locationc
Restrictions None

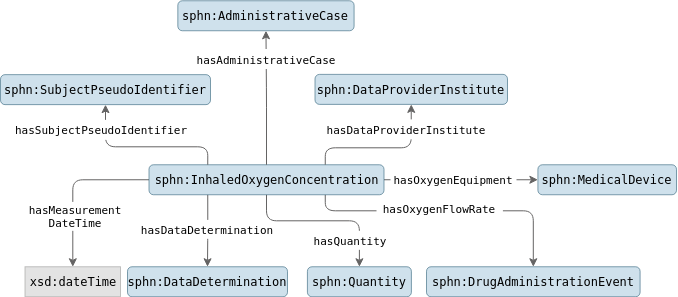

Inhaled Oxygen Concentrationc # Classes

URI https://biomedit.ch/rdf/sphn-ontology/sphn#InhaledOxygenConcentration
Description

fraction of inspired oxygen (FiO2) either calculated knowing the device used and the amount of oxygen administrated or coming from the respiratory system settings

Schema representation
Meaning binding
(Equivalent-classes)
LOINC 3150-0 | Inhaled oxygen concentration |c
SNOMED 250774007 | Inspired oxygen concentration (observable entity) |c
Parents
SPHN Conceptc
Property
(In the domain of)
Cardinality Class or Datatype Restriction
has administrative caseop
1 .. 1 Administrative Casec
has data provider instituteop
1 .. 1 Data Provider Institutec
has measurement date timedp
1 .. 1 xsd:dateTimec
has quantityop
1 .. 1 Yes
has subject pseudo identifierop
1 .. 1 Subject Pseudo Identifierc
has data determinationop
0 .. 1 Data Determinationc
has oxygen equipmentop
0 .. 1 Medical Devicec
has oxygen flow rateop
0 .. 1 Drug Administration Eventc
Restrictions
has quantityop / has unitop / has codeop :

ucum:percentc

Intentc # Classes

URI https://biomedit.ch/rdf/sphn-ontology/sphn#Intent
Description

treatment or procedure purpose

Schema representation
Meaning binding
(Equivalent-classes)
SNOMED 363675004 | Intents (nature of procedure values) (qualifier value) |c
Parents
SPHN Conceptc
Property
(In the domain of)
Cardinality Class or Datatype Restriction
has codeop
1 .. 1 Yes
Restrictions
has codeop : children of the given classes are allowed

SNOMED 363675004 | Intents (nature of procedure values) (qualifier value) |c

Used in
(In the range of)
has intentop

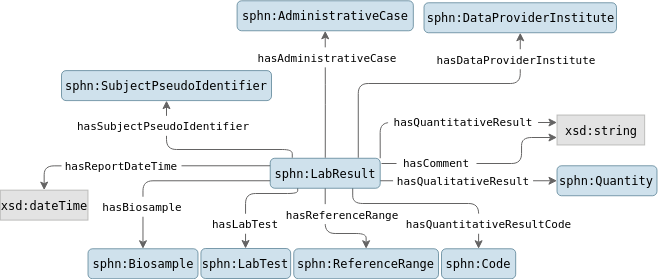

Lab Resultc # Classes

URI https://biomedit.ch/rdf/sphn-ontology/sphn#LabResult
Description

transmitted laboratory analysis results for a specific biosample analyzed

Schema representation
Meaning binding
(Equivalent-classes)
SNOMED 118246004 | Laboratory test finding (navigational concept) |c
Parents
SPHN Conceptc
Property
(In the domain of)
Cardinality Class or Datatype Restriction
has qualitative resultdp
0 .. 1 xsd:stringc
has quantitative result codeop
0 .. 1 Terminologyc or Codec
has subject pseudo identifierop
1 .. 1 Subject Pseudo Identifierc
has commentdp
0 .. 1 xsd:stringc
has quantitative resultop
0 .. 1 Quantityc
has report date timedp
1 .. 1 xsd:dateTimec
has lab testop
1 .. 1 Lab Testc
has reference rangeop
0 .. 1 Reference Rangec
has data provider instituteop
1 .. 1 Data Provider Institutec
has administrative caseop
1 .. 1 Administrative Casec
has biosampleop
0 .. 1 Biosamplec
Restrictions None

Lab Testc # Classes

URI https://biomedit.ch/rdf/sphn-ontology/sphn#LabTest
Description

lab test information including information elements provided by LOINC, instrument and test kit

Schema representation
Meaning binding
(Equivalent-classes)
SNOMED 15220000 | Laboratory test (procedure) |c
Parents
SPHN Conceptc
Property
(In the domain of)
Cardinality Class or Datatype Restriction
has test kitop
0 .. 1 Lab Analyzerc
has codeop
1 .. 1 Yes
has administrative caseop
1 .. 1 Administrative Casec
has data provider instituteop
1 .. 1 Data Provider Institutec
has instrumentop
0 .. 1 Lab Analyzerc
has subject pseudo identifierop
1 .. 1 Subject Pseudo Identifierc
Restrictions
has codeop : children of the given classes are allowed

LOINC | LOINC |c

Used in
(In the range of)
has lab testop

Lateralityc # Classes

URI https://biomedit.ch/rdf/sphn-ontology/sphn#Laterality
Description

code, name, coding system and version describing the concept

Schema representation
Meaning binding
(Equivalent-classes)
LOINC 20228-3 | Anatomic part Laterality |c
Parents
SPHN Conceptc
Property
(In the domain of)
Cardinality Class or Datatype Restriction
has codeop
1 .. 1 Yes
Restrictions
has codeop : children of the given classes are not allowed

SNOMED 24028007 | Right (qualifier value) |c SNOMED 261665006 | Unknown (qualifier value) |c SNOMED 51440002 | Right and left (qualifier value) |c SNOMED 66459002 | Unilateral (qualifier value) |c SNOMED 7771000 | Left (qualifier value) |c

Used in
(In the range of)
has lateralityop

Locationc # Classes

URI https://biomedit.ch/rdf/sphn-ontology/sphn#Location
Description

physical location or medical division taking care of the individual

Schema representation
Parents
SPHN Conceptc
Property
(In the domain of)
Cardinality Class or Datatype Restriction
has exactdp
0 .. 1 xsd:stringc
has data provider instituteop
1 .. 1 Data Provider Institutec
has classop
1 .. 1 Yes
Restrictions
has classop :

Location classc

Used in
(In the range of)
has target locationop
has locationop
has discharge locationop
has current locationop
has origin locationop

Measurementc # Classes

URI https://biomedit.ch/rdf/sphn-ontology/sphn#Measurement
Description

class for grouping measurements

Parents
SPHN Conceptc
Children
(Sub-classes)
Blood Pressurec
Respiratory Ratec
Body Weightc
Body Heightc
Body Temperaturec
Oxygen Saturationc
Circumference Measurec
Heart Ratec

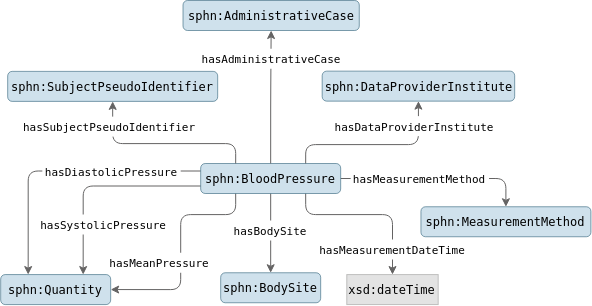

Blood Pressurec # Classes

URI https://biomedit.ch/rdf/sphn-ontology/sphn#BloodPressure
Description

blood pressure measured either in the artery, in the vein, or in the pulmonary circulation

Schema representation
Meaning binding
(Equivalent-classes)
SNOMED 75367002 | Blood pressure (observable entity) |c
Parents
Measurementc
Property
(In the domain of)
Cardinality Class or Datatype Restriction
has body siteop
0 .. 1 Yes
has subject pseudo identifierop
1 .. 1 Subject Pseudo Identifierc
has diastolic pressureop
0 .. 1 Yes
has administrative caseop
1 .. 1 Administrative Casec
has measurement date timedp
1 .. 1 xsd:dateTimec
has mean pressureop
0 .. 1 Yes
has data provider instituteop
1 .. 1 Data Provider Institutec
has systolic pressureop
0 .. 1 Yes
has measurement methodop
0 .. 1 Yes
Restrictions
has body siteop / has codeop : children of the given classes are allowed

SNOMED 113257007 | Structure of cardiovascular system (body structure) |c SNOMED 344001 | Ankle region structure (body structure) |c SNOMED 40983000 | Structure of upper extremity between shoulder and elbow (body structure) |c SNOMED 68367000 | Thigh structure (body structure) |c SNOMED 7569003 | Finger structure (body structure) |c SNOMED 8205005 | Wrist region structure (body structure) |c

has diastolic pressureop / has unitop / has codeop :

ucum:mmsblHgsbrc

has mean pressureop / has unitop / has codeop :

ucum:mmsblHgsbrc

has systolic pressureop / has unitop / has codeop :

ucum:mmsblHgsbrc

has measurement methodop / has codeop : children of the given classes are allowed

SNOMED 46973005 | Blood pressure taking (procedure) |c SNOMED 716777001 | Hemodynamic monitoring (regime/therapy) |c

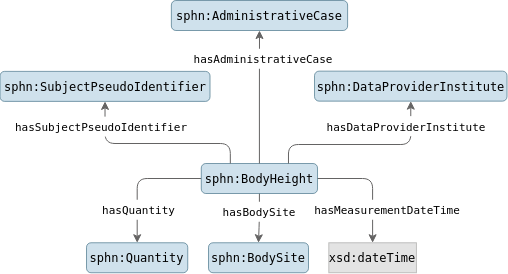

Body Heightc # Classes

URI https://biomedit.ch/rdf/sphn-ontology/sphn#BodyHeight
Description

height of the individual

Schema representation
Meaning binding
(Equivalent-classes)
LOINC 8302-2 | Body height |c
SNOMED 50373000 | Body height measure (observable entity) |c
Parents
Measurementc
Property
(In the domain of)
Cardinality Class or Datatype Restriction
has subject pseudo identifierop
1 .. 1 Subject Pseudo Identifierc
has administrative caseop
1 .. 1 Administrative Casec
has measurement date timedp
1 .. 1 xsd:dateTimec
has data provider instituteop
1 .. 1 Data Provider Institutec
has quantityop
1 .. 1 Quantityc
Restrictions None

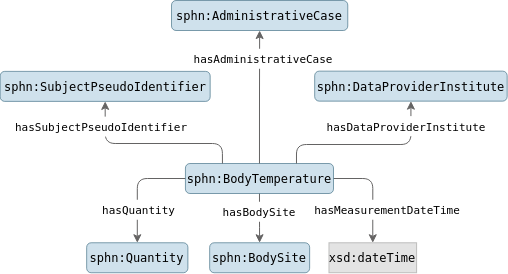

Body Temperaturec # Classes

URI https://biomedit.ch/rdf/sphn-ontology/sphn#BodyTemperature
Description

body temperature of the individual

Schema representation
Meaning binding
(Equivalent-classes)
LOINC 8310-5 | Body temperature |c
SNOMED 386725007 | Body temperature (observable entity) |c
Parents
Measurementc
Property
(In the domain of)
Cardinality Class or Datatype Restriction
has data provider instituteop
1 .. 1 Data Provider Institutec
has quantityop
1 .. 1 Quantityc
has administrative caseop
1 .. 1 Administrative Casec
has measurement date timedp
1 .. 1 xsd:dateTimec
has body siteop
0 .. 1 Body Sitec
has subject pseudo identifierop
1 .. 1 Subject Pseudo Identifierc
Restrictions None

Body Weightc # Classes

URI https://biomedit.ch/rdf/sphn-ontology/sphn#BodyWeight
Description

weight of the individual

Schema representation
Meaning binding
(Equivalent-classes)
LOINC 29463-7 | Body weight |c
SNOMED 27113001 | Body weight (observable entity) |c
Parents
Measurementc
Property
(In the domain of)
Cardinality Class or Datatype Restriction
has administrative caseop
1 .. 1 Administrative Casec
has measurement date timedp
1 .. 1 xsd:dateTimec
has data provider instituteop
1 .. 1 Data Provider Institutec
has quantityop
1 .. 1 Quantityc
has subject pseudo identifierop
1 .. 1 Subject Pseudo Identifierc
Restrictions None

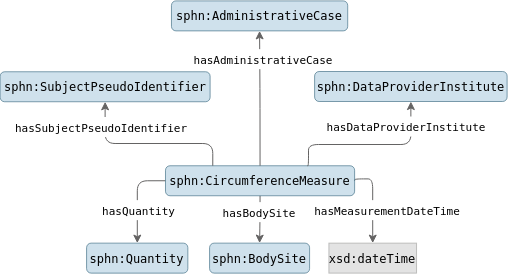

Circumference Measurec # Classes

URI https://biomedit.ch/rdf/sphn-ontology/sphn#CircumferenceMeasure
Description

circumference measurement of a body site

Schema representation
Meaning binding
(Equivalent-classes)
SNOMED 248365001 | Circumference measure (observable entity) |c
Parents
Measurementc
Property
(In the domain of)
Cardinality Class or Datatype Restriction
has measurement date timedp
1 .. 1 xsd:dateTimec
has data provider instituteop
1 .. 1 Data Provider Institutec
has quantityop
1 .. 1 Quantityc
has body siteop
1 .. 1 Yes
has subject pseudo identifierop
1 .. 1 Subject Pseudo Identifierc
has administrative caseop
1 .. 1 Administrative Casec
Restrictions
has body siteop / has codeop : children of the given classes are allowed

SNOMED 29836001 | Hip region structure (body structure) |c SNOMED 33673004 | Structure of waist (surface region) (body structure) |c SNOMED 45048000 | Neck structure (body structure) |c SNOMED 69536005 | Head structure (body structure) |c

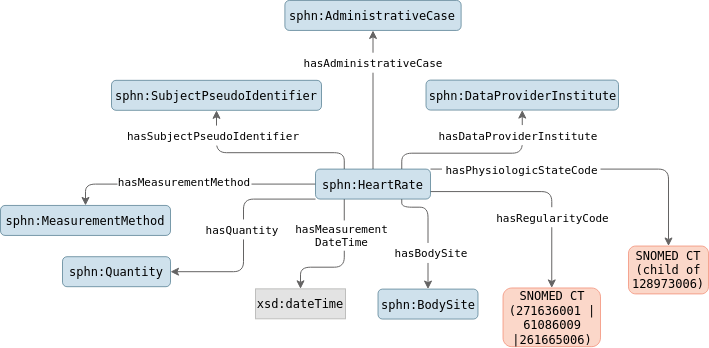

Heart Ratec # Classes

URI https://biomedit.ch/rdf/sphn-ontology/sphn#HeartRate
Description

frequency of the heart beats, i.e. the number of time a heart beats per unit of time

Schema representation
Meaning binding
(Equivalent-classes)
LOINC 8867-4 | Heart rate |c
SNOMED 364075005 | Heart rate (observable entity) |c
Parents
Measurementc
Property
(In the domain of)
Cardinality Class or Datatype Restriction
has data provider instituteop
1 .. 1 Data Provider Institutec
has measurement methodop
0 .. 1 Measurement Methodc
has quantityop
1 .. 1 Quantityc
has physiologic state codeop
0 .. 1 Yes
has body siteop
0 .. 1 Body Sitec
has regularity codeop
0 .. 1 Yes
has subject pseudo identifierop
1 .. 1 Subject Pseudo Identifierc
has administrative caseop
1 .. 1 Administrative Casec
has measurement date timedp
1 .. 1 xsd:dateTimec
Restrictions
has physiologic state codeop : children of the given classes are allowed

SNOMED 128973006 | Finding related physiologic patient state (finding) |c

has regularity codeop : children of the given classes are not allowed

SNOMED 261665006 | Unknown (qualifier value) |c SNOMED 271636001 | Pulse regular (finding) |c SNOMED 61086009 | Pulse irregular (finding) |c

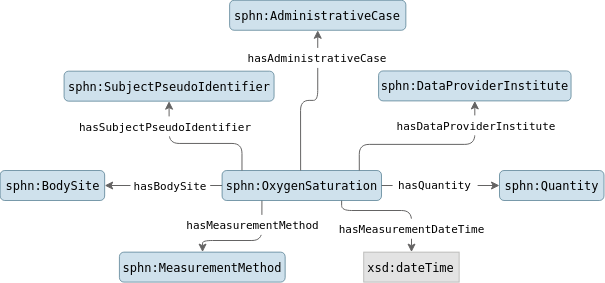

Oxygen Saturationc # Classes

URI https://biomedit.ch/rdf/sphn-ontology/sphn#OxygenSaturation
Description

fraction of oxygen present in the blood

Schema representation
Meaning binding
(Equivalent-classes)
SNOMED 103228002 | Hemoglobin saturation with oxygen (observable entity) |c
Parents
Measurementc
Property
(In the domain of)
Cardinality Class or Datatype Restriction
has measurement methodop
0 .. 1 Measurement Methodc
has quantityop
1 .. 1 Yes
has administrative caseop
1 .. 1 Administrative Casec
has measurement date timedp
1 .. 1 xsd:dateTimec
has body siteop
0 .. 1 Body Sitec
has subject pseudo identifierop
1 .. 1 Subject Pseudo Identifierc
has data provider instituteop
1 .. 1 Data Provider Institutec
Restrictions
has quantityop / has unitop / has codeop :

ucum:percentc

Notes

sphn:hasMeasurementMethod/sphn:hasCode recommended values [snomed:252465000]

sphn:hasBodySite/sphn:hasCode recommended values [snomed:29707007; snomed:7569003; snomed:48800003]

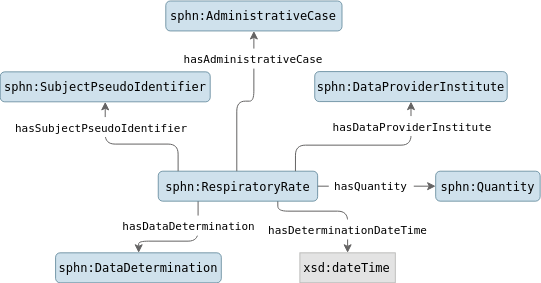

Respiratory Ratec # Classes

URI https://biomedit.ch/rdf/sphn-ontology/sphn#RespiratoryRate
Description

frequency at which the breathing occurs

Schema representation
Meaning binding
(Equivalent-classes)
SNOMED 86290005 | Respiratory rate (observable entity) |c
Parents
Measurementc
Property
(In the domain of)
Cardinality Class or Datatype Restriction
has quantityop
1 .. 1 Quantityc
has determination date timedp
0 .. 1 xsd:dateTimec
has subject pseudo identifierop
1 .. 1 Subject Pseudo Identifierc
has data determinationop
0 .. 1 Yes
has data provider instituteop
1 .. 1 Data Provider Institutec
has administrative caseop
1 .. 1 Administrative Casec
Restrictions
has data determinationop / has method codeop : children of the given classes are not allowed

SNOMED 258090004 | Calculated (qualifier value) |c SNOMED 258104002 | Measured (qualifier value) |c SNOMED 261665006 | Unknown (qualifier value) |c SNOMED 263760002 | Forced (qualifier value) |c SNOMED 87982008 | Manual (qualifier value) |c

Measurement Methodc # Classes

URI https://biomedit.ch/rdf/sphn-ontology/sphn#MeasurementMethod
Description

procedure used to measure an amount, quantity, size, level, extent, or magnitude, resulting in an qualitative or quantitative value

Schema representation
Meaning binding
(Equivalent-classes)
SNOMED 122869004 | Measurement procedure (procedure) |c
Parents
SPHN Conceptc
Property
(In the domain of)
Cardinality Class or Datatype Restriction
has codeop
1 .. 1 Yes
Restrictions
has codeop : children of the given classes are allowed

SNOMED 122869004 | Measurement procedure (procedure) |c

Used in
(In the range of)
has measurement methodop

Medical Devicec # Classes

URI https://biomedit.ch/rdf/sphn-ontology/sphn#MedicalDevice
Description

product intended for medical use when the main effect is not achieved by a medicinal product; medical devices include, but are not limited to, implants, instruments, devices, in vitro diagnostics

Schema representation
Meaning binding
(Equivalent-classes)
SNOMED 63653004 | Biomedical device (physical object) |c
Parents
SPHN Conceptc
Children
(Sub-classes)
Lab Analyzerc
Property
(In the domain of)
Cardinality Class or Datatype Restriction
has product codeop
0 .. 1 Terminologyc or Codec
has type codeop
0 .. 1 Terminologyc or Codec
Restrictions None
Notes

sphn:hasTypeCode allowed coding system SNOMED CT or other

Used in
(In the range of)
has oxygen equipmentop

Lab Analyzerc # Classes

URI https://biomedit.ch/rdf/sphn-ontology/sphn#LabAnalyzer
Description

laboratory analyzer used to assess medical laboratory samples

Schema representation
Parents
Medical Devicec
Property
(In the domain of)
Cardinality Class or Datatype Restriction
has product codeop
0 .. 1 Terminologyc or Codec
has type codeop
0 .. 1 Terminologyc or Codec
Restrictions None
Notes

sphn:hasProductCode allowed coding system: UDI-DI from GUDID, or other

sphn:hasTypeCode allowed coding system: GMDN, EMDN

Used in
(In the range of)
has test kitop
has instrumentop

Oncology Treatment Assessmentc # Classes

URI https://biomedit.ch/rdf/sphn-ontology/sphn#OncologyTreatmentAssessment
Description

assessment of oncology treatment

Schema representation
Meaning binding
(Equivalent-classes)
SNOMED 370807008 | Evaluation of response to medications (procedure) |c
Parents
SPHN Conceptc
Property
(In the domain of)
Cardinality Class or Datatype Restriction
has criteriaop
0 .. 1 Yes
has method codeop
0 .. 1 Yes
has progression typeop
0 .. 1 Yes
has resultop
1 .. 1 Yes
has assessment date timedp
1 .. 1 xsd:dateTimec
has administrative caseop
1 .. 1 Administrative Casec
has data provider instituteop
1 .. 1 Data Provider Institutec
has subject pseudo identifierop
1 .. 1 Subject Pseudo Identifierc
has progression body siteop
0 .. 1 Body Sitec
Restrictions
has criteriaop :

Oncology Treatment Assessment criteriac

has method codeop : children of the given classes are not allowed

SNOMED 113091000 | Magnetic resonance imaging (procedure) |c SNOMED 450436003 | Positron emission tomography with computed tomography (procedure) |c SNOMED 71040008 | Computed tomography follow-up (procedure) |c

has progression typeop :

Oncology Treatment Assessment progression typec

has resultop :

Oncology Treatment Assessment resultc

Pharmaceutical Dose Formc # Classes

URI https://biomedit.ch/rdf/sphn-ontology/sphn#PharmaceuticalDoseForm
Description

physical manifestation of a product that contains the active ingredient(s) and/or inactive ingredient(s) that are intended to be delivered to the patient

Schema representation
Meaning binding
(Equivalent-classes)
LOINC 74055-5 | Dose form of Medication |c
SNOMED 736542009 | Pharmaceutical dose form (dose form) |c
Parents
SPHN Conceptc
Property
(In the domain of)
Cardinality Class or Datatype Restriction
has codeop
1 .. 1 Yes
Restrictions
has codeop : children of the given classes are allowed

SNOMED 736542009 | Pharmaceutical dose form (dose form) |c

Used in
(In the range of)
has manufactured dose formop
has administrable dose formop

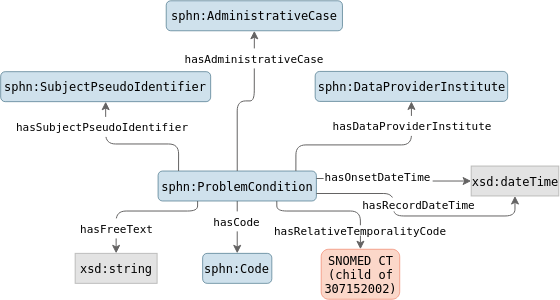

Problem Conditionc # Classes

URI https://biomedit.ch/rdf/sphn-ontology/sphn#ProblemCondition
Description

clinical condition, problem, diagnosis, or other event, situation, issue, or clinical concept that has risen to a level of concern

Schema representation
Meaning binding
(Equivalent-classes)
LOINC 44100-6 | Medical problem |c
SNOMED 55607006 | Problem (finding) |c
Parents
SPHN Conceptc
Property
(In the domain of)
Cardinality Class or Datatype Restriction
has data provider instituteop
1 .. 1 Data Provider Institutec
has subject pseudo identifierop
1 .. 1 Subject Pseudo Identifierc
has onset date timedp
0 .. 1 xsd:dateTimec
has record date timedp
0 .. 1 xsd:dateTimec
has free textdp
0 .. 1 xsd:stringc
has codeop
0 .. 1 Terminologyc or Codec
has administrative caseop
1 .. 1 Administrative Casec
has relative temporality codeop
0 .. 1 Yes
Restrictions
has relative temporality codeop : children of the given classes are allowed

SNOMED 307152002 | Temporal periods relating to procedure (qualifier value) |c

Notes

sphn:hasCode allowed coding system: ICPC or other

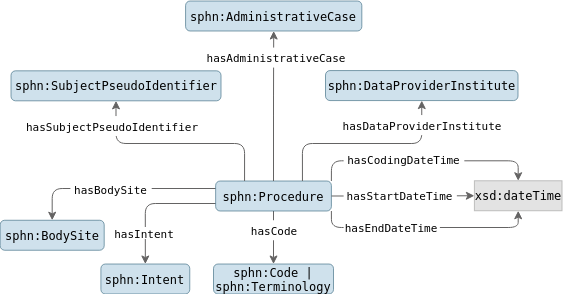

Procedurec # Classes

URI https://biomedit.ch/rdf/sphn-ontology/sphn#Procedure
Description

invasive or non-invasive intervention performed for, with or on behalf of an individual whose purpose is to assess, improve, maintain, promote or modify health, functioning or health conditions

Schema representation
Meaning binding
(Equivalent-classes)
SNOMED 71388002 | Procedure (procedure) |c
Parents
SPHN Conceptc
Children
(Sub-classes)

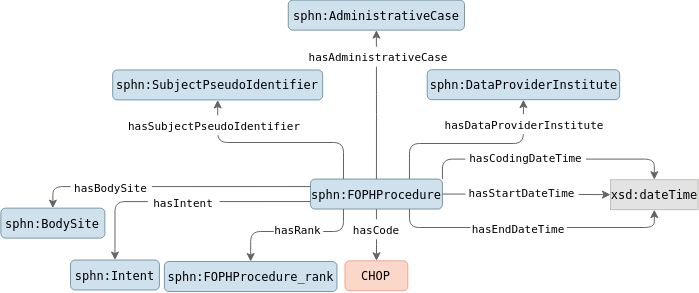

FOPH Procedurec
Diagnostic Radiologic Examinationc

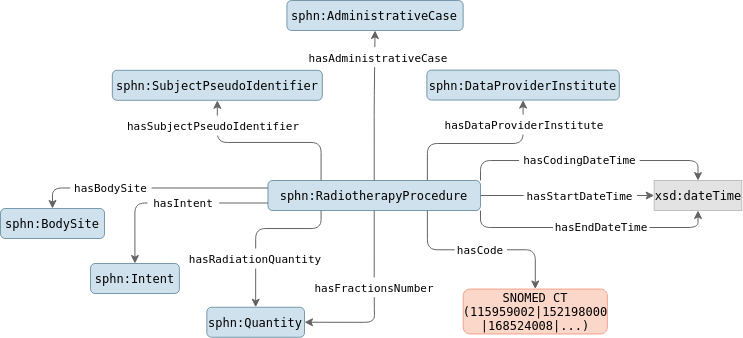

Radiotherapy Procedurec
Property
(In the domain of)
Cardinality Class or Datatype Restriction
has data provider instituteop
1 .. 1 Data Provider Institutec
has codeop
1 .. 1 Terminologyc or Codec
has administrative caseop
0 .. 1 Administrative Casec
has intentop
0 .. 1 Intentc
has body siteop
0 .. 1 Body Sitec
has subject pseudo identifierop
1 .. 1 Subject Pseudo Identifierc
has coding date timedp
0 .. 1 xsd:dateTimec
has end date timedp
0 .. 1 xsd:dateTimec
has start date timedp
1 .. 1 xsd:dateTimec
Restrictions None
Notes

sphn:has code allowed codingsystem SNOMED CT, CHOP or other

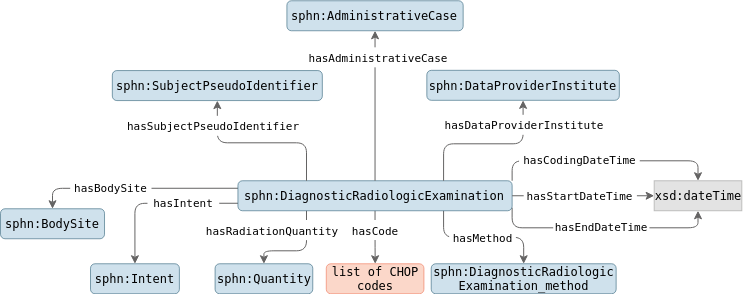

Diagnostic Radiologic Examinationc # Classes

URI https://biomedit.ch/rdf/sphn-ontology/sphn#DiagnosticRadiologicExamination
Description

radiographic procedure using the emission of x-rays to form an image of the structure penetrated by the radiation

Schema representation
Meaning binding
(Equivalent-classes)
SNOMED 363680008 | Radiographic imaging procedure (procedure) |c
Parents
Procedurec
Property
(In the domain of)
Cardinality Class or Datatype Restriction
has radiation quantityop
0 .. 1 Yes
has coding date timedp
0 .. 1 xsd:dateTimec
has codeop
1 .. 1 Yes
has administrative caseop
1 .. 1 Administrative Casec
has end date timedp
0 .. 1 xsd:dateTimec
has start date timedp
1 .. 1 xsd:dateTimec
has data provider instituteop
1 .. 1 Data Provider Institutec
has body siteop
0 .. 1 Body Sitec
has methodop
0 .. 1 Yes
has subject pseudo identifierop
1 .. 1 Subject Pseudo Identifierc
has intentop
0 .. 1 Intentc
Restrictions
has radiation quantityop / has unitop / has codeop :

ucum:Gyc ucum:Mbqc ucum:cGyc ucum:mCic

has codeop : children of the given classes are not allowed

CHOP Z00.21 | Intravaskuläre Bildgebung von extrakraniellen Hirngefässen |c CHOP Z00.22 | Intravaskuläre Bildgebung von intrathorakalen Gefässen |c CHOP Z00.23 | Intravaskuläre Bildgebung von peripheren Gefässen |c CHOP Z00.25 | Intravaskuläre Bildgebung der Nierengefässe |c CHOP Z00.28 | Intravaskuläre Bildgebung sonstiger bezeichneter Gefässe |c CHOP Z87.01 | Pneumoenzephalographie |c CHOP Z87.02 | Sonstige Kontrastradiographie von Gehirn und Schädel |c CHOP Z87.03 | Computertomographie des Schädels |c CHOP Z87.04.00 | Sonstige Tomographie des Kopfes, n.n.bez. |c CHOP Z87.04.10 | Computertomographie des Gesichtsschädel, Nasennebenhöhlen, Oberkiefer, Unterkiefer, Zähne, Kiefergelenke und Schädelbasis |c CHOP Z87.04.11 | Computertomographie des Halses |c CHOP Z87.04.99 | Sonstige Tomographie des Kopfes, sonstige |c CHOP Z87.05 | Kontrast-Dakryozystographie |c CHOP Z87.06 | Kontrast-Radiographie des Nasopharynx |c CHOP Z87.07 | Kontrast-Laryngographie |c CHOP Z87.08 | Zervikale Lymphangiographie |c CHOP Z87.09.00 | Sonstige Weichteil-Radiographie von Gesicht, Kopf und Hals, n.n.bez. |c CHOP Z87.09.10 | Diagnostische Sialographie |c CHOP Z87.09.99 | Sonstige Weichteil-Radiographie von Gesicht, Kopf und Hals, sonstige |c CHOP Z87.12 | Sonstige Zahnradiographie |c CHOP Z87.13 | Kontrast-Arthrographie des Temporomandibulargelenks |c CHOP Z87.14 | Kontrast-Radiographie der Orbita |c CHOP Z87.15 | Sinographie |c CHOP Z87.18 | Schädel Spezialaufnahme |c CHOP Z87.21.00 | Kontrast-Myelographie, n.n.bez. |c CHOP Z87.21.10 | Vertebrale Diskographie |c CHOP Z87.21.99 | Kontrast-Myelographie, sonstige |c CHOP Z87.22 | Sonstige Radiographie der Halswirbelsäule |c CHOP Z87.23 | Sonstige Radiographie der Brustwirbelsäule |c CHOP Z87.24 | Sonstige Radiographie der lumbosakralen Wirbelsäule |c CHOP Z87.29 | Sonstige Radiographie der Wirbelsäule |c CHOP Z87.31 | Endotracheale Bronchographie |c CHOP Z87.32 | Sonstige Kontrast-Bronchographie |c CHOP Z87.33 | Mediastinale Pneumographie |c CHOP Z87.34 | Intrathorakale Lymphangiographie |c CHOP Z87.35 | Galaktographie |c CHOP Z87.36 | Xerographie der Mamma |c CHOP Z87.37.00 | Sonstige Mammographie, n.n.bez. |c CHOP Z87.37.10 | Zystographie der Mamma mit Luft oder Kontrastmittel |c CHOP Z87.37.99 | Sonstige Mammographie, sonstige |c CHOP Z87.38 | Fistulographie der Brustwand |c CHOP Z87.39 | Sonstige Weichteil-Radiographie der Brustwand |c CHOP Z87.41.00 | Computertomographie des Thorax, n.n.bez. |c CHOP Z87.41.10 | Computertomographie des Herzens, n.n.bez. |c CHOP Z87.41.11 | Computertomographie des Herzens, nativ, in Ruhe |c CHOP Z87.41.12 | Computertomographie des Herzens, nativ, unter körperlicher Belastung |c CHOP Z87.41.13 | Computertomographie des Herzens, nativ, unter medikamentöser Belastung |c CHOP Z87.41.14 | Computertomographie des Herzens, mit Kontrastmittel, in Ruhe |c CHOP Z87.41.15 | Computertomographie des Herzens, mit Kontrastmittel, unter körperlicher Belastung |c CHOP Z87.41.16 | Computertomographie des Herzens, mit Kontrastmittel, unter medikamentöser Belastung |c CHOP Z87.41.19 | Computertomographie des Herzens, sonstige |c CHOP Z87.41.99 | Computertomographie des Thorax, sonstige |c CHOP Z87.49 | Sonstige Thoraxröntgenaufnahme |c CHOP Z87.51 | Perkutane transhepatische Cholangiographie |c CHOP Z87.52 | Intravenöse Cholangiographie |c CHOP Z87.53 | Intraoperative Cholangiographie |c CHOP Z87.54.00 | Sonstige Cholangiographie, n.n.bez. |c CHOP Z87.54.10 | Cholangiographie nach ERCP |c CHOP Z87.54.99 | Sonstige Cholangiographie, sonstige |c CHOP Z87.59.00 | Sonstige Radiographie der Gallenwege, n.n.bez. |c CHOP Z87.59.10 | Orale Cholezystographie |c CHOP Z87.59.99 | Sonstige Radiographie der Gallenwege, sonstige |c CHOP Z87.61.00 | Ösophagusbreischluck, n.n.bez. |c CHOP Z87.61.10 | Pharynxösophagus-Darstellung |c CHOP Z87.61.99 | Ösophagusbreischluck, sonstige |c CHOP Z87.62 | Magen-Darm-Passage |c CHOP Z87.63 | Selektive Dünndarmpassage |c CHOP Z87.64.00 | Kolonkontrasteinlauf, n.n.bez. |c CHOP Z87.64.10 | Kolondarstellung, Monokontrast |c CHOP Z87.64.20 | Kolondarstellung, Doppelkontrast (Holzknecht) |c CHOP Z87.64.30 | Defäkographie |c CHOP Z87.64.99 | Kolonkontrasteinlauf, sonstige |c CHOP Z87.65 | Sonstige Radiographie des Darms |c CHOP Z87.66 | Kontrast-Pankreatographie |c CHOP Z87.69 | Sonstige Radiographie des Verdauungstrakts, sonstige |c CHOP Z87.71 | Computertomographie der Niere |c CHOP Z87.72 | Sonstige Tomographie der Niere |c CHOP Z87.73 | Intravenöse Urographie |c CHOP Z87.74 | Retrograde Pyelographie |c CHOP Z87.75 | Perkutane Pyelographie |c CHOP Z87.76.00 | Retrograde Urethrozystographie, n.n.bez. |c CHOP Z87.76.10 | Zystographie |c CHOP Z87.76.99 | Retrograde Urethrozystographie, sonstige |c CHOP Z87.77.00 | Sonstige Zystographie, n.n.bez. |c CHOP Z87.77.10 | Miktionszystourographie (MCUG) |c CHOP Z87.77.99 | Sonstige Zystographie, sonstige |c CHOP Z87.78 | Radiographie eines Ileum-Conduits |c CHOP Z87.79 | Radiographie der Harnwege, sonstige |c CHOP Z87.81 | Radiographie des graviden Uterus |c CHOP Z87.82 | Gas-Hysterosalpingographie |c CHOP Z87.83 | Hysterosalpingographie mit Kontrastmittel |c CHOP Z87.84 | Perkutane Hysterographie |c CHOP Z87.85 | Sonstige Radiographie von Tubae uterinae und Uterus |c CHOP Z87.89 | Radiographie der weiblichen Genitalorgane, sonstige |c CHOP Z87.91 | Röntgenkontrastdarstellung der Samenblase |c CHOP Z87.92 | Sonstige Radiographie von Prostata und Samenblasen |c CHOP Z87.93 | Röntgenkontrastdarstellung der Epididymis |c CHOP Z87.94 | Röntgenkontrastdarstellung der Samenleiter |c CHOP Z87.95 | Sonstige Radiographie von Epididymis und Vas deferens |c CHOP Z87.99 | Radiographie der männlichen Genitalorgane, sonstige |c CHOP Z88.01.00 | Computertomographie des Abdomens, n.n.bez. |c CHOP Z88.01.10 | Computertomographie gesamtes Abdomen |c CHOP Z88.01.20 | Computertomographie Oberbauch |c CHOP Z88.01.99 | Computertomographie des Abdomens, sonstige |c CHOP Z88.02 | Sonstige Tomographie des Abdomens |c CHOP Z88.03 | Fistulographie der Bauchwand |c CHOP Z88.04 | Abdominale Lymphographie |c CHOP Z88.09 | Sonstige Weichteil-Radiographie der Bauchwand |c CHOP Z88.11 | Pelvigraphie mit Kontrastmittel |c CHOP Z88.12 | Pneumo-Pelvigraphie |c CHOP Z88.13 | Sonstige peritoneale Pneumographie |c CHOP Z88.14 | Retroperitoneale Fistulographie |c CHOP Z88.15 | Retroperitoneale Pneumographie |c CHOP Z88.16 | Sonstige retroperitoneale Radiographie |c CHOP Z88.19 | Sonstige Radiographie des Abdomens, sonstige |c CHOP Z88.21 | Skelettröntgen von Schulter und Oberarm |c CHOP Z88.22 | Skelettröntgen von Ellenbogen und Unterarm |c CHOP Z88.23 | Skelettröntgen von Handgelenk und Hand |c CHOP Z88.24 | Skelettröntgen der oberen Extremität, n.n.bez. |c CHOP Z88.25 | Pelvimetrie |c CHOP Z88.26 | Sonstiges Skelettröntgen von Becken und Hüfte |c CHOP Z88.27 | Skelettröntgen von Oberschenkel, Knie und Unterschenkel |c CHOP Z88.28 | Skelettröntgen von Sprunggelenk und Fuss |c CHOP Z88.29 | Skelettröntgen der unteren Extremität, n.n.bez. |c CHOP Z88.31 | Skelettübersicht |c CHOP Z88.32 | Kontrast-Arthrographie |c CHOP Z88.33 | Sonstiges Skelettröntgen |c CHOP Z88.34 | Lymphographie der oberen Extremität |c CHOP Z88.35 | Sonstige Weichteil-Radiographie der oberen Extremität |c CHOP Z88.36 | Lymphographie der unteren Extremität |c CHOP Z88.37 | Sonstige Weichteil-Radiographie der unteren Extremität |c CHOP Z88.38.00 | Sonstige Computertomographie, n.n.bez. |c CHOP Z88.38.20 | Computertomographie des Schultergelenkes und der Oberarme |c CHOP Z88.38.21 | Computertomographie der Ellenbogengelenke und der Vorderarme |c CHOP Z88.38.22 | Computertomographie der Handgelenke und der Hand |c CHOP Z88.38.30 | Computertomographie der Hüfte und des Oberschenkel |c CHOP Z88.38.31 | Computertomographie des Kniegelenks und der Unterschenkel |c CHOP Z88.38.32 | Computertomographie des Fusses und der Sprunggelenke |c CHOP Z88.38.40 | Computertomographie der Wirbelsäule |c CHOP Z88.38.41 | Computertomographie des Beckens und des Iliosakralgelenkes |c CHOP Z88.38.50 | {CT}-Angiographie aller Gefässe |c CHOP Z88.38.51 | Ganzkörper-Computertomographie |c CHOP Z88.38.60 | {CT}-gesteuerte Intervention |c CHOP Z88.38.99 | Sonstige Computertomographie, sonstige |c CHOP Z88.39.00 | Sonstige und nicht bezeichnete Radiographie, n.n.bez. |c CHOP Z88.39.10 | Intraoperatives Röntgen |c CHOP Z88.39.20 | Funktionelle Durchleuchtung, n.n.bez. |c CHOP Z88.39.21 | Funktionelle Durchleuchtung, Gelenk, Thorax, Wirbelsäule |c CHOP Z88.39.30 | Interventionen unter Durchleuchtung |c CHOP Z88.39.99 | Sonstige und nicht bezeichnete Radiographie, sonstige |c CHOP Z88.40 | Arteriographie mit Kontrastmittel, nicht näher bezeichnete Lokalisation |c CHOP Z88.41.11 | Arteriographie der Zerebralarterien |c CHOP Z88.41.21 | Spinale Arteriographie |c CHOP Z88.42.00 | Aortographie, n.n.bez. |c CHOP Z88.42.10 | Arteriographie, obere Extremitäten und thorakale Aorta |c CHOP Z88.42.11 | Arteriographie, abdominelle Aorta |c CHOP Z88.42.99 | Aortographie, sonstige |c CHOP Z88.43 | Arteriographie der Pulmonalarterien |c CHOP Z88.44 | Arteriographie anderer intrathorakaler Gefässe |c CHOP Z88.45 | Arteriographie der Nierenarterien |c CHOP Z88.46 | Arteriographie der Plazenta |c CHOP Z88.47 | Arteriographie anderer intraabdominaler Arterien |c CHOP Z88.48.00 | Arteriographie der A. femoralis und anderer Arterien der unteren Extremitäten, n.n.bez. |c CHOP Z88.48.10 | Arteriographie, Beinangiographie |c CHOP Z88.48.99 | Arteriographie der A. femoralis und anderer Arterien der unteren Extremitäten, sonstige |c CHOP Z88.49.00 | Arteriographie anderer bezeichneter Lokalisationen, n.n.bez. |c CHOP Z88.49.10 | Angiographische Darstellung eines Dialyse-Shunts in Direktpunktion |c CHOP Z88.49.11 | Arteriographie, Beckenarterien als Übersicht |c CHOP Z88.49.99 | Arteriographie anderer bezeichneter Lokalisationen, sonstige |c CHOP Z88.50 | Angiokardiographie, n.n.bez. |c CHOP Z88.51 | Angiokardiographie der Vv. cavae |c CHOP Z88.52 | Angiokardiographie von Strukturen des rechten Herzens |c CHOP Z88.53 | Angiokardiographie von Strukturen des linken Herzens |c CHOP Z88.54 | Kombinierte Angiokardiographie des rechten und linken Herzens |c CHOP Z88.55 | Koronare Arteriographie mit einem einzigen Katheter |c CHOP Z88.56 | Koronare Arteriographie mit zwei Kathetern |c CHOP Z88.57 | Sonstige und nicht näher bezeichnete koronare Arteriographie |c CHOP Z88.58 | Negativ-Kontrast Radiographie des Herzens |c CHOP Z88.59 | Intraoperative Fluoreszenzangiographie der Gefässe |c CHOP Z88.60 | Phlebographie mit Kontrastmittel, nicht näher bezeichnete Lokalisation |c CHOP Z88.61.00 | Phlebographie der Kopf- und Halsvenen mit Kontrastmittel, n.n.bez. |c CHOP Z88.61.10 | Phlebographie der intrakranialen Venen |c CHOP Z88.61.99 | Phlebographie der Kopf- und Halsvenen mit Kontrastmittel, sonstige |c CHOP Z88.62 | Phlebographie der Pulmonalvenen mit Kontrastmittel |c CHOP Z88.63.00 | Phlebographie anderer intrathorakaler Venen mit Kontrastmittel, n.n.bez. |c CHOP Z88.63.10 | Phlebographie der V. cava superior |c CHOP Z88.63.99 | Phlebographie anderer intrathorakaler Venen mit Kontrastmittel, sonstige |c CHOP Z88.64 | Portographie mit Kontrastmittel |c CHOP Z88.65 | Phlebographie anderer intraabdominaler Venen mit Kontrastmittel |c CHOP Z88.66 | Phlebographie der Femoralvenen und anderer Venen der unteren Extremität mit Kontrastmittel |c CHOP Z88.67 | Phlebographie anderer bezeichneter Lokalisationen mit Kontrastmittel |c CHOP Z88.68 | Impedanz-Phlebographie |c CHOP Z88.69 | Phlebographie der Venen der oberen Extremitäten |c CHOP Z88.90.10 | Fistulographie |c CHOP Z88.90.30 | Radiographiegesteuerte Intervention |c CHOP Z88.91.00 | Kernspintomographie von Gehirn und Hirnstamm, n.n.bez. |c CHOP Z88.91.10 | Kernspintomographie von Gehirn und Hirnstamm |c CHOP Z88.91.11 | Funktionelle Kernspintomographie von Gehirn und Hirnstamm |c CHOP Z88.91.99 | Kernspintomographie von Gehirn und Hirnstamm, sonstige |c CHOP Z88.92.00 | Kernspintomographie von Thorax und Myokard, n.n.bez. |c CHOP Z88.92.10 | MRI von Thorax, n.n.bez. |c CHOP Z88.92.11 | MRI von Thorax, in Ruhe, n.n.bez. |c CHOP Z88.92.12 | MRI von Thorax, in Ruhe, mit Kontrastmittel |c CHOP Z88.92.13 | MRI von Thorax mit Belastung, n.n.bez. |c CHOP Z88.92.14 | MRI von Thorax mit Belastung und Kontrastmittel |c CHOP Z88.92.19 | MRI von Thorax, sonstige |c CHOP Z88.92.20 | MRI von Herz und zentralen Gefäss, n.n.bez. |c CHOP Z88.92.21 | MRI von Herz und zentralen Gefäss in Ruhe, n.n.bez. |c CHOP Z88.92.22 | MRI von Herz und zentralen Gefäss in Ruhe, mit Kontrastmittel |c CHOP Z88.92.23 | MRI von Herz und zentralen Gefäss mit Belastung, n.n.bez. |c CHOP Z88.92.24 | MRI von Herz und zentralen Gefäss mit Belastung und Kontrastmittel |c CHOP Z88.92.29 | MRI von Herz und zentralen Gefäss, sonstige |c CHOP Z88.92.30 | MRI von hilären und mediastinalen Strukturen, n.n.bez. |c CHOP Z88.92.31 | MRI von hilären und mediastinalen Strukturen in Ruhe, n.n.bez. |c CHOP Z88.92.32 | MRI von hilären und mediastinalen Strukturen in Ruhe, mit Kontrastmittel |c CHOP Z88.92.33 | MRI von hilären und mediastinalen Strukturen mit Belastung, n.n.bez. |c CHOP Z88.92.34 | MRI von hilären und mediastinalen Strukturen mit Belastung und Kontrastmittel |c CHOP Z88.92.39 | MRI von hilären und mediastinalen Strukturen, sonstige |c CHOP Z88.92.99 | Kernspintomographie von Thorax und Myokard, sonstige |c CHOP Z88.94.00 | Kernspintomographie des Muskuloskelettalsystems, n.n.bez. |c CHOP Z88.94.10 | MRI-Schultergelenk und Oberarme |c CHOP Z88.94.11 | MRI-Ellenbogengelenke und Vorderarme |c CHOP Z88.94.12 | MRI-Handgelenke und Hand |c CHOP Z88.94.13 | MRI-Hüfte und Oberschenkel |c CHOP Z88.94.14 | MRI-Kniegelenk und Unterschenkel |c CHOP Z88.94.16 | MRI-Fuss und Sprunggelenke, Fussgelenke |c CHOP Z88.94.99 | Kernspintomographie des Muskuloskelettalsystems, sonstige |c CHOP Z88.95 | Kernspintomographie von Becken, Prostata und Harnblase |c CHOP Z88.96 | Sonstige intraoperative Kernspintomographie |c CHOP Z88.97.00 | Kernspintomographie anderer und nicht definierter Lokalisationen, n.n.bez. |c CHOP Z88.97.10 | MRI-Angiographie aller Gefässe |c CHOP Z88.97.11 | MRI-Spektroskopie |c CHOP Z88.97.12 | Ganzkörper-MRI |c CHOP Z88.97.14 | MRI-Übersicht und Teilstücke der Wirbelsäule |c CHOP Z88.97.15 | MRI-Gesichtsschädel/Nasennebenhöhlen |c CHOP Z88.97.16 | MRI-Hals |c CHOP Z88.97.17 | MRI-Abdomen, Becken |c CHOP Z88.97.18 | MRI-Defäkographie |c CHOP Z88.97.19 | MRI-Mamma(e) |c CHOP Z88.97.20 | Magnetresonanz-Cholangiopankreatikographie (MRCP) |c CHOP Z88.97.99 | Kernspintomographie anderer und nicht definierter Lokalisationen, sonstige |c CHOP Z88.98.00 | Radiologische Mineralgehaltsbestimmung, n.n.bez. |c CHOP Z88.98.10 | Knochendensitometrie mit Doppelenergie-Röntgen-Absorptiometrie (DXA) |c CHOP Z88.98.99 | Radiologische Mineralgehaltsbestimmung, sonstige |c CHOP Z92.01 | Schilddrüsenszintigraphie und Radioisotopenfunktionsstudien |c CHOP Z92.02 | Leberszintigraphie und Radioisotopenfunktionsstudie |c CHOP Z92.03 | Nierenszintigraphie und Radioisotopenfunktionsstudie |c CHOP Z92.04 | Gastrointestinale Szintigraphie und Radioisotopenfunktionsstudie |c CHOP Z92.05.00 | Kardiovaskuläre und hämatopoetische Szintigraphie und Radioisotopenfunktionsstudie, n.n.bez. |c CHOP Z92.05.09 | Kardiovaskuläre und hämatopoetische Szintigraphie und Radioisotopenfunktionsstudie, sonstige |c CHOP Z92.05.10 | Myokardperfusionsszintigraphie, n.n.bez. |c CHOP Z92.05.11 | Myokardperfusionsszintigraphie in Ruhe |c CHOP Z92.05.12 | Myokardperfusionsszintigraphie mit physikalischer Belastung |c CHOP Z92.05.13 | Myokardperfusionsszintigraphie mit pharmakologischer Belastung |c CHOP Z92.05.14 | Single Photon Emission Computed Tomography (SPECT), Myokard |c CHOP Z92.05.19 | Myokardperfusionsszintigraphie, sonstige |c CHOP Z92.09.00 | Sonstige Radioisotopenfunktionsstudie, n.n.bez. |c CHOP Z92.09.10 | Single Photon Emission Computed Tomography (SPECT), andere Lokalisationen |c CHOP Z92.09.99 | Sonstige Radioisotopenfunktionsstudie, sonstige |c CHOP Z92.11.00 | Positronenemissionstomographie des Gehirns |c CHOP Z92.11.08 | Sonstige zerebrale Szintigraphie |c CHOP Z92.12 | Szintigraphie anderer Lokalisationen am Kopf |c CHOP Z92.13 | Parathyroidea-Szintigraphie |c CHOP Z92.14 | Knochen-Szintigraphie |c CHOP Z92.15 | Lungen-Szintigraphie |c CHOP Z92.16 | Szintigraphie des lymphatischen Systems |c CHOP Z92.18.00 | Ganzkörperszintigraphie, n.n.bez. |c CHOP Z92.18.01 | Ganzkörperszintigraphie zur Lokalisationsdiagnostik, Tumorszintigraphie mit Antikörpern oder rezeptorgerichteten Substanzen, n.n.bez. |c CHOP Z92.18.02 | Ganzkörperszintigraphie zur Lokalisationsdiagnostik, Ganzkörperszintigraphie zur Entzündungsdiagnostik |c CHOP Z92.18.03 | Ganzkörperszintigraphie zur Lokalisationsdiagnostik, Ganzkörperszintigraphie mit Radiojod, ohne Gabe von rekombinantem Thyreotropin (rh-TSH) |c CHOP Z92.18.04 | Ganzkörperszintigraphie zur Lokalisationsdiagnostik, Ganzkörperszintigraphie mit Radiojod, mit Gabe von rekombinantem Thyreotropin (rh-TSH) |c CHOP Z92.18.05 | Radiorezeptoren-selektive prätherapeutische Diagnostik (Ga-68-markiertes Peptid) |c CHOP Z92.18.08 | Ganzkörperszintigraphie zur Lokalisationsdiagnostik, sonstige |c CHOP Z92.19.00 | Positronenemissionstomographie des Herzens |c CHOP Z92.19.01 | Positronenemissionstomographie des gesamten Körperstammes |c CHOP Z92.19.02 | Andere Positronenemissionstomographie |c CHOP Z92.19.03 | Positronenemissionstomographie mit F-18-Ethylcholin bei Prostatakarzinom |c CHOP Z92.19.04 | Zelluläre Hypoxie-Diagnostik mit 18-F-Misonidazol |c CHOP Z92.19.05 | Positronenemissionstomographie mit Computertomographie (PET/CT) des gesamten Körperstammes/Kopfes mit DOTA-markierten Rezeptorliganden |c CHOP Z92.19.06 | Positronenemissionstomographie mit Computertomographie (PET/CT) des gesamten Körperstammes/Kopfes mit 18-F-DOPA |c CHOP Z92.19.08 | Sonstige Szintigraphie anderer Lokalisationen |c

has methodop :

Diagnostic Radiologic Examination methodc

FOPH Procedurec # Classes

URI https://biomedit.ch/rdf/sphn-ontology/sphn#FOPHProcedure
Description

procedure, coded respecting the rules of FOPH and used for building the DRGs, e.g. Z57.34 open biopsy of the urinary bladder

Schema representation
Parents
Procedurec
Property
(In the domain of)
Cardinality Class or Datatype Restriction
has start date timedp
1 .. 1 xsd:dateTimec
has data provider instituteop
1 .. 1 Data Provider Institutec
has intentop
0 .. 1 Intentc
has body siteop
0 .. 1 Body Sitec
has subject pseudo identifierop
1 .. 1 Subject Pseudo Identifierc
has rankop
0 .. 1 Yes
has coding date timedp
0 .. 1 xsd:dateTimec
has codeop
1 .. 1 Yes
has administrative caseop
1 .. 1 Administrative Casec
has end date timedp
0 .. 1 xsd:dateTimec
Restrictions
has rankop :

FOPH Procedure rankc

has codeop : children of the given classes are allowed

chop:CHOPc

Radiotherapy Procedurec # Classes

URI https://biomedit.ch/rdf/sphn-ontology/sphn#RadiotherapyProcedure
Description

given radiotherapy procedure during oncological treatment

Schema representation
Meaning binding
(Equivalent-classes)
SNOMED 108290001 | Radiation oncology AND/OR radiotherapy (procedure) |c
Parents
Procedurec
Property
(In the domain of)
Cardinality Class or Datatype Restriction
has administrative caseop
1 .. 1 Administrative Casec
has start date timedp
1 .. 1 xsd:dateTimec
has data provider instituteop
1 .. 1 Data Provider Institutec
has fractions numberop
0 .. 1 Quantityc
has intentop
0 .. * Intentc
has body siteop
0 .. 1 Body Sitec
has subject pseudo identifierop
1 .. 1 Subject Pseudo Identifierc
has coding date timedp
0 .. 1 xsd:dateTimec
has end date timedp
0 .. 1 xsd:dateTimec
has radiation quantityop
0 .. 1 Yes
has codeop
1 .. 1 Yes
Restrictions
has radiation quantityop / has unitop / has codeop :

ucum:Gyc ucum:Mbqc ucum:cGyc ucum:mCic

has codeop : children of the given classes are not allowed

SNOMED 115959002 | Stereotactic radiosurgery (procedure) |c SNOMED 152198000 | Brachytherapy (procedure) |c SNOMED 168524008 | Radiotherapy - intraoperative control (procedure) |c SNOMED 33195004 | External beam radiation therapy procedure (procedure) |c SNOMED 395096001 | Stereotactic radiotherapy (procedure) |c SNOMED 399315003 | Radionuclide therapy (procedure) |c SNOMED 74964007 | Other (qualifier value) |c SNOMED 78080008 | Hyperthermia treatment of cancer (procedure) |c

Quantityc # Classes

URI https://biomedit.ch/rdf/sphn-ontology/sphn#Quantity
Description

an amount or a number of something

Schema representation
Parents
SPHN Conceptc
Property
(In the domain of)
Cardinality Class or Datatype Restriction
has valuedp
1 .. 1 Yes
has comparatorop
0 .. 1 Yes
has unitop
1 .. 1 Unitc
Restrictions
has valuedp :

xsd:doublec

has comparatorop :

Quantity comparatorc

Used in
(In the range of)
has upper limitop
has radiation quantityop
has frequencyop
has exposure durationop
has quantitative resultop
has mean pressureop
has durationop
has systolic pressureop
has manifestation durationop
has diastolic pressureop
has lower limitop
has fractions numberop
has quantityop
has drug quantityop
has tumor purityop

Reference Rangec # Classes

URI https://biomedit.ch/rdf/sphn-ontology/sphn#ReferenceRange
Description

interval of values that is deemed normal for a physiologic measurement in healthy individuals

Schema representation
Parents
SPHN Conceptc
Property
(In the domain of)
Cardinality Class or Datatype Restriction
has upper limitop
0 .. 1 Quantityc
has lower limitop
0 .. 1 Quantityc
Restrictions None
Used in
(In the range of)
has reference rangeop

Simple Scorec # Classes

URI https://biomedit.ch/rdf/sphn-ontology/sphn#SimpleScore
Description

score given using a scoring system based on procedures that serve to classify e.g. health status, disease pattern or injury pattern and are used in medicine

Schema representation
Meaning binding
(Equivalent-classes)
SNOMED 782487009 | Assessment score (observable entity) |c
Parents
SPHN Conceptc
Property
(In the domain of)
Cardinality Class or Datatype Restriction
has data provider instituteop
1 .. 1 Data Provider Institutec
has scoring systemdp
0 .. 1 xsd:stringc
has subject pseudo identifierop
1 .. 1 Subject Pseudo Identifierc
has valuedp
1 .. 1 Yes
has scoring system codeop
0 .. 1 Yes
has scoredp
0 .. * xsd:stringc
has assessment date timedp
1 .. 1 xsd:dateTimec
has administrative caseop
1 .. 1 Administrative Casec
Restrictions
has valuedp :

xsd:stringc

has scoring system codeop : children of the given classes are allowed

SNOMED 138875005 | SNOMED CT Concept (SNOMED RT+CTV3) |c

Notes

sphn:hasScoringSystemCode recommended values [snomed:386554004; snomed:273481004; snomed:273617000; snomed:225908003; snomed:279101002; snomed:273903006; snomed:273812009; snomed:169895004; snomed:169909004; snomed:169922007; snomed:459231000124102]

Subject Pseudo Identifierc # Classes

URI https://biomedit.ch/rdf/sphn-ontology/sphn#SubjectPseudoIdentifier
Description

a pseudo code assigned as unique identifier to an individual by a data provider institute

Schema representation
Parents
SPHN Conceptc
Property
(In the domain of)
Cardinality Class or Datatype Restriction
has data provider instituteop
1 .. 1 Data Provider Institutec
has identifierdp
1 .. 1 xsd:stringc
Restrictions None
Used in
(In the range of)
has subject pseudo identifierop

Substancec # Classes

URI https://biomedit.ch/rdf/sphn-ontology/sphn#Substance
Description

any matter of defined composition that has discrete existence, whose origin may be biological, mineral or chemical

Schema representation
Meaning binding
(Equivalent-classes)
SNOMED 105590001 | Substance (substance) |c
Parents
SPHN Conceptc
Property
(In the domain of)
Cardinality Class or Datatype Restriction
has generic namedp
0 .. 1 xsd:stringc
has quantityop
0 .. 1 Quantityc
has codeop
0 .. 1 Yes
Restrictions
has codeop :

SNOMED 105590001 | Substance (substance) |c Codec sphn-atc:ATCc

Notes

sphn:hasCode allowed coding system: SNOMED CT, ATC, NCI Thesaurus or other

Used in
(In the range of)
has inactive ingredientop
has substanceop
has active ingredientop

TNM Classificationc # Classes

URI https://biomedit.ch/rdf/sphn-ontology/sphn#TNMClassification
Description

classification of malignant tumor

Schema representation
Meaning binding
(Equivalent-classes)
LOINC 75620-5 | TNM clinical staging before treatment panel Cancer |c
SNOMED 254293002 | Tumor-node-metastasis (TNM) tumor staging system (tumor staging) |c
Parents
SPHN Conceptc
Property
(In the domain of)
Cardinality Class or Datatype Restriction
has T prefixdp
0 .. 1 xsd:stringc
has subject pseudo identifierop
1 .. 1 Subject Pseudo Identifierc
has N prefixdp
0 .. 1 xsd:stringc
has N suffixdp
0 .. 1 xsd:stringc
has assessment date timedp
1 .. 1 xsd:dateTimec
has T suffixdp
0 .. 1 xsd:stringc
has M prefixdp
0 .. 1 xsd:stringc
has administrative caseop
0 .. 1 Administrative Casec
has versiondp
0 .. 1 xsd:stringc
has M suffixdp
0 .. 1 xsd:stringc
has data provider instituteop
1 .. 1 Data Provider Institutec
has valuedp
1 .. 1 Yes
Restrictions
has valuedp :

xsd:stringc

Terminologyc # Classes

URI https://biomedit.ch/rdf/sphn-ontology/sphn#Terminology
Description

Terminology class for grouping external resources used in the SPHN project

Parents
SPHN Conceptc
Children
(Sub-classes)
sphn-atc:ATCc
ucum:UCUMc
SNOMED 138875005 | SNOMED CT Concept (SNOMED RT+CTV3) |c
LOINC | LOINC |c
chop:CHOPc
icd-10-gm:ICD-10-GMc
Used in
(In the range of)
has manifestation codeop
has certainty codeop
has severity codeop
has morphology codeop
has quantitative result codeop
has exposure route codeop
has physiologic state codeop
has status codeop
has scoring system codeop
has manifestation severity codeop
has administration route codeop
has regularity codeop
has codeop
has method codeop
has verification status codeop
has relative temporality codeop
has product codeop
has type codeop
has reason to stop codeop
has reaction type codeop
has topography codeop

Therapeutic Areac # Classes

URI https://biomedit.ch/rdf/sphn-ontology/sphn#TherapeuticArea
Description

professional health care specialization

Schema representation
Meaning binding
(Equivalent-classes)
SNOMED 394658006 | Clinical specialty (qualifier value) |c
Parents
SPHN Conceptc
Property
(In the domain of)
Cardinality Class or Datatype Restriction
has specialty nameop
1 .. 1 Yes
Restrictions
has specialty nameop :

Therapeutic Area specialty namec

Used in
(In the range of)
has therapeutic areaop

Time Patternc # Classes

URI https://biomedit.ch/rdf/sphn-ontology/sphn#TimePattern
Description

type of time period during which a treatment was given or an assessment was performed; this can be single time points or a continuous event

Schema representation
Meaning binding
(Equivalent-classes)
SNOMED 272103003 | Time patterns (qualifier value) |c
Parents
SPHN Conceptc
Property
(In the domain of)
Cardinality Class or Datatype Restriction
has type codeop
1 .. 1 Yes
Restrictions
has type codeop : children of the given classes are not allowed

SNOMED 255238004 | Continuous (qualifier value) |c SNOMED 385432009 | Not applicable (qualifier value) |c SNOMED 7087005 | Intermittent (qualifier value) |c

Used in
(In the range of)
has time patternop

Tumor Gradec # Classes

URI https://biomedit.ch/rdf/sphn-ontology/sphn#TumorGrade
Description

tumor cells and tumor tissue abnormality

Schema representation
Meaning binding
(Equivalent-classes)
LOINC 21858-6 | Grade Cancer |c
SNOMED 373372005 | Histological grade finding (finding) |c
Parents
SPHN Conceptc
Property
(In the domain of)
Cardinality Class or Datatype Restriction
has subject pseudo identifierop
1 .. 1 Subject Pseudo Identifierc
has assessment date timedp
1 .. 1 xsd:dateTimec
has data provider instituteop
1 .. 1 Data Provider Institutec
has codeop
1 .. 1 Terminologyc or Codec
has administrative caseop
0 .. 1 Administrative Casec
Restrictions None

Tumor Specimenc # Classes

URI https://biomedit.ch/rdf/sphn-ontology/sphn#TumorSpecimen
Description

tumor specimen, volume and fixation method used

Schema representation
Meaning binding
(Equivalent-classes)
SNOMED 258435002 | Tumor tissue sample (specimen) |c
Parents
SPHN Conceptc
Property
(In the domain of)
Cardinality Class or Datatype Restriction
has administrative caseop
1 .. 1 Administrative Casec
has data provider instituteop
1 .. 1 Data Provider Institutec
has biosampleop
1 .. 1 Biosamplec
has subject pseudo identifierop
1 .. 1 Subject Pseudo Identifierc
has tumor purityop
0 .. 1 Yes
Restrictions
has tumor purityop / has unitop / has codeop :

ucum:percentc

Tumor Stagec # Classes

URI https://biomedit.ch/rdf/sphn-ontology/sphn#TumorStage
Description

growth extent of the tumor and how far the tumor has spread

Schema representation
Meaning binding
(Equivalent-classes)
LOINC 21908-9 | Stage group.clinical Cancer |c
SNOMED 254292007 | Tumor staging (tumor staging) |c
Parents
SPHN Conceptc
Property
(In the domain of)
Cardinality Class or Datatype Restriction
has subject pseudo identifierop
1 .. 1 Subject Pseudo Identifierc
has assessment date timedp
1 .. 1 xsd:dateTimec
has data provider instituteop
1 .. 1 Data Provider Institutec
has codeop
1 .. 1 Terminologyc or Codec
has administrative caseop
0 .. 1 Administrative Casec
Restrictions None

Unitc # Classes

URI https://biomedit.ch/rdf/sphn-ontology/sphn#Unit
Description

unit of measurement

Schema representation
Meaning binding
(Equivalent-classes)
SNOMED 767524001 | Unit of measure (qualifier value) |c
Parents
SPHN Conceptc
Property
(In the domain of)
Cardinality Class or Datatype Restriction
has codeop
1 .. 1 Yes
Restrictions
has codeop :

ucum:UCUMc

Used in
(In the range of)
has unitop

Value Setc # Classes

URI https://biomedit.ch/rdf/sphn-ontology/sphn#ValueSet
Parents
SPHN Conceptc
Children
(Sub-classes)
Oncology Treatment Assessment criteriac
Biosample material type tissuec
Biosample primary containerc
Birth Date comparatorc
Oncology Treatment Assessment progression typec
FOPH Procedure rankc
Oncology Treatment Assessment resultc
Biosample fixation typec
Drug Prescription indication to startc
Location classc
Biosample storage containerc
Quantity comparatorc
Diagnostic Radiologic Examination methodc
Allergy substance categoryc
Adverse Event outcomec
Adverse Event consequencesc
Therapeutic Area specialty namec
FOPH Diagnosis rankc
Biosample material type liquidc

Adverse Event consequencesc # Classes

URI https://biomedit.ch/rdf/sphn-ontology/sphn#AdverseEvent_consequences
Description

consequence of the adverse event, with different severity

Parents
Value Setc
Value set members
(Individuals)
death
Temporarily serious impact / medically important
Permanent damage or disability
None of the consequences mentioned
Life-threatening
Congenital abnormality
Hospitalisation or prolongation

Adverse Event outcomec # Classes

URI https://biomedit.ch/rdf/sphn-ontology/sphn#AdverseEvent_outcome
Description

the evolution of the adverse event on patient health

Parents
Value Setc
Value set members
(Individuals)
Recovering with sequelae
Fatal
Unknown
Recovering
Recovered
Not recovered

Allergy substance categoryc # Classes

URI https://biomedit.ch/rdf/sphn-ontology/sphn#Allergy_substanceCategory
Description

category of the substance to which the individual is allergic to

Parents
Value Setc
Value set members
(Individuals)
biologic
medication
food
environment

Biosample fixation typec # Classes

URI https://biomedit.ch/rdf/sphn-ontology/sphn#Biosample_fixationType
Description

fixation or stabilization type

Parents
Value Setc
Value set members
(Individuals)
Neutral buffered formalin
UNK
Vacuum technology stabilization
Alcohol based
Nonbuffered formalin
Heat stabilization
Aldehyde based
Nonaldehyde based without acetic acid
RNA Later
PAXgene tissue
Allprotect ® tissue reagent
Optimum cutting temperature medium
Snap freezing
Other
Nonaldehyde with acetic acid

Biosample material type liquidc # Classes

URI https://biomedit.ch/rdf/sphn-ontology/sphn#Biosample_materialTypeLiquid
Description

the type of liquid the biosample contains or consists of

Meaning binding
(Equivalent-classes)
SNOMED 32457005 | Body fluid (substance) |c
Parents
Value Setc
Value set members
(Individuals)
Dried whole blood (e.g. Guthrie cards)
Dental pulp
Sputum
Stool
Pleural fluid
24 h urine
DNA
Ascites fluid
Blood (whole)
Breast milk
Urine, timed
Non-density-gradient-centrifugation-separated buffy coat, viable
Enriched (physicochemically) circulating tumor cells
Cells from nonblood specimen type (e.g. ascites, amniotic), nonviable
Urine, first morning
Amniotic fluid
Cerebrospinal fluid
Bone marrow aspirate
Other
Fresh cells from non-blood specimen type
Buccal cells
Serum
Red blood cells
Nasal washing
Synovial fluid
Density-gradient-centrifugation-separated mononuclear cells, viable
Saliva
Tears
Semen
Non-density-gradient-centrifugation-separated buffy coat, nonviable
Bronchoalveolar lavage
Cells from nonblood specimen type (e.g. ascites, amniotic), viable
RNA
Density-gradient-centrifugation-separated mononuclear cells, nonviable
Plasma, double spun
Cord blood
Urine, random (“spot”)
Plasma, single spun

Biosample material type tissuec # Classes

URI https://biomedit.ch/rdf/sphn-ontology/sphn#Biosample_materialTypeTissue
Description

the type of tissue the biosample contains or consists of

Meaning binding
(Equivalent-classes)
SNOMED 413675001 | Body tissue material (substance) |c
Parents
Value Setc
Value set members
(Individuals)
Teeth
Fresh cells from non-blood specimen type
Cells from nonblood specimen type (e.g. dissociated tissue), viable
Cells from nonblood specimen type (e.g. dissociated tissue), nonviable
RNA
Cells from laser capture microdissected tissue
Nails
Disrupted tissue, nonviable
Placenta
Solid tissue
Cells from fine needle aspirate
Hair
Bone
Other
DNA

Biosample primary containerc # Classes

URI https://biomedit.ch/rdf/sphn-ontology/sphn#Biosample_primaryContainer
Description

type of primary container in which the specimen is collected

Parents
Value Setc
Value set members
(Individuals)
PAXgene® blood DNA
Polypropylene tube sterile
Stool collection container with DNA stabilizer
Serum separator tube with clot activator
RNA Later
Aldehyde-based stabilizer for CTCs
Lithium heparin and rubber plug
Potassium EDTA
Chemical additives / stabilizers
Hirudin
Protease inhibitors
Sodium EDTA
Sodium heparin
Trace elements tube
Non-aldehyde-based stabilizer for cell-free nucleic acids
Sodium fluoride/potassium oxalate
Polyethylene tube sterile
EDTA and gel
Lithium heparin and gel
Acid citrate dextrose
Other
PAXgene® blood RNA+
Tempus® tube
Cell Preparation Tube® heparin
Lithium heparin
Serum tube without clot activator
Physical filtration system
S8820 protease inhibitor tablets or equivalent
Citrate phosphate dextrose
Oragene collection container or equivalent
UNK
PAXgene® bone marrow RNA
Glass
Cell Preparation Tube® citrate
Sodium citrate

Biosample storage containerc # Classes

URI https://biomedit.ch/rdf/sphn-ontology/sphn#Biosample_storageContainer
Description

storage container type for long term storage

Parents
Value Setc
Value set members
(Individuals)
Cryotube 1 to 2 mL
Microplate well
Other
PP tube 0.5 to 2 mL
Straw
Dry technology medium
Original primary container
UNK
PP tube 40 to 500 uL
PP tube >= 5 mL
Paraffin block
Plastic cryo straw
Bag

Birth Date comparatorc # Classes

URI https://biomedit.ch/rdf/sphn-ontology/sphn#BirthDate_comparator
Description

qualifier describing whether the value is the precise one or not

Parents
Value Setc
Value set members
(Individuals)
<=
>=
<
=
>

Diagnostic Radiologic Examination methodc # Classes

URI https://biomedit.ch/rdf/sphn-ontology/sphn#DiagnosticRadiologicExamination_method
Description

method used for the diagnostic radiologic examination

Parents
Value Setc
Value set members
(Individuals)
PET CT
SPECT
PET
X-ray
CT
MRI

Drug Prescription indication to startc # Classes

URI https://biomedit.ch/rdf/sphn-ontology/sphn#DrugPrescription_indicationToStart
Description

indication to start the concept

Parents
Value Setc
Value set members
(Individuals)
Other
Unknown
adjuvant
neoadjuvant

FOPH Diagnosis rankc # Classes

URI https://biomedit.ch/rdf/sphn-ontology/sphn#FOPHDiagnosis_rank
Description

specifies the level of the concept

Parents
Value Setc
Value set members
(Individuals)
secondary
complementary
principal

FOPH Procedure rankc # Classes

URI https://biomedit.ch/rdf/sphn-ontology/sphn#FOPHProcedure_rank
Description

specifies the level of the concept

Parents
Value Setc
Value set members
(Individuals)
supplementary
principal

Location classc # Classes

URI https://biomedit.ch/rdf/sphn-ontology/sphn#Location_class
Description

general location type; can be within a hospital (department) or outside (home, retirement home)

Parents
Value Setc
Value set members
(Individuals)
Medical center
Accident and Emergency department
Diagnostic institution
Ambulatory care site
Health authority
Private home-based care
Client or patient home
Nursing home
General practice premises
Site of care
Military health institution
Pharmacy
Hospital
Rehabilitation hospital
Prison-based care site

Oncology Treatment Assessment criteriac # Classes

URI https://biomedit.ch/rdf/sphn-ontology/sphn#OncologyTreatmentAssessment_criteria
Description

criteria used for the assessment

Parents
Value Setc
Value set members
(Individuals)
traceable author statement
RECIST 1.0
RECIST 1.1

Oncology Treatment Assessment progression typec # Classes

URI https://biomedit.ch/rdf/sphn-ontology/sphn#OncologyTreatmentAssessment_progressionType
Description

type of progression

Parents
Value Setc
Value set members
(Individuals)
regional
Unknown
metastatic
localized
biochemical

Oncology Treatment Assessment resultc # Classes

URI https://biomedit.ch/rdf/sphn-ontology/sphn#OncologyTreatmentAssessment_result
Description

result from the assessment

Parents
Value Setc
Value set members
(Individuals)
complete response
stable disease
partial response
progressive disease
Unknown

Quantity comparatorc # Classes

URI https://biomedit.ch/rdf/sphn-ontology/sphn#Quantity_comparator
Description

qualifier describing whether the value is the precise one or not

Parents
Value Setc
Value set members
(Individuals)
<
=
<=
>
>=

Therapeutic Area specialty namec # Classes

URI https://biomedit.ch/rdf/sphn-ontology/sphn#TherapeuticArea_specialtyName
Description

name of professional health care specialization

Parents
Value Setc
Value set members
(Individuals)
Health Psychology
Paediatric surgery
Psychiatry and psychotherapy
Addiction medicine
Periodontics
Other
General medical practitioner
Nephrology
Orthopaedic surgery and traumatology of the locomotor apparatus
Neurosurgery
Radiology
Angiology
Medical genetics
Anaesthesiology
Prevention and public health
General medicine
Orthodontics
Vascular surgery
Cardiology
Infectology
Pneumology
Medical oncology
Nuclear medicine
Haematology
Clinical pharmacology and toxicology
Urology
Forensic medicine
Thoracic surgery
Otorhinolaryngology
Clinical Psychology
Radio-oncology and radiotherapy
Intensive care medicine
Chiropractic specialist
Pharmaceutical medicine
Gynaecology and obstetrics
Physical medicine and rehabilitation
Rheumatology
Neurology
Plastic, reconstructive and aesthetic surgery
Surgery
Pathology
Dermatology and venereology
Neuropsychology
Ophthalmology
Oral surgery
Child and adolescent psychology
Reconstructive dentistry
Psychotherapy
Community pharmacy
Allergology and clinical immunology
Tropical and travel medicine
Hospital pharmacy
Child and adolescent psychiatry and psychotherapy
Occupational medicine
Endocrinology and Diabetology
Cardiac and thoracic vascular surgery
Internal medicine
General internal medicine
Paediatrics
Visceral medicine
Geriatric medicine
Oral and maxillofacial surgery
Gastroenterology
Hand surgery

Deprecatedc # Classes

URI https://biomedit.ch/rdf/sphn-ontology/sphn#Deprecated
Description

Deprecated classes of SPHN that existed in the previous version

Children
(Sub-classes)
Systemic Arterial Blood Pressurec
Central Venous Pressurec
Catheterc

Catheterc # Classes

URI https://biomedit.ch/rdf/sphn-ontology/sphn#Catheter
Description

medical device composed of a tube of varying size and length

Parents
Deprecatedc

Central Venous Pressurec # Classes

URI https://biomedit.ch/rdf/sphn-ontology/sphn#CentralVenousPressure
Description

central venous pressure measured in the venae cavae

Parents
Deprecatedc

Systemic Arterial Blood Pressurec # Classes

URI https://biomedit.ch/rdf/sphn-ontology/sphn#SystemicArterialBloodPressure
Description

arterial blood pressure in systemic circulation

Parents
Deprecatedc

Object Properties

SPHN attribute objectop # OPs

URI https://biomedit.ch/rdf/sphn-ontology/sphn#SPHNAttributeObject
Description

SPHN object attribute defined by the dataset

has active ingredientop # OPs

URI https://biomedit.ch/rdf/sphn-ontology/sphn#hasActiveIngredient
Description

pharmaceutically active component of a drug

Super-properties SPHN attribute objectop
Domain(s) Drugc
Range Substancec

has administrable dose formop # OPs

URI https://biomedit.ch/rdf/sphn-ontology/sphn#hasAdministrableDoseForm
Description

dose form of the drug for administration to a patient, after any necessary transformation has been carried out, e.g. solution

Super-properties SPHN attribute objectop
Domain(s) Drug Administration Eventc Drug Prescriptionc
Range Pharmaceutical Dose Formc

has administration route codeop # OPs

URI https://biomedit.ch/rdf/sphn-ontology/sphn#hasAdministrationRouteCode
Description

code, name, coding system and version describing the route of administration

Super-properties has codeop
Domain(s) Drug Administration Eventc Drug Prescriptionc
Range Terminologyc Codec

has administrative caseop # OPs

URI https://biomedit.ch/rdf/sphn-ontology/sphn#hasAdministrativeCase
Description

link to an interaction between an individual and healthcare provider(s) via an administrative case identifier for the purpose of providing healthcare service(s) or assessing the health status of an individual

Super-properties SPHN attribute objectop
Domain(s) Radiotherapy Procedurec Inhaled Oxygen Concentrationc Tumor Specimenc Oxygen Saturationc Adverse Eventc Procedurec Body Temperaturec Oncology Treatment Assessmentc Diagnostic Radiologic Examinationc Drug Prescriptionc FOPH Diagnosisc Diagnosisc Biosamplec Body Weightc Lab Testc Healthcare Encounterc Body Heightc TNM Classificationc Tumor Stagec Gestational Age at Birthc Blood Pressurec Lab Resultc Nursing Diagnosisc Allergy Episodec ICD-O Diagnosisc Respiratory Ratec Heart Ratec FOPH Procedurec Drug Administration Eventc Biobanksamplec Problem Conditionc Simple Scorec Tumor Gradec Circumference Measurec
Range Administrative Casec

has biosampleop # OPs

URI https://biomedit.ch/rdf/sphn-ontology/sphn#hasBiosample
Description

any material sample taken from a biological entity for testing, diagnostic, propagation, treatment or research purposes

Super-properties SPHN attribute objectop
Domain(s) Biobanksamplec Tumor Specimenc Lab Resultc
Range Biosamplec

has body siteop # OPs

URI https://biomedit.ch/rdf/sphn-ontology/sphn#hasBodySite
Description

body site where the concept was measured, performed or collected

Super-properties SPHN attribute objectop
Domain(s) Blood Pressurec FOPH Procedurec Circumference Measurec Radiotherapy Procedurec Oxygen Saturationc Heart Ratec Procedurec Body Temperaturec Diagnostic Radiologic Examinationc Biosamplec
Range Body Sitec

has care handlingop # OPs

URI https://biomedit.ch/rdf/sphn-ontology/sphn#hasCareHandling
Description

describes the relationship between the patient and care provider institute

Super-properties SPHN attribute objectop
Domain(s) Administrative Casec
Range Care Handlingc

has certainty codeop # OPs

URI https://biomedit.ch/rdf/sphn-ontology/sphn#hasCertaintyCode
Description

code, name, coding system and version describing the degree of certainty (from a clinical point of view) that the specific substance triggered the event

Super-properties has codeop
Domain(s) Allergy Episodec
Range Terminologyc Codec

has classop # OPs

URI https://biomedit.ch/rdf/sphn-ontology/sphn#hasClass
Description

general location type; can be within a hospital (department) or outside (home, retirement home)

Super-properties SPHN attribute objectop
Domain(s) Locationc
Range SPHN Conceptc

has codeop # OPs

URI https://biomedit.ch/rdf/sphn-ontology/sphn#hasCode
Description

code, name, coding system and version describing the concept

Super-properties SPHN attribute objectop
Domain(s) Adverse Eventc Procedurec Diagnostic Radiologic Examinationc Civil Statusc Death Statusc Body Sitec FOPH Diagnosisc Diagnosisc Pharmaceutical Dose Formc Unitc Lab Testc Lateralityc Data Provider Institutec Tumor Stagec Administrative Genderc Nursing Diagnosisc FOPH Procedurec Measurement Methodc Problem Conditionc Tumor Gradec Radiotherapy Procedurec Intentc Substancec
Range Terminologyc Codec

has comparatorop # OPs

URI https://biomedit.ch/rdf/sphn-ontology/sphn#hasComparator
Description

qualifier describing whether the value is the precise one or not

Super-properties SPHN attribute objectop
Domain(s) Birth Datec Quantityc
Range SPHN Conceptc

has consequencesop # OPs

URI https://biomedit.ch/rdf/sphn-ontology/sphn#hasConsequences
Description

consequence of the adverse event, with different severity

Super-properties SPHN attribute objectop
Domain(s) Adverse Eventc
Range SPHN Conceptc

has criteriaop # OPs

URI https://biomedit.ch/rdf/sphn-ontology/sphn#hasCriteria
Description

criteria used for the assessment

Super-properties SPHN attribute objectop
Domain(s) Oncology Treatment Assessmentc
Range SPHN Conceptc

has current locationop # OPs

URI https://biomedit.ch/rdf/sphn-ontology/sphn#hasCurrentLocation
Description

physical location where the individual received medical care

Super-properties has locationop
Domain(s) Healthcare Encounterc
Range Locationc

has data determinationop # OPs

URI https://biomedit.ch/rdf/sphn-ontology/sphn#hasDataDetermination
Description

indicates whether the value was measured, calculated or set as a parameter of the ventilator

Super-properties SPHN attribute objectop
Domain(s) Respiratory Ratec Inhaled Oxygen Concentrationc
Range Data Determinationc

has data provider instituteop # OPs

URI https://biomedit.ch/rdf/sphn-ontology/sphn#hasDataProviderInstitute
Description

link to the unique business identification number (UID) of the healthcare institute providing the data

Super-properties SPHN attribute objectop
Domain(s) Heart Ratec Procedurec FOPH Procedurec Inhaled Oxygen Concentrationc Body Temperaturec Drug Administration Eventc Biobanksamplec Problem Conditionc Simple Scorec Subject Pseudo Identifierc Circumference Measurec Radiotherapy Procedurec Drug Prescriptionc Tumor Specimenc FOPH Diagnosisc Diagnosisc Allergyc Oncology Treatment Assessmentc Diagnostic Radiologic Examinationc Healthcare Encounterc Tumor Stagec Biosamplec Lab Resultc Body Weightc Lab Testc Body Heightc Respiratory Ratec TNM Classificationc Consentc Gestational Age at Birthc Locationc Administrative Casec Blood Pressurec Tumor Gradec Nursing Diagnosisc Allergy Episodec Oxygen Saturationc ICD-O Diagnosisc Adverse Eventc
Range Data Provider Institutec

has death dateop # OPs

URI https://biomedit.ch/rdf/sphn-ontology/sphn#hasDeathDate
Description

datetime of death for the individual

Super-properties SPHN attribute objectop
Domain(s) Death Statusc
Range Death Datec

has diastolic pressureop # OPs

URI https://biomedit.ch/rdf/sphn-ontology/sphn#hasDiastolicPressure
Description

measured diastolic pressure and unit

Super-properties has quantityop
Domain(s) Blood Pressurec
Range Quantityc

has discharge locationop # OPs

URI https://biomedit.ch/rdf/sphn-ontology/sphn#hasDischargeLocation
Description

location where the individual went to when leaving the healthcare provider institute, e.g. nursing home

Super-properties has locationop
Domain(s) Administrative Casec
Range Locationc

has drugop # OPs

URI https://biomedit.ch/rdf/sphn-ontology/sphn#hasDrug
Description

drug administered or prescribed to a patient

Super-properties SPHN attribute objectop
Domain(s) Drug Administration Eventc Drug Prescriptionc
Range Drugc

has drug quantityop # OPs

URI https://biomedit.ch/rdf/sphn-ontology/sphn#hasDrugQuantity
Description

quantity of a drug prescribed or admnistered to an individual

Super-properties has quantityop
Domain(s) Drug Administration Eventc Drug Prescriptionc
Range Quantityc

has durationop # OPs

URI https://biomedit.ch/rdf/sphn-ontology/sphn#hasDuration
Description

time interval during which a substance was administered; it is only used for continuously administered substances

Super-properties has quantityop
Domain(s) Drug Administration Eventc
Range Quantityc

has exposure durationop # OPs

URI https://biomedit.ch/rdf/sphn-ontology/sphn#hasExposureDuration
Description

duration of the exposure to the substance

Super-properties has durationop
Domain(s) Allergy Episodec
Range Quantityc

has exposure route codeop # OPs

URI https://biomedit.ch/rdf/sphn-ontology/sphn#hasExposureRouteCode
Description

code, name, coding system and version describing how the individual was exposed to the substance

Super-properties has codeop
Domain(s) Allergy Episodec
Range Terminologyc Codec

has fixation typeop # OPs

URI https://biomedit.ch/rdf/sphn-ontology/sphn#hasFixationType
Description

fixation or stabilization type

Super-properties SPHN attribute objectop
Domain(s) Biosamplec
Range SPHN Conceptc

has fractions numberop # OPs

URI https://biomedit.ch/rdf/sphn-ontology/sphn#hasFractionsNumber
Description

number of fractions applied during an event

Super-properties has quantityop
Domain(s) Radiotherapy Procedurec
Range Quantityc

has frequencyop # OPs

URI https://biomedit.ch/rdf/sphn-ontology/sphn#hasFrequency
Description

number of events per unit of time

Super-properties has quantityop
Domain(s) Drug Prescriptionc
Range Quantityc

has inactive ingredientop # OPs

URI https://biomedit.ch/rdf/sphn-ontology/sphn#hasInactiveIngredient
Description

inert ingredients or excipients, and generally have no pharmacological effect

Super-properties SPHN attribute objectop
Domain(s) Drugc
Range Substancec

has indication to startop # OPs

URI https://biomedit.ch/rdf/sphn-ontology/sphn#hasIndicationToStart
Description

indication to start the drug treatment; can be a specific FOPH diagnosis, or a generic reason

Super-properties SPHN attribute objectop
Domain(s) Drug Prescriptionc
Range SPHN Conceptc

has instrumentop # OPs

URI https://biomedit.ch/rdf/sphn-ontology/sphn#hasInstrument
Description

instrument used to assess medical laboratory samples

Super-properties SPHN attribute objectop
Domain(s) Lab Testc
Range Lab Analyzerc

has intentop # OPs

URI https://biomedit.ch/rdf/sphn-ontology/sphn#hasIntent
Description

intention for the concept

Super-properties SPHN attribute objectop
Domain(s) FOPH Procedurec Radiotherapy Procedurec Procedurec Drug Prescriptionc Diagnostic Radiologic Examinationc
Range Intentc

has lab testop # OPs

URI https://biomedit.ch/rdf/sphn-ontology/sphn#hasLabTest
Description

lab test information including information elements provided by LOINC, instrument and test kit

Super-properties SPHN attribute objectop
Domain(s) Lab Resultc
Range Lab Testc

has lateralityop # OPs

URI https://biomedit.ch/rdf/sphn-ontology/sphn#hasLaterality
Description

localization with respect to the side of the body

Super-properties SPHN attribute objectop
Domain(s) Body Sitec
Range Lateralityc

has locationop # OPs

URI https://biomedit.ch/rdf/sphn-ontology/sphn#hasLocation
Description

statement about a physical location

Super-properties SPHN attribute objectop
Range Locationc

has lower limitop # OPs

URI https://biomedit.ch/rdf/sphn-ontology/sphn#hasLowerLimit
Description

lowest value of the range

Super-properties has quantityop
Domain(s) Reference Rangec
Range Quantityc

has manifestation body siteop # OPs

URI https://biomedit.ch/rdf/sphn-ontology/sphn#hasManifestationBodySite
Description

location in the body where the manifestation occurs (also referred to as manifestation location)

Super-properties has body siteop
Domain(s) Allergy Episodec
Range Body Sitec

has manifestation codeop # OPs

URI https://biomedit.ch/rdf/sphn-ontology/sphn#hasManifestationCode
Description

code, name, coding system and version describing the clinical symptom and/or sign that occurred during the specific episode

Super-properties has codeop
Domain(s) Allergy Episodec
Range Terminologyc Codec

has manifestation durationop # OPs

URI https://biomedit.ch/rdf/sphn-ontology/sphn#hasManifestationDuration
Description

duration of manifestation

Super-properties has durationop
Domain(s) Allergy Episodec
Range Quantityc

has manifestation severity codeop # OPs

URI https://biomedit.ch/rdf/sphn-ontology/sphn#hasManifestationSeverityCode
Description

code, name, coding system and version describing the severity of the manifestation

Super-properties has codeop
Domain(s) Allergy Episodec
Range Terminologyc Codec

has manufactured dose formop # OPs

URI https://biomedit.ch/rdf/sphn-ontology/sphn#hasManufacturedDoseForm
Description

code, name, coding system and version describing the dose form presented in the manufactured item, e.g. powder and solvent for solution for injection

Super-properties SPHN attribute objectop
Domain(s) Drugc
Range Pharmaceutical Dose Formc

has material type liquidop # OPs

URI https://biomedit.ch/rdf/sphn-ontology/sphn#hasMaterialTypeLiquid
Description

the type of liquid the biosample contains or consists of

Super-properties SPHN attribute objectop
Domain(s) Biosamplec
Range SPHN Conceptc

has material type tissueop # OPs

URI https://biomedit.ch/rdf/sphn-ontology/sphn#hasMaterialTypeTissue
Description

the type of tissue the biosample contains or consists of

Super-properties SPHN attribute objectop
Domain(s) Biosamplec
Range SPHN Conceptc

has mean pressureop # OPs

URI https://biomedit.ch/rdf/sphn-ontology/sphn#hasMeanPressure
Description

measured average pressure and unit

Super-properties has quantityop
Domain(s) Blood Pressurec
Range Quantityc

has measurement methodop # OPs

URI https://biomedit.ch/rdf/sphn-ontology/sphn#hasMeasurementMethod
Description

measurement method of the concept

Super-properties SPHN attribute objectop
Domain(s) Oxygen Saturationc Heart Ratec Blood Pressurec
Range Measurement Methodc

has methodop # OPs

URI https://biomedit.ch/rdf/sphn-ontology/sphn#hasMethod
Description

method used for the concept

Super-properties SPHN attribute objectop
Domain(s) Diagnostic Radiologic Examinationc
Range SPHN Conceptc

has method codeop # OPs

URI https://biomedit.ch/rdf/sphn-ontology/sphn#hasMethodCode
Description

code, name, coding system and version describing the method used for the assessment of the concept

Super-properties has codeop
Domain(s) Oncology Treatment Assessmentc Data Determinationc
Range Terminologyc Codec

has morphology codeop # OPs

URI https://biomedit.ch/rdf/sphn-ontology/sphn#hasMorphologyCode
Description

code, name, coding system and version describing the characteristics of the tumor itself, including its cell type and biological activity; the code is composed of four digits that indicate the cell type or histology and one digit that indicates the behaviour

Super-properties has codeop
Domain(s) ICD-O Diagnosisc
Range Terminologyc Codec

has origin locationop # OPs

URI https://biomedit.ch/rdf/sphn-ontology/sphn#hasOriginLocation
Description

physical location where the individual came from

Super-properties has locationop
Domain(s) Administrative Casec Healthcare Encounterc
Range Locationc

has outcomeop # OPs

URI https://biomedit.ch/rdf/sphn-ontology/sphn#hasOutcome
Description

the evolution of the adverse event on patient health

Super-properties SPHN attribute objectop
Domain(s) Adverse Eventc
Range SPHN Conceptc

has oxygen equipmentop # OPs

URI https://biomedit.ch/rdf/sphn-ontology/sphn#hasOxygenEquipment
Description

type of device used for oxygen therapy, e.g. nasal cannula, Venturi mask

Super-properties SPHN attribute objectop
Domain(s) Inhaled Oxygen Concentrationc
Range Medical Devicec

has oxygen flow rateop # OPs

URI https://biomedit.ch/rdf/sphn-ontology/sphn#hasOxygenFlowRate
Description

quantity and duration of oxygen flow rate administration

Super-properties SPHN attribute objectop
Domain(s) Inhaled Oxygen Concentrationc
Range Drug Administration Eventc

has physiologic state codeop # OPs

URI https://biomedit.ch/rdf/sphn-ontology/sphn#hasPhysiologicStateCode
Description

code, name, coding system and version describing the finding related physiologic patient state, e.g. resting, exercise

Super-properties has codeop
Domain(s) Heart Ratec
Range Terminologyc Codec

has primary containerop # OPs

URI https://biomedit.ch/rdf/sphn-ontology/sphn#hasPrimaryContainer
Description

type of primary container in which the specimen is collected

Super-properties SPHN attribute objectop
Domain(s) Biosamplec
Range SPHN Conceptc

has product codeop # OPs

URI https://biomedit.ch/rdf/sphn-ontology/sphn#hasProductCode
Description

code, name, coding system and version describing the product of the concept

Super-properties has codeop
Domain(s) Lab Analyzerc Medical Devicec Drugc
Range Terminologyc Codec

has progression body siteop # OPs

URI https://biomedit.ch/rdf/sphn-ontology/sphn#hasProgressionBodySite
Description

body site where the progression was observed

Super-properties has body siteop
Domain(s) Oncology Treatment Assessmentc
Range Body Sitec

has progression typeop # OPs

URI https://biomedit.ch/rdf/sphn-ontology/sphn#hasProgressionType
Description

type of progression

Super-properties SPHN attribute objectop
Domain(s) Oncology Treatment Assessmentc
Range SPHN Conceptc

has quantitative resultop # OPs

URI https://biomedit.ch/rdf/sphn-ontology/sphn#hasQuantitativeResult
Description

value and unit of the quantitative result of the concept

Super-properties has quantityop
Domain(s) Lab Resultc
Range Quantityc

has quantitative result codeop # OPs

URI https://biomedit.ch/rdf/sphn-ontology/sphn#hasQuantitativeResultCode
Description

code, name, coding system and version describing the qualitative result of the concept

Super-properties has codeop
Domain(s) Lab Resultc
Range Terminologyc Codec

has quantityop # OPs

URI https://biomedit.ch/rdf/sphn-ontology/sphn#hasQuantity
Description

an amount or a number of something

Super-properties SPHN attribute objectop
Domain(s) Oxygen Saturationc Respiratory Ratec Heart Ratec Body Temperaturec Circumference Measurec Inhaled Oxygen Concentrationc Substancec Body Weightc Body Heightc Gestational Age at Birthc Agec Measurementc
Range Quantityc

has radiation quantityop # OPs

URI https://biomedit.ch/rdf/sphn-ontology/sphn#hasRadiationQuantity
Description

amount of radiation (value and unit) delivered or applied

Super-properties has quantityop
Domain(s) Diagnostic Radiologic Examinationc Radiotherapy Procedurec
Range Quantityc

has rankop # OPs

URI https://biomedit.ch/rdf/sphn-ontology/sphn#hasRank
Description

specifies the level of the concept

Super-properties SPHN attribute objectop
Domain(s) FOPH Procedurec FOPH Diagnosisc
Range SPHN Conceptc

has reaction type codeop # OPs

URI https://biomedit.ch/rdf/sphn-ontology/sphn#hasReactionTypeCode
Description

code, name, coding system and version describing the type of reaction observed

Super-properties has codeop
Domain(s) Allergyc
Range Codec Terminologyc

has reason to stop codeop # OPs

URI https://biomedit.ch/rdf/sphn-ontology/sphn#hasReasonToStopCode
Description

code, name, coding system and version indicating the reason to stop the drug treatment

Super-properties has codeop
Domain(s) Drug Administration Eventc
Range Terminologyc Codec

has reference rangeop # OPs

URI https://biomedit.ch/rdf/sphn-ontology/sphn#hasReferenceRange
Description

normal range for population

Super-properties SPHN attribute objectop
Domain(s) Lab Resultc
Range Reference Rangec

has regularity codeop # OPs

URI https://biomedit.ch/rdf/sphn-ontology/sphn#hasRegularityCode
Description

code, name, coding system and version describing the regular or irregular state of the heart rate

Super-properties has codeop
Domain(s) Heart Ratec
Range Terminologyc Codec

has relative temporality codeop # OPs

URI https://biomedit.ch/rdf/sphn-ontology/sphn#hasRelativeTemporalityCode
Description

code, name, coding system and version describing when the problem was reported in relation to the treatment pathway, e.g. on admission, intraoperative, post-radiation

Super-properties has codeop
Domain(s) Problem Conditionc
Range Terminologyc Codec

has resultop # OPs

URI https://biomedit.ch/rdf/sphn-ontology/sphn#hasResult
Description

result from the assessment

Super-properties SPHN attribute objectop
Domain(s) Oncology Treatment Assessmentc
Range SPHN Conceptc

has scoring system codeop # OPs

URI https://biomedit.ch/rdf/sphn-ontology/sphn#hasScoringSystemCode
Description

code, name, coding system and version describing the scoring system

Super-properties has codeop
Domain(s) Simple Scorec
Range Terminologyc Codec

has severity codeop # OPs

URI https://biomedit.ch/rdf/sphn-ontology/sphn#hasSeverityCode
Description

code, name, coding system and version describing the severity of concept

Super-properties has codeop
Domain(s) Allergyc Adverse Eventc
Range Terminologyc Codec

has specialty nameop # OPs

URI https://biomedit.ch/rdf/sphn-ontology/sphn#hasSpecialtyName
Description

name of professional health care specialization

Super-properties SPHN attribute objectop
Domain(s) Therapeutic Areac
Range SPHN Conceptc

has status codeop # OPs

URI https://biomedit.ch/rdf/sphn-ontology/sphn#hasStatusCode
Description

code, name, coding system and version describing the status of the concept

Super-properties has codeop
Domain(s) Consentc
Range Terminologyc Codec

has storage containerop # OPs

URI https://biomedit.ch/rdf/sphn-ontology/sphn#hasStorageContainer
Description

type of storage container for long term storage

Super-properties SPHN attribute objectop
Domain(s) Biosamplec
Range SPHN Conceptc

has subject ageop # OPs

URI https://biomedit.ch/rdf/sphn-ontology/sphn#hasSubjectAge
Description

age of the individual at the time of the subject event

Super-properties SPHN attribute objectop
Domain(s) FOPH Diagnosisc Diagnosisc Nursing Diagnosisc ICD-O Diagnosisc
Range Agec

has subject pseudo identifierop # OPs

URI https://biomedit.ch/rdf/sphn-ontology/sphn#hasSubjectPseudoIdentifier
Description

link to a pseudo code assigned as unique identifier to an individual by a data provider institute

Super-properties SPHN attribute objectop
Domain(s) Healthcare Encounterc Body Heightc TNM Classificationc Tumor Stagec Death Datec Gestational Age at Birthc Agec Blood Pressurec Administrative Genderc Lab Resultc Birth Datec Nursing Diagnosisc ICD-O Diagnosisc Allergyc Respiratory Ratec FOPH Procedurec Drug Administration Eventc Consentc Administrative Casec Problem Conditionc Simple Scorec Tumor Gradec Circumference Measurec Radiotherapy Procedurec Inhaled Oxygen Concentrationc Allergy Episodec Tumor Specimenc Oxygen Saturationc Adverse Eventc Heart Ratec Procedurec Body Temperaturec Oncology Treatment Assessmentc Diagnostic Radiologic Examinationc Civil Statusc Biobanksamplec Death Statusc Drug Prescriptionc FOPH Diagnosisc Diagnosisc Biosamplec Body Weightc Lab Testc
Range Subject Pseudo Identifierc

has substanceop # OPs

URI https://biomedit.ch/rdf/sphn-ontology/sphn#hasSubstance
Description

a specific substance or group of substances considered to be responsible for event, e.g. ATC, SNOMED CT or free text

Super-properties SPHN attribute objectop
Domain(s) Allergy Episodec Allergyc
Range Substancec

has substance categoryop # OPs

URI https://biomedit.ch/rdf/sphn-ontology/sphn#hasSubstanceCategory
Description

category of the substance to which the individual is allergic to

Super-properties SPHN attribute objectop
Domain(s) Allergyc
Range SPHN Conceptc

has systolic pressureop # OPs

URI https://biomedit.ch/rdf/sphn-ontology/sphn#hasSystolicPressure
Description

measured systolic pressure and unit

Super-properties has quantityop
Domain(s) Blood Pressurec
Range Quantityc

has target locationop # OPs

URI https://biomedit.ch/rdf/sphn-ontology/sphn#hasTargetLocation
Description

physical location where the individual went to

Super-properties has locationop
Domain(s) Healthcare Encounterc
Range Locationc

has test kitop # OPs

URI https://biomedit.ch/rdf/sphn-ontology/sphn#hasTestKit
Description

test kit used to assess medical laboratory samples

Super-properties SPHN attribute objectop
Domain(s) Lab Testc
Range Lab Analyzerc

has therapeutic areaop # OPs

URI https://biomedit.ch/rdf/sphn-ontology/sphn#hasTherapeuticArea
Description

type of care provided

Super-properties SPHN attribute objectop
Domain(s) Healthcare Encounterc
Range Therapeutic Areac

has time patternop # OPs

URI https://biomedit.ch/rdf/sphn-ontology/sphn#hasTimePattern
Description

defines if the event is a single time point or a duration (continuous or intermittent)

Super-properties SPHN attribute objectop
Domain(s) Drug Administration Eventc Drug Prescriptionc
Range Time Patternc

has topography codeop # OPs

URI https://biomedit.ch/rdf/sphn-ontology/sphn#hasTopographyCode
Description

code, name, coding system and version of the topography code that describes the anatomical site of origin of the neoplasm

Super-properties has codeop
Domain(s) ICD-O Diagnosisc
Range Codec Terminologyc

has tumor purityop # OPs

URI https://biomedit.ch/rdf/sphn-ontology/sphn#hasTumorPurity
Description

percentage of cancer cells in the sample

Super-properties has quantityop
Domain(s) Tumor Specimenc
Range Quantityc

has type codeop # OPs

URI https://biomedit.ch/rdf/sphn-ontology/sphn#hasTypeCode
Description

code, name, coding system and version describing the type of the concept

Super-properties has codeop
Domain(s) Lab Analyzerc Medical Devicec Care Handlingc Time Patternc Consentc
Range Terminologyc Codec

has unitop # OPs

URI https://biomedit.ch/rdf/sphn-ontology/sphn#hasUnit
Description

unit of the amount, e.g. mL, mg, min

Super-properties SPHN attribute objectop
Domain(s) Quantityc
Range Unitc

has upper limitop # OPs

URI https://biomedit.ch/rdf/sphn-ontology/sphn#hasUpperLimit
Description

top value of the range

Super-properties has quantityop
Domain(s) Reference Rangec
Range Quantityc

has verification status codeop # OPs

URI https://biomedit.ch/rdf/sphn-ontology/sphn#hasVerificationStatusCode
Description

code, name, coding system and version describing the certainty regarding the relationship between the substance declared and the adverse reaction

Super-properties has codeop
Domain(s) Allergyc
Range Terminologyc Codec

Datatype Properties

SPHN attribute datatypedp # DPs

URI https://biomedit.ch/rdf/sphn-ontology/sphn#SPHNAttributeDatatype
Description

SPHN datatype attribute defined by the dataset

has admission date timedp # DPs

URI https://biomedit.ch/rdf/sphn-ontology/sphn#hasAdmissionDateTime
Description

datetime the individual enters the healthcare provider institute, e.g. gets registered at the admission counter

Super-properties has date timedp
Domain(s) Administrative Casec
Data type xsd:dateTimec

has assessment date timedp # DPs

URI https://biomedit.ch/rdf/sphn-ontology/sphn#hasAssessmentDateTime
Description

datetime at which the concept was assessed

Super-properties has date timedp
Domain(s) Oncology Treatment Assessmentc TNM Classificationc Tumor Stagec Tumor Gradec Simple Scorec
Data type xsd:dateTimec

has coding date timedp # DPs

URI https://biomedit.ch/rdf/sphn-ontology/sphn#hasCodingDateTime
Description

datetime the concept was coded

Super-properties has date timedp
Domain(s) Diagnostic Radiologic Examinationc Nursing Diagnosisc Radiotherapy Procedurec ICD-O Diagnosisc Procedurec FOPH Procedurec FOPH Diagnosisc Diagnosisc
Data type xsd:dateTimec

has coding system and versiondp # DPs

URI https://biomedit.ch/rdf/sphn-ontology/sphn#hasCodingSystemAndVersion
Description

name and version of the coding system

Super-properties SPHN attribute datatypedp
Domain(s) Codec
Data type xsd:stringc

has collection date timedp # DPs

URI https://biomedit.ch/rdf/sphn-ontology/sphn#hasCollectionDateTime
Description

datetime of collection of the concept

Super-properties has date timedp
Domain(s) Biosamplec
Data type xsd:dateTimec

has commentdp # DPs

URI https://biomedit.ch/rdf/sphn-ontology/sphn#hasComment
Description

comment or remark to the concept

Super-properties SPHN attribute datatypedp
Domain(s) Lab Resultc
Data type xsd:stringc

has date timedp # DPs

URI https://biomedit.ch/rdf/sphn-ontology/sphn#hasDateTime
Description

date time of the concept

Super-properties SPHN attribute datatypedp
Domain(s) Consentc
Data type xsd:dateTimec

has daydp # DPs

URI https://biomedit.ch/rdf/sphn-ontology/sphn#hasDay
Description

day of the concept

Super-properties SPHN attribute datatypedp
Domain(s) Birth Datec Death Datec
Data type xsd:gDayc

has determination date timedp # DPs

URI https://biomedit.ch/rdf/sphn-ontology/sphn#hasDeterminationDateTime
Description

datetime of determination of the concept

Super-properties has date timedp
Domain(s) Respiratory Ratec Agec
Data type xsd:dateTimec

has discharge date timedp # DPs

URI https://biomedit.ch/rdf/sphn-ontology/sphn#hasDischargeDateTime
Description

datetime the individual leaves the healthcare provider institute

Super-properties has date timedp
Domain(s) Administrative Casec
Data type xsd:dateTimec

has end date timedp # DPs

URI https://biomedit.ch/rdf/sphn-ontology/sphn#hasEndDateTime
Description

datetime at which the concept ended

Super-properties has date timedp
Domain(s) Diagnostic Radiologic Examinationc Healthcare Encounterc Drug Administration Eventc Radiotherapy Procedurec Procedurec FOPH Procedurec
Data type xsd:dateTimec

has event date timedp # DPs

URI https://biomedit.ch/rdf/sphn-ontology/sphn#hasEventDateTime
Description

datetime the event

Super-properties has date timedp
Domain(s) Civil Statusc
Data type xsd:dateTimec

has exactdp # DPs

URI https://biomedit.ch/rdf/sphn-ontology/sphn#hasExact
Description

location specifying in greater detail the general location type (class), e.g. a specific ward in a specific hospital or full address of a discharge location

Super-properties SPHN attribute datatypedp
Domain(s) Locationc
Data type xsd:stringc

has exposure date timedp # DPs

URI https://biomedit.ch/rdf/sphn-ontology/sphn#hasExposureDateTime
Description

datetime of exposure to the substance

Super-properties has date timedp
Domain(s) Allergy Episodec
Data type xsd:dateTimec

has extraction date timedp # DPs

URI https://biomedit.ch/rdf/sphn-ontology/sphn#hasExtractionDateTime
Description

date of the extraction of the clinical data

Super-properties has date timedp
Domain(s) Data Releasec
Data type xsd:dateTimec

has first administration date timedp # DPs

URI https://biomedit.ch/rdf/sphn-ontology/sphn#hasFirstAdministrationDateTime
Description

datetime at which the prescribed drug has to be administered for the first time

Super-properties has date timedp
Domain(s) Drug Prescriptionc
Data type xsd:dateTimec

has first record date timedp # DPs

URI https://biomedit.ch/rdf/sphn-ontology/sphn#hasFirstRecordDateTime
Description

datetime the concept was first recorded

Super-properties has record date timedp
Domain(s) Allergyc
Data type xsd:dateTimec

has free textdp # DPs

URI https://biomedit.ch/rdf/sphn-ontology/sphn#hasFreeText
Description

free text related to the concept

Super-properties SPHN attribute datatypedp
Domain(s) Problem Conditionc
Data type xsd:stringc

has generic namedp # DPs

URI https://biomedit.ch/rdf/sphn-ontology/sphn#hasGenericName
Description

name of the substance, for not yet approved medications the international nonproprietary name (INN) of a substance given by the World Health Organization (WHO)

Super-properties SPHN attribute datatypedp
Domain(s) Substancec
Data type xsd:stringc

has identifierdp # DPs

URI https://biomedit.ch/rdf/sphn-ontology/sphn#hasIdentifier
Description

unique identifier identifying the concept

Super-properties SPHN attribute datatypedp
Domain(s) Codec Healthcare Encounterc Administrative Casec Biobanksamplec Subject Pseudo Identifierc
Data type xsd:stringc

has interventiondp # DPs

URI https://biomedit.ch/rdf/sphn-ontology/sphn#hasIntervention
Description

intervention suspected to be the cause of the adverse event, e.g. drug

Super-properties SPHN attribute datatypedp
Domain(s) Adverse Eventc
Data type xsd:stringc

has last administration date timedp # DPs

URI https://biomedit.ch/rdf/sphn-ontology/sphn#hasLastAdministrationDateTime
Description

datetime at which the prescribed drug has to be administered for the last time

Super-properties has date timedp
Domain(s) Drug Prescriptionc
Data type xsd:dateTimec

has last reaction date timedp # DPs

URI https://biomedit.ch/rdf/sphn-ontology/sphn#hasLastReactionDateTime
Description

datetime of the last adverse reaction

Super-properties has date timedp
Domain(s) Allergyc
Data type xsd:dateTimec

has M prefixdp # DPs

URI https://biomedit.ch/rdf/sphn-ontology/sphn#hasMPrefix
Description

prefix associated to the metastasis (M), as defined in the TNM coding system, e.g. c

Super-properties SPHN attribute datatypedp
Domain(s) TNM Classificationc
Data type xsd:stringc

has M suffixdp # DPs

URI https://biomedit.ch/rdf/sphn-ontology/sphn#hasMSuffix
Description

suffix associated to the metastasis (M), as defined in the TNM coding system, e.g. 1b

Super-properties SPHN attribute datatypedp
Domain(s) TNM Classificationc
Data type xsd:stringc

has manifestation date timedp # DPs

URI https://biomedit.ch/rdf/sphn-ontology/sphn#hasManifestationDateTime
Description

datetime when manifestation showed

Super-properties has date timedp
Domain(s) Allergy Episodec
Data type xsd:dateTimec

has measurement date timedp # DPs

URI https://biomedit.ch/rdf/sphn-ontology/sphn#hasMeasurementDateTime
Description

datetime of measurement

Super-properties has date timedp
Domain(s) Circumference Measurec Inhaled Oxygen Concentrationc Oxygen Saturationc Body Temperaturec Body Weightc Body Heightc Blood Pressurec Heart Ratec
Data type xsd:dateTimec

has monthdp # DPs

URI https://biomedit.ch/rdf/sphn-ontology/sphn#hasMonth
Description

month of the concept

Super-properties SPHN attribute datatypedp
Domain(s) Birth Datec Death Datec
Data type xsd:gMonthc

has N prefixdp # DPs

URI https://biomedit.ch/rdf/sphn-ontology/sphn#hasNPrefix
Description

prefix associated to the nearby tissues (N), as defined in the TNM coding system, e.g. c

Super-properties SPHN attribute datatypedp
Domain(s) TNM Classificationc
Data type xsd:stringc

has N suffixdp # DPs

URI https://biomedit.ch/rdf/sphn-ontology/sphn#hasNSuffix
Description

suffix associated to the nearby tissues (N), as defined in the TNM coding system, e.g. x

Super-properties SPHN attribute datatypedp
Domain(s) TNM Classificationc
Data type xsd:stringc

has namedp # DPs

URI https://biomedit.ch/rdf/sphn-ontology/sphn#hasName
Description

name associated to the concept

Super-properties SPHN attribute datatypedp
Domain(s) Codec
Data type xsd:stringc

has onset date timedp # DPs

URI https://biomedit.ch/rdf/sphn-ontology/sphn#hasOnsetDateTime
Description

datetime the concept first occurred or was observed

Super-properties has date timedp
Domain(s) Adverse Eventc Problem Conditionc
Data type xsd:dateTimec

has qualitative resultdp # DPs

URI https://biomedit.ch/rdf/sphn-ontology/sphn#hasQualitativeResult
Description

qualitative results of the concept

Super-properties SPHN attribute datatypedp
Domain(s) Lab Resultc
Data type xsd:stringc

has record date timedp # DPs

URI https://biomedit.ch/rdf/sphn-ontology/sphn#hasRecordDateTime
Description

datetime the concept was recorded

Super-properties has date timedp
Domain(s) FOPH Diagnosisc Diagnosisc Administrative Genderc Problem Conditionc Nursing Diagnosisc ICD-O Diagnosisc
Data type xsd:dateTimec

has report date timedp # DPs

URI https://biomedit.ch/rdf/sphn-ontology/sphn#hasReportDateTime
Description

datetime the concept was reported

Super-properties has date timedp
Domain(s) Lab Resultc
Data type xsd:dateTimec

has scoredp # DPs

URI https://biomedit.ch/rdf/sphn-ontology/sphn#hasScore
Description

value of the score depending on the scoring system

Super-properties SPHN attribute datatypedp
Domain(s) Simple Scorec
Data type xsd:stringc

has scoring systemdp # DPs

URI https://biomedit.ch/rdf/sphn-ontology/sphn#hasScoringSystem
Description

name and version of the scoring system, e.g. Glasgow Coma Scale, geriatric depression scale-15

Super-properties SPHN attribute datatypedp
Domain(s) Simple Scorec
Data type xsd:stringc

has start date timedp # DPs

URI https://biomedit.ch/rdf/sphn-ontology/sphn#hasStartDateTime
Description

datetime at which the concept started

Super-properties has date timedp
Domain(s) FOPH Procedurec Drug Administration Eventc Radiotherapy Procedurec Diagnostic Radiologic Examinationc Healthcare Encounterc Procedurec
Data type xsd:dateTimec

has T prefixdp # DPs

URI https://biomedit.ch/rdf/sphn-ontology/sphn#hasTPrefix
Description

prefix associated to the primary tumor (T), as defined in the TNM coding system, e.g. c

Super-properties SPHN attribute datatypedp
Domain(s) TNM Classificationc
Data type xsd:stringc

has T suffixdp # DPs

URI https://biomedit.ch/rdf/sphn-ontology/sphn#hasTSuffix
Description

suffix associated to the primary tumor (T), as defined in the TNM coding system, e.g. 1a

Super-properties SPHN attribute datatypedp
Domain(s) TNM Classificationc
Data type xsd:stringc

has template identifierdp # DPs

URI https://biomedit.ch/rdf/sphn-ontology/sphn#hasTemplateIdentifier
Description

unique identifier identifying the template of the concept

Super-properties has identifierdp
Domain(s) Consentc
Data type xsd:stringc

has timedp # DPs

URI https://biomedit.ch/rdf/sphn-ontology/sphn#hasTime
Description

time of the concept

Super-properties SPHN attribute datatypedp
Domain(s) Birth Datec Death Datec
Data type xsd:timec

has valuedp # DPs

URI https://biomedit.ch/rdf/sphn-ontology/sphn#hasValue
Description

value of the concept

Super-properties SPHN attribute datatypedp
Domain(s) Quantityc Simple Scorec TNM Classificationc
Data type xsd:doublec xsd:stringc

has versiondp # DPs

URI https://biomedit.ch/rdf/sphn-ontology/sphn#hasVersion
Description

version of the concept value or code

Super-properties SPHN attribute datatypedp
Domain(s) TNM Classificationc
Data type xsd:stringc

has yeardp # DPs

URI https://biomedit.ch/rdf/sphn-ontology/sphn#hasYear
Description

year of the concept

Super-properties SPHN attribute datatypedp
Domain(s) Death Datec Birth Datec
Data type xsd:gYearc

Annotation Properties

descriptionap # APs

URI http://purl.org/dc/elements/1.1/description

titleap # APs

URI http://purl.org/dc/elements/1.1/title

licenseap # APs

URI http://purl.org/dc/terms/license

maxCardinalityap # APs

URI http://www.w3.org/2002/07/owl#maxCardinality

noteap # APs

URI http://www.w3.org/2004/02/skos/core#note

replacesap # APs

URI https://biomedit.ch/rdf/sphn-ontology/sphn#replaces
Description

Property that links the new version of an SPHN class replacing an SPHN old class

Named Individuals

24 h urineni

Class(es)
https://biomedit.ch/rdf/sphn-ontology/sphn#Biosample_materialTypeLiquid
URI https://biomedit.ch/rdf/sphn-ontology/sphn#24hUrine

Accident and Emergency departmentni

Class(es)
https://biomedit.ch/rdf/sphn-ontology/sphn#Location_class
URI https://biomedit.ch/rdf/sphn-ontology/sphn#AccidentAndEmergencyDepartment

Acid citrate dextroseni

Class(es)
https://biomedit.ch/rdf/sphn-ontology/sphn#Biosample_primaryContainer
URI https://biomedit.ch/rdf/sphn-ontology/sphn#AcidCitrateDextrose

Addiction medicineni

Class(es)
https://biomedit.ch/rdf/sphn-ontology/sphn#TherapeuticArea_specialtyName
URI https://biomedit.ch/rdf/sphn-ontology/sphn#AddictionMedicine

adjuvantni

Class(es)
https://biomedit.ch/rdf/sphn-ontology/sphn#DrugPrescription_indicationToStart
URI https://biomedit.ch/rdf/sphn-ontology/sphn#Adjuvant

Alcohol basedni

Class(es)
https://biomedit.ch/rdf/sphn-ontology/sphn#Biosample_fixationType
URI https://biomedit.ch/rdf/sphn-ontology/sphn#AlcoholBased

Aldehyde basedni

Class(es)
https://biomedit.ch/rdf/sphn-ontology/sphn#Biosample_fixationType
URI https://biomedit.ch/rdf/sphn-ontology/sphn#AldehydeBased

Aldehyde-based stabilizer for CTCsni

Class(es)
https://biomedit.ch/rdf/sphn-ontology/sphn#Biosample_primaryContainer
URI https://biomedit.ch/rdf/sphn-ontology/sphn#AldehydeBasedStabilizerForCTCs

Allergology and clinical immunologyni

Class(es)
https://biomedit.ch/rdf/sphn-ontology/sphn#TherapeuticArea_specialtyName
URI https://biomedit.ch/rdf/sphn-ontology/sphn#AllergologyAndClinicalImmunology

Allprotect ® tissue reagentni

Class(es)
https://biomedit.ch/rdf/sphn-ontology/sphn#Biosample_fixationType
URI https://biomedit.ch/rdf/sphn-ontology/sphn#AllprotectTissueReagent

Ambulatory care siteni

Class(es)
https://biomedit.ch/rdf/sphn-ontology/sphn#Location_class
URI https://biomedit.ch/rdf/sphn-ontology/sphn#AmbulatoryCareSite

Amniotic fluidni

Class(es)
https://biomedit.ch/rdf/sphn-ontology/sphn#Biosample_materialTypeLiquid
URI https://biomedit.ch/rdf/sphn-ontology/sphn#AmnioticFluid

Anaesthesiologyni

Class(es)
https://biomedit.ch/rdf/sphn-ontology/sphn#TherapeuticArea_specialtyName
URI https://biomedit.ch/rdf/sphn-ontology/sphn#Anaesthesiology

Angiologyni

Class(es)
https://biomedit.ch/rdf/sphn-ontology/sphn#TherapeuticArea_specialtyName
URI https://biomedit.ch/rdf/sphn-ontology/sphn#Angiology

Ascites fluidni

Class(es)
https://biomedit.ch/rdf/sphn-ontology/sphn#Biosample_materialTypeLiquid
URI https://biomedit.ch/rdf/sphn-ontology/sphn#AscitesFluid

Bagni

Class(es)
https://biomedit.ch/rdf/sphn-ontology/sphn#Biosample_storageContainer
URI https://biomedit.ch/rdf/sphn-ontology/sphn#Bag

biochemicalni

Class(es)
https://biomedit.ch/rdf/sphn-ontology/sphn#OncologyTreatmentAssessment_progressionType
URI https://biomedit.ch/rdf/sphn-ontology/sphn#Biochemical

biologicni

Class(es)
https://biomedit.ch/rdf/sphn-ontology/sphn#Allergy_substanceCategory
URI https://biomedit.ch/rdf/sphn-ontology/sphn#Biologic

Blood (whole)ni

Class(es)
https://biomedit.ch/rdf/sphn-ontology/sphn#Biosample_materialTypeLiquid
URI https://biomedit.ch/rdf/sphn-ontology/sphn#BloodWhole

Boneni

Class(es)
https://biomedit.ch/rdf/sphn-ontology/sphn#Biosample_materialTypeTissue
URI https://biomedit.ch/rdf/sphn-ontology/sphn#Bone

Bone marrow aspirateni

Class(es)
https://biomedit.ch/rdf/sphn-ontology/sphn#Biosample_materialTypeLiquid
URI https://biomedit.ch/rdf/sphn-ontology/sphn#BoneMarrowAspirate

Breast milkni

Class(es)
https://biomedit.ch/rdf/sphn-ontology/sphn#Biosample_materialTypeLiquid
URI https://biomedit.ch/rdf/sphn-ontology/sphn#BreastMilk

Bronchoalveolar lavageni

Class(es)
https://biomedit.ch/rdf/sphn-ontology/sphn#Biosample_materialTypeLiquid
URI https://biomedit.ch/rdf/sphn-ontology/sphn#BronchoalveolarLavage

Buccal cellsni

Class(es)
https://biomedit.ch/rdf/sphn-ontology/sphn#Biosample_materialTypeLiquid
URI https://biomedit.ch/rdf/sphn-ontology/sphn#BuccalCells

CTni

Class(es)
https://biomedit.ch/rdf/sphn-ontology/sphn#DiagnosticRadiologicExamination_method
URI https://biomedit.ch/rdf/sphn-ontology/sphn#CT

Cardiac and thoracic vascular surgeryni

Class(es)
https://biomedit.ch/rdf/sphn-ontology/sphn#TherapeuticArea_specialtyName
URI https://biomedit.ch/rdf/sphn-ontology/sphn#CardiacAndThoracicVascularSurgery

Cardiologyni

Class(es)
https://biomedit.ch/rdf/sphn-ontology/sphn#TherapeuticArea_specialtyName
URI https://biomedit.ch/rdf/sphn-ontology/sphn#Cardiology

Cells from nonblood specimen type (e.g. dissociated tissue), viableni

Class(es)
https://biomedit.ch/rdf/sphn-ontology/sphn#Biosample_materialTypeTissue
URI https://biomedit.ch/rdf/sphn-ontology/sphn#CellFromNonBloodSpecimenTypeViableTissue

Cell Preparation Tube® citrateni

Class(es)
https://biomedit.ch/rdf/sphn-ontology/sphn#Biosample_primaryContainer
URI https://biomedit.ch/rdf/sphn-ontology/sphn#CellPreparationTubeCitrate

Cell Preparation Tube® heparinni

Class(es)
https://biomedit.ch/rdf/sphn-ontology/sphn#Biosample_primaryContainer
URI https://biomedit.ch/rdf/sphn-ontology/sphn#CellPreparationTubeHeparin

Cells from fine needle aspirateni

Class(es)
https://biomedit.ch/rdf/sphn-ontology/sphn#Biosample_materialTypeTissue
URI https://biomedit.ch/rdf/sphn-ontology/sphn#CellsFromFineNeedleAspirate

Cells from laser capture microdissected tissueni

Class(es)
https://biomedit.ch/rdf/sphn-ontology/sphn#Biosample_materialTypeTissue
URI https://biomedit.ch/rdf/sphn-ontology/sphn#CellsFromLaserCaptureMicrodissectedTissue

Cells from nonblood specimen type (e.g. ascites, amniotic), nonviableni

Class(es)
https://biomedit.ch/rdf/sphn-ontology/sphn#Biosample_materialTypeLiquid
URI https://biomedit.ch/rdf/sphn-ontology/sphn#CellsFromNonBloodSpecimenTypeNonViable

Cells from nonblood specimen type (e.g. dissociated tissue), nonviableni

Class(es)
https://biomedit.ch/rdf/sphn-ontology/sphn#Biosample_materialTypeTissue
URI https://biomedit.ch/rdf/sphn-ontology/sphn#CellsFromNonBloodSpecimenTypeNonViableTissue

Cells from nonblood specimen type (e.g. ascites, amniotic), viableni

Class(es)
https://biomedit.ch/rdf/sphn-ontology/sphn#Biosample_materialTypeLiquid
URI https://biomedit.ch/rdf/sphn-ontology/sphn#CellsFromNonBloodSpecimenTypeViable

Cerebrospinal fluidni

Class(es)
https://biomedit.ch/rdf/sphn-ontology/sphn#Biosample_materialTypeLiquid
URI https://biomedit.ch/rdf/sphn-ontology/sphn#CerebrospinalFluid

Chemical additives / stabilizersni

Class(es)
https://biomedit.ch/rdf/sphn-ontology/sphn#Biosample_primaryContainer
URI https://biomedit.ch/rdf/sphn-ontology/sphn#ChemicalAdditivesStabilizers

Child and adolescent psychiatry and psychotherapyni

Class(es)
https://biomedit.ch/rdf/sphn-ontology/sphn#TherapeuticArea_specialtyName
URI https://biomedit.ch/rdf/sphn-ontology/sphn#ChildAndAdolescentPsychiatryAndPsychotherapy

Child and adolescent psychologyni

Class(es)
https://biomedit.ch/rdf/sphn-ontology/sphn#TherapeuticArea_specialtyName
URI https://biomedit.ch/rdf/sphn-ontology/sphn#ChildAndAdolescentPsychology

Chiropractic specialistni

Class(es)
https://biomedit.ch/rdf/sphn-ontology/sphn#TherapeuticArea_specialtyName
URI https://biomedit.ch/rdf/sphn-ontology/sphn#ChiropracticSpecialist

Citrate phosphate dextroseni

Class(es)
https://biomedit.ch/rdf/sphn-ontology/sphn#Biosample_primaryContainer
URI https://biomedit.ch/rdf/sphn-ontology/sphn#CitratePhosphateDextrose

Client or patient homeni

Class(es)
https://biomedit.ch/rdf/sphn-ontology/sphn#Location_class
URI https://biomedit.ch/rdf/sphn-ontology/sphn#ClientOrPatientHome

Clinical pharmacology and toxicologyni

Class(es)
https://biomedit.ch/rdf/sphn-ontology/sphn#TherapeuticArea_specialtyName
URI https://biomedit.ch/rdf/sphn-ontology/sphn#ClinicalPharmacologyAndToxicology

Clinical Psychologyni

Class(es)
https://biomedit.ch/rdf/sphn-ontology/sphn#TherapeuticArea_specialtyName
URI https://biomedit.ch/rdf/sphn-ontology/sphn#ClinicalPsychology

Community pharmacyni

Class(es)
https://biomedit.ch/rdf/sphn-ontology/sphn#TherapeuticArea_specialtyName
URI https://biomedit.ch/rdf/sphn-ontology/sphn#CommunityPharmacy

complementaryni

Class(es)
https://biomedit.ch/rdf/sphn-ontology/sphn#FOPHDiagnosis_rank
URI https://biomedit.ch/rdf/sphn-ontology/sphn#Complementary

complete responseni

Class(es)
https://biomedit.ch/rdf/sphn-ontology/sphn#OncologyTreatmentAssessment_result
URI https://biomedit.ch/rdf/sphn-ontology/sphn#CompleteResponse

Congenital abnormalityni

Class(es)
https://biomedit.ch/rdf/sphn-ontology/sphn#AdverseEvent_consequences
URI https://biomedit.ch/rdf/sphn-ontology/sphn#CongenitalAbnormality

Cord bloodni

Class(es)
https://biomedit.ch/rdf/sphn-ontology/sphn#Biosample_materialTypeLiquid
URI https://biomedit.ch/rdf/sphn-ontology/sphn#CordBlood

Cryotube 1 to 2 mLni

Class(es)
https://biomedit.ch/rdf/sphn-ontology/sphn#Biosample_storageContainer
URI https://biomedit.ch/rdf/sphn-ontology/sphn#Cryotube1to2mL

DNAni

Class(es)
https://biomedit.ch/rdf/sphn-ontology/sphn#Biosample_materialTypeLiquid
https://biomedit.ch/rdf/sphn-ontology/sphn#Biosample_materialTypeTissue
URI https://biomedit.ch/rdf/sphn-ontology/sphn#DNA

deathni

Class(es)
https://biomedit.ch/rdf/sphn-ontology/sphn#AdverseEvent_consequences
URI https://biomedit.ch/rdf/sphn-ontology/sphn#Death

Density-gradient-centrifugation-separated mononuclear cells, nonviableni

Class(es)
https://biomedit.ch/rdf/sphn-ontology/sphn#Biosample_materialTypeLiquid
URI https://biomedit.ch/rdf/sphn-ontology/sphn#DensityGradientCentrifugationSeparatedMononuclearCellsNonViable

Density-gradient-centrifugation-separated mononuclear cells, viableni

Class(es)
https://biomedit.ch/rdf/sphn-ontology/sphn#Biosample_materialTypeLiquid
URI https://biomedit.ch/rdf/sphn-ontology/sphn#DensityGradientCentrifugationSeparatedMononuclearCellsViable

Dental pulpni

Class(es)
https://biomedit.ch/rdf/sphn-ontology/sphn#Biosample_materialTypeLiquid
URI https://biomedit.ch/rdf/sphn-ontology/sphn#DentalPulp

Dermatology and venereologyni

Class(es)
https://biomedit.ch/rdf/sphn-ontology/sphn#TherapeuticArea_specialtyName
URI https://biomedit.ch/rdf/sphn-ontology/sphn#DermatologyAndVenereology

Diagnostic institutionni

Class(es)
https://biomedit.ch/rdf/sphn-ontology/sphn#Location_class
URI https://biomedit.ch/rdf/sphn-ontology/sphn#DiagnosticInstitution

Disrupted tissue, nonviableni

Class(es)
https://biomedit.ch/rdf/sphn-ontology/sphn#Biosample_materialTypeTissue
URI https://biomedit.ch/rdf/sphn-ontology/sphn#DisruptedTissueNonViable

Dried whole blood (e.g. Guthrie cards)ni

Class(es)
https://biomedit.ch/rdf/sphn-ontology/sphn#Biosample_materialTypeLiquid
URI https://biomedit.ch/rdf/sphn-ontology/sphn#DriedWholeBlood

Dry technology mediumni

Class(es)
https://biomedit.ch/rdf/sphn-ontology/sphn#Biosample_storageContainer
URI https://biomedit.ch/rdf/sphn-ontology/sphn#DryTechnologyMedium

EDTA and gelni

Class(es)
https://biomedit.ch/rdf/sphn-ontology/sphn#Biosample_primaryContainer
URI https://biomedit.ch/rdf/sphn-ontology/sphn#EDTAAndGel

Endocrinology and Diabetologyni

Class(es)
https://biomedit.ch/rdf/sphn-ontology/sphn#TherapeuticArea_specialtyName
URI https://biomedit.ch/rdf/sphn-ontology/sphn#EndocrinologyAndDiabetology

Enriched (physicochemically) circulating tumor cellsni

Class(es)
https://biomedit.ch/rdf/sphn-ontology/sphn#Biosample_materialTypeLiquid
URI https://biomedit.ch/rdf/sphn-ontology/sphn#EnrichedCirculatingTumorCells

environmentni

Class(es)
https://biomedit.ch/rdf/sphn-ontology/sphn#Allergy_substanceCategory
URI https://biomedit.ch/rdf/sphn-ontology/sphn#Environment

=ni

Class(es)
https://biomedit.ch/rdf/sphn-ontology/sphn#Quantity_comparator
https://biomedit.ch/rdf/sphn-ontology/sphn#BirthDate_comparator
URI https://biomedit.ch/rdf/sphn-ontology/sphn#Equal

Fatalni

Class(es)
https://biomedit.ch/rdf/sphn-ontology/sphn#AdverseEvent_outcome
URI https://biomedit.ch/rdf/sphn-ontology/sphn#Fatal

foodni

Class(es)
https://biomedit.ch/rdf/sphn-ontology/sphn#Allergy_substanceCategory
URI https://biomedit.ch/rdf/sphn-ontology/sphn#Food

Forensic medicineni

Class(es)
https://biomedit.ch/rdf/sphn-ontology/sphn#TherapeuticArea_specialtyName
URI https://biomedit.ch/rdf/sphn-ontology/sphn#ForensicMedicine

Fresh cells from non-blood specimen typeni

Class(es)
https://biomedit.ch/rdf/sphn-ontology/sphn#Biosample_materialTypeLiquid
https://biomedit.ch/rdf/sphn-ontology/sphn#Biosample_materialTypeTissue
URI https://biomedit.ch/rdf/sphn-ontology/sphn#FreshCellsFromNonBloodSpecimenType

Gastroenterologyni

Class(es)
https://biomedit.ch/rdf/sphn-ontology/sphn#TherapeuticArea_specialtyName
URI https://biomedit.ch/rdf/sphn-ontology/sphn#Gastroenterology

General internal medicineni

Class(es)
https://biomedit.ch/rdf/sphn-ontology/sphn#TherapeuticArea_specialtyName
URI https://biomedit.ch/rdf/sphn-ontology/sphn#GeneralInternalMedicine

General medical practitionerni

Class(es)
https://biomedit.ch/rdf/sphn-ontology/sphn#TherapeuticArea_specialtyName
URI https://biomedit.ch/rdf/sphn-ontology/sphn#GeneralMedicalPractitioner

General medicineni

Class(es)
https://biomedit.ch/rdf/sphn-ontology/sphn#TherapeuticArea_specialtyName
URI https://biomedit.ch/rdf/sphn-ontology/sphn#GeneralMedicine

General practice premisesni

Class(es)
https://biomedit.ch/rdf/sphn-ontology/sphn#Location_class
URI https://biomedit.ch/rdf/sphn-ontology/sphn#GeneralPracticePremises

Geriatric medicineni

Class(es)
https://biomedit.ch/rdf/sphn-ontology/sphn#TherapeuticArea_specialtyName
URI https://biomedit.ch/rdf/sphn-ontology/sphn#GeriatricMedicine

Glassni

Class(es)
https://biomedit.ch/rdf/sphn-ontology/sphn#Biosample_primaryContainer
URI https://biomedit.ch/rdf/sphn-ontology/sphn#Glass

>ni

Class(es)
https://biomedit.ch/rdf/sphn-ontology/sphn#Quantity_comparator
https://biomedit.ch/rdf/sphn-ontology/sphn#BirthDate_comparator
URI https://biomedit.ch/rdf/sphn-ontology/sphn#GreaterThan

>=ni

Class(es)
https://biomedit.ch/rdf/sphn-ontology/sphn#BirthDate_comparator
https://biomedit.ch/rdf/sphn-ontology/sphn#Quantity_comparator
URI https://biomedit.ch/rdf/sphn-ontology/sphn#GreaterThanOrEqual

Gynaecology and obstetricsni

Class(es)
https://biomedit.ch/rdf/sphn-ontology/sphn#TherapeuticArea_specialtyName
URI https://biomedit.ch/rdf/sphn-ontology/sphn#GynaecologyAndObstetrics

Haematologyni

Class(es)
https://biomedit.ch/rdf/sphn-ontology/sphn#TherapeuticArea_specialtyName
URI https://biomedit.ch/rdf/sphn-ontology/sphn#Haematology

Hairni

Class(es)
https://biomedit.ch/rdf/sphn-ontology/sphn#Biosample_materialTypeTissue
URI https://biomedit.ch/rdf/sphn-ontology/sphn#Hair

Hand surgeryni

Class(es)
https://biomedit.ch/rdf/sphn-ontology/sphn#TherapeuticArea_specialtyName
URI https://biomedit.ch/rdf/sphn-ontology/sphn#HandSurgery

Health authorityni

Class(es)
https://biomedit.ch/rdf/sphn-ontology/sphn#Location_class
URI https://biomedit.ch/rdf/sphn-ontology/sphn#HealthAuthority

Health Psychologyni

Class(es)
https://biomedit.ch/rdf/sphn-ontology/sphn#TherapeuticArea_specialtyName
URI https://biomedit.ch/rdf/sphn-ontology/sphn#HealthPsychology

Heat stabilizationni

Class(es)
https://biomedit.ch/rdf/sphn-ontology/sphn#Biosample_fixationType
URI https://biomedit.ch/rdf/sphn-ontology/sphn#HeatStabilization

Hirudinni

Class(es)
https://biomedit.ch/rdf/sphn-ontology/sphn#Biosample_primaryContainer
URI https://biomedit.ch/rdf/sphn-ontology/sphn#Hirudin

Hospitalni

Class(es)
https://biomedit.ch/rdf/sphn-ontology/sphn#Location_class
URI https://biomedit.ch/rdf/sphn-ontology/sphn#Hospital

Hospital pharmacyni

Class(es)
https://biomedit.ch/rdf/sphn-ontology/sphn#TherapeuticArea_specialtyName
URI https://biomedit.ch/rdf/sphn-ontology/sphn#HospitalPharmacy

Hospitalisation or prolongationni

Class(es)
https://biomedit.ch/rdf/sphn-ontology/sphn#AdverseEvent_consequences
URI https://biomedit.ch/rdf/sphn-ontology/sphn#HospitalisationOrProlongation

Infectologyni

Class(es)
https://biomedit.ch/rdf/sphn-ontology/sphn#TherapeuticArea_specialtyName
URI https://biomedit.ch/rdf/sphn-ontology/sphn#Infectology

Intensive care medicineni

Class(es)
https://biomedit.ch/rdf/sphn-ontology/sphn#TherapeuticArea_specialtyName
URI https://biomedit.ch/rdf/sphn-ontology/sphn#IntensiveCareMedicine

Internal medicineni

Class(es)
https://biomedit.ch/rdf/sphn-ontology/sphn#TherapeuticArea_specialtyName
URI https://biomedit.ch/rdf/sphn-ontology/sphn#InternalMedicine

<ni

Class(es)
https://biomedit.ch/rdf/sphn-ontology/sphn#Quantity_comparator
https://biomedit.ch/rdf/sphn-ontology/sphn#BirthDate_comparator
URI https://biomedit.ch/rdf/sphn-ontology/sphn#LessThan

<=ni

Class(es)
https://biomedit.ch/rdf/sphn-ontology/sphn#BirthDate_comparator
https://biomedit.ch/rdf/sphn-ontology/sphn#Quantity_comparator
URI https://biomedit.ch/rdf/sphn-ontology/sphn#LessThanOrEqual

Life-threateningni

Class(es)
https://biomedit.ch/rdf/sphn-ontology/sphn#AdverseEvent_consequences
URI https://biomedit.ch/rdf/sphn-ontology/sphn#LifeThreatening

Lithium heparinni

Class(es)
https://biomedit.ch/rdf/sphn-ontology/sphn#Biosample_primaryContainer
URI https://biomedit.ch/rdf/sphn-ontology/sphn#LithiumHeparin

Lithium heparin and gelni

Class(es)
https://biomedit.ch/rdf/sphn-ontology/sphn#Biosample_primaryContainer
URI https://biomedit.ch/rdf/sphn-ontology/sphn#LithiumHeparinAndGel

Lithium heparin and rubber plugni

Class(es)
https://biomedit.ch/rdf/sphn-ontology/sphn#Biosample_primaryContainer
URI https://biomedit.ch/rdf/sphn-ontology/sphn#LithiumHeparinAndRubberPlug

localizedni

Class(es)
https://biomedit.ch/rdf/sphn-ontology/sphn#OncologyTreatmentAssessment_progressionType
URI https://biomedit.ch/rdf/sphn-ontology/sphn#Localized

MRIni

Class(es)
https://biomedit.ch/rdf/sphn-ontology/sphn#DiagnosticRadiologicExamination_method
URI https://biomedit.ch/rdf/sphn-ontology/sphn#MRI

Medical centerni

Class(es)
https://biomedit.ch/rdf/sphn-ontology/sphn#Location_class
URI https://biomedit.ch/rdf/sphn-ontology/sphn#MedicalCenter

Medical geneticsni

Class(es)
https://biomedit.ch/rdf/sphn-ontology/sphn#TherapeuticArea_specialtyName
URI https://biomedit.ch/rdf/sphn-ontology/sphn#MedicalGenetics

Medical oncologyni

Class(es)
https://biomedit.ch/rdf/sphn-ontology/sphn#TherapeuticArea_specialtyName
URI https://biomedit.ch/rdf/sphn-ontology/sphn#MedicalOncology

medicationni

Class(es)
https://biomedit.ch/rdf/sphn-ontology/sphn#Allergy_substanceCategory
URI https://biomedit.ch/rdf/sphn-ontology/sphn#Medication

metastaticni

Class(es)
https://biomedit.ch/rdf/sphn-ontology/sphn#OncologyTreatmentAssessment_progressionType
URI https://biomedit.ch/rdf/sphn-ontology/sphn#Metastatic

Microplate wellni

Class(es)
https://biomedit.ch/rdf/sphn-ontology/sphn#Biosample_storageContainer
URI https://biomedit.ch/rdf/sphn-ontology/sphn#MicroplateWell

Military health institutionni

Class(es)
https://biomedit.ch/rdf/sphn-ontology/sphn#Location_class
URI https://biomedit.ch/rdf/sphn-ontology/sphn#MilitaryHealthInstitution

Nailsni

Class(es)
https://biomedit.ch/rdf/sphn-ontology/sphn#Biosample_materialTypeTissue
URI https://biomedit.ch/rdf/sphn-ontology/sphn#Nails

Nasal washingni

Class(es)
https://biomedit.ch/rdf/sphn-ontology/sphn#Biosample_materialTypeLiquid
URI https://biomedit.ch/rdf/sphn-ontology/sphn#NasalWashing

neoadjuvantni

Class(es)
https://biomedit.ch/rdf/sphn-ontology/sphn#DrugPrescription_indicationToStart
URI https://biomedit.ch/rdf/sphn-ontology/sphn#Neoadjuvant

Nephrologyni

Class(es)
https://biomedit.ch/rdf/sphn-ontology/sphn#TherapeuticArea_specialtyName
URI https://biomedit.ch/rdf/sphn-ontology/sphn#Nephrology

Neurologyni

Class(es)
https://biomedit.ch/rdf/sphn-ontology/sphn#TherapeuticArea_specialtyName
URI https://biomedit.ch/rdf/sphn-ontology/sphn#Neurology

Neuropsychologyni

Class(es)
https://biomedit.ch/rdf/sphn-ontology/sphn#TherapeuticArea_specialtyName
URI https://biomedit.ch/rdf/sphn-ontology/sphn#Neuropsychology

Neurosurgeryni

Class(es)
https://biomedit.ch/rdf/sphn-ontology/sphn#TherapeuticArea_specialtyName
URI https://biomedit.ch/rdf/sphn-ontology/sphn#Neurosurgery

Neutral buffered formalinni

Class(es)
https://biomedit.ch/rdf/sphn-ontology/sphn#Biosample_fixationType
URI https://biomedit.ch/rdf/sphn-ontology/sphn#NeutralBufferedFormalin

Non-aldehyde-based stabilizer for cell-free nucleic acidsni

Class(es)
https://biomedit.ch/rdf/sphn-ontology/sphn#Biosample_primaryContainer
URI https://biomedit.ch/rdf/sphn-ontology/sphn#NonAldehydeBasedStabilizerForCellFreeNucleicAcids

Non-density-gradient-centrifugation-separated buffy coat, nonviableni

Class(es)
https://biomedit.ch/rdf/sphn-ontology/sphn#Biosample_materialTypeLiquid
URI https://biomedit.ch/rdf/sphn-ontology/sphn#NonDensityGradientCentrifugationSeparatedBuffyCoatNonViable

Non-density-gradient-centrifugation-separated buffy coat, viableni

Class(es)
https://biomedit.ch/rdf/sphn-ontology/sphn#Biosample_materialTypeLiquid
URI https://biomedit.ch/rdf/sphn-ontology/sphn#NonDensityGradientCentrifugationSeparatedBuffyCoatViable

Nonaldehyde based without acetic acidni

Class(es)
https://biomedit.ch/rdf/sphn-ontology/sphn#Biosample_fixationType
URI https://biomedit.ch/rdf/sphn-ontology/sphn#NonaldehydeBasedWithoutAceticAcid

Nonaldehyde with acetic acidni

Class(es)
https://biomedit.ch/rdf/sphn-ontology/sphn#Biosample_fixationType
URI https://biomedit.ch/rdf/sphn-ontology/sphn#NonaldehydeWithAceticAcid

Nonbuffered formalinni

Class(es)
https://biomedit.ch/rdf/sphn-ontology/sphn#Biosample_fixationType
URI https://biomedit.ch/rdf/sphn-ontology/sphn#NonbufferedFormalin

None of the consequences mentionedni

Class(es)
https://biomedit.ch/rdf/sphn-ontology/sphn#AdverseEvent_consequences
URI https://biomedit.ch/rdf/sphn-ontology/sphn#NoneOfTheConsequencesMentioned

Not recoveredni

Class(es)
https://biomedit.ch/rdf/sphn-ontology/sphn#AdverseEvent_outcome
URI https://biomedit.ch/rdf/sphn-ontology/sphn#NotRecovered

Nuclear medicineni

Class(es)
https://biomedit.ch/rdf/sphn-ontology/sphn#TherapeuticArea_specialtyName
URI https://biomedit.ch/rdf/sphn-ontology/sphn#NuclearMedicine

Nursing homeni

Class(es)
https://biomedit.ch/rdf/sphn-ontology/sphn#Location_class
URI https://biomedit.ch/rdf/sphn-ontology/sphn#NursingHome

Occupational medicineni

Class(es)
https://biomedit.ch/rdf/sphn-ontology/sphn#TherapeuticArea_specialtyName
URI https://biomedit.ch/rdf/sphn-ontology/sphn#OccupationalMedicine

Ophthalmologyni

Class(es)
https://biomedit.ch/rdf/sphn-ontology/sphn#TherapeuticArea_specialtyName
URI https://biomedit.ch/rdf/sphn-ontology/sphn#Ophthalmology

Optimum cutting temperature mediumni

Class(es)
https://biomedit.ch/rdf/sphn-ontology/sphn#Biosample_fixationType
URI https://biomedit.ch/rdf/sphn-ontology/sphn#OptimumCuttingTemperatureMedium

Oragene collection container or equivalentni

Class(es)
https://biomedit.ch/rdf/sphn-ontology/sphn#Biosample_primaryContainer
URI https://biomedit.ch/rdf/sphn-ontology/sphn#OrageneCollectionContainerOrEquivalent

Oral and maxillofacial surgeryni

Class(es)
https://biomedit.ch/rdf/sphn-ontology/sphn#TherapeuticArea_specialtyName
URI https://biomedit.ch/rdf/sphn-ontology/sphn#OralAndMaxillofacialSurgery

Oral surgeryni

Class(es)
https://biomedit.ch/rdf/sphn-ontology/sphn#TherapeuticArea_specialtyName
URI https://biomedit.ch/rdf/sphn-ontology/sphn#OralSurgery

Original primary containerni

Class(es)
https://biomedit.ch/rdf/sphn-ontology/sphn#Biosample_storageContainer
URI https://biomedit.ch/rdf/sphn-ontology/sphn#OriginalPrimaryContainer

Orthodonticsni

Class(es)
https://biomedit.ch/rdf/sphn-ontology/sphn#TherapeuticArea_specialtyName
URI https://biomedit.ch/rdf/sphn-ontology/sphn#Orthodontics

Orthopaedic surgery and traumatology of the locomotor apparatusni

Class(es)
https://biomedit.ch/rdf/sphn-ontology/sphn#TherapeuticArea_specialtyName
URI https://biomedit.ch/rdf/sphn-ontology/sphn#OrthopaedicSurgeryAndTraumatologyOfTheLocomotorApparatus

Otherni

Class(es)
https://biomedit.ch/rdf/sphn-ontology/sphn#Biosample_fixationType
https://biomedit.ch/rdf/sphn-ontology/sphn#TherapeuticArea_specialtyName
https://biomedit.ch/rdf/sphn-ontology/sphn#Biosample_materialTypeTissue
https://biomedit.ch/rdf/sphn-ontology/sphn#Biosample_materialTypeLiquid
https://biomedit.ch/rdf/sphn-ontology/sphn#Biosample_primaryContainer
https://biomedit.ch/rdf/sphn-ontology/sphn#DrugPrescription_indicationToStart
https://biomedit.ch/rdf/sphn-ontology/sphn#Biosample_storageContainer
URI https://biomedit.ch/rdf/sphn-ontology/sphn#Other

Otorhinolaryngologyni

Class(es)
https://biomedit.ch/rdf/sphn-ontology/sphn#TherapeuticArea_specialtyName
URI https://biomedit.ch/rdf/sphn-ontology/sphn#Otorhinolaryngology

PAXgene® blood DNAni

Class(es)
https://biomedit.ch/rdf/sphn-ontology/sphn#Biosample_primaryContainer
URI https://biomedit.ch/rdf/sphn-ontology/sphn#PAXgeneBloodDNA

PAXgene® blood RNA+ni

Class(es)
https://biomedit.ch/rdf/sphn-ontology/sphn#Biosample_primaryContainer
URI https://biomedit.ch/rdf/sphn-ontology/sphn#PAXgeneBloodRNAplus

PAXgene® bone marrow RNAni

Class(es)
https://biomedit.ch/rdf/sphn-ontology/sphn#Biosample_primaryContainer
URI https://biomedit.ch/rdf/sphn-ontology/sphn#PAXgeneBoneMarrowRNA

PAXgene tissueni

Class(es)
https://biomedit.ch/rdf/sphn-ontology/sphn#Biosample_fixationType
URI https://biomedit.ch/rdf/sphn-ontology/sphn#PAXgeneTissue

PETni

Class(es)
https://biomedit.ch/rdf/sphn-ontology/sphn#DiagnosticRadiologicExamination_method
URI https://biomedit.ch/rdf/sphn-ontology/sphn#PET

PET CTni

Class(es)
https://biomedit.ch/rdf/sphn-ontology/sphn#DiagnosticRadiologicExamination_method
URI https://biomedit.ch/rdf/sphn-ontology/sphn#PETCT

PP tube 0.5 to 2 mLni

Class(es)
https://biomedit.ch/rdf/sphn-ontology/sphn#Biosample_storageContainer
URI https://biomedit.ch/rdf/sphn-ontology/sphn#PPTube0dot5to2mL

PP tube 40 to 500 uLni

Class(es)
https://biomedit.ch/rdf/sphn-ontology/sphn#Biosample_storageContainer
URI https://biomedit.ch/rdf/sphn-ontology/sphn#PPTube40to500uL

PP tube >= 5 mLni

Class(es)
https://biomedit.ch/rdf/sphn-ontology/sphn#Biosample_storageContainer
URI https://biomedit.ch/rdf/sphn-ontology/sphn#PPTube5mLOrAbove

Paediatric surgeryni

Class(es)
https://biomedit.ch/rdf/sphn-ontology/sphn#TherapeuticArea_specialtyName
URI https://biomedit.ch/rdf/sphn-ontology/sphn#PaediatricSurgery

Paediatricsni

Class(es)
https://biomedit.ch/rdf/sphn-ontology/sphn#TherapeuticArea_specialtyName
URI https://biomedit.ch/rdf/sphn-ontology/sphn#Paediatrics

Paraffin blockni

Class(es)
https://biomedit.ch/rdf/sphn-ontology/sphn#Biosample_storageContainer
URI https://biomedit.ch/rdf/sphn-ontology/sphn#ParaffinBlock

partial responseni

Class(es)
https://biomedit.ch/rdf/sphn-ontology/sphn#OncologyTreatmentAssessment_result
URI https://biomedit.ch/rdf/sphn-ontology/sphn#PartialResponse

Pathologyni

Class(es)
https://biomedit.ch/rdf/sphn-ontology/sphn#TherapeuticArea_specialtyName
URI https://biomedit.ch/rdf/sphn-ontology/sphn#Pathology

Periodonticsni

Class(es)
https://biomedit.ch/rdf/sphn-ontology/sphn#TherapeuticArea_specialtyName
URI https://biomedit.ch/rdf/sphn-ontology/sphn#Periodontics

Permanent damage or disabilityni

Class(es)
https://biomedit.ch/rdf/sphn-ontology/sphn#AdverseEvent_consequences
URI https://biomedit.ch/rdf/sphn-ontology/sphn#PermanentDamageOrDisability

Pharmaceutical medicineni

Class(es)
https://biomedit.ch/rdf/sphn-ontology/sphn#TherapeuticArea_specialtyName
URI https://biomedit.ch/rdf/sphn-ontology/sphn#PharmaceuticalMedicine

Pharmacyni

Class(es)
https://biomedit.ch/rdf/sphn-ontology/sphn#Location_class
URI https://biomedit.ch/rdf/sphn-ontology/sphn#Pharmacy

Physical filtration systemni

Class(es)
https://biomedit.ch/rdf/sphn-ontology/sphn#Biosample_primaryContainer
URI https://biomedit.ch/rdf/sphn-ontology/sphn#PhysicalFiltrationSystem

Physical medicine and rehabilitationni

Class(es)
https://biomedit.ch/rdf/sphn-ontology/sphn#TherapeuticArea_specialtyName
URI https://biomedit.ch/rdf/sphn-ontology/sphn#PhysicalMedicineAndRehabilitation

Placentani

Class(es)
https://biomedit.ch/rdf/sphn-ontology/sphn#Biosample_materialTypeTissue
URI https://biomedit.ch/rdf/sphn-ontology/sphn#Placenta

Plasma, double spunni

Class(es)
https://biomedit.ch/rdf/sphn-ontology/sphn#Biosample_materialTypeLiquid
URI https://biomedit.ch/rdf/sphn-ontology/sphn#PlasmaDoubleSpun

Plasma, single spunni

Class(es)
https://biomedit.ch/rdf/sphn-ontology/sphn#Biosample_materialTypeLiquid
URI https://biomedit.ch/rdf/sphn-ontology/sphn#PlasmaSingleSpun

Plastic cryo strawni

Class(es)
https://biomedit.ch/rdf/sphn-ontology/sphn#Biosample_storageContainer
URI https://biomedit.ch/rdf/sphn-ontology/sphn#PlasticCryoStraw

Plastic, reconstructive and aesthetic surgeryni

Class(es)
https://biomedit.ch/rdf/sphn-ontology/sphn#TherapeuticArea_specialtyName
URI https://biomedit.ch/rdf/sphn-ontology/sphn#PlasticReconstructiveAndAestheticSurgery

Pleural fluidni

Class(es)
https://biomedit.ch/rdf/sphn-ontology/sphn#Biosample_materialTypeLiquid
URI https://biomedit.ch/rdf/sphn-ontology/sphn#PleuralFluid

Pneumologyni

Class(es)
https://biomedit.ch/rdf/sphn-ontology/sphn#TherapeuticArea_specialtyName
URI https://biomedit.ch/rdf/sphn-ontology/sphn#Pneumology

Polyethylene tube sterileni

Class(es)
https://biomedit.ch/rdf/sphn-ontology/sphn#Biosample_primaryContainer
URI https://biomedit.ch/rdf/sphn-ontology/sphn#PolyethyleneTubeSterile

Polypropylene tube sterileni

Class(es)
https://biomedit.ch/rdf/sphn-ontology/sphn#Biosample_primaryContainer
URI https://biomedit.ch/rdf/sphn-ontology/sphn#PolypropyleneTubeSterile

Potassium EDTAni

Class(es)
https://biomedit.ch/rdf/sphn-ontology/sphn#Biosample_primaryContainer
URI https://biomedit.ch/rdf/sphn-ontology/sphn#PotassiumEDTA

Prevention and public healthni

Class(es)
https://biomedit.ch/rdf/sphn-ontology/sphn#TherapeuticArea_specialtyName
URI https://biomedit.ch/rdf/sphn-ontology/sphn#PreventionAndPublicHealth

principalni

Class(es)
https://biomedit.ch/rdf/sphn-ontology/sphn#FOPHDiagnosis_rank
https://biomedit.ch/rdf/sphn-ontology/sphn#FOPHProcedure_rank
URI https://biomedit.ch/rdf/sphn-ontology/sphn#Principal

Prison-based care siteni

Class(es)
https://biomedit.ch/rdf/sphn-ontology/sphn#Location_class
URI https://biomedit.ch/rdf/sphn-ontology/sphn#PrisonBasedCareSite

Private home-based careni

Class(es)
https://biomedit.ch/rdf/sphn-ontology/sphn#Location_class
URI https://biomedit.ch/rdf/sphn-ontology/sphn#PrivateHomeBasedCare

progressive diseaseni

Class(es)
https://biomedit.ch/rdf/sphn-ontology/sphn#OncologyTreatmentAssessment_result
URI https://biomedit.ch/rdf/sphn-ontology/sphn#ProgressiveDisease

Protease inhibitorsni

Class(es)
https://biomedit.ch/rdf/sphn-ontology/sphn#Biosample_primaryContainer
URI https://biomedit.ch/rdf/sphn-ontology/sphn#ProteaseInhibitors

Psychiatry and psychotherapyni

Class(es)
https://biomedit.ch/rdf/sphn-ontology/sphn#TherapeuticArea_specialtyName
URI https://biomedit.ch/rdf/sphn-ontology/sphn#PsychiatryAndPsychotherapy

Psychotherapyni

Class(es)
https://biomedit.ch/rdf/sphn-ontology/sphn#TherapeuticArea_specialtyName
URI https://biomedit.ch/rdf/sphn-ontology/sphn#Psychotherapy

RECIST 1.0ni

Class(es)
https://biomedit.ch/rdf/sphn-ontology/sphn#OncologyTreatmentAssessment_criteria
URI https://biomedit.ch/rdf/sphn-ontology/sphn#RECIST1dot0

RECIST 1.1ni

Class(es)
https://biomedit.ch/rdf/sphn-ontology/sphn#OncologyTreatmentAssessment_criteria
URI https://biomedit.ch/rdf/sphn-ontology/sphn#RECIST1dot1

RNAni

Class(es)
https://biomedit.ch/rdf/sphn-ontology/sphn#Biosample_materialTypeLiquid
https://biomedit.ch/rdf/sphn-ontology/sphn#Biosample_materialTypeTissue
URI https://biomedit.ch/rdf/sphn-ontology/sphn#RNA

RNA Laterni

Class(es)
https://biomedit.ch/rdf/sphn-ontology/sphn#Biosample_primaryContainer
https://biomedit.ch/rdf/sphn-ontology/sphn#Biosample_fixationType
URI https://biomedit.ch/rdf/sphn-ontology/sphn#RNALater

Radio-oncology and radiotherapyni

Class(es)
https://biomedit.ch/rdf/sphn-ontology/sphn#TherapeuticArea_specialtyName
URI https://biomedit.ch/rdf/sphn-ontology/sphn#RadioOncologyAndRadiotherapy

Radiologyni

Class(es)
https://biomedit.ch/rdf/sphn-ontology/sphn#TherapeuticArea_specialtyName
URI https://biomedit.ch/rdf/sphn-ontology/sphn#Radiology

Reconstructive dentistryni

Class(es)
https://biomedit.ch/rdf/sphn-ontology/sphn#TherapeuticArea_specialtyName
URI https://biomedit.ch/rdf/sphn-ontology/sphn#ReconstructiveDentistry

Recoveredni

Class(es)
https://biomedit.ch/rdf/sphn-ontology/sphn#AdverseEvent_outcome
URI https://biomedit.ch/rdf/sphn-ontology/sphn#Recovered

Recoveringni

Class(es)
https://biomedit.ch/rdf/sphn-ontology/sphn#AdverseEvent_outcome
URI https://biomedit.ch/rdf/sphn-ontology/sphn#Recovering

Recovering with sequelaeni

Class(es)
https://biomedit.ch/rdf/sphn-ontology/sphn#AdverseEvent_outcome
URI https://biomedit.ch/rdf/sphn-ontology/sphn#RecoveringWithSequelae

Red blood cellsni

Class(es)
https://biomedit.ch/rdf/sphn-ontology/sphn#Biosample_materialTypeLiquid
URI https://biomedit.ch/rdf/sphn-ontology/sphn#RedBloodCells

regionalni

Class(es)
https://biomedit.ch/rdf/sphn-ontology/sphn#OncologyTreatmentAssessment_progressionType
URI https://biomedit.ch/rdf/sphn-ontology/sphn#Regional

Rehabilitation hospitalni

Class(es)
https://biomedit.ch/rdf/sphn-ontology/sphn#Location_class
URI https://biomedit.ch/rdf/sphn-ontology/sphn#RehabilitationHospital

Rheumatologyni

Class(es)
https://biomedit.ch/rdf/sphn-ontology/sphn#TherapeuticArea_specialtyName
URI https://biomedit.ch/rdf/sphn-ontology/sphn#Rheumatology

S8820 protease inhibitor tablets or equivalentni

Class(es)
https://biomedit.ch/rdf/sphn-ontology/sphn#Biosample_primaryContainer
URI https://biomedit.ch/rdf/sphn-ontology/sphn#S8820ProteaseInhibitorTabletsOrEquivalent

SPECTni

Class(es)
https://biomedit.ch/rdf/sphn-ontology/sphn#DiagnosticRadiologicExamination_method
URI https://biomedit.ch/rdf/sphn-ontology/sphn#SPECT

Salivani

Class(es)
https://biomedit.ch/rdf/sphn-ontology/sphn#Biosample_materialTypeLiquid
URI https://biomedit.ch/rdf/sphn-ontology/sphn#Saliva

secondaryni

Class(es)
https://biomedit.ch/rdf/sphn-ontology/sphn#FOPHDiagnosis_rank
URI https://biomedit.ch/rdf/sphn-ontology/sphn#Secondary

Semenni

Class(es)
https://biomedit.ch/rdf/sphn-ontology/sphn#Biosample_materialTypeLiquid
URI https://biomedit.ch/rdf/sphn-ontology/sphn#Semen

Serumni

Class(es)
https://biomedit.ch/rdf/sphn-ontology/sphn#Biosample_materialTypeLiquid
URI https://biomedit.ch/rdf/sphn-ontology/sphn#Serum

Serum separator tube with clot activatorni

Class(es)
https://biomedit.ch/rdf/sphn-ontology/sphn#Biosample_primaryContainer
URI https://biomedit.ch/rdf/sphn-ontology/sphn#SerumSeparatorTubeWithClotActivator

Serum tube without clot activatorni

Class(es)
https://biomedit.ch/rdf/sphn-ontology/sphn#Biosample_primaryContainer
URI https://biomedit.ch/rdf/sphn-ontology/sphn#SerumTubeWithoutClotActivator

Site of careni

Class(es)
https://biomedit.ch/rdf/sphn-ontology/sphn#Location_class
URI https://biomedit.ch/rdf/sphn-ontology/sphn#SiteOfCare

Snap freezingni

Class(es)
https://biomedit.ch/rdf/sphn-ontology/sphn#Biosample_fixationType
URI https://biomedit.ch/rdf/sphn-ontology/sphn#SnapFreezing

Sodium citrateni

Class(es)
https://biomedit.ch/rdf/sphn-ontology/sphn#Biosample_primaryContainer
URI https://biomedit.ch/rdf/sphn-ontology/sphn#SodiumCitrate

Sodium EDTAni

Class(es)
https://biomedit.ch/rdf/sphn-ontology/sphn#Biosample_primaryContainer
URI https://biomedit.ch/rdf/sphn-ontology/sphn#SodiumEDTA

Sodium fluoride/potassium oxalateni

Class(es)
https://biomedit.ch/rdf/sphn-ontology/sphn#Biosample_primaryContainer
URI https://biomedit.ch/rdf/sphn-ontology/sphn#SodiumFluoridePotassiumOxalate

Sodium heparinni

Class(es)
https://biomedit.ch/rdf/sphn-ontology/sphn#Biosample_primaryContainer
URI https://biomedit.ch/rdf/sphn-ontology/sphn#SodiumHeparin

Solid tissueni

Class(es)
https://biomedit.ch/rdf/sphn-ontology/sphn#Biosample_materialTypeTissue
URI https://biomedit.ch/rdf/sphn-ontology/sphn#SolidTissue

Sputumni

Class(es)
https://biomedit.ch/rdf/sphn-ontology/sphn#Biosample_materialTypeLiquid
URI https://biomedit.ch/rdf/sphn-ontology/sphn#Sputum

stable diseaseni

Class(es)
https://biomedit.ch/rdf/sphn-ontology/sphn#OncologyTreatmentAssessment_result
URI https://biomedit.ch/rdf/sphn-ontology/sphn#StableDisease

Stoolni

Class(es)
https://biomedit.ch/rdf/sphn-ontology/sphn#Biosample_materialTypeLiquid
URI https://biomedit.ch/rdf/sphn-ontology/sphn#Stool

Stool collection container with DNA stabilizerni

Class(es)
https://biomedit.ch/rdf/sphn-ontology/sphn#Biosample_primaryContainer
URI https://biomedit.ch/rdf/sphn-ontology/sphn#StoolCollectionContainerWithDNAStabilizer

Strawni

Class(es)
https://biomedit.ch/rdf/sphn-ontology/sphn#Biosample_storageContainer
URI https://biomedit.ch/rdf/sphn-ontology/sphn#Straw

supplementaryni

Class(es)
https://biomedit.ch/rdf/sphn-ontology/sphn#FOPHProcedure_rank
URI https://biomedit.ch/rdf/sphn-ontology/sphn#Supplementary

Surgeryni

Class(es)
https://biomedit.ch/rdf/sphn-ontology/sphn#TherapeuticArea_specialtyName
URI https://biomedit.ch/rdf/sphn-ontology/sphn#Surgery

Synovial fluidni

Class(es)
https://biomedit.ch/rdf/sphn-ontology/sphn#Biosample_materialTypeLiquid
URI https://biomedit.ch/rdf/sphn-ontology/sphn#SynovialFluid

Tearsni

Class(es)
https://biomedit.ch/rdf/sphn-ontology/sphn#Biosample_materialTypeLiquid
URI https://biomedit.ch/rdf/sphn-ontology/sphn#Tears

Teethni

Class(es)
https://biomedit.ch/rdf/sphn-ontology/sphn#Biosample_materialTypeTissue
URI https://biomedit.ch/rdf/sphn-ontology/sphn#Teeth

Temporarily serious impact / medically importantni

Class(es)
https://biomedit.ch/rdf/sphn-ontology/sphn#AdverseEvent_consequences
URI https://biomedit.ch/rdf/sphn-ontology/sphn#TemporarilySeriousImpactMedicallyImportant

Tempus® tubeni

Class(es)
https://biomedit.ch/rdf/sphn-ontology/sphn#Biosample_primaryContainer
URI https://biomedit.ch/rdf/sphn-ontology/sphn#TempusTube

Thoracic surgeryni

Class(es)
https://biomedit.ch/rdf/sphn-ontology/sphn#TherapeuticArea_specialtyName
URI https://biomedit.ch/rdf/sphn-ontology/sphn#ThoracicSurgery

Trace elements tubeni

Class(es)
https://biomedit.ch/rdf/sphn-ontology/sphn#Biosample_primaryContainer
URI https://biomedit.ch/rdf/sphn-ontology/sphn#TraceElementsTube

traceable author statementni

Class(es)
https://biomedit.ch/rdf/sphn-ontology/sphn#OncologyTreatmentAssessment_criteria
URI https://biomedit.ch/rdf/sphn-ontology/sphn#TraceableAuthorStatement

Tropical and travel medicineni

Class(es)
https://biomedit.ch/rdf/sphn-ontology/sphn#TherapeuticArea_specialtyName
URI https://biomedit.ch/rdf/sphn-ontology/sphn#TropicalAndTravelMedicine

UNKni

Class(es)
https://biomedit.ch/rdf/sphn-ontology/sphn#Biosample_storageContainer
https://biomedit.ch/rdf/sphn-ontology/sphn#Biosample_primaryContainer
https://biomedit.ch/rdf/sphn-ontology/sphn#Biosample_fixationType
URI https://biomedit.ch/rdf/sphn-ontology/sphn#UNK
Same As https://biomedit.ch/rdf/sphn-ontology/sphn#Unknown

Unknownni

Class(es)
https://biomedit.ch/rdf/sphn-ontology/sphn#AdverseEvent_outcome
https://biomedit.ch/rdf/sphn-ontology/sphn#DrugPrescription_indicationToStart
https://biomedit.ch/rdf/sphn-ontology/sphn#OncologyTreatmentAssessment_progressionType
https://biomedit.ch/rdf/sphn-ontology/sphn#OncologyTreatmentAssessment_result
URI https://biomedit.ch/rdf/sphn-ontology/sphn#Unknown

Urine, first morningni

Class(es)
https://biomedit.ch/rdf/sphn-ontology/sphn#Biosample_materialTypeLiquid
URI https://biomedit.ch/rdf/sphn-ontology/sphn#UrineFirstMorning

Urine, random (“spot”)ni

Class(es)
https://biomedit.ch/rdf/sphn-ontology/sphn#Biosample_materialTypeLiquid
URI https://biomedit.ch/rdf/sphn-ontology/sphn#UrineRandom

Urine, timedni

Class(es)
https://biomedit.ch/rdf/sphn-ontology/sphn#Biosample_materialTypeLiquid
URI https://biomedit.ch/rdf/sphn-ontology/sphn#UrineTimed

Urologyni

Class(es)
https://biomedit.ch/rdf/sphn-ontology/sphn#TherapeuticArea_specialtyName
URI https://biomedit.ch/rdf/sphn-ontology/sphn#Urology

Vacuum technology stabilizationni

Class(es)
https://biomedit.ch/rdf/sphn-ontology/sphn#Biosample_fixationType
URI https://biomedit.ch/rdf/sphn-ontology/sphn#VacuumTechnologyStabilization

Vascular surgeryni

Class(es)
https://biomedit.ch/rdf/sphn-ontology/sphn#TherapeuticArea_specialtyName
URI https://biomedit.ch/rdf/sphn-ontology/sphn#VascularSurgery

Visceral medicineni

Class(es)
https://biomedit.ch/rdf/sphn-ontology/sphn#TherapeuticArea_specialtyName
URI https://biomedit.ch/rdf/sphn-ontology/sphn#VisceralMedicine

X-rayni

Class(es)
https://biomedit.ch/rdf/sphn-ontology/sphn#DiagnosticRadiologicExamination_method
URI https://biomedit.ch/rdf/sphn-ontology/sphn#X-ray

Namespaces

default (:)
https://biomedit.ch/rdf/sphn-ontology/sphn
brick
https://brickschema.org/schema/Brick#
chop
https://biomedit.ch/rdf/sphn-resource/chop/
csvw
http://www.w3.org/ns/csvw#
dc
http://purl.org/dc/elements/1.1/
dcam
http://purl.org/dc/dcam/
dcat
http://www.w3.org/ns/dcat#
dcmitype
http://purl.org/dc/dcmitype/
dcterms
http://purl.org/dc/terms/
doap
http://usefulinc.com/ns/doap#
foaf
http://xmlns.com/foaf/0.1/
icd-10-gm
https://biomedit.ch/rdf/sphn-resource/icd-10-gm/
loinc
https://loinc.org/rdf/
odrl
http://www.w3.org/ns/odrl/2/
org
http://www.w3.org/ns/org#
owl
http://www.w3.org/2002/07/owl#
prof
http://www.w3.org/ns/dx/prof/
prov
http://www.w3.org/ns/prov#
qb
http://purl.org/linked-data/cube#
rdf
http://www.w3.org/1999/02/22-rdf-syntax-ns#
rdfs
http://www.w3.org/2000/01/rdf-schema#
sdo
https://schema.org/
sh
http://www.w3.org/ns/shacl#
skos
http://www.w3.org/2004/02/skos/core#
snomed
http://snomed.info/id/
sosa
http://www.w3.org/ns/sosa/
sphn-atc
https://biomedit.ch/rdf/sphn-resource/atc/
sphn-loinc
https://biomedit.ch/rdf/sphn-resource/loinc/
ssn
http://www.w3.org/ns/ssn/
time
http://www.w3.org/2006/time#
ucum
https://biomedit.ch/rdf/sphn-resource/ucum/
vann
http://purl.org/vocab/vann/
void
http://rdfs.org/ns/void#
xsd
http://www.w3.org/2001/XMLSchema#

Legend

cClasses
opObject Properties
fpFunctional Properties
dpData Properties
dpAnnotation Properties
pProperties
niNamed Individuals
